Canon 600D vs SX430

The Canon EOS 600D (called Canon T3i in some regions) and the Canon PowerShot SX430 IS are two digital cameras that were revealed to the public, respectively, in February 2011 and January 2017. The 600D is a DSLR, while the SX430 is a fixed lens compact. The cameras are based on an APS-C (600D) and a 1/2.3-inch (SX430) sensor. The 600D has a resolution of 17.9 megapixels, whereas the SX430 provides 19.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 600D		Canon SX430
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-1080mm f/3.5-6.6
17.9 MP – APS-C sensor		19.9 MP – 1/2.3" sensor
1080/30p Video		720/25p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-1,600
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 230k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.7 shutter flaps per second		0.5 shutter flaps per second
440 shots per battery charge		195 shots per battery charge
133 x 100 x 80 mm, 570 g		104 x 69 x 85 mm, 323 g

Check 600D offers at
ebay.com
Check SX430 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 600D and the Canon PowerShot SX430 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

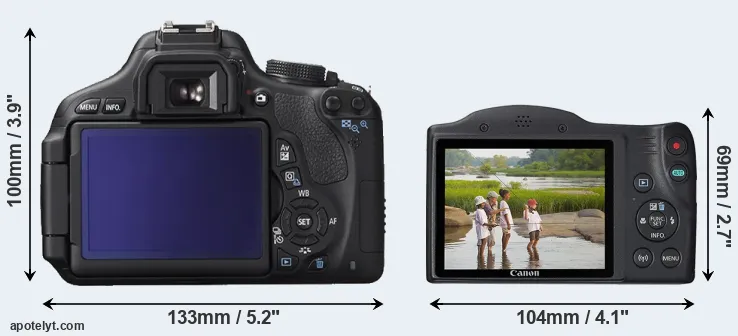

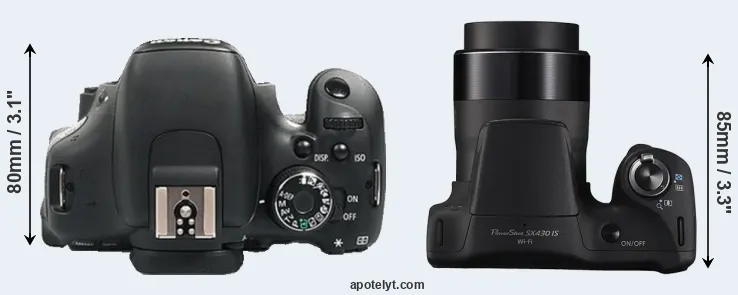

The side-by-side display below illustrates the physical size and weight of the Canon 600D and the Canon SX430. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX430 is considerably smaller (46 percent) than the Canon 600D. In this context, it is worth noting that neither the 600D nor the SX430 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX430 has a lens built in, whereas the 600D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 600D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 600D gets 440 shots out of its Canon LP-E8 battery, while the SX430 can take 195 images on a single charge of its Canon NB-11LH power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
2.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
3.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
5.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
6.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
7.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
8.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
9.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
10.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
11.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
12.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
13.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
14.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
15.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
16.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
17.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX430 was launched at a lower price than the 600D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

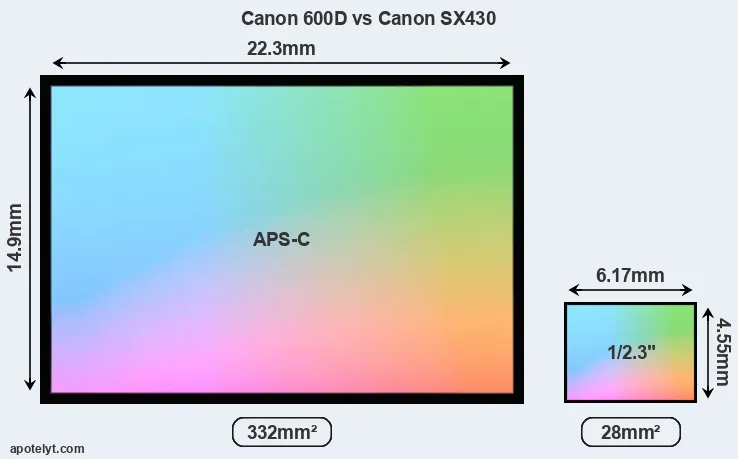

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 600D features an APS-C sensor and the Canon SX430 a 1/2.3-inch sensor. The sensor area in the SX430 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 600D has a native 3:2 aspect ratio, while the one in the SX430 offers a 4:3 aspect.

Technology-wise, the SX430 uses a more advanced image processing engine (DIGIC 4+) than the 600D (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the SX430 offers a higher resolution of 19.9 megapixels, compared with 17.9 MP of the 600D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 4.31μm for the 600D). However, it should be noted that the SX430 is much more recent (by 5 years and 11 months) than the 600D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX430 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS 600D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon PowerShot SX430 IS are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the 600D is build around a CMOS sensor, while the SX430 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
2.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
3.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
5.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
6.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
7.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
8.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
9.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
10.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
12.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
13.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
14.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
15.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
16.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
17.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 600D provides a higher video resolution than the SX430. It can shoot video footage at 1080/30p, while the SX430 is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 600D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX430 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 600D and Canon SX430 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
2.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
3.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
5.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
6.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
13.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
14.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
15.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
16.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
17.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 600D and the SX430 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 600D and Canon PowerShot SX430 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
3.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
5.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
6.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
14.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
15.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
16.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the 600D has a hotshoe, while the SX430 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 600D and the SX430 have been discontinued, but can regularly be found used on ebay. The 600D was replaced by the Canon 650D, while the SX430 does not have a direct successor. Further information on the features and operation of the 600D and SX430 can be found, respectively, in the Canon 600D Manual (free pdf) or the online Canon SX430 Manual.

Review summary

So what conclusions can be drawn? Is the Canon 600D better than the Canon SX430 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS 600D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (1080/30p vs 720/25p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (3.7 vs 0.5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (440 versus 195) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in February 2011).

Advantages of the Canon PowerShot SX430 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC 4).
• Ready to shoot: Comes with an integrated lens, while the 600D requires a separate lens.
• More compact: Is smaller (104x69mm vs 133x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 600D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 11 months of technical progress since the 600D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 600D is the clear winner of the match-up (16 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 600D and the Canon SX430 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 600D and the SX430 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
2.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
3.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
5.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
6.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
7.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
8.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
9.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
10.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
11.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
12.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
13.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
14.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
15.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
16.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
17.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
