Canon 5D Mark IV vs Epson R-D1
The Canon EOS 5D Mark IV and the Epson R-D1 are two digital cameras that were officially introduced, respectively, in August 2016 and March 2004. The 5D Mark IV is a DSLR, while the R-D1 is a rangefinder-focusing mirrorless camera. The cameras are based on a full frame (5D Mark IV) and an APS-C (R-D1) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Epson provides 6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

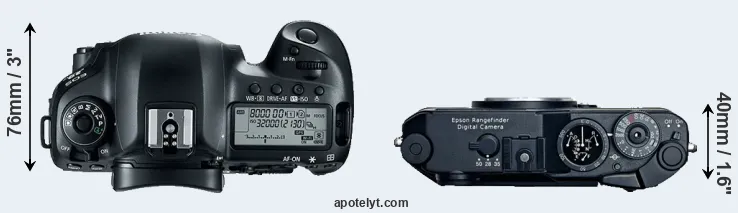

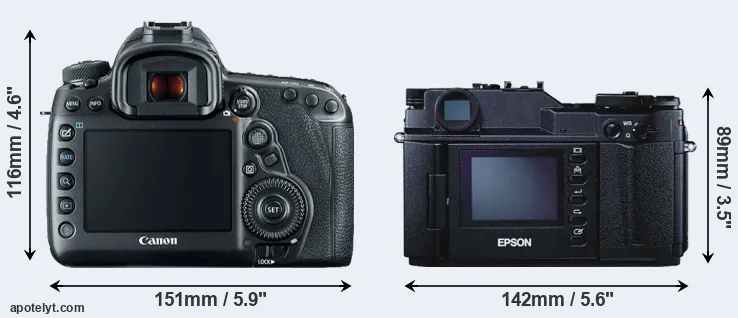

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark IV and the Epson R-D1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is notably smaller (28 percent) than the Canon 5D Mark IV. Moreover, the R-D1 is markedly lighter (30 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the R-D1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Leica M Lens Catalog (R-D1).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 5D Mark IV | 151 mm | 116 mm | 76 mm | 890 g | 900 | Y | Aug 2016 | US$ 3 499 | amazon.com | |
2. | Epson R-D1 | 142 mm | 89 mm | 40 mm | 620 g | .. | n | Mar 2004 | US$ 2 999 | ebay.com | |
3. | Canon 1D X Mark II | 158 mm | 168 mm | 83 mm | 1530 g | 1210 | Y | Feb 2016 | US$ 5 999 | ebay.com | |
4. | Canon 5D Mark II | 152 mm | 114 mm | 75 mm | 850 g | 850 | Y | Sep 2008 | US$ 3 499 | ebay.com | |
5. | Canon 5D Mark III | 152 mm | 116 mm | 76 mm | 950 g | 950 | Y | Mar 2012 | US$ 3 499 | ebay.com | |
6. | Canon 5DS | 152 mm | 116 mm | 76 mm | 930 g | 700 | Y | Feb 2015 | US$ 3 699 | ebay.com | |
7. | Canon 5DS R | 152 mm | 116 mm | 76 mm | 930 g | 700 | Y | Feb 2015 | US$ 3 699 | ebay.com | |
8. | Canon 6D | 145 mm | 111 mm | 71 mm | 770 g | 1090 | Y | Sep 2012 | US$ 2 099 | ebay.com | |
9. | Canon 6D Mark II | 144 mm | 111 mm | 75 mm | 765 g | 1200 | Y | Jun 2017 | US$ 1 999 | amazon.com | |
10. | Canon 80D | 139 mm | 105 mm | 79 mm | 730 g | 960 | Y | Feb 2016 | US$ 1 199 | ebay.com | |
11. | Canon 300D | 142 mm | 99 mm | 72 mm | 649 g | 400 | n | Aug 2003 | US$ 899 | ebay.com | |
12. | Nikon D50 | 133 mm | 102 mm | 76 mm | 620 g | 400 | n | Apr 2005 | US$ 749 | ebay.com | |
13. | Nikon D70 | 140 mm | 111 mm | 78 mm | 679 g | 400 | n | Jan 2004 | US$ 999 | ebay.com | |
14. | Nikon D70s | 140 mm | 111 mm | 78 mm | 679 g | 500 | n | Apr 2005 | US$ 899 | ebay.com | |
15. | Nikon D810 | 146 mm | 123 mm | 82 mm | 980 g | 1200 | Y | Jun 2014 | US$ 3 299 | ebay.com | |
16. | Nikon D850 | 146 mm | 124 mm | 79 mm | 1005 g | 1840 | Y | Jul 2017 | US$ 3 299 | amazon.com | |
17. | Olympus E-300 | 147 mm | 85 mm | 64 mm | 624 g | 750 | n | Sep 2004 | US$ 799 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The R-D1 was launched at a somewhat lower price (by 14 percent) than the 5D Mark IV, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison

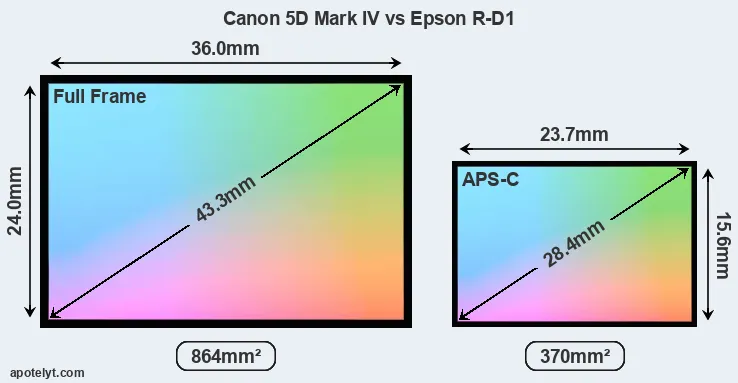

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Epson R-D1 an APS-C sensor. The sensor area in the R-D1 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

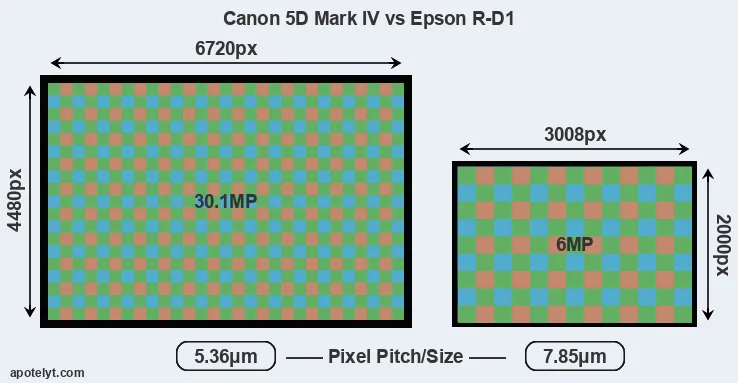

With 30.1MP, the 5D Mark IV offers a higher resolution than the R-D1 (6MP), but the 5D Mark IV has smaller individual pixels (pixel pitch of 5.36μm versus 7.85μm for the R-D1). However, the 5D Mark IV is a much more recent model (by 12 years and 5 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).
In terms of underlying technology, the 5D Mark IV is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 5D Mark IV | Full Frame | 30.1 | 6720 | 4480 | 4K/30p | 24.8 | 13.6 | 2995 | 91 | |
2. | Epson R-D1 | APS-C | 6.0 | 3008 | 2000 | none | 21.1 | 10.4 | 564 | 55 | |
3. | Canon 1D X Mark II | Full Frame | 20.0 | 5472 | 3648 | 4K/60p | 24.1 | 13.5 | 3207 | 88 | |
4. | Canon 5D Mark II | Full Frame | 21.0 | 5616 | 3744 | 1080/30p | 23.7 | 11.9 | 1815 | 79 | |
5. | Canon 5D Mark III | Full Frame | 22.1 | 5760 | 3840 | 1080/30p | 24.0 | 11.7 | 2293 | 81 | |
6. | Canon 5DS | Full Frame | 50.3 | 8688 | 5792 | 1080/30p | 24.7 | 12.4 | 2381 | 87 | |
7. | Canon 5DS R | Full Frame | 50.3 | 8688 | 5792 | 1080/30p | 24.6 | 12.4 | 2308 | 86 | |
8. | Canon 6D | Full Frame | 20.0 | 5472 | 3648 | 1080/30p | 23.8 | 12.1 | 2340 | 82 | |
9. | Canon 6D Mark II | Full Frame | 26.0 | 6240 | 4160 | 1080/60p | 24.4 | 11.9 | 2862 | 85 | |
10. | Canon 80D | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.2 | 1135 | 79 | |
11. | Canon 300D | APS-C | 6.3 | 3072 | 2048 | none | 21.0 | 10.8 | 544 | 55 | |
12. | Nikon D50 | APS-C | 6.0 | 3008 | 2000 | none | 20.9 | 10.8 | 560 | 55 | |
13. | Nikon D70 | APS-C | 6.0 | 3008 | 2000 | none | 20.4 | 10.3 | 529 | 50 | |
14. | Nikon D70s | APS-C | 6.0 | 3008 | 2000 | none | 20.4 | 10.3 | 529 | 50 | |
15. | Nikon D810 | Full Frame | 36.2 | 7360 | 4912 | 1080/60p | 25.7 | 14.8 | 2853 | 97 | |
16. | Nikon D850 | Full Frame | 45.4 | 8256 | 5504 | 4K/30p | 26.4 | 14.8 | 2660 | 100 | |
17. | Olympus E-300 | Four Thirds | 8.0 | 3264 | 2448 | none | 20.4 | 10.1 | -40 | 48 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 5D Mark IV indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. The 5D Mark IV and the R-D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 5D Mark IV and Epson R-D1 along with similar information for a selection of comparators.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 5D Mark IV | optical | Y | 3.2 / 1620 | fixed | Y | 1/8000s | 7.0/s | n | n | |
2. | Epson R-D1 | optical | n | 2.0 / 235 | fixed | n | 1/2000s | 1.0/s | n | n | |
3. | Canon 1D X Mark II | optical | Y | 3.2 / 1620 | fixed | Y | 1/8000s | 16.0/s | n | n | |
4. | Canon 5D Mark II | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 3.9/s | n | n | |
5. | Canon 5D Mark III | optical | Y | 3.2 / 1040 | fixed | n | 1/8000s | 6.0/s | n | n | |
6. | Canon 5DS | optical | Y | 3.2 / 1040 | fixed | n | 1/8000s | 5.0/s | n | n | |
7. | Canon 5DS R | optical | Y | 3.2 / 1040 | fixed | n | 1/8000s | 5.0/s | n | n | |
8. | Canon 6D | optical | Y | 3.0 / 1040 | fixed | n | 1/4000s | 4.5/s | n | n | |
9. | Canon 6D Mark II | optical | Y | 3.0 / 1040 | swivel | Y | 1/4000s | 6.5/s | n | n | |
10. | Canon 80D | optical | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 7.0/s | Y | n | |
11. | Canon 300D | optical | n | 1.8 / 118 | fixed | n | 1/4000s | 2.5/s | Y | n | |
12. | Nikon D50 | optical | n | 2.0 / 130 | fixed | n | 1/4000s | 2.5/s | Y | n | |
13. | Nikon D70 | optical | n | 1.8 / 130 | fixed | n | 1/8000s | 3.0/s | Y | n | |
14. | Nikon D70s | optical | n | 2.0 / 130 | fixed | n | 1/8000s | 3.0/s | Y | n | |
15. | Nikon D810 | optical | Y | 3.2 / 1229 | fixed | n | 1/8000s | 5.0/s | Y | n | |
16. | Nikon D850 | optical | Y | 3.2 / 2359 | tilting | Y | 1/8000s | 9.0/s | n | n | |
17. | Olympus E-300 | optical | n | 1.8 / 134 | fixed | n | 1/4000s | 2.5/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One feature that is present on the 5D Mark IV, but is missing on the R-D1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the R-D1 uses SDHC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the R-D1 only has one slot. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 5D Mark IV | Y | mono / mono | Y | Y | mini | 3.0 | Y | Y | - | |
2. | Epson R-D1 | Y | - / - | - | - | - | - | - | - | - | |
3. | Canon 1D X Mark II | Y | mono / mono | Y | Y | mini | 3.0 | - | - | - | |
4. | Canon 5D Mark II | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
5. | Canon 5D Mark III | Y | mono / mono | Y | Y | mini | 2.0 | - | - | - | |
6. | Canon 5DS | Y | mono / mono | Y | - | mini | 3.0 | - | - | - | |
7. | Canon 5DS R | Y | mono / mono | Y | - | mini | 3.0 | - | - | - | |
8. | Canon 6D | Y | mono / mono | Y | - | mini | 2.0 | Y | - | - | |
9. | Canon 6D Mark II | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
10. | Canon 80D | Y | stereo / mono | Y | Y | mini | 2.0 | Y | Y | - | |
11. | Canon 300D | Y | - / - | - | - | - | 1.1 | - | - | - | |
12. | Nikon D50 | Y | - / - | - | - | - | 2.0 | - | - | - | |
13. | Nikon D70 | Y | - / - | - | - | - | 1.0 | - | - | - | |
14. | Nikon D70s | Y | - / - | - | - | - | 2.0 | - | - | - | |
15. | Nikon D810 | Y | stereo / mono | Y | Y | mini | 3.0 | Y | - | - | |
16. | Nikon D850 | Y | stereo / mono | Y | Y | mini | 3.0 | Y | Y | Y | |
17. | Olympus E-300 | Y | - / - | - | - | - | 2.0 | - | - | - |
It is notable that the 5D Mark IV offers wifi support, while the R-D1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the R-D1 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the R-D1 from Epson. Further information on the features and operation of the 5D Mark IV and R-D1 can be found, respectively, in the Canon 5D Mark IV Manual (free pdf) or the online Epson R-D1 Manual.
Review summary
So how do things add up? Is there a clear favorite between the Canon 5D Mark IV and the Epson R-D1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 6MP) with a 124% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 235k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 1 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 12 years and 5 months of technical progress since the R-D1 launch.
Arguments in favor of the Epson R-D1:
- More compact: Is smaller (142x89mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 270g or 30 percent) and is thus easier to take along.
- More affordable: Was released into a lower priced segment (14 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2004).
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark IV is the clear winner of the match-up (21 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D Mark IV and the R-D1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 5D Mark IV | 4.5/5 | + + | 4/5 | 87/100 | 4.5/5 | 4.5/5 | Aug 2016 | US$ 3 499 | amazon.com | |
2. | Epson R-D1 | .. | .. | .. | .. | .. | .. | Mar 2004 | US$ 2 999 | ebay.com | |
3. | Canon 1D X Mark II | .. | .. | 4.5/5 | 89/100 | 4.5/5 | 4.5/5 | Feb 2016 | US$ 5 999 | ebay.com | |
4. | Canon 5D Mark II | 4/5 | 91/100 | .. | 79/100 | 4/5 | .. | Sep 2008 | US$ 3 499 | ebay.com | |
5. | Canon 5D Mark III | .. | + + | .. | 82/100 | 4.5/5 | 4.5/5 | Mar 2012 | US$ 3 499 | ebay.com | |
6. | Canon 5DS | .. | + | .. | 83/100 | 4.5/5 | 4.5/5 | Feb 2015 | US$ 3 699 | ebay.com | |
7. | Canon 5DS R | 5/5 | + | .. | 83/100 | 5/5 | 4.5/5 | Feb 2015 | US$ 3 699 | ebay.com | |
8. | Canon 6D | 5/5 | + + | .. | 83/100 | 4.5/5 | 4.5/5 | Sep 2012 | US$ 2 099 | ebay.com | |
9. | Canon 6D Mark II | 4/5 | + | 4/5 | 80/100 | 4.5/5 | 4/5 | Jun 2017 | US$ 1 999 | amazon.com | |
10. | Canon 80D | 4/5 | + + | 4.5/5 | 84/100 | 4.5/5 | 4.5/5 | Feb 2016 | US$ 1 199 | ebay.com | |
11. | Canon 300D | .. | .. | .. | + + | .. | .. | Aug 2003 | US$ 899 | ebay.com | |
12. | Nikon D50 | .. | 78/100 | .. | + + | 4/5 | 4.5/5 | Apr 2005 | US$ 749 | ebay.com | |
13. | Nikon D70 | .. | .. | .. | + + | .. | .. | Jan 2004 | US$ 999 | ebay.com | |
14. | Nikon D70s | .. | .. | .. | .. | .. | 5/5 | Apr 2005 | US$ 899 | ebay.com | |
15. | Nikon D810 | 5/5 | .. | 5/5 | 86/100 | 5/5 | 4.5/5 | Jun 2014 | US$ 3 299 | ebay.com | |
16. | Nikon D850 | 4.5/5 | + + | 5/5 | 89/100 | 4.5/5 | 5/5 | Jul 2017 | US$ 3 299 | amazon.com | |
17. | Olympus E-300 | .. | .. | .. | + | o | 4.5/5 | Sep 2004 | US$ 799 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 5D Mark IV vs Canon 800D
- Canon 5D Mark IV vs Nikon D2Xs
- Canon 5D Mark IV vs Nikon Df
- Canon 5D Mark IV vs Nikon Z7
- Canon 5D Mark IV vs Olympus E-500
- Canon 5D Mark IV vs Sony A5100
- Epson R-D1 vs Nikon D5200
- Epson R-D1 vs Olympus E-600
- Epson R-D1 vs Panasonic GX9
- Epson R-D1 vs Pentax K-1 II
- Epson R-D1 vs Sigma fp
- Epson R-D1 vs Sony NEX-F3
Specifications: Canon 5D Mark IV vs Epson R-D1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon 5D Mark IV | Epson R-D1 |
---|---|---|
Camera Type | Digital single lens reflex | Rangefinder camera |
Camera Lens | Canon EF mount lenses | Leica M mount lenses |
Launch Date | August 2016 | March 2004 |
Launch Price | USD 3,499 | USD 2,999 |
Sensor Specs | Canon 5D Mark IV | Epson R-D1 |
Sensor Technology | CMOS | CCD |
Sensor Format | Full Frame Sensor | APS-C Sensor |
Sensor Size | 36.0 x 24.0 mm | 23.7 x 15.6 mm |
Sensor Area | 864 mm2 | 369.72 mm2 |
Sensor Diagonal | 43.3 mm | 28.4 mm |
Crop Factor | 1.0x | 1.5x |
Sensor Resolution | 30.1 Megapixels | 6 Megapixels |
Image Resolution | 6720 x 4480 pixels | 3008 x 2000 pixels |
Pixel Pitch | 5.36 μm | 7.85 μm |
Pixel Density | 3.48 MP/cm2 | 1.63 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 4K/30p Video | no Video |
ISO Setting | 100 - 32,000 ISO | 200 - 1,600 ISO |
ISO Boost | 50 - 102,400 ISO | no Enhancement |
DXO Sensor Quality (score) | 91 | .. |
DXO Color Depth (bits) | 24.8 | .. |
DXO Dynamic Range (EV) | 13.6 | .. |
DXO Low Light (ISO) | 2995 | .. |
Screen Specs | Canon 5D Mark IV | Epson R-D1 |
Viewfinder Type | Optical viewfinder | Optical viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.71x | |
Top-Level Screen | Control Panel | no Top Display |
LCD Framing | Live View | |
Rear LCD Size | 3.2inch | 2.0inch |
LCD Resolution | 1620k dots | 235k dots |
LCD Attachment | Fixed screen | Fixed screen |
Touch Input | Touchscreen | no Touchscreen |
Shooting Specs | Canon 5D Mark IV | Epson R-D1 |
Focus System | Phase-detect AF | Manual Focus |
Continuous Shooting | 7 shutter flaps/s | 1 shutter flaps/s |
Time-Lapse Photography | Intervalometer built-in | no Intervalometer |
Fill Flash | no On-Board Flash | no On-Board Flash |
Storage Medium | CF or SDXC cards | SDHC cards |
Single or Dual Card Slots | Dual card slots | Single card slot |
UHS card support | UHS-I | no |
Connectivity Specs | Canon 5D Mark IV | Epson R-D1 |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | PC Sync socket |
USB Connector | USB 3.0 | no USB |
HDMI Port | mini HDMI | no HDMI |
Microphone Port | External MIC port | no MIC socket |
Headphone Socket | Headphone port | no Headphone port |
Wifi Support | Wifi built-in | no Wifi |
Near-Field Communication | NFC built-in | no NFC |
Geotagging | GPS built-in | no internal GPS |
Body Specs | Canon 5D Mark IV | Epson R-D1 |
Environmental Sealing | Weathersealed body | not weather sealed |
Battery Type | Canon LP-E6N | Epson EU-85 |
Body Dimensions |
151 x 116 x 76 mm (5.9 x 4.6 x 3.0 in) |
142 x 89 x 40 mm (5.6 x 3.5 x 1.6 in) |
Camera Weight | 890 g (31.4 oz) | 620 g (21.9 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
