Canon 5D Mark IV vs XC10

The Canon EOS 5D Mark IV and the Canon XC10 are two digital cameras that were officially introduced, respectively, in August 2016 and April 2015. The 5D Mark IV is a DSLR, while the XC10 is a fixed lens compact. The cameras are based on a full frame (5D Mark IV) and an one-inch (XC10) sensor. The 5D Mark IV has a resolution of 30.1 megapixels, whereas the XC10 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark IV		Canon XC10
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-240mm f/2.8-5.6
30.1 MP – Full Frame sensor		12 MP – 1" sensor
4K/30p Video		4K/30p Video
ISO 100-32,000 (50 - 102,400)		ISO 160-20,000
Optical viewfinder		No viewfinder, LCD framing
3.2" LCD – 1620k dots		3.0" LCD – 1030k dots
Fixed touchscreen		Tilting touchscreen
7 shutter flaps per second		3.8 shutter flaps per second
Weathersealed body		not weather sealed
900 shots per battery charge		370 shots per battery charge
151 x 116 x 76 mm, 890 g		125 x 102 x 122 mm, 1040 g

Check 5D Mark IV price at
amazon.com
Check XC10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Canon XC10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

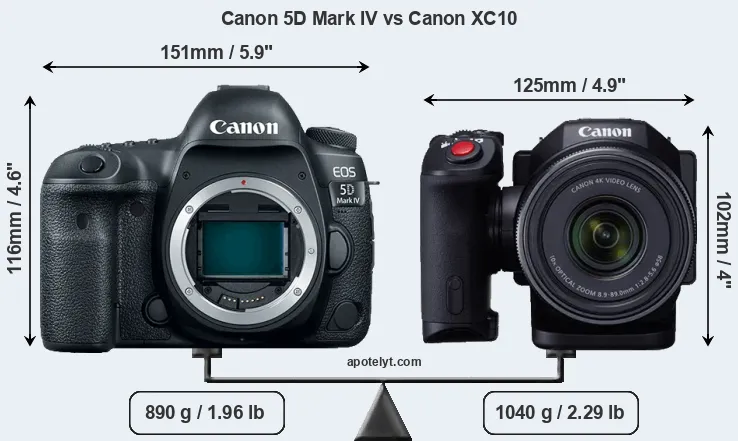

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark IV and the Canon XC10. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XC10 is notably smaller (27 percent) than the Canon 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the XC10 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the 5D Mark IV is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D Mark IV and their specifications in the Canon EF Lens Catalog.

The power pack in the XC10 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
2.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
5.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
6.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
7.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
8.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
9.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
10.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
11.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
12.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
13.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
14.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
15.		Nikon D800	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	US$ 2 999	ebay.com
16.		Nikon D800E	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	US$ 3 299	ebay.com
17.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	US$ 3 299	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XC10 was launched at a lower price than the 5D Mark IV, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Canon XC10 an one-inch sensor. The sensor area in the XC10 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.75. The sensor in the 5D Mark IV has a native 3:2 aspect ratio, while the one in the XC10 offers a 4:3 aspect.

With 30.1MP, the 5D Mark IV offers a higher resolution than the XC10 (12MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 3.20μm for the XC10) due to its larger sensor. Moreover, the 5D Mark IV is a somewhat more recent model (by 1 year and 4 months) than the XC10, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Canon XC10 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon XC10 are ISO 160 to ISO 20000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
2.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
5.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
6.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
7.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
8.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
9.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
10.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
11.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
12.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
13.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
14.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
15.		Nikon D800	Full Frame	36.2	7360	4912	1080/30p	25.3	14.4	2853	95
16.		Nikon D800E	Full Frame	36.2	7360	4912	1080/30p	25.6	14.3	2979	96
17.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5D Mark IV has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 5D Mark IV and Canon XC10 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
2.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
5.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
6.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
7.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
8.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
9.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
10.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
11.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
12.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
13.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
14.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
15.		Nikon D800	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
16.		Nikon D800E	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
17.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D Mark IV, but is missing on the XC10 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 5D Mark IV and the Canon XC10 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the XC10 uses CFast or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Canon XC10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
2.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
7.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
8.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
9.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Nikon D800	Y	mono / mono	Y	Y	mini	3.0	-	-	-
16.		Nikon D800E	Y	mono / mono	Y	Y	mini	3.0	-	-	-
17.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y

Studio photographers will appreciate that the Canon 5D Mark IV (unlike the XC10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the XC10 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the XC10 was succeeded by the Canon XC15. Further information on the features and operation of the 5D Mark IV and XC10 can be found, respectively, in the Canon 5D Mark IV Manual (free pdf) or the online Canon XC10 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 5D Mark IV and the Canon XC10? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS 5D Mark IV:

• More detail: Offers more megapixels (30.1 vs 12MP) with a 62% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1030k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 3.8 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (900 versus 370) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More modern: Is somewhat more recent (announced 1 year and 4 months after the XC10).

Advantages of the Canon XC10:

• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Ready to shoot: Comes with an integrated lens, while the 5D Mark IV requires a separate lens.
• More compact: Is smaller (125x102mm vs 151x116mm) and will fit more readily into a bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in April 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (19 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Canon XC10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 5D Mark IV or the XC10 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
2.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
5.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
6.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
7.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
8.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
9.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
10.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
11.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
12.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
13.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
14.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
15.		Nikon D800	5/5	+ +	..	82/100	5/5	5/5	Feb 2012	US$ 2 999	ebay.com
16.		Nikon D800E	..	..	..	84/100	5/5	5/5	Feb 2012	US$ 3 299	ebay.com
17.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	US$ 3 299	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check 5D Mark IV price at
amazon.com
Check XC10 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check 5D Mark IV price at
amazon.com
Check XC10 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
