Canon 5D Mark III vs 5D Mark IV

The Canon EOS 5D Mark III and the Canon EOS 5D Mark IV are two professional cameras that were officially introduced, respectively, in March 2012 and August 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The 5D Mark III has a resolution of 22.1 megapixels, whereas the 5D Mark IV provides 30.1 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.

Headline Specifications
Canon 5D Mark III   Canon 5D Mark IV
Canon 5D Mark III Canon 5D Mark IV
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
22.1 MP, Full Frame Sensor 30.1 MP, Full Frame Sensor
1080/30p Video 4K/30p Video
ISO 100-25600 (50-102400) ISO 100-32000 (50-102400)
Optical viewfinder Optical viewfinder
3.2" LCD, 1040k dots 3.2" LCD, 1620k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
6 shutter flaps per second 7 shutter flaps per second
Weathersealed bodyWeathersealed body
950 shots per battery charge900 shots per battery charge
152 x 116 x 76 mm, 950 g 151 x 116 x 76 mm, 890 g

Body comparison: Canon 5D Mark III vs 5D Mark IV

An illustration of the physical size and weight of the Canon 5D Mark III and the Canon 5D Mark IV is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

Compare Canon 5D Mark III and Canon 5D Mark IV

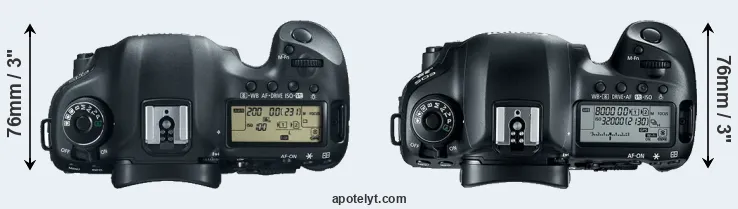

Compare 5D Mark III versus 5D Mark IV top
Compare 5D Mark III or 5D Mark IV rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark III and the Canon 5D Mark IV are of equal size. However, the 5D Mark IV is markedly lighter (6 percent) than the 5D Mark III. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 5D Mark III gets 950 shots out of its LP-E6 battery, while the 5D Mark IV can take 900 images on a single charge of its LP-E6N power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 5D Mark III» 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III

Canon 5D Mark IV« 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV

Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II

Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II

Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS

Canon 5DS R« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS R

Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D

Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II

Canon 5D« » 6.0 in 4.4 in 3.0 in 31.6 oz 400 Y Aug 2005 3,299- i Canon 5D

Nikon D610« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Oct 2013 1,999 i i Nikon D610

Nikon D600« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Sep 2012 2,099- i Nikon D600

Nikon D800« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 2,999- i Nikon D800

Nikon D800E« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 3,299- i Nikon D800E

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 5D Mark III vs 5D Mark IV

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 5D Mark IV uses a more advanced image processing engine (DIGIC 6+) than the 5D Mark III (DIGIC 5+), with benefits for noise reduction, color accuracy, and processing speed.

Canon 5D Mark III and Canon 5D Mark IV sensor measures

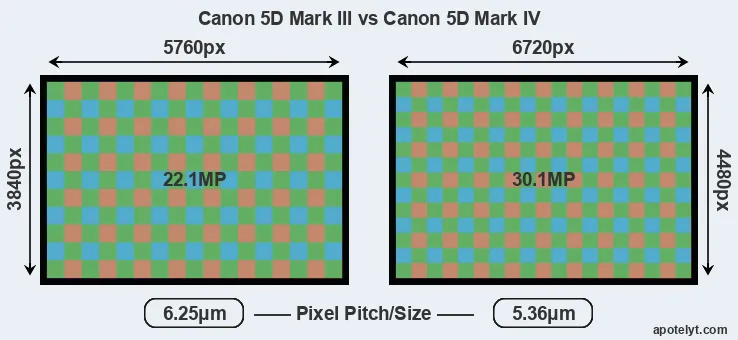

While the two cameras under review share the same sensor size, the 5D Mark IV offers a higher resolution of 30.1 megapixels, compared with 22.1 MP of the 5D Mark III. This megapixels advantage translates into a 17 percent gain in linear resolution. On the other hand, these sensor specs imply that the 5D Mark IV has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.36μm versus 6.25μm for the 5D Mark III). However, it should be noted that the 5D Mark IV is much more recent (by 4 years and 5 months) than the 5D Mark III, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during video recording.

The Canon EOS 5D Mark III has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS 5D Mark IV are ISO 100 to ISO 32000, with the possibility to increase the ISO range to 50-102400..

5D Mark III versus 5D Mark IV MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 5D Mark IV has a markedly higher DXO score than the 5D Mark III (overall score 10 points higher), which will translate into better image quality. The advantage is based on 0.8 bits higher color depth, 1.9 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 5D Mark III» Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III

Canon 5D Mark IV« Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV

Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II

Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II

Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS

Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R

Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D

Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II

Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D

Nikon D610« » Full Frame 24.2 6016 40161080/30p25.114.4292594Nikon D610

Nikon D600« » Full Frame 24.2 6016 40161080/30p25.114.2298094Nikon D600

Nikon D800« » Full Frame 36.2 7360 49121080/30p25.314.4285395Nikon D800

Nikon D800E« » Full Frame 36.2 7360 49121080/30p25.614.3297996Nikon D800E

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 5D Mark IV provides a better video resolution than the 5D Mark III. It can shoot movie footage at 4K/30p, while the 5D Mark III is limited to 1080/30p.



Feature comparison: Canon 5D Mark III vs 5D Mark IV

Beyond body and sensor, cameras can and do differ across a range of features. The 5D Mark III and the 5D Mark IV are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), as well as the same magnification (0.71x). The adjacent table lists some of the other core features of the Canon 5D Mark III and Canon 5D Mark IV along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 5D Mark III»optical Y 3.2 1040 fixed n 1/8000s 6.0 n n Canon 5D Mark III

Canon 5D Mark IV«optical Y 3.2 1620 fixed Y 1/8000s 7.0 n n Canon 5D Mark IV

Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 1/4000s 6.5 n n Canon 6D Mark II

Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 1/8000s 16.0 n n Canon 1D X Mark II

Canon 5DS« »optical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS

Canon 5DS R« »optical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS R

Canon 6D« »optical Y 3.0 1040 fixed n 1/4000s 4.5 n n Canon 6D

Canon 5D Mark II« »optical Y 3.0 920 fixed n 1/8000s 3.9 n n Canon 5D Mark II

Canon 5D« »optical Y 2.5 230 fixed n 1/8000s 3.0 n n Canon 5D

Nikon D610« »optical Y 3.2 921 fixed n 1/4000s 6.0 Y n Nikon D610

Nikon D600« »optical Y 3.0 921 fixed n 1/4000s 5.5 Y n Nikon D600

Nikon D800« »optical Y 3.2 921 fixed n 1/8000s 4.0 Y n Nikon D800

Nikon D800E« »optical Y 3.2 921 fixed n 1/8000s 4.0 Y n Nikon D800E

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 5D Mark IV has a touchscreen, while the 5D Mark III has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark III writes its imaging data to Compact Flash cards, while the 5D Mark IV uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.



Connectivity comparison: Canon 5D Mark III vs 5D Mark IV

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark III and Canon EOS 5D Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 5D Mark III»YmonomonoYYmini2.0---Canon 5D Mark III

Canon 5D Mark IV«YmonomonoYYmini3.0YY-Canon 5D Mark IV

Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II

Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II

Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS

Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R

Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D

Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II

Canon 5D« »Y-----2.0---Canon 5D

Nikon D610« »YmonomonoYYmini2.0---Nikon D610

Nikon D600« »YmonomonoYYmini2.0---Nikon D600

Nikon D800« »YmonomonoYYmini3.0---Nikon D800

Nikon D800E« »YmonomonoYYmini3.0---Nikon D800E

It is notable that the 5D Mark IV offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark III does not offer wifi capability.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the 5D Mark III has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 5D Mark III was succeeded by the Canon 5D Mark IV. Further information on the two cameras, as well as related accessories, can be found on the official Canon website.


Review summary: Canon 5D Mark III vs 5D Mark IV

So what conclusions can be drawn? Is there a clear favorite between the Canon 5D Mark III and the Canon 5D Mark IV? Below is a summary of the relative strengths of each of the two contestants.


Advantages of the Canon EOS 5D Mark III:

  • More heavily discounted: Has been available for much longer (launched in March 2012).


Arguments in favor of the Canon EOS 5D Mark IV:

  • More detail: Has more megapixels (30.1 vs 22.1MP), which boosts linear resolution by 17%.
  • Better image quality: Scores markedly higher (10 points) in the DXO overall evaluation.
  • More dynamic range: Captures a broader range of light and dark details (1.9 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (DIGIC 6+ vs DIGIC 5+).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (7 vs 6 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More modern: Reflects 4 years and 5 months of technical progress since the 5D Mark III launch.

If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the contest (15 : 1 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

5D Mark III 01:15 5D Mark IV

Do the specifications of the Canon 5D Mark III and the Canon 5D Mark IV place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark III or the 5D Mark IV. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews: Canon 5D Mark III vs 5D Mark IV

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 5D Mark III»++82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III

Canon 5D Mark IV«++87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV

Canon 6D Mark II« »+80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II

Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II

Canon 5DS« »+83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS

Canon 5DS R« »+83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R

Canon 6D« »++83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D

Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II

Canon 5D« »88/100++oo- Aug 2005 3,299- i Canon 5D

Nikon D610« »++87/1004.5/54.5/54.5/5 Oct 2013 1,999 i i Nikon D610

Nikon D600« »++87/1005/54.5/54.5/5 Sep 2012 2,099- i Nikon D600

Nikon D800« »++82/1005/55/55/5 Feb 2012 2,999- i Nikon D800

Nikon D800E« »-84/1005/54.5/55/5 Feb 2012 3,299- i Nikon D800E
Notes: ++) highly recommended; +) recommended; o) reviewed; -) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon 5D Mark III:
Check Ebay offers
Canon 5D Mark IV:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon 5D Mark III vs Canon 5D Mark IV

    Camera Specifications
    Camera Model Canon 5D Mark III Canon 5D Mark IV
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date March 2012 August 2016
    Launch Price USD 3499 USD 3499
    Sensor Specs Canon 5D Mark III Canon 5D Mark IV
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 36.0 x 24.0 mm 36.0 x 24.0 mm
    Sensor Area 864 mm2 864 mm2
    Sensor Diagonal 43.3 mm 43.3 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 22.1 Megapixels 30.1 Megapixels
    Image Resolution 5760 x 3840 pixels 6720 x 4480 pixels
    Pixel Pitch 6.25 μm 5.36 μm
    Pixel Density 2.56 MP/cm2 3.48 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100-25600 ISO 100-32000 ISO
    ISO Boost 50-102400 ISO 50-102400 ISO
    Image Processor DIGIC 5+ DIGIC 6+
    DXO Sensor Quality (score) 81 91
    DXO Color Depth (bits) 24.0 24.8
    DXO Dynamic Range (EV) 11.7 13.6
    DXO Low Light (ISO) 2293 2995
    Screen Specs Canon 5D Mark III Canon 5D Mark IV
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.71x 0.71x
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.2 inch
    LCD Resolution 1040k dots 1620k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 5D Mark III Canon 5D Mark IV
    Autofocus System Phase-detect AF Phase-detect AF
    Continuous Shooting 6 shutter flaps/s 7 shutter flaps/s
    Shutter Life Expectancy150 000 actuations150 000 actuations
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CF cards CF or SDXC cards
    Second Storage Option Dual card slots Dual card slots
    Connectivity Specs Canon 5D Mark III Canon 5D Mark IV
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 2.0 USB 3.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Geotagging GPS built-in
    Body Specs Canon 5D Mark III Canon 5D Mark IV
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type LP-E6 power pack LP-E6N power pack
    Battery Life (CIPA)950 shots per charge900 shots per charge
    Body Dimensions 152 x 116 x 76 mm
    (6.0 x 4.6 x 3.0 in)
    151 x 116 x 76 mm
    (5.9 x 4.6 x 3.0 in)
    Camera Weight 950 g (33.5 oz) 890 g (31.4 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
