Canon 5D Mark III vs Leica S2

The Canon EOS 5D Mark III and the Leica S2 are two professional cameras that were announced, respectively, in March 2012 and September 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark III) and a medium format (S2) sensor. The Canon has a resolution of 22.1 megapixels, whereas the Leica provides 37.5 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark III		Leica S2
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Leica S mount lenses
22.1 MP – Full Frame sensor		37.5 MP – Medium Format sensor
1080/30p Video		no Video
ISO 100-25,600 (50 - 102,400)		ISO 80-1,250
Optical viewfinder		Optical viewfinder
3.2" LCD – 1040k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
6 shutter flaps per second		1.5 shutter flaps per second
Weathersealed body		Weathersealed body
152 x 116 x 76 mm, 950 g		160 x 120 x 80 mm, 1410 g

Check 5D Mark III offers at
ebay.com
Check S2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark III and the Leica S2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 5D Mark III and the Leica S2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S2 is notably larger (9 percent) than the Canon 5D Mark III. Moreover, the S2 is substantially heavier (48 percent) than the 5D Mark III. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 5D Mark III gets 950 shots out of its Canon LP-E6 battery, while the S2 can take .. images on a single charge of its Leica BP-PRO1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
2.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	22,995	ebay.com
3.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	3,499	amazon.com
4.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
5.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
6.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
7.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
8.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	3,299	ebay.com
9.		Leica S3	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2018	18,995	ebay.com
10.		Leica S-E Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	16,900	ebay.com
11.		Leica S Typ 007	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	24,490	ebay.com
12.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	21,950	ebay.com
13.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	21,490	ebay.com
14.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	1,999	ebay.com
15.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	2,099	ebay.com
16.		Nikon D800	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	2,999	ebay.com
17.		Nikon D800E	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	3,299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 5D Mark III was launched at a markedly lower price (by 85 percent) than the S2, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

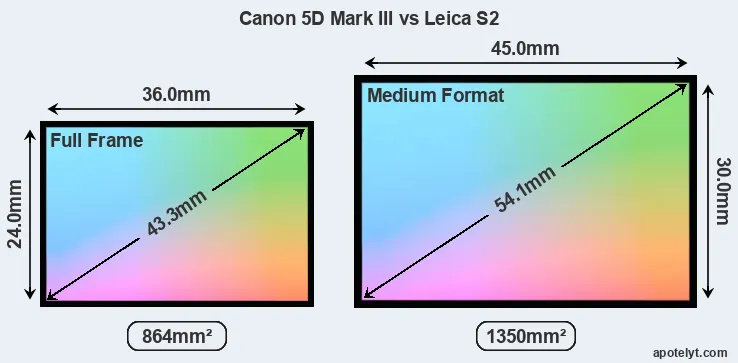

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 5D Mark III features a full frame sensor and the Leica S2 a medium format sensor. The sensor area in the S2 is 56 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 37.5MP, the S2 offers a higher resolution than the 5D Mark III (22.1MP), but the S2 has smaller individual pixels (pixel pitch of 6.00μm versus 6.25μm for the 5D Mark III). Yet, the 5D Mark III is a much more recent model (by 3 years and 5 months) than the S2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S2 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Canon 5D Mark III are 28.8 x 19.2 inches or 73.2 x 48.8 cm for good quality, 23 x 15.4 inches or 58.5 x 39 cm for very good quality, and 19.2 x 12.8 inches or 48.8 x 32.5 cm for excellent quality prints.

The Canon EOS 5D Mark III has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 50-102400. The corresponding ISO settings for the Leica S2 are ISO 80 to ISO 1250 (no boost).

In terms of underlying technology, the 5D Mark III is build around a CMOS sensor, while the S2 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
2.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
3.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
4.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
5.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
6.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
7.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
8.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
9.		Leica S3	Medium Format	64.0	9800	6533	4K/24p	25.6	14.4	3143	98
10.		Leica S-E Typ 006	Medium Format	37.5	7500	5000	none	25.1	13.7	2763	93
11.		Leica S Typ 007	Medium Format	37.5	7500	5000	4K/24p	25.1	13.7	2763	93
12.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
13.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
14.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
15.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
16.		Nikon D800	Full Frame	36.2	7360	4912	1080/30p	25.3	14.4	2853	95
17.		Nikon D800E	Full Frame	36.2	7360	4912	1080/30p	25.6	14.3	2979	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark III indeed provides movie recording capabilities, while the S2 does not. The highest resolution format that the 5D Mark III can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 5D Mark III and the S2 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark III offers a wider field of view (100%) than the one in the S2 (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S2 has a higher magnification (0.86x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D Mark III and Leica S2 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
2.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
3.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
4.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
6.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
7.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
8.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
9.		Leica S3	optical	Y	3.0 / 922	fixed	n	1/4000s	3.0/s	n	n
10.		Leica S-E Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
11.		Leica S Typ 007	optical	Y	3.0 / 922	fixed	n	1/4000s	3.5/s	n	n
12.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
13.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
14.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
15.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
16.		Nikon D800	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
17.		Nikon D800E	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The 5D Mark III writes its imaging data to Compact Flash or SDXC cards, while the S2 uses Compact Flash or SDHC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark III and Leica S2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
2.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
4.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
6.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
9.		Leica S3	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
10.		Leica S-E Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
11.		Leica S Typ 007	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
12.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
13.		Leica S1	-	- / -	-	-	-	-	-	-	-
14.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
15.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
16.		Nikon D800	Y	mono / mono	Y	Y	mini	3.0	-	-	-
17.		Nikon D800E	Y	mono / mono	Y	Y	mini	3.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 5D Mark III and the S2 have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the 5D Mark III was followed by the Canon 5D Mark IV. Further information on the features and operation of the 5D Mark III and S2 can be found, respectively, in the Canon 5D Mark III Manual (free pdf) or the online Leica S2 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 5D Mark III and the Leica S2? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 5D Mark III:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (6 vs 1.5 flaps/sec) to capture the decisive moment.
• Less heavy: Is lighter (by 460g or 33 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
• More modern: Reflects 3 years and 5 months of technical progress since the S2 launch.

Advantages of the Leica S2:

• More detail: Has more megapixels (37.5 vs 22.1MP), which boosts linear resolution by 30%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.86x vs 0.71x).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in September 2008).

If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark III is the clear winner of the match-up (10 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D Mark III and the Leica S2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D Mark III and the S2 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
2.		Leica S2	..	..	..	..	..	..	Sep 2008	22,995	ebay.com
3.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	3,499	amazon.com
4.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
5.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
6.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
7.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
8.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	3,299	ebay.com
9.		Leica S3	..	..	..	..	..	..	Sep 2018	18,995	ebay.com
10.		Leica S-E Typ 006	..	..	..	..	..	..	Sep 2014	16,900	ebay.com
11.		Leica S Typ 007	4/5	..	..	..	..	..	Sep 2014	24,490	ebay.com
12.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	21,950	ebay.com
13.		Leica S1	..	..	..	..	..	..	Aug 1996	21,490	ebay.com
14.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	1,999	ebay.com
15.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	2,099	ebay.com
16.		Nikon D800	5/5	+ +	..	82/100	5/5	5/5	Feb 2012	2,999	ebay.com
17.		Nikon D800E	..	..	..	84/100	5/5	5/5	Feb 2012	3,299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
