Canon 5D Mark II vs Panasonic S5

The Canon EOS 5D Mark II and the Panasonic Lumix DC-S5 are two digital cameras that were officially introduced, respectively, in September 2008 and September 2020. The 5D Mark II is a DSLR, while the S5 is a mirrorless interchangeable lens camera. Both cameras are equipped with a full frame sensor. The Canon has a resolution of 21 megapixels, whereas the Panasonic provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 5D Mark II
versus
Panasonic S5
Canon 5D Mark II   Panasonic S5
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Leica L mount lenses
21 MP – Full Frame sensor 24 MP – Full Frame sensor
1080/30p Video 4K/60p Video
ISO 100-6,400 (50 - 25,600) ISO 100-51,200 (50 - 204,800)
Optical viewfinder Electronic viewfinder (2360k dots)
3.0" LCD – 920k dots 3.0" LCD – 1840k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
3.9 shutter flaps per second 7 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodyWeathersealed body
850 shots per battery charge440 shots per battery charge
152 x 114 x 75 mm, 850 g 133 x 98 x 82 mm, 714 g
logo
Check 5D Mark II offers at
ebay.com
logo
Check S5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

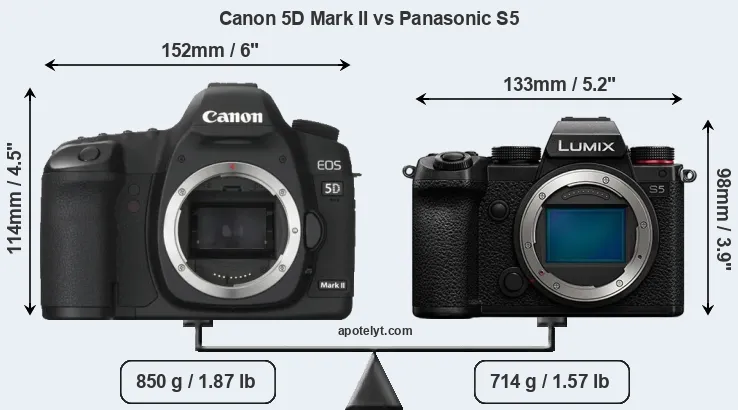

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark II and the Panasonic S5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Size Canon 5D Mark II vs Panasonic S5

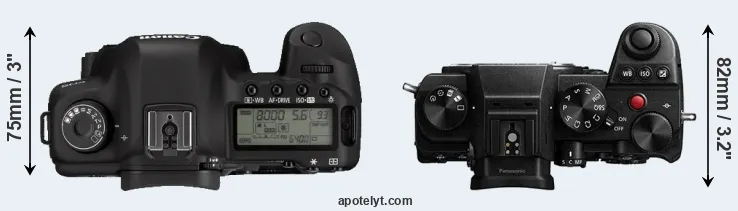

Compare 5D Mark II versus S5 top

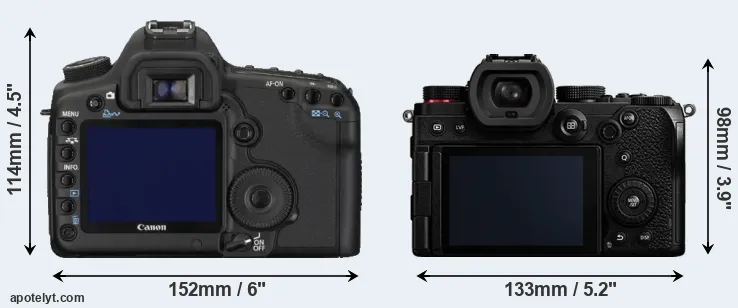

Comparison 5D Mark II or S5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is notably smaller (25 percent) than the Canon 5D Mark II. Moreover, the S5 is markedly lighter (16 percent) than the 5D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 5D Mark II gets 850 shots out of its Canon LP-E6 battery, while the S5 can take 440 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S5 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 5D Mark II 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499ebay.com
2.

Panasonic S5 133 mm 98 mm 82 mm 714 g 440 Y Sep 2020 1,999 amazon.com
3.

Canon 1Ds Mark III 150 mm 160 mm 80 mm 1385 g 1800 Y Aug 2007 7,999ebay.com
4.

Canon 1D X 158 mm 168 mm 83 mm 1551 g 1120 Y Oct 2011 6,799ebay.com
5.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
6.

Canon 5D 152 mm 113 mm 75 mm 895 g 400 Y Aug 2005 3,299ebay.com
7.

Canon 5D Mark III 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499ebay.com
8.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 amazon.com
9.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
10.

Canon 5DS R 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
11.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
12.

Canon 7D 148 mm 111 mm 74 mm 860 g 800 Y Sep 2009 1,699ebay.com
13.

Nikon Z6 II 134 mm 101 mm 70 mm 705 g 410 Y Oct 2020 1,999 amazon.com
14.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
15.

Panasonic GH5 II 139 mm 98 mm 87 mm 727 g 400 Y May 2021 1,699 amazon.com
16.

Panasonic S5 II 134 mm 102 mm 90 mm 740 g 370 Y Jan 2023 1,999 amazon.com
17.

Sony A7 II 127 mm 96 mm 60 mm 599 g 350 Y Nov 2014 1,999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The S5 was launched at a markedly lower price (by 43 percent) than the 5D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

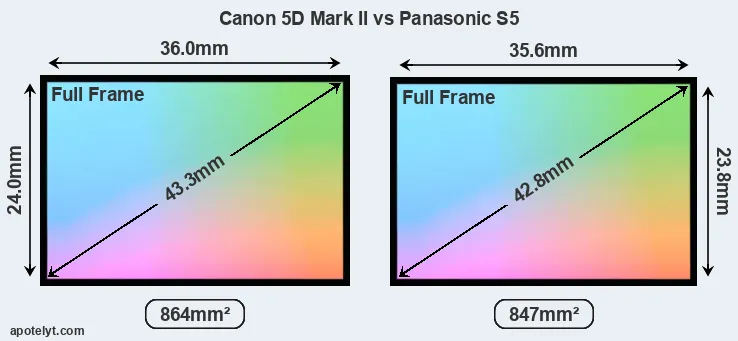

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the S5 is 2 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 5D Mark II and Panasonic S5 sensor measures

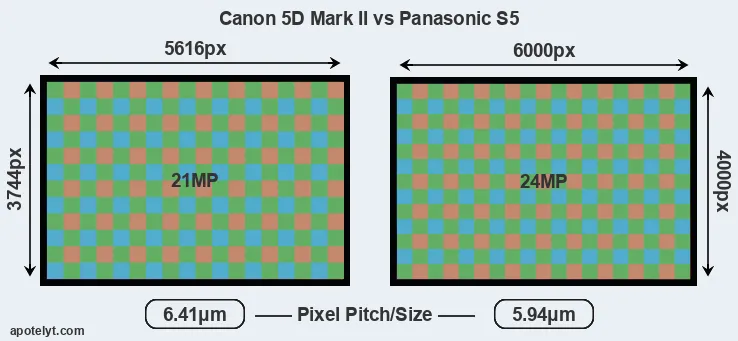

Despite having a slightly smaller sensor, the S5 offers a higher resolution of 24 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.94μm versus 6.41μm for the 5D Mark II). However, it should be noted that the S5 is much more recent (by 11 years and 11 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the S5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Panasonic S5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inches or 71.3 x 47.5 cm for good quality, 22.5 x 15 inches or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inches or 47.5 x 31.7 cm for excellent quality prints.

Unlike the 5D Mark II, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

5D Mark II versus S5 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the S5 offers substantially better image quality than the 5D Mark II (overall score 15 points higher). The advantage is based on 1.4 bits higher color depth, 2.6 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 5D Mark II Full Frame 21.0 5616 37441080/30p23.711.9181579
2.

Panasonic S5 Full Frame 24.0 6000 40004K/60p25.114.5269794
3.

Canon 1Ds Mark III Full Frame 21.0 5616 3744none24.012.0166380
4.

Canon 1D X Full Frame 17.9 5184 34561080/30p23.811.8278682
5.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
6.

Canon 5D Full Frame 12.7 4368 2912none22.911.1136871
7.

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381
8.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
9.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
10.

Canon 5DS R Full Frame 50.3 8688 57921080/30p24.612.4230886
11.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
12.

Canon 7D APS-C 17.9 5184 34561080/30p22.011.785466
13.

Nikon Z6 II Full Frame 24.3 6048 40244K/60p25.014.4330394
14.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
15.

Panasonic GH5 II Four Thirds 20.2 5184 38884K/60p23.713.1113679
16.

Panasonic S5 II Full Frame 24.0 6000 40006K/30p25.414.6315896
17.

Sony A7 II Full Frame 24.0 6000 40001080/60p24.913.6244990
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S5 provides a better video resolution than the 5D Mark II. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the S5 has an electronic viewfinder (2360k dots), while the 5D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the S5 offers a wider field of view (100%) than the one in the 5D Mark II (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S5 has a higher magnification (0.74x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D Mark II and Panasonic S5 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 5D Mark IIoptical Y3.0 / 920 fixed n 1/8000s 3.9/s n n
2.

Panasonic S52360 n3.0 / 1840 swivel Y 1/8000s 7.0/s n Y
3.

Canon 1Ds Mark IIIoptical Y3.0 / 230 fixed n 1/8000s 5.0/s n n
4.

Canon 1D Xoptical Y3.2 / 1040 fixed n 1/8000s 14.0/s n n
5.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
6.

Canon 5Doptical Y2.5 / 230 fixed n 1/8000s 3.0/s n n
7.

Canon 5D Mark IIIoptical Y3.2 / 1040 fixed n 1/8000s 6.0/s n n
8.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
9.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
10.

Canon 5DS Roptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
11.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
12.

Canon 7Doptical Y3.0 / 920 fixed n 1/8000s 8.0/s Y n
13.

Nikon Z6 II3690 Y3.2 / 2100 tilting Y 1/8000s 14.0/s n Y
14.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
15.

Panasonic GH5 II3680 n3.0 / 1840 swivel Y 1/8000s 12.0/s n Y
16.

Panasonic S5 II3680 n3.0 / 1840 swivel Y 1/8000s 9.0/s n Y
17.

Sony A7 II2400 n3.0 / 1230 tilting n 1/8000s 5.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D Mark II, but is missing on the S5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The S5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark II does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic S5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark II writes its imaging data to Compact Flash cards, while the S5 uses SDXC cards. The S5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D Mark II only has one slot.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 5D Mark IIYmono / monoY-mini2.0---
2.

Panasonic S5Ystereo / monoYYmicro3.2Y-Y
3.

Canon 1Ds Mark IIIYmono / ----2.0---
4.

Canon 1D XYmono / -Y-mini2.0---
5.

Canon 1D X Mark IIYmono / monoYYmini3.0---
6.

Canon 5DY- / ----2.0---
7.

Canon 5D Mark IIIYmono / monoYYmini2.0---
8.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
9.

Canon 5DSYmono / monoY-mini3.0---
10.

Canon 5DS RYmono / monoY-mini3.0---
11.

Canon 6DYmono / monoY-mini2.0Y--
12.

Canon 7DYmono / -Y-mini2.0---
13.

Nikon Z6 IIYstereo / monoYYmicro3.2Y-Y
14.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
15.

Panasonic GH5 IIYstereo / monoYYfull3.2Y-Y
16.

Panasonic S5 IIYstereo / monoYYfull3.2Y-Y
17.

Sony A7 IIYstereo / monoYYmicro2.0YY-

It is notable that the S5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not provide wifi capability.

Studio photographers will appreciate that the Canon 5D Mark II (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the 5D Mark II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 5D Mark II was succeeded by the Canon 5D Mark III. Further information on the features and operation of the 5D Mark II and S5 can be found, respectively, in the Canon 5D Mark II Manual (free pdf) or the online Panasonic S5 Manual.

ad

Review summary

So how do things add up? Is there a clear favorite between the Canon 5D Mark II and the Panasonic S5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Canon EOS 5D Mark II:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Longer lasting: Can take more shots (850 versus 440) on a single battery charge.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been available for much longer (launched in September 2008).

ilogo

Arguments in favor of the Panasonic Lumix DC-S5:

  • More detail: Has more megapixels (24 vs 21MP), which boosts linear resolution by 7%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.4 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.6 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.71x).
  • More detailed LCD: Has a higher resolution rear screen (1840k vs 920k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (7 vs 3.9 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (133x98mm vs 152x114mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 136g or 16 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
  • More modern: Reflects 11 years and 11 months of technical progress since the 5D Mark II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the S5 is the clear winner of the contest (30 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

5D Mark II 06:30 S5

How about other alternatives? Do the specifications of the Canon 5D Mark II and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the S5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 5D Mark II4/591/100..79/1004/5.. Sep 2008 3,499ebay.com
2.

Panasonic S54.5/5+ +4.5/588/1004.5/54.5/5 Sep 2020 1,999 amazon.com
3.

Canon 1Ds Mark III......+ +4.5/5.. Aug 2007 7,999ebay.com
4.

Canon 1D X5/5......4.5/54.5/5 Oct 2011 6,799ebay.com
5.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
6.

Canon 5D..88/100..+ +o.. Aug 2005 3,299ebay.com
7.

Canon 5D Mark III..+ +..82/1004.5/54.5/5 Mar 2012 3,499ebay.com
8.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 3,499 amazon.com
9.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
10.

Canon 5DS R5/5+..83/1005/54.5/5 Feb 2015 3,699ebay.com
11.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
12.

Canon 7D5/5+ +..84/1004.5/54.5/5 Sep 2009 1,699ebay.com
13.

Nikon Z6 II4.5/5..4/589/1004.5/54.5/5 Oct 2020 1,999 amazon.com
14.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
15.

Panasonic GH5 II4.5/5..4.5/585/1004.5/55/5 May 2021 1,699 amazon.com
16.

Panasonic S5 II4.5/5+ +5/590/1004.5/55/5 Jan 2023 1,999 amazon.com
17.

Sony A7 II5/5+4/582/1004.5/55/5 Nov 2014 1,999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 5D Mark II offers at
ebay.com
logo
Check S5 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Canon 5D Mark II vs Panasonic S5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 5D Mark II Panasonic S5
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Leica L mount lenses
    Launch Date September 2008 September 2020
    Launch Price USD 3,499 USD 1,999
    Sensor Specs Canon 5D Mark II Panasonic S5
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 36.0 x 24.0 mm 35.6 x 23.8 mm
    Sensor Area 864 mm2 847.28 mm2
    Sensor Diagonal 43.3 mm 42.8 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 21 Megapixels 24 Megapixels
    Image Resolution 5616 x 3744 pixels 6000 x 4000 pixels
    Pixel Pitch 6.41 μm 5.94 μm
    Pixel Density 2.43 MP/cm2 2.83 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/30p Video 4K/60p Video
    ISO Setting 100 - 6,400 ISO 100 - 51,200 ISO
    ISO Boost 50 - 25,600 ISO 50 - 204,800 ISO
    Image Processor DIGIC 4 Venus
    DXO Sensor Quality (score) 79 94
    DXO Color Depth (bits) 23.7 25.1
    DXO Dynamic Range (EV) 11.9 14.5
    DXO Low Light (ISO) 1815 2697
    Screen Specs Canon 5D Mark II Panasonic S5
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 98% 100%
    Viewfinder Magnification 0.71x 0.74x
    Viewfinder Resolution 2360k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 920k dots 1840k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 5D Mark II Panasonic S5
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 3.9 shutter flaps/s 7 shutter flaps/s
    Shutter Life Expectancy150 000 actuations200 000 actuations
    Electronic Shutterno E-Shutterup to 1/8000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CF cards SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    Connectivity Specs Canon 5D Mark II Panasonic S5
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 2.0 USB 3.2
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon 5D Mark II Panasonic S5
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E6 Panasonic DMW-BLK22
    Battery Life (CIPA)850 shots per charge440 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 152 x 114 x 75 mm
    (6.0 x 4.5 x 3.0 in)
    133 x 98 x 82 mm
    (5.2 x 3.9 x 3.2 in)
    Camera Weight 850 g (30.0 oz) 714 g (25.2 oz)
    logo
    Check 5D Mark II offers at
    ebay.com
    logo
    Check S5 price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 5D Mark II vs Panasonic S5
