Canon 1Ds Mark III versus Canon M5

The Canon EOS-1Ds Mark III and the Canon EOS M5 are two digital cameras that were officially introduced, respectively, in August 2007 and September 2016. The 1Ds Mark III is a DSLR, while the M5 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (1Ds Mark III) and an APS-C (M5) sensor. The 1Ds Mark III has a resolution of 21 megapixel, whereas the M5 provides 24 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1Ds Mark III vs Canon M5

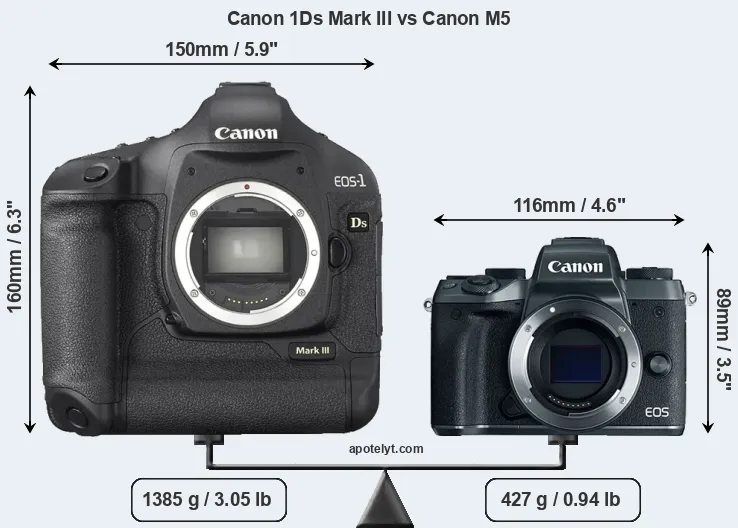

An illustration of the physical size and weight of the Canon 1Ds Mark III and the Canon M5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the 1Ds Mark III – represents the basis for the calculations across all the size and weight measures).

Compare Canon 1Ds Mark III vs Canon M5
Compare 1Ds Mark III versus M5 top
Compare 1Ds Mark III and M5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M5 is considerably smaller (57 percent) than the Canon 1Ds Mark III. Moreover, the M5 is substantially lighter (69 percent) than the 1Ds Mark III. It is worth mentioning in this context that the 1Ds Mark III is splash and dust resistant, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 1Ds Mark III gets 1800 shots out of its LP-E4 battery, while the M5 can take 295 images on a single charge of its LP-E17 power pack. As can be seen in the images above, the 1Ds Mark III has a battery grip build in. This facilitates image-taking in portrait orientation and contributes to its long-lasting power supply.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1Ds Mark III» 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon M5« 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5
Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D
Canon M6« » 4.4 in 2.7 in 1.8 in 13.8 oz 295 n Feb 2017 779 i i Canon M6
Canon M100« » 4.3 in 2.6 in 1.4 in 10.7 oz 295 n Aug 2017 499 i i Canon M100
Canon SL2« » 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549 i i Canon SL2
Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon M3« » 4.4 in 2.7 in 1.7 in 12.9 oz 250 n Feb 2015 679- i Canon M3
Canon 1D C« » 6.2 in 6.5 in 3.3 in 54.5 oz 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« » 6.1 in 6.2 in 3.1 in 43.4 oz 1500 Y Oct 2009 4,999- i Canon 1D Mark IV
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 1D Mark III« » 6.1 in 6.2 in 3.1 in 40.7 oz 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark II« » 6.1 in 6.2 in 3.1 in 42.9 oz 1200 Y Sep 2004 7,999- i Canon 1Ds Mark II
Nikon D3X« » 6.3 in 6.2 in 3.5 in 44.4 oz 4400 Y Dec 2008 7,999- i Nikon D3X

The camera’s price is obviously a critical decision-making factor. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M5 was launched at a markedly lower price (by 88 percent) than the 1Ds Mark III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 1Ds Mark III vs Canon M5

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1Ds Mark III features a full frame sensor and the Canon M5 an APS-C sensor. The sensor area in the M5 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of underlying technology, both cameras are build around CMOS sensors.

Canon 1Ds Mark III and Canon M5 sensor measures

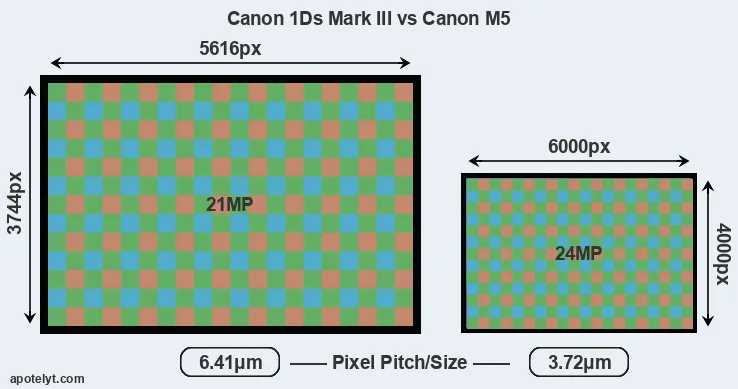

Despite having a smaller sensor, the M5 offers a higher resolution of 24 megapixel, compared with 21 MP of the 1Ds Mark III. This megapixel advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.41μm for the 1Ds Mark III). However, it should be noted that the M5 is much more recent (by 9 years) than the 1Ds Mark III, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

1Ds Mark III versus M5 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar image quality. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1Ds Mark III» Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon M5« APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon M6« » APS-C 24.0 6000 40001080/60p----Canon M6
Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100
Canon SL2« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon M3« » APS-C 24.0 6000 40001080/30p22.811.8116972Canon M3
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 1D Mark III« » APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Canon 1Ds Mark II« » Full Frame 16.6 4992 3328-23.311.3148074Canon 1Ds Mark II
Nikon D3X« » Full Frame 24.4 6048 4032-24.713.7199288Nikon D3X

Many modern cameras are not only capable of taking still images, but can also record movies. The M5 indeed provides for movie recording, while the 1Ds Mark III does not. The highest resolution format that the M5 can use is 1080/60p.



Feature comparison: Canon 1Ds Mark III vs Canon M5

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the 1Ds Mark III has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 1Ds Mark III, the Canon M5, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1Ds Mark III»optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon M5«2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon M6« »- n 3.0 1040 tilting Y 4000 9.0 Y n Canon M6
Canon M100« »- n 3.0 1040 tilting Y 4000 6.1 Y n Canon M100
Canon SL2« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon SL2
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon M3« »- n 3.0 1040 tilting Y 4000 4.2 Y n Canon M3
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 6D« »optical Y 3.0 1040 fixed n 4000 4.5 n n Canon 6D
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 1D Mark IV« »optical Y 3.0 920 fixed n 8000 10.0 n n Canon 1D Mark IV
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 1D Mark III« »optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Canon 1Ds Mark II« »optical Y 2.0 230 fixed n 8000 4.0 n n Canon 1Ds Mark II
Nikon D3X« »optical Y 3.0 922 fixed n 8000 5.0 n n Nikon D3X

One feature that is present on the 1Ds Mark III, but is missing on the M5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The M5 is a current model that online retailers, such as amazon, will have in stock. In contrast, the 1Ds Mark III has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1Ds Mark III was succeeded by the Canon 1DX.

Review summary: Canon 1Ds Mark III vs Canon M5

So what is the bottom line? Is the Canon 1Ds Mark III better than the Canon M5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Reasons to prefer the Canon EOS-1Ds Mark III:

  • Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (1800 versus 295) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • More heavily discounted: Has been available for much longer (launched in August 2007).


Arguments in favor of the Canon EOS M5:

  • More detail: Has more megapixels (24 vs 21MP), which boosts linear resolution by 7%.
  • Broader imaging potential: Can capture not only stills but also 1080/60p video.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (116x89mm vs 150x160mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 958g or 69 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
  • More modern: Reflects 9 years of technical progress since the 1Ds Mark III launch.

If the count of relative strengths (bullet points above) is taken as a measure, the M5 is the clear winner of the contest (14 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

1Ds Mark III 08:14 M5

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 1Ds Mark III and the M5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1Ds Mark III»-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon M5«Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon M6« »-80/1004/54.5/54/5 Feb 2017 779 i i Canon M6
Canon M100« »Rec-4/5-3.5/5 Aug 2017 499 i i Canon M100
Canon SL2« »HiRec78/1004.5/54.5/54.5/5 Jun 2017 549 i i Canon SL2
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon M3« »rev75/1004.5/54.5/54/5 Feb 2015 679- i Canon M3
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 6D« »HiRec83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 1D Mark III« »---rev- Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark II« »-HiRec--- Sep 2004 7,999- i Canon 1Ds Mark II
Nikon D3X« »-86/1004/55/55/5 Dec 2008 7,999- i Nikon D3X

The above review scores should be interpreted with care, though. The ratings are only valid when refering to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
