Canon M5 vs Nikon D700
The Canon EOS M5 and the Nikon D700 are two digital cameras that were officially introduced, respectively, in September 2016 and July 2008. The M5 is a mirrorless interchangeable lens camera, while the D700 is a DSLR. The cameras are based on an APS-C (M5) and a full frame (D700) sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 12.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D700? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

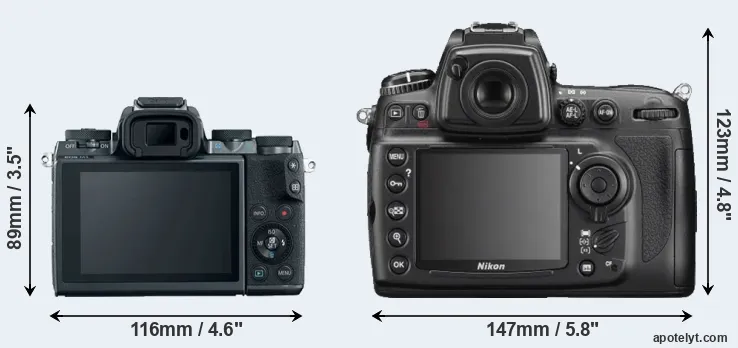

An illustration of the physical size and weight of the Canon M5 and the Nikon D700 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D700 is considerably larger (75 percent) than the Canon M5. Moreover, the D700 is substantially heavier (152 percent) than the M5. It is noteworthy in this context that the D700 is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|2.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|6.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|7.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|8.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|9.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|10.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|11.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|12.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|13.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|14.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|15.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199|
|16.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999|
|17.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M5 was launched at a markedly lower price (by 67 percent) than the D700, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Nikon D700 a full frame sensor. The sensor area in the D700 is 159 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
Despite having a smaller sensor, the Canon M5 offers a higher resolution of 24 megapixels, compared with 12.1 MP of the Nikon D700. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 8.43μm for the D700). However, it should be noted that the M5 is much more recent (by 8 years and 2 months) than the D700, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D700 are 21.3 x 14.2 inches or 54.1 x 36 cm for good quality, 17 x 11.3 inches or 43.2 x 28.8 cm for very good quality, and 14.2 x 9.4 inches or 36 x 24 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D700 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|5.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|13.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|14.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|15.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|16.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
|17.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
Many modern cameras cannot only take still pictures, but also record videos. The M5 indeed provides movie recording capabilities, while the D700 does not. The highest resolution format that the M5 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D700 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon M5, the Nikon D700, and comparable cameras.
|1.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|2.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|4.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2||Y||Y|
|6.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0||Y||n|
|7.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|8.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|9.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|10.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||n|
|11.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|12.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|13.||Nikon D810||optical||Y||3.2 / 1229||fixed||n||1/8000s||5.0||Y||n|
|14.||Nikon D800||optical||Y||3.2 / 921||fixed||n||1/8000s||4.0||Y||n|
|15.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0||n||n|
|16.||Nikon D3X||optical||Y||3.0 / 922||fixed||n||1/8000s||5.0||n||n|
|17.||Nikon D3||optical||Y||3.0 / 922||fixed||n||1/8000s||11.0||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the D700 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D700 does not have a selfie-screen.
The Nikon D700 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The M5 writes its imaging data to SDXC cards, while the D700 uses Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D700 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|8.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|11.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Nikon D810||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|14.||Nikon D800||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|15.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Nikon D3X||Y||- / -||-||-||mini||2.0||-||-||-|
|17.||Nikon D3||Y||- / -||-||-||mini||2.0||-||-||-|
It is notable that the M5 offers wifi support, while the D700 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D700 (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The M5 is a recent model that features in the current product line-up of Canon. In contrast, the D700 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D700 was succeeded by the Nikon D800. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Which of the two cameras – the Canon M5 or the Nikon D700 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 12.1MP) with a 41% higher linear resolution.
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (116x89mm vs 147x123mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 647g or 60 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
- More modern: Reflects 8 years and 2 months of technical progress since the D700 launch.
Reasons to prefer the Nikon D700:
- Better low-light sensitivity: Can shoot in dim conditions (0.9 stops ISO advantage).
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (1000 versus 295) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in July 2008).
If the count of individual advantages (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (18 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Nikon D700 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M5 or the D700 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|2.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529|
|6.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|7.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|8.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|9.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|10.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899|
|11.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|12.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|13.||Nikon D810||5/5||..||5/5||86/100||5/5||4.5/5||Jun 2014||3,299|
|14.||Nikon D800||5/5||+ +||..||82/100||5/5||5/5||Feb 2012||2,999|
|15.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199|
|16.||Nikon D3X||..||..||..||86/100||4/5||5/5||Dec 2008||7,999|
|17.||Nikon D3||..||..||..||+ +||5/5||4.5/5||Aug 2007||4,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M5 vs Nikon D700
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Nikon D700|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Nikon F mount lenses|
|Launch Date||September 2016||July 2008|
|Launch Price||USD 979||USD 2,999|
|Sensor Specs||Canon M5||Nikon D700|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||36.0 x 23.9 mm|
|Sensor Area||332.27 mm2||860.4 mm2|
|Sensor Diagonal||26.8 mm||43.2 mm|
|Sensor Resolution||24 Megapixels||12.1 Megapixels|
|Image Resolution||6000 x 4000 pixels||4256 x 2832 pixels|
|Pixel Pitch||3.72 μm||8.43 μm|
|Pixel Density||7.22 MP/cm2||1.40 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 25,600 ISO||200 - 6,400 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 7||EXPEED|
|DXO Sensor Quality (score)||77||80|
|DXO Color Depth (bits)||23.4||23.5|
|DXO Dynamic Range (EV)||12.4||12.2|
|DXO Low Light (ISO)||1262||2303|
|Screen Specs||Canon M5||Nikon D700|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Magnification||.. x||0.72x|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||922k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Nikon D700|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||8 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon M5||Nikon D700|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Nikon D700|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||295 shots per charge||1000 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
147 x 123 x 77 mm
(5.8 x 4.8 x 3.0 in)
|Camera Weight||427 g (15.1 oz)||1074 g (37.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
