Canon 1D X Mark II vs YI M1
The Canon EOS-1D X Mark II and the YI M1 are two digital cameras that were revealed to the public, respectively, in February 2016 and September 2016. The 1DX Mark II is a DSLR, while the M1 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (1DX Mark II) and a Four Thirds (M1) sensor. The Canon has a resolution of 20 megapixels, whereas the YI provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D X Mark II||YI M1|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|20 MP, Full Frame Sensor||20.2 MP, Four Thirds Sensor|
|4K/60p Video||4K/30p Video|
|ISO 100-51,200 (50 - 409,600)||ISO 100-25,600|
|Optical viewfinder||No viewfinder, LCD framing|
|3.2 LCD, 1620k dots||3.0 LCD, 1040k dots|
|Fixed touchscreen||Fixed touchscreen|
|16 shutter flaps per second||5 shutter flaps per second|
|Weathersealed body||not weather sealed|
|1210 shots per battery charge||450 shots per battery charge|
|158 x 168 x 83 mm, 1530 g||114 x 64 x 34 mm, 281 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark II and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

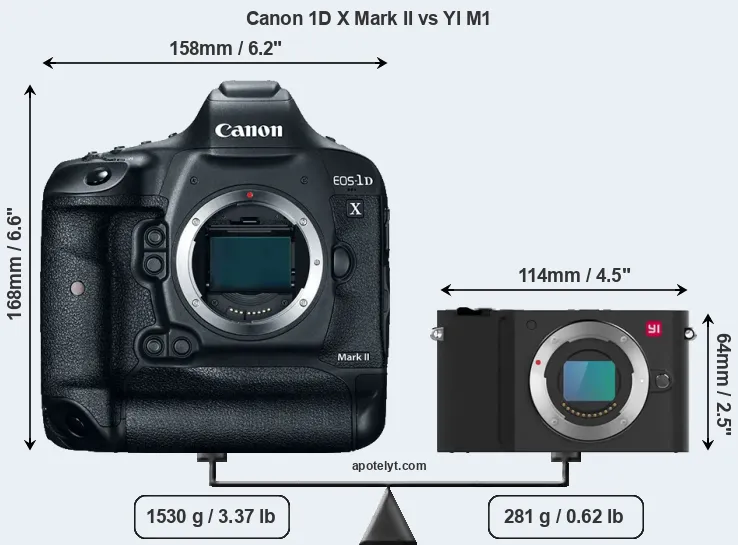

The side-by-side display below illustrates the physical size and weight of the Canon 1D X Mark II and the YI M1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The M1 can be obtained in two different colors (black, silver), while the 1DX Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is considerably smaller (73 percent) than the Canon 1D X Mark II. Moreover, the M1 is substantially lighter (82 percent) than the 1DX Mark II. It is worth mentioning in this context that the 1DX Mark II is splash and dust resistant, while the M1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1DX Mark II) and the Micro Four Thirds Lens Catalog (M1). Mirrorless cameras, such as the M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

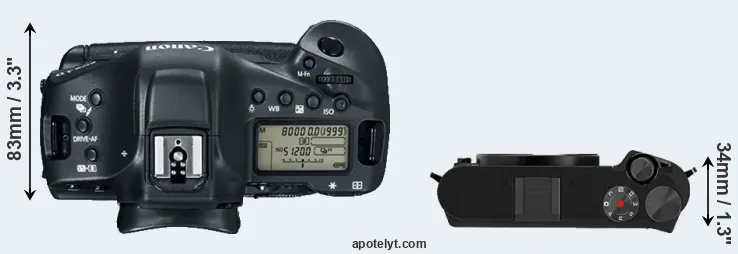

As can be seen in the images above, the 1DX Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|YI M1||4.5 in||2.5 in||1.3 in||9.9 oz||450||n||Sep 2016||349|
|Canon 1D X Mark III||6.2 in||6.6 in||3.3 in||50.8 oz||2850||Y||Jan 2020||6,499|
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 1D C||6.2 in||6.5 in||3.3 in||54.5 oz||1120||Y||Apr 2012||14,999|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 1D X||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 1Ds Mark III||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999|
|Fujifilm X-A3||4.6 in||2.6 in||1.6 in||12.0 oz||410||n||Aug 2016||399|
|Nikon D5||6.3 in||6.3 in||3.6 in||49.9 oz||3780||Y||Jan 2016||6,499|
|Nikon 1 J5||3.9 in||2.4 in||1.3 in||8.1 oz||250||n||Apr 2015||399|
|Panasonic GX850||4.2 in||2.6 in||1.3 in||9.5 oz||210||n||Jan 2017||549|
|Panasonic GF7||4.2 in||2.6 in||1.3 in||9.4 oz||230||n||Jan 2015||499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M1 was launched at a markedly lower price (by 94 percent) than the 1DX Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D X Mark II features a full frame sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 1DX Mark II has a native 3:2 aspect ratio, while the one in the M1 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

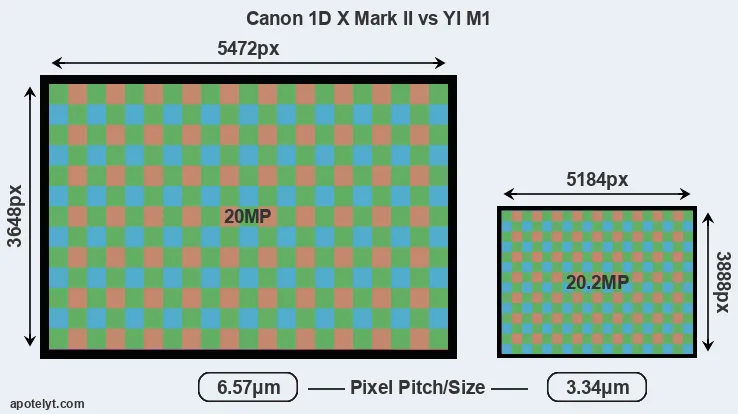

Despite having a smaller sensor, the M1 offers a slightly higher resolution of 20.2 megapixels, compared with 20 MP of the 1DX Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 6.57μm for the 1DX Mark II). However, it should be noted that the M1 is a somewhat more recent model (by 7 months) than the 1DX Mark II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The 1DX Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-409600. The corresponding ISO settings for the YI M1 are ISO 100 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|YI M1||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|Nikon 1 J5||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65|
|Panasonic GX850||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73|
|Panasonic GF7||Four Thirds||15.8||4592||3448||1080/60p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 1DX Mark II provides a higher frame rate than the M1. It can shoot video footage at 4K/60p, while the YI is limited to 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1DX Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 1D X Mark II and YI M1 along with similar information for a selection of comparators.
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Nikon 1 J5||none||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n|
One feature that is present on the 1DX Mark II, but is missing on the M1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1DX Mark II writes its imaging data to Compact Flash or CFast cards, while the M1 uses SDXC cards. The 1DX Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the M1 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark II and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Nikon 1 J5||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the 1DX Mark II has a microphone port, which is missing on the M1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 1D X Mark II (unlike the M1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 1DX Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The M1 is a recent model that features in the current product line-up of YI. In contrast, the 1DX Mark II has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1DX Mark II was succeeded by the Canon 1DX Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and YI websites.
So what conclusions can be drawn? Is the Canon 1D X Mark II better than the YI M1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS-1D X Mark II:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (16 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1210 versus 450) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in February 2016).
Arguments in favor of the YI M1:
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (114x64mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 1249g or 82 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (94 percent cheaper at launch).
- More modern: Was introduced somewhat (7 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the 1DX Mark II is the clear winner of the match-up (22 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark II and the YI M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 1DX Mark II or the M1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|YI M1||..||69/100||..||2.5/5||..||Sep 2016||349|
|Canon 1D X Mark III||+ +||..||4.5/5||..||4/5||Jan 2020||6,499|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Fujifilm X-A3||..||74/100||4.5/5||..||4/5||Aug 2016||399|
|Nikon D5||..||89/100||4.5/5||5/5||5/5||Jan 2016||6,499|
|Nikon 1 J5||..||..||4.5/5||4/5||4.5/5||Apr 2015||399|
|Panasonic GX850||+||76/100||4.5/5||4/5||4.5/5||Jan 2017||549|
|Panasonic GF7||+||..||4.5/5||4.5/5||4.5/5||Jan 2015||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D X Mark II vs Canon M10
- Canon 1D X Mark II vs Canon SX510
- Canon 1D X Mark II vs Kodak S-1
- Canon 1D X Mark II vs Nikon D610
- Canon 1D X Mark II vs Olympus E-M1 II
- Canon 1D X Mark II vs Olympus E-PL5
- Canon 300D vs YI M1
- Canon XS vs YI M1
- Leica S Typ 007 vs YI M1
- Leica V-LUX 1 vs YI M1
- Panasonic G85 vs YI M1
- Ricoh GR III vs YI M1
Specifications: Canon 1D X Mark II vs YI M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark II||YI M1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2016||September 2016|
|Launch Price||USD 5,999||USD 349|
|Sensor Specs||Canon 1D X Mark II||YI M1|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||20 Megapixels||20.2 Megapixels|
|Image Resolution||5472 x 3648 pixels||5184 x 3888 pixels|
|Pixel Pitch||6.57 μm||3.34 μm|
|Pixel Density||2.31 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/60p Video||4K/30p Video|
|ISO Setting||100 - 51,200 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 409,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||88||..|
|DXO Color Depth (bits)||24.1||..|
|DXO Dynamic Range (EV)||13.5||..|
|DXO Low Light (ISO)||3207||..|
|Screen Specs||Canon 1D X Mark II||YI M1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D X Mark II||YI M1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||16 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or CFAST cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 1D X Mark II||YI M1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark II||YI M1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1210 shots per charge||450 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
114 x 64 x 34 mm
(4.5 x 2.5 x 1.3 in)
|Camera Weight||1530 g (54.0 oz)||281 g (9.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
