Canon 1D vs 5DS R
The Canon EOS-1D and the Canon EOS 5DS R are two professional cameras that were officially introduced, respectively, in September 2001 and February 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and a full frame (5DS R) sensor. The 1D has a resolution of 4.1 megapixels, whereas the 5DS R provides 50.3 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D||Canon 5DS R|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|4.1 MP, APS-H Sensor||50.3 MP, Full Frame Sensor|
|no Video||1080/30p Video|
|ISO 200-1600 (100-3200)||ISO 100-6400 (50-12800)|
|Optical viewfinder||Optical viewfinder|
|2.0" LCD, 120k dots||3.2" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8 shutter flaps per second||5 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|500 shots per battery charge||700 shots per battery charge|
|156 x 158 x 80 mm, 1585 g||152 x 116 x 76 mm, 930 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D and the Canon EOS 5DS R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

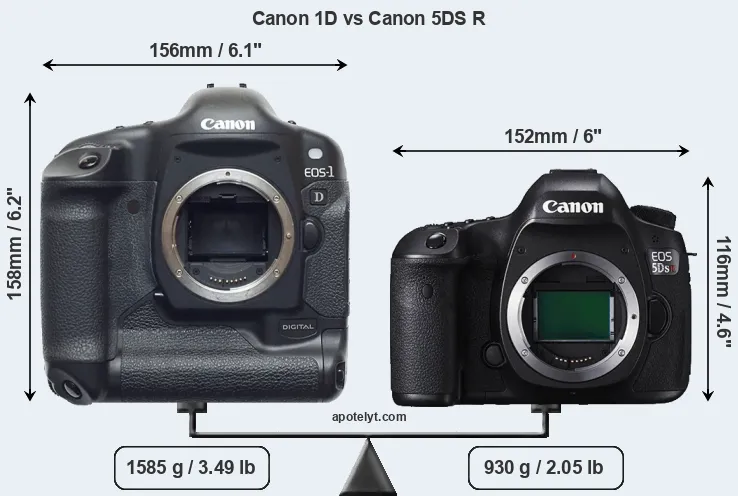

The physical size and weight of the Canon 1D and the Canon 5DS R are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5DS R is notably smaller (28 percent) than the Canon 1D. Moreover, the 5DS R is substantially lighter (41 percent) than the 1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5DS R) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D gets 500 shots out of its NP-E3 battery, while the 5DS R can take 700 images on a single charge of its LP-E6 power pack. As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5DS R, Canon provides the BG-E11 vertical grip as an optional accessory (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 1D»||6.1 in||6.2 in||3.1 in||55.9 oz||500||Y||Sep 2001||6,499||Canon 1D|
|Canon 5DS R«||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 1D X Mark III« »||6.2 in||6.6 in||3.3 in||50.8 oz||2850||Y||Jan 2020||6,499||Canon 1D X Mark III|
|Canon 1D X Mark II« »||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5D Mark IV« »||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 1D C« »||6.2 in||6.5 in||3.3 in||54.5 oz||1120||Y||Apr 2012||14,999||Canon 1D C|
|Canon 1D X« »||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799||Canon 1D X|
|Canon 1D Mark IV« »||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999||Canon 1D Mark IV|
|Canon 1D Mark III« »||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499||Canon 1D Mark III|
|Canon 1Ds Mark III« »||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999||Canon 1D Mark II N|
|Canon 1D Mark II« »||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499||Canon 1D Mark II|
|Canon 1Ds« »||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999||Canon 1Ds|
|Nikon D850« »||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299||Nikon D850|
|Nikon D810« »||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299||Nikon D810|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 5DS R was launched at a markedly lower price (by 43 percent) than the 1D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Canon 5DS R a full frame sensor. The sensor area in the 5DS R is 58 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

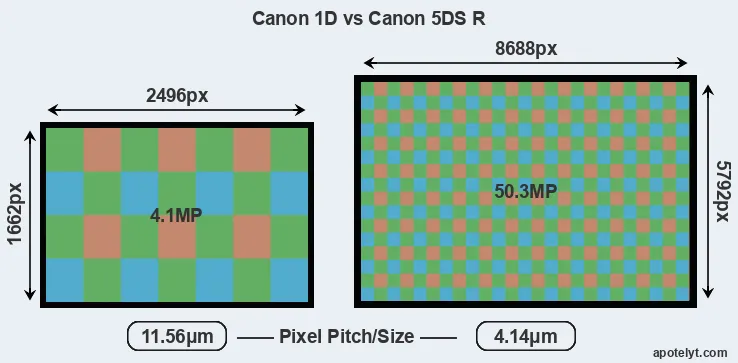

With 50.3MP, the 5DS R offers a higher resolution than the 1D (4.1MP), but the 5DS R has smaller individual pixels (pixel pitch of 4.14μm versus 11.56μm for the 1D). Yet, the 5DS R is a much more recent model (by 13 years and 4 months) than the 1D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 5DS R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 5DS R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS R for good quality output (200 dots per inch) amounts to 43.4 x 29 inch or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inch or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inch or 73.6 x 49 cm. The corresponding values for the Canon 1D are 12.5 x 8.3 inch or 31.7 x 21.1 cm for good quality, 10 x 6.6 inch or 25.4 x 16.9 cm for very good quality, and 8.3 x 5.5 inch or 21.1 x 14.1 cm for excellent quality prints.
The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS 5DS R are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-12800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 1D||APS-H||4.1||2496||1662||none||..||..||..||..||Canon 1D|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91||Canon 1D X Mark III|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..||Canon 1D C|
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82||Canon 1D X|
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74||Canon 1D Mark IV|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71||Canon 1D Mark III|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66||Canon 1D Mark II|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63||Canon 1Ds|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100||Nikon D850|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97||Nikon D810|
Many modern cameras cannot only take still pictures, but also record videos. The 5DS R indeed provides for movie recording, while the 1D does not. The highest resolution format that the 5DS R can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 1D and the 5DS R are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5DS R has a higher magnification than the one of the 1D (0.71x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D, the Canon 5DS R, and comparable cameras.
|Canon 1D||optical||Y||2.0||120||fixed||n||1/16000s||8.0||n||n||Canon 1D|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n||Canon 1D X Mark III|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 5DS||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D C|
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D X|
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark IV|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark III|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n||Canon 1D Mark II|
|Canon 1Ds||optical||Y||2.0||120||fixed||n||1/8000s||3.0||n||n||Canon 1Ds|
|Nikon D850||optical||Y||3.2||2359||tilting||Y||1/8000s||9.0||n||n||Nikon D850|
|Nikon D810||optical||Y||3.2||1229||fixed||n||1/8000s||5.0||Y||n||Nikon D810|
The Canon 5DS R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1D writes its imaging data to Compact Flash cards, while the 5DS R uses Compact Flash or SDXC cards. The 5DS R features dual card slots, which can be very useful in case a memory card fails. In contrast, the 1D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Canon EOS 5DS R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D||Y||none||none||-||-||none||FW||-||-||-||Canon 1D|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y||Canon 1D X Mark III|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 5DS||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 1D C|
|Canon 1D X||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 1D X|
|Canon 1D Mark IV||Y||stereo||none||Y||-||mini||2.0||-||-||-||Canon 1D Mark IV|
|Canon 1D Mark III||Y||none||none||-||-||none||2.0||-||-||-||Canon 1D Mark III|
|Canon 1Ds Mark III||Y||none||none||-||-||none||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1D Mark II N||Y||none||none||-||-||none||1.1||-||-||-||Canon 1D Mark II N|
|Canon 1D Mark II||Y||none||none||-||-||none||1.1||-||-||-||Canon 1D Mark II|
|Canon 1Ds||Y||none||none||-||-||none||FW||-||-||-||Canon 1Ds|
|Nikon D850||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D850|
|Nikon D810||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-||Nikon D810|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
The 5DS R is a recent model that features in the current product line-up of Canon. In contrast, the 1D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D was succeeded by the Canon 1D Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Which of the two cameras – the Canon 1D or the Canon 5DS R – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS-1D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/8000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- More heavily discounted: Has been available for much longer (launched in September 2001).
Arguments in favor of the Canon EOS 5DS R:
- More detail: Has more megapixels (50.3 vs 4.1MP), which boosts linear resolution by 248%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.55x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 120k dots).
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (152x116mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 655g or 41 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (700 versus 500) out of a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
- More modern: Reflects 13 years and 4 months of technical progress since the 1D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 5DS R is the clear winner of the contest (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D and the Canon 5DS R place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 1D and the 5DS R in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D C vs Canon SX70
- Canon 1D C vs Sony HX400V
- Canon 1D Mark II vs Sony A6500
- Canon 1D Mark III vs Canon T100
- Canon 1D Mark III vs Nikon D7500
- Canon 1D Mark III vs Panasonic GX8
- Canon 1D Mark III vs Pentax K-1
- Canon 1D X Mark III vs Nikon B500
- Canon 1D X vs Canon R
- Canon 1D X vs Panasonic FZ80
- Canon 1D vs Sony A7
- Canon 1D vs Sony NEX-6
Specifications: Canon 1D vs Canon 5DS R
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D||Canon 5DS R|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||September 2001||February 2015|
|Launch Price||USD 6499||USD 3699|
|Sensor Specs||Canon 1D||Canon 5DS R|
|Sensor Format||APS-H Sensor||Full Frame Sensor|
|Sensor Size||28.7 x 19.1 mm||36.0 x 24.0 mm|
|Sensor Area||548.17 mm2||864 mm2|
|Sensor Diagonal||34.5 mm||43.3 mm|
|Sensor Resolution||4.1 Megapixels||50.3 Megapixels|
|Image Resolution||2496 x 1662 pixels||8688 x 5792 pixels|
|Pixel Pitch||11.56 μm||4.14 μm|
|Pixel Density||0.76 MP/cm2||5.82 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||200-1600 ISO||100-6400 ISO|
|ISO Boost||100-3200 ISO||50-12800 ISO|
|Image Processor||DIGIC||DIGIC 6 (Dual)|
|DXO Sensor Quality (score)||..||86|
|DXO Color Depth (bits)||..||24.6|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||2308|
|Screen Specs||Canon 1D||Canon 5DS R|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0 inch||3.2 inch|
|LCD Resolution||120k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D||Canon 5DS R|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 1D||Canon 5DS R|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||Firewire||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D||Canon 5DS R|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||700 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
|Camera Weight||1585 g (55.9 oz)||930 g (32.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
