Canon 5DS R vs 750D
The Canon EOS 5DS R and the Canon EOS 750D (labelled Canon T6i in some countries) are two digital cameras that were revealed to the public in February 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5DS R) and an APS-C (750D) sensor. The 5DS R has a resolution of 50.3 megapixels, whereas the 750D provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5DS R||Canon 750D|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|50.3 MP, Full Frame Sensor||24 MP, APS-C Sensor|
|1080/30p Video||1080/30p Video|
|ISO 100-6,400 (50 - 12,800)||ISO 100-12,800 (100 - 25,600)|
|Optical viewfinder||Optical viewfinder|
|3.2 LCD, 1040k dots||3.0 LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|5 shutter flaps per second||5 shutter flaps per second|
|Weathersealed body||not weather sealed|
|700 shots per battery charge||440 shots per battery charge|
|152 x 116 x 76 mm, 930 g||132 x 101 x 78 mm, 555 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS R and the Canon EOS 750D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

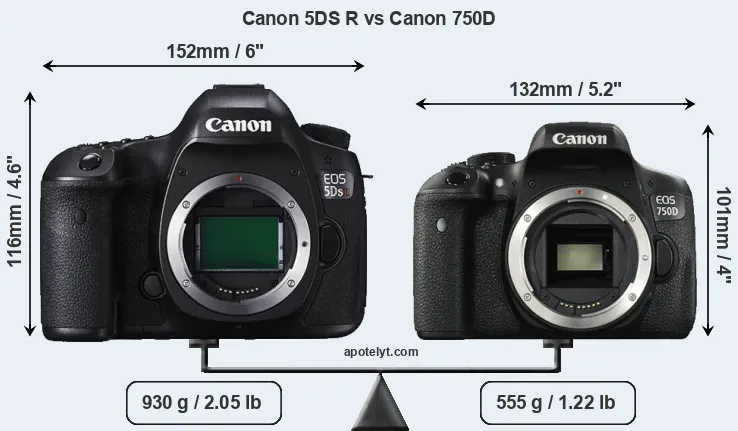

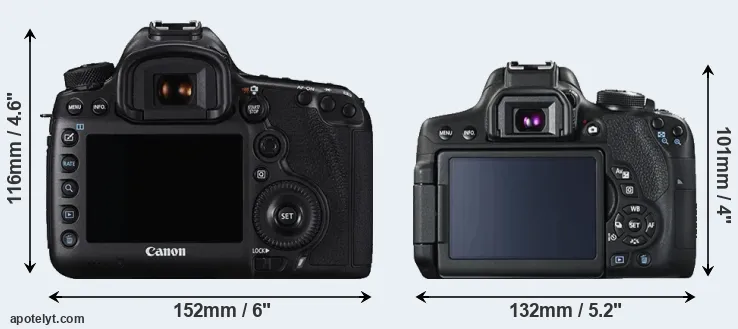

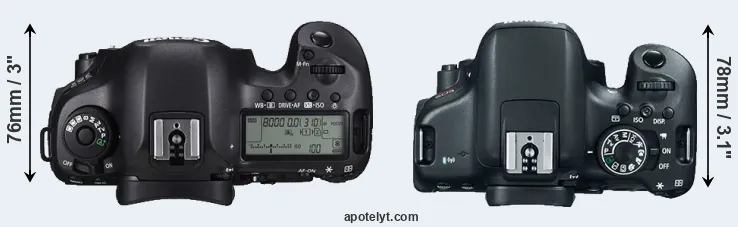

The physical size and weight of the Canon 5DS R and the Canon 750D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 750D is notably smaller (24 percent) than the Canon 5DS R. Moreover, the 750D is substantially lighter (40 percent) than the 5DS R. It is worth mentioning in this context that the 5DS R is splash and dust resistant, while the 750D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5DS R) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (750D). You can compare the optics available in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 750D||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Canon 77D||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899|
|Canon 800D||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 760D||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649|
|Canon M3||4.4 in||2.7 in||1.7 in||12.9 oz||250||n||Feb 2015||679|
|Canon 700D||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D810||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299|
|Sony A99 II||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 750D was launched at a markedly lower price (by 80 percent) than the 5DS R, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

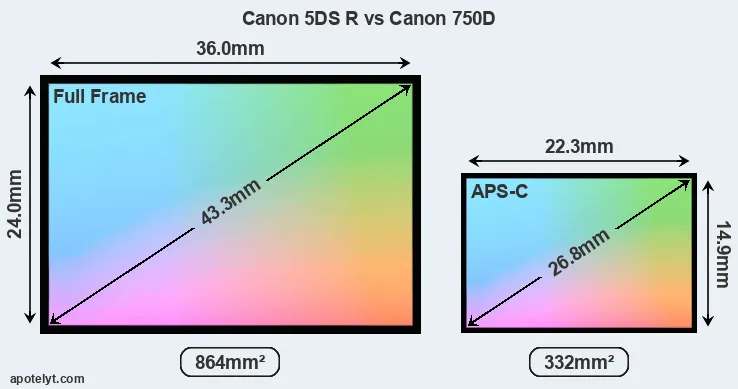

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5DS R features a full frame sensor and the Canon 750D an APS-C sensor. The sensor area in the 750D is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

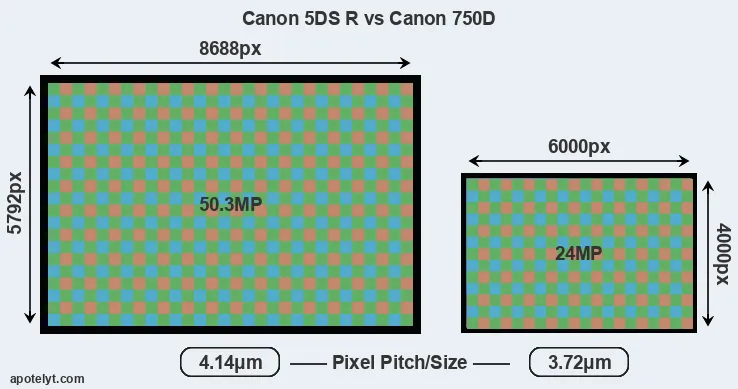

With 50.3MP, the 5DS R offers a higher resolution than the 750D (24MP), but the 5DS R nevertheless has larger individual pixels (pixel pitch of 4.14μm versus 3.72μm for the 750D) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the 5DS R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 5DS R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS R for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Canon 750D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The 750D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5DS R has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Canon EOS 750D are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5DS R provides substantially higher image quality than the 750D, with an overall score that is 15 points higher. This advantage is based on 1.9 bits higher color depth, 0.4 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The 5DS R and the 750D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5DS R offers a wider field of view (100%) than the one in the 750D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5DS R has a higher magnification (0.71x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5DS R and Canon 750D in connection with corresponding information for a sample of similar cameras.
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One feature that is present on the 5DS R, but is missing on the 750D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 750D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5DS R does not have a selfie-screen.
The Canon 5DS R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5DS R writes its imaging data to Compact Flash or SDXC cards, while the 750D uses SDXC cards. The 5DS R features dual card slots, which can be very useful in case a memory card fails. In contrast, the 750D only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS R and Canon EOS 750D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the 750D offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5DS R does not provide wifi capability.
Studio photographers will appreciate that the Canon 5DS R (unlike the 750D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The 5DS R is a recent model that features in the current product line-up of Canon. In contrast, the 750D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 750D was succeeded by the Canon 800D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Is the Canon 5DS R better than the Canon 750D or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 5DS R:
- More detail: Offers more megapixels (50.3 vs 24MP) with a 45% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (15 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.9 bits more color depth).
- Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.51x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (700 versus 440) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
Advantages of the Canon EOS 750D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (132x101mm vs 152x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 375g or 40 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
If the count of individual advantages (bullet points above) is taken as a guide, the 5DS R is the clear winner of the match-up (16 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5DS R and the Canon 750D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 5DS R or the 750D perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 750D||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon 800D||..||80/100||4.5/5||4/5||4/5||Feb 2017||749|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 760D||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon M3||o||75/100||4.5/5||4.5/5||4/5||Feb 2015||679|
|Canon 700D||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 40D vs Canon 750D
- Canon 5DS R vs Canon G1 X Mark III
- Canon 5DS R vs Canon M6 Mark II
- Canon 5DS R vs Leica S3
- Canon 5DS R vs Nikon D3500
- Canon 5DS R vs Olympus E-PL2
- Canon 5DS R vs Ricoh GR
- Canon 700D vs Canon 750D
- Canon 750D vs Fujifilm X-E2S
- Canon 750D vs Pentax KP
- Canon 750D vs Pentax MX-1
- Canon 750D vs Sony RX100 III
Specifications: Canon 5DS R vs Canon 750D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5DS R||Canon 750D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||February 2015||February 2015|
|Launch Price||USD 3,699||USD 749|
|Sensor Specs||Canon 5DS R||Canon 750D|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||50.3 Megapixels||24 Megapixels|
|Image Resolution||8688 x 5792 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.14 μm||3.72 μm|
|Pixel Density||5.82 MP/cm2||7.22 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 12,800 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6 (Dual)||DIGIC 6|
|DXO Sensor Quality (score)||86||71|
|DXO Color Depth (bits)||24.6||22.7|
|DXO Dynamic Range (EV)||12.4||12.0|
|DXO Low Light (ISO)||2308||919|
|Screen Specs||Canon 5DS R||Canon 750D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5DS R||Canon 750D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 5DS R||Canon 750D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5DS R||Canon 750D|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||700 shots per charge||440 shots per charge|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
|Camera Weight||930 g (32.8 oz)||555 g (19.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
