Canon 1D Mark II vs Olympus PEN-F
The Canon EOS-1D Mark II and the Olympus PEN-F are two digital cameras that were officially introduced, respectively, in January 2004 and January 2016. The 1D Mark II is a DSLR, while the PEN-F is a mirrorless interchangeable lens camera. The cameras are based on an APS-H (1D Mark II) and a Four Thirds (PEN-F) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D Mark II||Olympus PEN-F|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|8.2 MP, APS-H Sensor||20.2 MP, Four Thirds Sensor|
|no Video||1080/60p Video|
|ISO 100-1600 (50-3200)||ISO 80-25600|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|2.0" LCD, 230k dots||3.0" LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|8.3 shutter flaps per second||10 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Not weather sealed|
|1200 shots per battery charge||330 shots per battery charge|
|156 x 158 x 80 mm, 1535 g||125 x 72 x 37 mm, 427 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

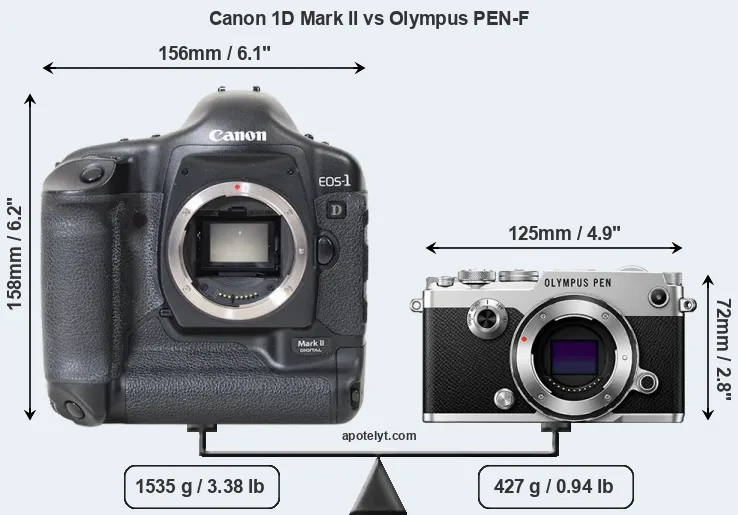

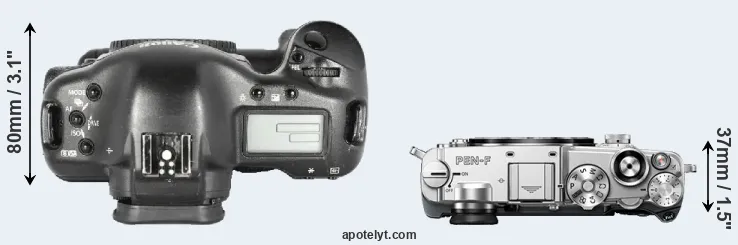

The side-by-side display below illustrates the physical size and weight of the Canon 1D Mark II and the Olympus PEN-F. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The PEN-F can be obtained in two different colors (black, silver), while the 1D Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is considerably smaller (63 percent) than the Canon 1D Mark II. Moreover, the PEN-F is substantially lighter (72 percent) than the 1D Mark II. It is worth mentioning in this context that the 1D Mark II is splash and dust resistant, while the PEN-F does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D Mark II) and the Micro Four Thirds Lens Catalog (PEN-F). Mirrorless cameras, such as the PEN-F, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the PEN-F can take 330 images on a single charge of its BLN-1 power pack. As can be seen in the images above, the 1D Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1D Mark II»||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499||-||Canon 1D Mark II|
|Olympus PEN-F«||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199||Olympus PEN-F|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 1D Mark IV« »||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999||-||Canon 1D Mark IV|
|Canon 1D Mark III« »||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499||-||Canon 1D Mark III|
|Canon 1Ds Mark III« »||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 5D« »||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||-||Canon 5D|
|Canon 1Ds Mark II« »||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Canon 1Ds« »||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999||-||Canon 1Ds|
|Canon 1D« »||6.1 in||6.2 in||3.1 in||55.9 oz||500||Y||Sep 2001||6,499||-||Canon 1D|
|Olympus E-M10 III« »||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M5 II« »||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-M1« »||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-P5« »||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999||-||Olympus E-P5|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The PEN-F was launched at a markedly lower price (by 73 percent) than the 1D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D Mark II features an APS-H sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 59 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 2.0. The sensor in the 1D Mark II has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
Despite having a smaller sensor, the PEN-F offers a higher resolution of 20.2 megapixels, compared with 8.2 MP of the 1D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 8.17μm for the 1D Mark II). However, it should be noted that the PEN-F is much more recent (by 12 years) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus PEN-F implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the PEN-F for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inch or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inch or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inch or 43.9 x 32.9 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inch or 44.5 x 29.7 cm for good quality, 14 x 9.3 inch or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inch or 29.7 x 19.8 cm for excellent quality prints.
Unlike the 1D Mark II, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the PEN-F has a markedly higher DXO score than the 1D Mark II (overall score 8 points higher), which will translate into better image quality. The advantage is based on 0.8 bits higher color depth, 1.3 EV in additional dynamic range, and 0.2 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 1D Mark II»||APS-H||8.2||3504||2336||-||22.3||11.1||1003||66||Canon 1D Mark II|
|Olympus PEN-F«||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74||Olympus PEN-F|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 1D Mark IV« »||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74||Canon 1D Mark IV|
|Canon 1D Mark III« »||APS-H||10.1||3888||2592||-||22.7||11.7||1078||71||Canon 1D Mark III|
|Canon 1Ds Mark III« »||Full Frame||21.0||5616||3744||-||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||APS-H||8.2||3504||2336||-||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 5D« »||Full Frame||12.7||4368||2912||-||22.9||11.1||1368||71||Canon 5D|
|Canon 1Ds Mark II« »||Full Frame||16.6||4992||3328||-||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Canon 1Ds« »||Full Frame||11.0||4064||2704||-||21.8||11.0||954||63||Canon 1Ds|
|Canon 1D« »||APS-H||4.1||2496||1662||-||-||-||-||-||Canon 1D|
|Olympus E-M10 III« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-M10 III|
|Olympus E-M5 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M10 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M1« »||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Olympus E-P5« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72||Olympus E-P5|
Many modern cameras cannot only take still pictures, but also record videos. The PEN-F indeed provides for movie recording, while the 1D Mark II does not. The highest resolution format that the PEN-F can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the PEN-F has an electronic viewfinder (2360k dots), while the 1D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the PEN-F has a higher magnification than the one of the 1D Mark II (0.62x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D Mark II, the Olympus PEN-F, and comparable cameras.
|Canon 1D Mark II»||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n||Canon 1D Mark II|
|Olympus PEN-F«||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus PEN-F|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 1D Mark IV« »||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark IV|
|Canon 1D Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n||Canon 1D Mark III|
|Canon 1Ds Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Canon 5D« »||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Canon 1Ds Mark II« »||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Canon 1Ds« »||optical||Y||2.0||120||fixed||n||1/8000s||3.0||n||n||Canon 1Ds|
|Canon 1D« »||optical||Y||2.0||120||fixed||n||1/16000s||8.0||n||n||Canon 1D|
|Olympus E-M10 III« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-M10 III|
|Olympus E-M5 II« »||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M10 II« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M1« »||2360||n||3.0||1037||tilting||Y||1/8000s||10.0||n||Y||Olympus E-M1|
|Olympus E-P5« »||-||n||3.0||1037||tilting||Y||1/8000s||9.0||Y||Y||Olympus E-P5|
One feature that is present on the 1D Mark II, but is missing on the PEN-F is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The PEN-F has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1D Mark II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the PEN-F is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus PEN-F has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the PEN-F uses SDXC cards. The 1D Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the PEN-F only has one slot. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 1D Mark II cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1D Mark II»||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II|
|Olympus PEN-F«||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus PEN-F|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 1D Mark IV« »||Y||stereo||-||Y||-||mini||2.0||-||-||-||Canon 1D Mark IV|
|Canon 1D Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1D Mark III|
|Canon 1Ds Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||Y||-||-||-||-||-||1.1||-||-||-||Canon 1D Mark II N|
|Canon 5D« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 5D|
|Canon 1Ds Mark II« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark II|
|Canon 1Ds« »||Y||-||-||-||-||-||FW||-||-||-||Canon 1Ds|
|Canon 1D« »||Y||-||-||-||-||-||FW||-||-||-||Canon 1D|
|Olympus E-M10 III« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 III|
|Olympus E-M5 II« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M10 II« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M1« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Olympus E-P5« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-P5|
It is notable that the PEN-F offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1D Mark II does not offer wifi capability.
Studio photographers will appreciate that the Canon 1D Mark II (unlike the PEN-F) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The PEN-F is a recent model that features in the current product line-up of Olympus. In contrast, the 1D Mark II has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D Mark II was succeeded by the Canon 1D Mark II N. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D Mark II and the Olympus PEN-F? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS-1D Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in January 2004).
Reasons to prefer the Olympus PEN-F:
- More detail: Has more megapixels (20.2 vs 8.2MP), which boosts linear resolution by 54%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.55x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 8.3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (125x72mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 1108g or 72 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
- More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
- More modern: Reflects 12 years of technical progress since the 1D Mark II launch.
If the count of relative strengths (bullet points above) is taken as a measure, the PEN-F is the clear winner of the contest (25 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 1D Mark II and the PEN-F in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D Mark II»||-||+ +||-||o||-||Jan 2004||4,499||-||Canon 1D Mark II|
|Olympus PEN-F«||-||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199||Olympus PEN-F|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon 1D Mark IV« »||-||89/100||-||5/5||-||Oct 2009||4,999||-||Canon 1D Mark IV|
|Canon 1D Mark III« »||-||-||-||o||-||Feb 2007||4,499||-||Canon 1D Mark III|
|Canon 1Ds Mark III« »||-||+ +||4.5/5||-||-||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 1D Mark II N« »||-||-||-||-||-||Aug 2005||3,999||-||Canon 1D Mark II N|
|Canon 5D« »||88/100||+ +||o||o||-||Aug 2005||3,299||-||Canon 5D|
|Canon 1Ds Mark II« »||-||+ +||-||-||-||Sep 2004||7,999||-||Canon 1Ds Mark II|
|Canon 1Ds« »||-||+ +||-||-||-||Sep 2002||8,999||-||Canon 1Ds|
|Canon 1D« »||-||+ +||-||-||-||Sep 2001||6,499||-||Canon 1D|
|Olympus E-M10 III« »||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M5 II« »||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M10 II« »||+ +||80/100||5/5||5/5||5/5||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-M1« »||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-P5« »||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999||-||Olympus E-P5|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark II N vs Canon G5 X Mark II
- Canon 1D Mark II N vs Samsung NX1
- Canon 1D Mark II vs Canon SX410
- Canon 1D Mark II vs Fujifilm X-Pro2
- Canon 1D Mark II vs Panasonic FZ200
- Canon 1D Mark II vs Panasonic GF5
- Canon 50D vs Olympus PEN-F
- Epson R-D1 vs Olympus PEN-F
- Fujifilm X-E3 vs Olympus PEN-F
- Olympus PEN-F vs Panasonic GX1
- Olympus PEN-F vs Sony A7R IV
- Olympus PEN-F vs Sony RX1
Specifications: Canon 1D Mark II vs Olympus PEN-F
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II||Olympus PEN-F|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2004||January 2016|
|Launch Price||USD 4499||USD 1199|
|Sensor Specs||Canon 1D Mark II||Olympus PEN-F|
|Sensor Format||APS-H Sensor||Four Thirds Sensor|
|Sensor Size||28.7 x 19.1 mm||17.3 x 13.0 mm|
|Sensor Area||548.17 mm2||224.9 mm2|
|Sensor Diagonal||34.5 mm||21.6 mm|
|Sensor Resolution||8.2 Megapixels||20.2 Megapixels|
|Image Resolution||3504 x 2336 pixels||5184 x 3888 pixels|
|Pixel Pitch||8.17 μm||3.34 μm|
|Pixel Density||1.49 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100-1600 ISO||80-25600 ISO|
|ISO Boost||50-3200 ISO||no Enhancement|
|Image Processor||DIGIC II||TruePic VII|
|DXO Sensor Quality (score)||66||74|
|DXO Color Depth (bits)||22.3||23.1|
|DXO Dynamic Range (EV)||11.1||12.4|
|DXO Low Light (ISO)||1003||894|
|Screen Specs||Canon 1D Mark II||Olympus PEN-F|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.0 inch||3.0 inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 1D Mark II||Olympus PEN-F|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/8000/s|
|Continuous Shooting||8.3 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||UHS-II|
|Connectivity Specs||Canon 1D Mark II||Olympus PEN-F|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 1D Mark II||Olympus PEN-F|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||330 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
125 x 72 x 37 mm
(4.9 x 2.8 x 1.5 in)
|Camera Weight||1535 g (54.1 oz)||427 g (15.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
