Canon 1200D vs Olympus E-M1 II
The Canon EOS 1200D (called Canon T5 in some regions) and the Olympus OM-D E-M1 Mark II are two digital cameras that were announced, respectively, in February 2014 and September 2016. The 1200D is a DSLR, while the E-M1 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (1200D) and a Four Thirds (E-M1 II) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 20.2 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.
|Canon 1200D||Olympus E-M1 II|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|17.9 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|1080/30p Video||4K/30p Video|
|ISO 100-6400 (100-12800)||ISO 200-25600|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|3.0" LCD, 460k dots||3.0" LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|3 shutter flaps per second||18 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Not weather sealed||Weathersealed body|
|500 shots per battery charge||440 shots per battery charge|
|130 x 100 x 78 mm, 480 g||134 x 91 x 67 mm, 574 g|
Body comparison: Canon 1200D vs Olympus E-M1 II

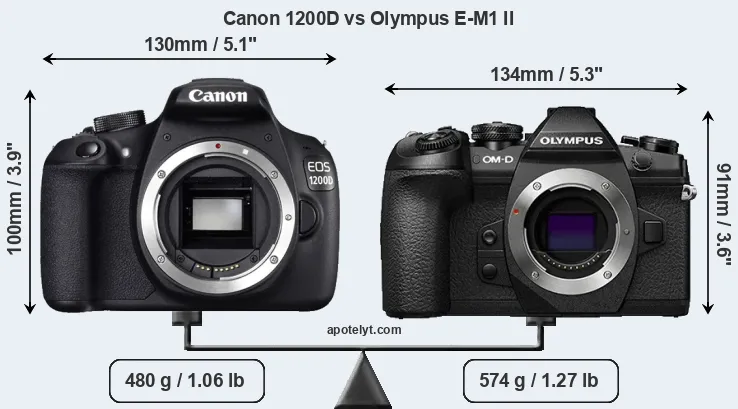

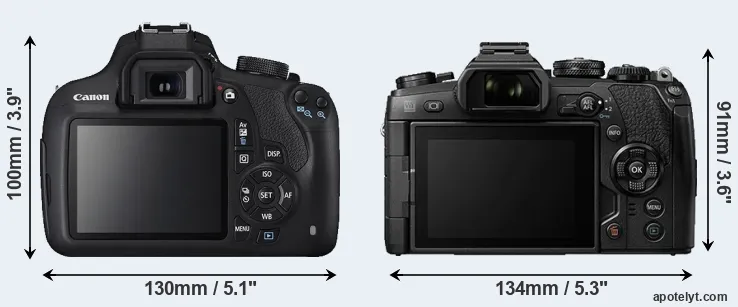

The side-by-side display below illustrates the physical size and weight of the Canon 1200D and the Olympus E-M1 II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II is notably smaller (6 percent) than the Canon 1200D. However, the E-M1 II is markedly heavier (20 percent) than the 1200D. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the 1200D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1200D) and the Micro Four Thirds Lens Catalog (E-M1 II). Mirrorless cameras, such as the E-M1 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 1200D»||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449||-||Canon 1200D|
|Olympus E-M1 II«||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Canon 4000D« »||5.1 in||4.0 in||3.0 in||15.4 oz||500||n||Feb 2018||399||Canon 4000D|
|Canon 1300D« »||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449||-||Canon 1300D|
|Canon 750D« »||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749||-||Canon 750D|
|Canon 760D« »||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||849||-||Canon 760D|
|Canon G9 X« »||3.9 in||2.3 in||1.2 in||7.4 oz||220||n||Oct 2015||529||-||Canon G9 X|
|Canon M10« »||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499||-||Canon M10|
|Canon 100D« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||-||Canon 100D|
|Canon 700D« »||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649||-||Canon 700D|
|Canon 650D« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||-||Canon 650D|
|Canon 1100D« »||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449||-||Canon 1100D|
|Olympus E-M5 II« »||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1« »||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399||-||Olympus E-M1|
|Panasonic G9« »||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999||Panasonic GH5|
|Panasonic GX8« »||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199||-||Panasonic GX8|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 1200D was launched at a markedly lower price (by 78 percent) than the E-M1 II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Canon 1200D vs Olympus E-M1 II
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1200D features an APS-C sensor and the Olympus E-M1 II a Four Thirds sensor. The sensor area in the E-M1 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 1200D has a native 3:2 aspect ratio, while the one in the E-M1 II offers a 4:3 aspect.
Despite having a smaller sensor, the E-M1 II offers a higher resolution of 20.2 megapixels, compared with 17.9 MP of the 1200D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.31μm for the 1200D). However, it should be noted that the E-M1 II is much more recent (by 2 years and 7 months) than the 1200D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the E-M1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during video recording.
Unlike the 1200D, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 1200D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600..
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-M1 II offers substantially better image quality than the 1200D (overall score 17 points higher). The advantage is based on 1.8 bits higher color depth, 1.5 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 1200D»||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon 1200D|
|Olympus E-M1 II«||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Canon 4000D« »||APS-C||17.9||5184||3456||1080/30p||21.9||11.4||695||63||Canon 4000D|
|Canon 1300D« »||APS-C||17.9||5184||3456||1080/30p||-||-||-||-||Canon 1300D|
|Canon 750D« »||APS-C||24.0||6000||4000||1080/60p||22.7||12.0||919||71||Canon 750D|
|Canon 760D« »||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon 760D|
|Canon G9 X« »||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63||Canon G9 X|
|Canon M10« »||APS-C||17.9||5184||3456||1080/30p||22.2||11.4||753||65||Canon M10|
|Canon 100D« »||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon 100D|
|Canon 700D« »||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon 700D|
|Canon 650D« »||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon 650D|
|Canon 1100D« »||APS-C||12.2||4272||2848||720/30p||21.9||11.0||755||62||Canon 1100D|
|Olympus E-M5 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M1« »||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Panasonic G9« »||Four Thirds||20.2||5184||3888||4K/60p||-||-||-||-||Panasonic G9|
|Panasonic GH5« »||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77||Panasonic GH5|
|Panasonic GX8« »||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75||Panasonic GX8|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M1 II provides a better video resolution than the 1200D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Feature comparison: Canon 1200D vs Olympus E-M1 II
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), while the 1200D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 1200D and Olympus E-M1 II along with similar information for a selection of comparators.
|Canon 1200D»||optical||n||3.0||460||fixed||n||4000||3.0||Y||n||Canon 1200D|
|Olympus E-M1 II«||2360||n||3.0||1037||swivel||Y||8000||18.0||n||Y||Olympus E-M1 II|
|Canon 4000D« »||optical||n||2.7||230||fixed||n||4000||3.0||Y||n||Canon 4000D|
|Canon 1300D« »||optical||n||3.0||920||fixed||n||4000||3.0||Y||n||Canon 1300D|
|Canon 750D« »||optical||n||3.0||1040||swivel||Y||4000||5.0||Y||n||Canon 750D|
|Canon 760D« »||optical||Y||3.0||1040||swivel||Y||4000||5.0||Y||n||Canon 760D|
|Canon G9 X« »||-||n||3.0||1040||fixed||Y||2000||6.0||Y||Y||Canon G9 X|
|Canon M10« »||-||n||3.0||1040||tilting||Y||4000||4.6||Y||n||Canon M10|
|Canon 100D« »||optical||n||3.0||1040||fixed||Y||4000||4.9||Y||n||Canon 100D|
|Canon 700D« »||optical||n||3.0||1040||swivel||Y||4000||5.0||Y||n||Canon 700D|
|Canon 650D« »||optical||n||3.0||1040||swivel||Y||4000||5.0||Y||n||Canon 650D|
|Canon 1100D« »||optical||n||2.7||230||fixed||n||4000||3.0||Y||n||Canon 1100D|
|Olympus E-M5 II« »||2360||n||3.0||1037||swivel||Y||8000||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M1« »||2360||n||3.0||1037||tilting||Y||8000||10.0||n||Y||Olympus E-M1|
|Panasonic G9« »||3680||Y||3.0||1040||swivel||Y||8000||20.0||n||Y||Panasonic G9|
|Panasonic GH5« »||3680||n||3.2||1620||swivel||Y||8000||12.0||n||Y||Panasonic GH5|
|Panasonic GX8« »||2360||n||3.0||1040||swivel||Y||8000||10.0||n||Y||Panasonic GX8|
One difference between the cameras concerns the presence of an on-board flash. The 1200D has one, while the E-M1 II does not. While the built-in flash of the 1200D is not very powerful, it can at times be useful as a fill-in light.The E-M1 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1200D does not have a selfie-screen.
The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the E-M1 II features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
Concerning the storage of imaging data, both the 1200D and the E-M1 II write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 1200D only has one slot.
Connectivity comparison: Canon 1200D vs Olympus E-M1 II
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 1200D and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1200D»||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon 1200D|
|Olympus E-M1 II«||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Canon 4000D« »||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 4000D|
|Canon 1300D« »||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 1300D|
|Canon 750D« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 750D|
|Canon 760D« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 760D|
|Canon G9 X« »||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G9 X|
|Canon M10« »||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon M10|
|Canon 100D« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 100D|
|Canon 700D« »||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 700D|
|Canon 650D« »||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon 650D|
|Canon 1100D« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Canon 1100D|
|Olympus E-M5 II« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M1« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Panasonic G9« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||Y||Panasonic G9|
|Panasonic GH5« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic GH5|
|Panasonic GX8« »||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Panasonic GX8|
It is notable that the E-M1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1200D does not offer wifi capability.
Studio photographers will appreciate that the Olympus E-M1 II (unlike the 1200D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the 1200D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1200D was succeeded by the Canon 1300D.
Review summary: Canon 1200D vs Olympus E-M1 II
So what is the bottom line? Which of the two cameras – the Canon 1200D or the Olympus E-M1 II – has the upper hand? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 1200D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Less heavy: Is lighter (by 94g or 16 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (500 versus 440) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2014).
Advantages of the Olympus OM-D E-M1 Mark II:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.9 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 2 years and 7 months of technical progress since the 1200D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the contest (26 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.
In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 1200D and the E-M1 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews: Canon 1200D vs Olympus E-M1 II
This is where reviews by experts come in. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.
|Canon 1200D»||Rec||-||4/5||4/5||4.5/5||Feb 2014||449||-||Canon 1200D|
|Olympus E-M1 II«||HiRec||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999||Olympus E-M1 II|
|Canon 4000D« »||rev||-||3.5/5||-||3.5/5||Feb 2018||399||Canon 4000D|
|Canon 1300D« »||rev||73/100||4/5||3.5/5||4/5||Mar 2016||449||-||Canon 1300D|
|Canon 750D« »||-||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749||-||Canon 750D|
|Canon 760D« »||Rec||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||849||-||Canon 760D|
|Canon G9 X« »||HiRec||-||4.5/5||4/5||4.5/5||Oct 2015||529||-||Canon G9 X|
|Canon M10« »||-||-||-||rev||4/5||Oct 2015||499||-||Canon M10|
|Canon 100D« »||Rec||78/100||4/5||4/5||4/5||Mar 2013||549||-||Canon 100D|
|Canon 700D« »||-||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649||-||Canon 700D|
|Canon 650D« »||HiRec||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849||-||Canon 650D|
|Canon 1100D« »||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449||-||Canon 1100D|
|Olympus E-M5 II« »||HiRec||81/100||5/5||4.5/5||5/5||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1« »||HiRec||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399||-||Olympus E-M1|
|Panasonic G9« »||HiRec||85/100||5/5||5/5||5/5||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||HiRec||85/100||4.5/5||5/5||5/5||Jan 2017||1,999||Panasonic GH5|
|Panasonic GX8« »||Rec||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199||-||Panasonic GX8|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 40D vs Fujifilm X70
- Canon D30 vs Canon G1 X Mark III
- Canon T4i vs Canon G1 X
- Fujifilm X20 vs Panasonic FZ200
- Fujifilm XF10 vs Nikon D850
- Leitz Ur-Leica vs Sony A7 III
- Nikon P1000 vs Panasonic FZ200
- Olympus E-P1 vs Canon G7 X
- Panasonic G1 vs Panasonic G7
- Panasonic G7 vs Canon M10
- Sony RX10 vs Sony RX10 II
- Sony RX100 IV vs Sony RX10
Specifications: Canon 1200D vs Olympus E-M1 II
|Camera Model||Canon 1200D||Olympus E-M1 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2014||September 2016|
|Launch Price||USD 449||USD 1999|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 14.9 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||20.2 Megapixels|
|Image Resolution||5184 x 3456 pixels||5184 x 3888 pixels|
|Pixel Pitch||4.31 μm||3.34 μm|
|Pixel Density||5.39 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100-6400 ISO||200-25600 ISO|
|ISO Boost||100-12800 ISO||64-25600 ISO|
|Image Processor||DIGIC 4||TruePic VIII|
|DXO Sensor Quality (score)||63||80|
|DXO Color Depth (bits)||21.9||23.7|
|DXO Dynamic Range (EV)||11.3||12.8|
|DXO Low Light (ISO)||724||1312|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||n/a||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||460k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Maximum Shutter Speed||1/4000s||1/8000s|
|Continuous Shooting||3 shutter flaps/s||18 shutter flaps/s|
|Silent Shooting||no E-Shutter||Electronic Shutter|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Environmental Sealing||Not weather sealed||Weathersealed body|
|Battery Type||LP-E10 power pack||BLH-1 power pack|
|Battery Life (CIPA)||500 shots per charge||440 shots per charge|
130 x 100 x 78 mm
(5.1 x 3.9 x 3.1 in)
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
|Camera Weight||480 g (16.9 oz)||574 g (20.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
