Olympus E-M1 II vs Panasonic FZ330

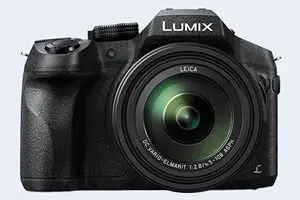

The Olympus OM-D E-M1 Mark II and the Panasonic Lumix DMC-FZ330 (labelled Panasonic FZ300 in some countries) are two digital cameras that were revealed to the public, respectively, in September 2016 and July 2015. The E-M1 II is a mirrorless interchangeable lens camera, while the FZ330 is a fixed lens compact. The cameras are based on a Four Thirds (E-M1 II) and a 1/2.3-inch (FZ330) sensor. The Olympus has a resolution of 20.2 megapixels, whereas the Panasonic provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-M1 II||Panasonic FZ330|
|Mirrorless system camera||Fixed lens compact camera|
|Micro Four Thirds lenses||25-600mm f/2.8|
|20.2 MP, Four Thirds Sensor||12 MP, 1/2.3" Sensor|
|4K/30p Video||4K/30p Video|
|ISO 200-25,600||ISO 100-6,400|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (1440k dots)|
|3.0 LCD, 1037k dots||3.0 LCD, 1040k dots|
|Swivel touchscreen||Swivel touchscreen|
|18 shutter flaps per second||12 shutter flaps per second|
|In-body stabilization||Lens-based stabilization|
|Weathersealed body||Weathersealed body|
|440 shots per battery charge||380 shots per battery charge|
|134 x 91 x 67 mm, 574 g||132 x 92 x 117 mm, 691 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the Panasonic Lumix DMC-FZ330? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Olympus E-M1 II and the Panasonic FZ330 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II and the Panasonic FZ330 are of equal size. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the FZ330 has a lens built in, whereas the E-M1 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M1 II and their specifications in the Micro Four Thirds Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-M1 II||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999|
|Panasonic FZ330||5.2 in||3.6 in||4.6 in||24.4 oz||380||Y||Jul 2015||599|
|Canon G3 X||4.8 in||3.0 in||4.1 in||25.9 oz||300||Y||Jun 2015||999|
|Canon SX60||5.0 in||3.7 in||4.5 in||22.9 oz||340||n||Sep 2014||549|
|Olympus E-M1 III||5.3 in||3.6 in||2.7 in||20.5 oz||420||Y||Feb 2020||1,799|
|Olympus PEN-F||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Panasonic G9||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic G85||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899|
|Panasonic GX8||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199|
|Panasonic FZ200||4.9 in||3.4 in||4.3 in||20.7 oz||540||n||Jul 2012||599|
|Panasonic FZ150||4.9 in||3.2 in||3.6 in||18.6 oz||410||n||Aug 2011||499|
|Panasonic LX5||4.3 in||2.6 in||1.7 in||9.6 oz||400||n||Jul 2010||499|
|Sony A9||5.0 in||3.8 in||2.5 in||23.7 oz||650||Y||Apr 2017||4,499|
|Sony A7 II||5.0 in||3.8 in||2.4 in||21.1 oz||350||Y||Nov 2014||1,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The FZ330 was launched at a lower price than the E-M1 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Olympus E-M1 II features a Four Thirds sensor and the Panasonic FZ330 a 1/2.3-inch sensor. The sensor area in the FZ330 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
With 20.2MP, the E-M1 II offers a higher resolution than the FZ330 (12MP), but the E-M1 II nevertheless has larger individual pixels (pixel pitch of 3.34μm versus 1.53μm for the FZ330) due to its larger sensor. Moreover, the E-M1 II is a somewhat more recent model (by 1 year and 2 months) than the FZ330, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Olympus E-M1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 II for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic FZ330 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the FZ330, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Panasonic Lumix DMC-FZ330 are ISO 100 to ISO 6400 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the E-M1 II provides substantially higher image quality than the FZ330, with an overall score that is 42 points higher. This advantage is based on 4.4 bits higher color depth, 1.8 EV in additional dynamic range, and 3.8 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic G85||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|Sony A9||Full Frame||24.0||6000||4000||4K/30p||24.9||13.3||3517||92|
|Sony A7 II||Full Frame||24.0||6000||4000||1080/60p||24.9||13.6||2449||90|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the E-M1 II offers a substantially higher resolution than the one in the FZ330 (2360k vs 1440k dots). The adjacent table lists some of the other core features of the Olympus E-M1 II and Panasonic FZ330 along with similar information for a selection of comparators.
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|Olympus E-M1 III||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Sony A7 II||2400||n||3.0||1230||tilting||n||1/8000s||5.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The FZ330 has one, while the E-M1 II does not. While the built-in flash of the FZ330 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II and the Panasonic FZ330 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M1 II and the FZ330 write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the FZ330 only has one slot. The E-M1 II supports UHS-II cards (on its first slot), while the FZ330 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and Panasonic Lumix DMC-FZ330 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|Olympus E-M1 III||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Sony A7 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
Studio photographers will appreciate that the Olympus E-M1 II (unlike the FZ330) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-M1 II and the FZ330 are recent models that are part of the current product line-up. The FZ330 replaced the earlier Panasonic FZ200, while the E-M1 II followed on from the Olympus E-M1. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what conclusions can be drawn? Is the Olympus E-M1 II better than the Panasonic FZ330 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Olympus OM-D E-M1 Mark II:
- More detail: Offers more megapixels (20.2 vs 12MP) with a 30% higher linear resolution.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (42 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (4.4 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (3.8 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 1440k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.70x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 12 flaps/sec) to capture the decisive moment.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Longer lasting: Can take more shots (440 versus 380) on a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Is somewhat more recent (announced 1 year and 2 months after the FZ330).
Arguments in favor of the Panasonic Lumix DMC-FZ330:
- Ready to shoot: Has an integrated lens, whereas the E-M1 II necessitates an extra lens.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in July 2015).
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the match-up (19 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 II and the Panasonic FZ330 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-M1 II or the FZ330 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Panasonic FZ330||+ +||..||4.5/5||4.5/5||4.5/5||Jul 2015||599|
|Canon G3 X||+||..||4.5/5||3.5/5||4/5||Jun 2015||999|
|Canon SX60||+ +||75/100||4/5||..||4.5/5||Sep 2014||549|
|Olympus E-M1 III||..||83/100||4.5/5||..||4/5||Feb 2020||1,799|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Panasonic G9||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic G85||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Panasonic FZ200||+ +||80/100||4.5/5||4.5/5||4.5/5||Jul 2012||599|
|Panasonic FZ150||+ +||76/100||4/5||5/5||4.5/5||Aug 2011||499|
|Panasonic LX5||+||73/100||4.5/5||5/5||4.5/5||Jul 2010||499|
|Sony A9||+ +||89/100||5/5||5/5||5/5||Apr 2017||4,499|
|Sony A7 II||+||82/100||4.5/5||5/5||5/5||Nov 2014||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 450D vs Olympus E-M1 II
- Canon 77D vs Panasonic FZ330
- Canon M10 vs Olympus E-M1 II
- Fujifilm X-E3 vs Olympus E-M1 II
- Fujifilm X-T1 vs Olympus E-M1 II
- Leica M-E Typ 240 vs Olympus E-M1 II
- Leica M10-P vs Panasonic FZ330
- Nikon D300 vs Panasonic FZ330
- Nikon D40X vs Olympus E-M1 II
- Nikon D750 vs Olympus E-M1 II
- Olympus E-M1 II vs Sony A7 III
- Panasonic FZ330 vs Panasonic TZ90
Specifications: Olympus E-M1 II vs Panasonic FZ330
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M1 II||Panasonic FZ330|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Micro Four Thirds lenses||25-600mm f/2.8|
|Launch Date||September 2016||July 2015|
|Launch Price||USD 1,999||USD 599|
|Sensor Specs||Olympus E-M1 II||Panasonic FZ330|
|Sensor Format||Four Thirds Sensor||1/2.3" Sensor|
|Sensor Size||17.3 x 13.0 mm||6.17 x 4.55 mm|
|Sensor Area||224.9 mm2||28.0735 mm2|
|Sensor Diagonal||21.6 mm||7.7 mm|
|Sensor Resolution||20.2 Megapixels||12 Megapixels|
|Image Resolution||5184 x 3888 pixels||4000 x 3000 pixels|
|Pixel Pitch||3.34 μm||1.53 μm|
|Pixel Density||8.96 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||200 - 25,600 ISO||100 - 6,400 ISO|
|ISO Boost||64 - 25,600 ISO||no Enhancement|
|Image Processor||TruePic VIII||Venus|
|DXO Sensor Quality (score)||80||38|
|DXO Color Depth (bits)||23.7||19.3|
|DXO Dynamic Range (EV)||12.8||11.0|
|DXO Low Light (ISO)||1312||97|
|Screen Specs||Olympus E-M1 II||Panasonic FZ330|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||1440k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Olympus E-M1 II||Panasonic FZ330|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||18 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||Lens-based stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||Single UHS-II||UHS-I|
|Connectivity Specs||Olympus E-M1 II||Panasonic FZ330|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Olympus E-M1 II||Panasonic FZ330|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||440 shots per charge||380 shots per charge|
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
132 x 92 x 117 mm
(5.2 x 3.6 x 4.6 in)
|Camera Weight||574 g (20.2 oz)||691 g (24.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
