Canon 1200D vs Fujifilm X-T20
The Canon EOS 1200D (called Canon T5 in some regions) and the Fujifilm X-T20 are two digital cameras that were revealed to the public, respectively, in February 2014 and January 2017. The 1200D is a DSLR, while the X-T20 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Fujifilm provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1200D||Fujifilm X-T20|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Fujifilm X mount lenses|
|17.9 MP, APS-C Sensor||24 MP, APS-C Sensor|
|1080/30p Video||4K/30p Video|
|ISO 100-6,400 (100 - 12,800)||ISO 200-12,800 (100 - 51,200)|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|3.0 LCD, 460k dots||3.0 LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|3 shutter flaps per second||8 shutter flaps per second|
|500 shots per battery charge||350 shots per battery charge|
|130 x 100 x 78 mm, 480 g||118 x 83 x 41 mm, 383 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 1200D and the Fujifilm X-T20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

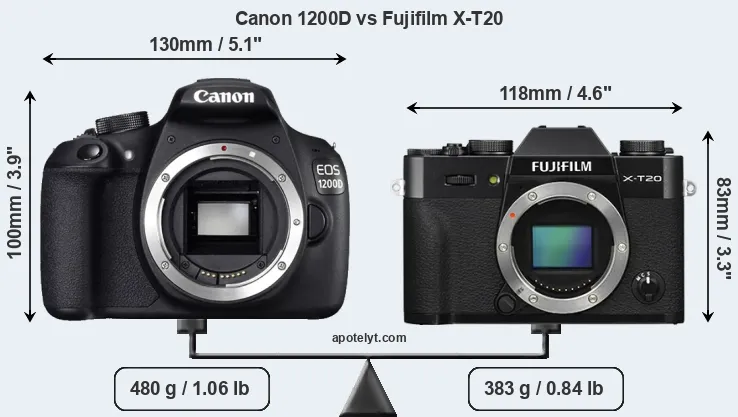

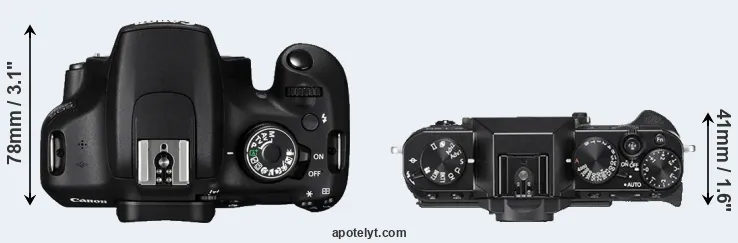

An illustration of the physical size and weight of the Canon 1200D and the Fujifilm X-T20 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The X-T20 can be obtained in two different colors (black, silver), while the 1200D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T20 is notably smaller (25 percent) than the Canon 1200D. Moreover, the X-T20 is markedly lighter (20 percent) than the 1200D. In this context, it is worth noting that neither the 1200D nor the X-T20 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1200D) and the Fujinon X Lens Catalog (X-T20). Mirrorless cameras, such as the X-T20, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 1200D gets 500 shots out of its LP-E10 battery, while the X-T20 can take 350 images on a single charge of its NP-W126S power pack. The power pack in the X-T20 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1200D||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449|
|Fujifilm X-T20||4.6 in||3.3 in||1.6 in||13.5 oz||350||n||Jan 2017||899|
|Canon 4000D||5.1 in||4.0 in||3.0 in||15.4 oz||500||n||Feb 2018||399|
|Canon 1300D||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449|
|Canon 750D||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Canon 760D||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649|
|Canon G9 X||3.9 in||2.3 in||1.2 in||7.4 oz||220||n||Oct 2015||529|
|Canon M10||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499|
|Canon 100D||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549|
|Canon 700D||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649|
|Canon 650D||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849|
|Canon 1100D||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449|
|Fujifilm X-T30||4.6 in||3.3 in||1.9 in||13.5 oz||380||n||Feb 2019||899|
|Fujifilm X-A5||4.6 in||2.7 in||1.6 in||12.7 oz||450||n||Jan 2018||399|
|Fujifilm X-T100||4.8 in||3.3 in||1.9 in||15.8 oz||430||n||May 2018||599|
|Fujifilm X-E3||4.8 in||2.9 in||1.7 in||11.9 oz||350||n||Sep 2017||899|
|Fujifilm X-T10||4.6 in||3.3 in||1.6 in||13.4 oz||350||n||May 2015||799|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 1200D was launched at a markedly lower price (by 50 percent) than the X-T20, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-T20 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (1200D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

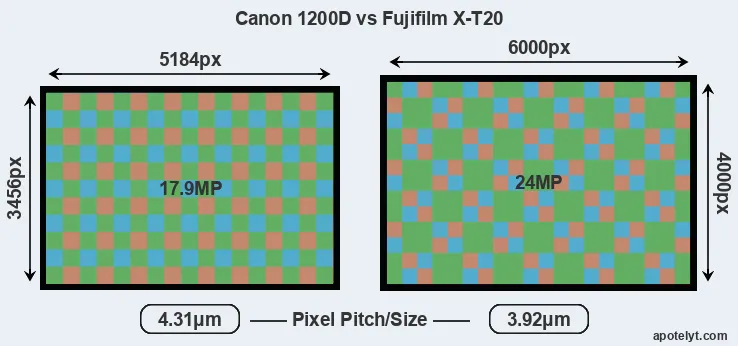

With 24MP, the X-T20 offers a higher resolution than the 1200D (17.9MP), but the X-T20 has smaller individual pixels (pixel pitch of 3.92μm versus 4.31μm for the 1200D). Yet, the X-T20 is a much more recent model (by 2 years and 11 months) than the 1200D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-T20 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T20 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 1200D are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The X-T20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 1200D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Fujifilm X-T20 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X-T20 provides a better video resolution than the 1200D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder (2360k dots), while the 1200D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T20 offers a wider field of view (100%) than the one in the 1200D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T20 has a higher magnification (0.62x vs 0.50x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 1200D and Fujifilm X-T20 in connection with corresponding information for a sample of similar cameras.
|Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The X-T20 has a touchscreen, while the 1200D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T20 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 1200D and the X-T20 write their files to SDXC cards. The X-T20 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 1200D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 1200D and Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the X-T20 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1200D does not provide wifi capability.
The X-T20 is a recent model that features in the current product line-up of Fujifilm. In contrast, the 1200D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1200D was succeeded by the Canon 1300D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So how do things add up? Is the Canon 1200D better than the Fujifilm X-T20 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 1200D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Can take more shots (500 versus 350) on a single battery charge.
- More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2014).
Advantages of the Fujifilm X-T20:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.50x).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (118x83mm vs 130x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 97g or 20 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 11 months of technical progress since the 1200D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the X-T20 is the clear winner of the contest (20 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1200D and the Fujifilm X-T20 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 1200D and the X-T20 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1200D||+||..||4/5||4/5||4.5/5||Feb 2014||449|
|Fujifilm X-T20||+ +||82/100||5/5||..||4.5/5||Jan 2017||899|
|Canon 4000D||o||..||3.5/5||..||3.5/5||Feb 2018||399|
|Canon 1300D||o||73/100||4/5||3.5/5||4/5||Mar 2016||449|
|Canon 750D||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon 760D||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon G9 X||+ +||..||4.5/5||4/5||4.5/5||Oct 2015||529|
|Canon M10||..||..||..||o||4/5||Oct 2015||499|
|Canon 100D||+||78/100||4/5||4/5||4/5||Mar 2013||549|
|Canon 700D||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon 650D||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Canon 1100D||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449|
|Fujifilm X-T30||+ +||84/100||4.5/5||5/5||4.5/5||Feb 2019||899|
|Fujifilm X-A5||+||..||4/5||4/5||3.5/5||Jan 2018||399|
|Fujifilm X-T100||+||79/100||4/5||..||4.5/5||May 2018||599|
|Fujifilm X-E3||+||84/100||4.5/5||4.5/5||4.5/5||Sep 2017||899|
|Fujifilm X-T10||+ +||80/100||5/5||4/5||5/5||May 2015||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1200D vs Canon 800D
- Canon 1200D vs Canon SX50
- Canon 1200D vs Panasonic GH5s
- Canon 1200D vs Panasonic LX7
- Canon 1Ds Mark II vs Fujifilm X-T20
- Fujifilm X-E1 vs Fujifilm X-T20
- Fujifilm X-T20 vs Leica S-E Typ 006
- Fujifilm X-T20 vs Nikon D3200
- Fujifilm X-T20 vs Panasonic LX100 II
- Fujifilm X-T20 vs Panasonic TZ90
- Fujifilm X-T20 vs Sony A6600
- Fujifilm X-T20 vs Sony RX100 III
Specifications: Canon 1200D vs Fujifilm X-T20
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1200D||Fujifilm X-T20|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||February 2014||January 2017|
|Launch Price||USD 449||USD 899|
|Sensor Specs||Canon 1200D||Fujifilm X-T20|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.6 mm|
|Sensor Area||332.27 mm2||368.16 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.92 μm|
|Pixel Density||5.39 MP/cm2||6.52 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 12,800 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 4||X-Processor Pro2|
|DXO Sensor Quality (score)||63||..|
|DXO Color Depth (bits)||21.9||..|
|DXO Dynamic Range (EV)||11.3||..|
|DXO Low Light (ISO)||724||..|
|Screen Specs||Canon 1200D||Fujifilm X-T20|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||460k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 1200D||Fujifilm X-T20|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 1200D||Fujifilm X-T20|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 1200D||Fujifilm X-T20|
|Battery Life (CIPA)||500 shots per charge||350 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
130 x 100 x 78 mm
(5.1 x 3.9 x 3.1 in)
118 x 83 x 41 mm
(4.6 x 3.3 x 1.6 in)
|Camera Weight||480 g (16.9 oz)||383 g (13.5 oz)|
