Panasonic GH1 vs TS7

The Panasonic Lumix DMC-GH1 and the Panasonic Lumix DC-TS7 (labelled Panasonic FT7 in some countries) are two digital cameras that were officially introduced, respectively, in March 2009 and May 2018. The GH1 is a mirrorless interchangeable lens camera, while the TS7 is a fixed lens compact. The cameras are based on a Four Thirds (GH1) and a 1/2.3-inch (TS7) sensor. The GH1 has a resolution of 12 megapixels, whereas the TS7 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GH1		Panasonic TS7
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-128mm f/3.3-5.9
12 MP – Four Thirds sensor		20.2 MP – 1/2.3" sensor
1080/24p Video		4K/30p Video
ISO 100-1,600 (100 - 3,200)		ISO 80-3,200 (80 - 6,400)
Electronic viewfinder (1440k dots)		Electronic viewfinder (1170k dots)
3.0" LCD – 460k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		10 shutter flaps per second
not weather sealed		Waterproof body (31m)
300 shots per battery charge		300 shots per battery charge
124 x 90 x 45 mm, 385 g		117 x 76 x 37 mm, 319 g

Check GH1 offers at
ebay.com
Check TS7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GH1 and the Panasonic Lumix DC-TS7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

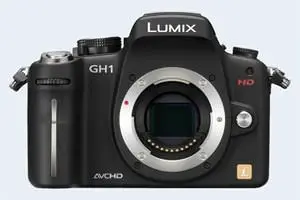

The side-by-side display below illustrates the physical size and weight of the Panasonic GH1 and the Panasonic TS7. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The GH1 can be obtained in two different colors (black, red), while the TS7 is available in three color-versions (black, blue, orange).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic TS7 is notably smaller (20 percent) than the Panasonic GH1. It is noteworthy in this context that the TS7 is splash and dust-proof, while the GH1 does not feature any corresponding weather-sealing. More than that, the TS7 is water-proof up to 31m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TS7 has a lens built in, whereas the GH1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GH1 and their specifications in the Micro Four Thirds Lens Catalog.

The power pack in the TS7 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	899	ebay.com
2.		Panasonic TS7	117 mm	76 mm	37 mm	319 g	300	Y	May 2018	449	ebay.com
3.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
4.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	799	ebay.com
5.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	799	ebay.com
6.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	399	ebay.com
7.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	599	ebay.com
8.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	599	ebay.com
9.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	499	ebay.com
10.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	749	ebay.com
11.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	549	ebay.com
12.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
13.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
14.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	899	ebay.com
15.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
16.		Panasonic ZS80	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	449	ebay.com
17.		Ricoh WG-6	118 mm	66 mm	33 mm	246 g	340	Y	Feb 2019	399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TS7 was launched at a lower price than the GH1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Panasonic GH1 features a Four Thirds sensor and the Panasonic TS7 a 1/2.3-inch sensor. The sensor area in the TS7 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the TS7 offers a higher resolution of 20.2 megapixels, compared with 12 MP of the GH1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.33μm for the GH1). However, it should be noted that the TS7 is much more recent (by 9 years and 2 months) than the GH1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic TS7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TS7 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic GH1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Panasonic Lumix DMC-GH1 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DC-TS7 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.

In terms of underlying technology, the GH1 is build around a CMOS sensor, while the TS7 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
2.		Panasonic TS7	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1028	51
3.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
4.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
5.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
6.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
7.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
8.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
9.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
10.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
11.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
12.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
13.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
14.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
15.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
16.		Panasonic ZS80	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
17.		Ricoh WG-6	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1104	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the TS7 provides a better video resolution than the GH1. It can shoot movie footage at 4K/30p, while the GH1 is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the GH1 offers a higher resolution than the one in the TS7 (1440k vs 1170k dots). The table below summarizes some of the other core capabilities of the Panasonic GH1 and Panasonic TS7 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
2.		Panasonic TS7	1170	n	3.0 / 1040	fixed	n	1/1300s	10.0/s	Y	Y
3.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
4.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
5.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
6.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
7.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
8.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
9.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
10.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
12.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
14.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
15.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
16.		Panasonic ZS80	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Ricoh WG-6	none	n	3.0 / 1040	fixed	n	1/4000s	1.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the TS7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The GH1 writes its imaging data to SDHC cards, while the TS7 uses SDXC cards. The TS7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GH1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GH1 and Panasonic Lumix DC-TS7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
2.		Panasonic TS7	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
8.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
10.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic ZS80	-	stereo / mono	-	-	micro	2.0	Y	-	Y
17.		Ricoh WG-6	-	mono / mono	-	-	micro	3.0	-	-	-

It is notable that the GH1 has a hotshoe, while the TS7 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the GH1 and the TS7 have been discontinued, but can regularly be found used on ebay. The GH1 was replaced by the Panasonic GH2, while the TS7 does not have a direct successor. Further information on the features and operation of the GH1 and TS7 can be found, respectively, in the Panasonic GH1 Manual (free pdf) or the online Panasonic TS7 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Panasonic GH1 and the Panasonic TS7? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Panasonic Lumix DMC-GH1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 1170k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.45x).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1300s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in March 2009).

Reasons to prefer the Panasonic Lumix DC-TS7:

• More detail: Has more megapixels (20.2 vs 12MP), which boosts linear resolution by 30%.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/24p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Ready to shoot: Has an integrated lens, whereas the GH1 necessitates an extra lens.
• More compact: Is smaller (117x76mm vs 124x90mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the GH1).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 31m).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 9 years and 2 months of technical progress since the GH1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the TS7 emerges as the winner of the match-up (16 : 13 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GH1 and the Panasonic TS7 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the GH1 and the TS7 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	899	ebay.com
2.		Panasonic TS7	..	+	..	..	..	3.5/5	May 2018	449	ebay.com
3.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
4.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	799	ebay.com
5.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	799	ebay.com
6.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	399	ebay.com
7.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	599	ebay.com
8.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	599	ebay.com
9.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	499	ebay.com
10.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	749	ebay.com
11.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	549	ebay.com
12.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
13.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
14.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	899	ebay.com
15.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	449	ebay.com
16.		Panasonic ZS80	..	+ +	..	..	4.5/5	..	Feb 2019	449	ebay.com
17.		Ricoh WG-6	..	..	..	..	3.5/5	3.5/5	Feb 2019	399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check GH1 offers at
ebay.com
Check TS7 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check GH1 offers at
ebay.com
Check TS7 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
