Panasonic GF5 vs GH5
The Panasonic Lumix DMC-GF5 and the Panasonic Lumix DC-GH5 are two digital cameras that were officially introduced, respectively, in April 2012 and January 2017. Both the GF5 and the GH5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The GF5 has a resolution of 12 megapixels, whereas the GH5 provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GF5 and the Panasonic Lumix DC-GH5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Panasonic GF5 and the Panasonic GH5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The GF5 can be obtained in three different colors (black, red, white), while the GH5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5 is considerably larger (88 percent) than the Panasonic GF5. Moreover, the GH5 is substantially heavier (172 percent) than the GF5. It is noteworthy in this context that the GH5 is splash and dust-proof, while the GF5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Panasonic GF5||108 mm||67 mm||37 mm||267 g||360||n||Apr 2012||499|
|2.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|3.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|4.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|5.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|6.||Panasonic G9||137 mm||97 mm||92 mm||658 g||400||Y||Nov 2017||1,699|
|7.||Panasonic GX800||107 mm||65 mm||33 mm||269 g||210||n||Jan 2017||549|
|8.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|9.||Panasonic GH4||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499|
|10.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|11.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|12.||Panasonic LX7||111 mm||68 mm||46 mm||298 g||330||n||Jul 2012||499|
|13.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|14.||Panasonic GF3||108 mm||67 mm||32 mm||264 g||300||n||Jun 2011||549|
|15.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|16.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|17.||Panasonic GF2||113 mm||68 mm||33 mm||310 g||300||n||Nov 2010||549|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GF5 was launched at a markedly lower price (by 75 percent) than the GH5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

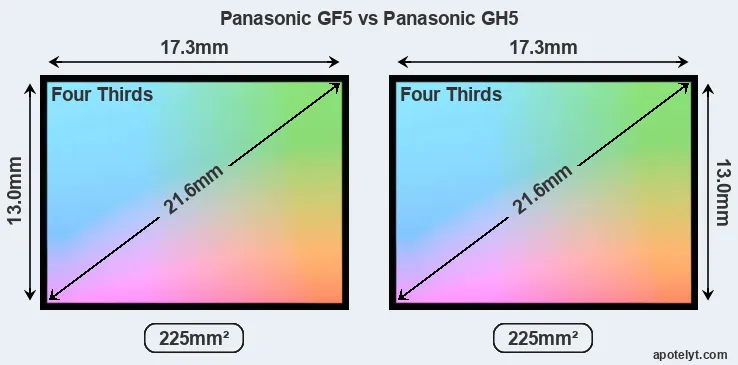

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

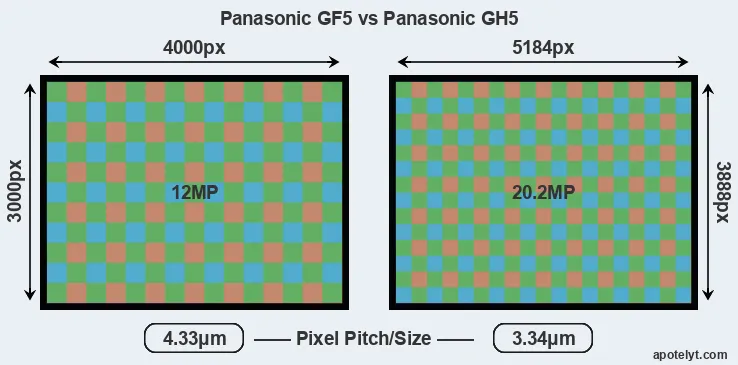

While the two cameras under review share the same sensor size, the GH5 offers a higher resolution of 20.2 megapixels, compared with 12 MP of the GF5. This megapixels advantage translates into a 30 percent gain in linear resolution. On the other hand, these sensor specs imply that the GH5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.33μm for the GF5). However, it should be noted that the GH5 is much more recent (by 4 years and 9 months) than the GF5, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the GH5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic GH5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GH5 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic GF5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Panasonic Lumix DMC-GF5 has a native sensitivity range from ISO 160 to ISO 6400, which can be extended to ISO 160-12800. The corresponding ISO settings for the Panasonic Lumix DC-GH5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the GH5 offers substantially better image quality than the GF5 (overall score 16 points higher). The advantage is based on 2.5 bits higher color depth, 1.4 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Panasonic GF5||Four Thirds||12.0||4000||3000||1080/60i||21.4||11.6||618||61|
|2.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|4.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|5.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|6.||Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|7.||Panasonic GX800||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73|
|8.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|9.||Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|10.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|11.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|13.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|14.||Panasonic GF3||Four Thirds||12.0||4000||3000||1080/60i||20.6||10.0||458||49|
|15.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|16.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|17.||Panasonic GF2||Four Thirds||12.0||4000||3000||1080/60i||21.2||10.3||506||54|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GH5 provides a better video resolution than the GF5. It can shoot movie footage at 4K/60p, while the GF5 is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GH5 has an electronic viewfinder (3680k dots), which can be very helpful when shooting in bright sunlight. In contrast, the GF5 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Panasonic GF5 and Panasonic GH5 along with similar information for a selection of comparators.
|4.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The GF5 has one, while the GH5 does not. While the built-in flash of the GF5 is not very powerful, it can at times be useful as a fill-in light.The GH5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the GF5 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GH5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the GF5 and the GH5 write their files to SDXC cards. The GH5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GF5 only has one slot. The GH5 supports UHS-II cards (on both slots), while the GF5 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GF5 and Panasonic Lumix DC-GH5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
It is notable that the GH5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the GF5 does not provide wifi capability.
Studio photographers will appreciate that the Panasonic GH5 (unlike the GF5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5 is a recent model that features in the current product line-up of Panasonic. In contrast, the GF5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the GF5 was succeeded by the Panasonic GF6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Panasonic website.
So how do things add up? Is there a clear favorite between the Panasonic GF5 and the Panasonic GH5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Panasonic Lumix DMC-GF5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (108x67mm vs 139x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 458g or 63 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in April 2012).
Advantages of the Panasonic Lumix DC-GH5:
- More detail: Has more megapixels (20.2 vs 12MP), which boosts linear resolution by 30%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60i).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 4 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (410 versus 360) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 4 years and 9 months of technical progress since the GF5 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the GH5 is the clear winner of the contest (30 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Panasonic GF5 and the Panasonic GH5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the GF5 or the GH5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Panasonic GF5||3/5||..||..||4.5/5||4.5/5||Apr 2012||499|
|2.||Panasonic GH5||4.5/5||+ +||85/100||4.5/5||5/5||Jan 2017||1,999|
|3.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|4.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|5.||Olympus E-PM1||..||86/100||71/100||4.5/5||4.5/5||Jun 2011||499|
|6.||Panasonic G9||..||+ +||85/100||5/5||5/5||Nov 2017||1,699|
|7.||Panasonic GX800||..||+||76/100||4.5/5||4.5/5||Jan 2017||549|
|8.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|9.||Panasonic GH4||5/5||+ +||85/100||5/5||5/5||Feb 2014||1,499|
|10.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|11.||Panasonic GF6||..||+ +||..||4.5/5||4.5/5||Apr 2013||499|
|12.||Panasonic LX7||3/5||+ +||75/100||4/5||4.5/5||Jul 2012||499|
|13.||Panasonic G3||3/5||+ +||75/100||4.5/5||5/5||May 2011||599|
|14.||Panasonic GF3||3/5||82/100||71/100||4.5/5||4/5||Jun 2011||549|
|15.||Panasonic GX1||3/5||+||77/100||4.5/5||4.5/5||Nov 2011||699|
|16.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|17.||Panasonic GF2||3/5||82/100||70/100||4.5/5||4.5/5||Nov 2010||549|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Panasonic GF5 vs Panasonic GH5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Panasonic GF5||Panasonic GH5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||April 2012||January 2017|
|Launch Price||USD 499||USD 1,999|
|Sensor Specs||Panasonic GF5||Panasonic GH5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||12 Megapixels||20.2 Megapixels|
|Image Resolution||4000 x 3000 pixels||5184 x 3888 pixels|
|Pixel Pitch||4.33 μm||3.34 μm|
|Pixel Density||5.34 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60i Video||4K/60p Video|
|ISO Setting||160 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||160 - 12,800 ISO||100 - 25,600 ISO|
|Image Processor||Venus FHD||Venus 10|
|DXO Sensor Quality (score)||61||77|
|DXO Color Depth (bits)||21.4||23.9|
|DXO Dynamic Range (EV)||11.6||13.0|
|DXO Low Light (ISO)||618||807|
|Screen Specs||Panasonic GF5||Panasonic GH5|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||920k dots||1620k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Panasonic GF5||Panasonic GH5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||4 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Panasonic GF5||Panasonic GH5|
|External Flash||no Hotshoe||Hotshoe|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||full HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Panasonic GF5||Panasonic GH5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||360 shots per charge||410 shots per charge|
108 x 67 x 37 mm
(4.3 x 2.6 x 1.5 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||267 g (9.4 oz)||725 g (25.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
