OM System OM-1 vs OM-5
The OM System OM-1 and the OM System OM-5 are two enthusiast cameras that were officially introduced, respectively, in February 2022 and October 2022. Both the OM-1 and the OM-5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the OM System OM-1 and the OM System OM-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

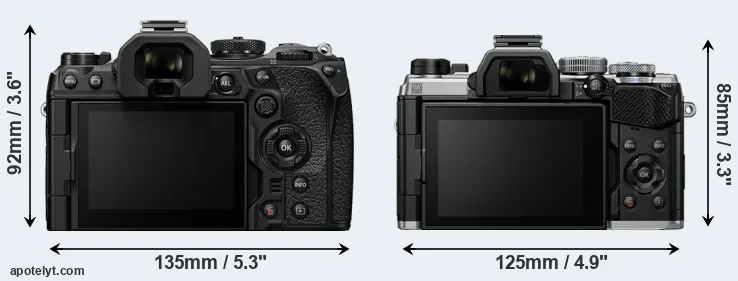

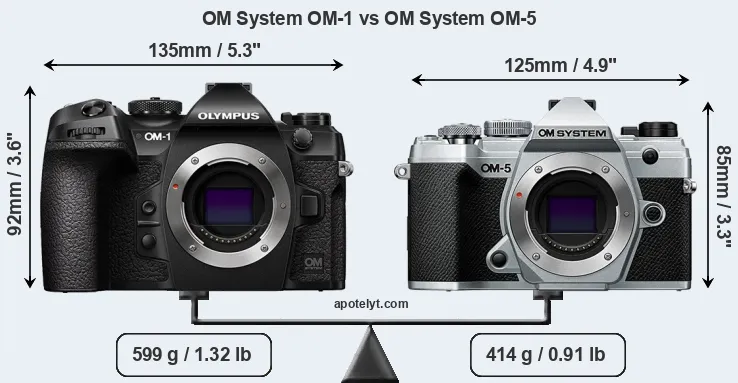

The physical size and weight of the OM System OM-1 and the OM System OM-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The OM-5 can be obtained in two different colors (black, silver), while the OM-1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-5 is notably smaller (14 percent) than the OM System OM-1. Moreover, the OM-5 is markedly lighter (31 percent) than the OM-1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the OM-1 gets 520 shots out of its OM System BLX-1 battery, while the OM-5 can take 310 images on a single charge of its OM System BLS-50 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 | 135 mm | 92 mm | 73 mm | 599 g | 520 | Y | Feb 2022 | US$ 2 199 | ebay.com | |
2. | OM System OM-5 | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2022 | US$ 1 199 | amazon.com | |
3. | Olympus E-M1 | 130 mm | 94 mm | 63 mm | 497 g | 350 | Y | Sep 2013 | US$ 1 399 | ebay.com | |
4. | Olympus E-M1 II | 134 mm | 91 mm | 67 mm | 574 g | 440 | Y | Sep 2016 | US$ 1 999 | ebay.com | |
5. | Olympus E-M1 III | 134 mm | 91 mm | 69 mm | 580 g | 420 | Y | Feb 2020 | US$ 1 799 | ebay.com | |
6. | Olympus E-M5 II | 124 mm | 85 mm | 45 mm | 469 g | 310 | Y | Feb 2015 | US$ 1 099 | ebay.com | |
7. | Olympus E-M5 III | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2019 | US$ 1 199 | ebay.com | |
8. | OM System OM-1 II | 135 mm | 92 mm | 73 mm | 599 g | 500 | Y | Jan 2024 | US$ 2 399 | amazon.com | |
9. | Panasonic G9 | 137 mm | 97 mm | 92 mm | 658 g | 400 | Y | Nov 2017 | US$ 1 699 | ebay.com | |
10. | Panasonic G9 II | 134 mm | 102 mm | 90 mm | 658 g | 390 | Y | Sep 2023 | US$ 1 899 | amazon.com | |
11. | Panasonic G95 | 130 mm | 94 mm | 77 mm | 536 g | 290 | Y | Apr 2019 | US$ 999 | ebay.com | |
12. | Panasonic GH5 | 139 mm | 98 mm | 87 mm | 725 g | 410 | Y | Jan 2017 | US$ 1 999 | ebay.com | |
13. | Panasonic GH5 II | 139 mm | 98 mm | 87 mm | 727 g | 400 | Y | May 2021 | US$ 1 699 | amazon.com | |
14. | Panasonic GH6 | 138 mm | 100 mm | 100 mm | 823 g | 360 | Y | Feb 2022 | US$ 2 199 | amazon.com | |
15. | Panasonic GX8 | 133 mm | 78 mm | 63 mm | 487 g | 330 | Y | Jul 2015 | US$ 1 199 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The OM-5 was launched at a markedly lower price (by 45 percent) than the OM-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison

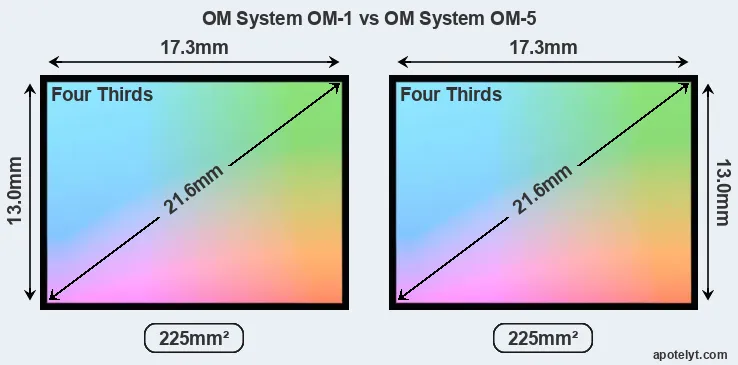

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the OM-1 uses a more advanced image processing engine (TruePic X) than the OM-5 (TruePic IX), with benefits for noise reduction, color accuracy, and processing speed.
The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the OM-1 and the OM-5 have the same pixel density, as well as the same pixel size. It should, however, be noted that the OM-5 is a somewhat more recent model (by 8 months) than the OM-1, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The OM System OM-1 has a native sensitivity range from ISO 80 to ISO 25600, which can be extended to ISO 80-102400. The corresponding ISO settings for the OM System OM-5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
In terms of underlying technology, the OM-1 is build around a Stacked BSI-CMOS sensor, while the OM-5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.4 | 1553 | 77 | |
2. | OM System OM-5 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.4 | 13.4 | 1622 | 78 | |
3. | Olympus E-M1 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 23.0 | 12.7 | 757 | 73 | |
4. | Olympus E-M1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.7 | 12.8 | 1312 | 80 | |
5. | Olympus E-M1 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1356 | 76 | |
6. | Olympus E-M5 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.0 | 12.5 | 842 | 73 | |
7. | Olympus E-M5 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1324 | 76 | |
8. | OM System OM-1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.6 | 1749 | 78 | |
9. | Panasonic G9 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.1 | 12.8 | 1138 | 74 | |
10. | Panasonic G9 II | Four Thirds | 25.0 | 5776 | 4336 | 5.7K/60p | 23.4 | 13.5 | 1710 | 78 | |
11. | Panasonic G95 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.2 | 13.0 | 1273 | 75 | |
12. | Panasonic GH5 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.9 | 13.0 | 807 | 77 | |
13. | Panasonic GH5 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.7 | 13.1 | 1136 | 79 | |
14. | Panasonic GH6 | Four Thirds | 25.0 | 5776 | 4336 | 5.7K/60p | 23.4 | 13.4 | 1555 | 77 | |
15. | Panasonic GX8 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.5 | 12.6 | 806 | 75 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the OM-1 provides a higher frame rate than the OM-5. It can shoot video footage at 4K/60p, while the OM-5 is limited to 4K/30p.
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the OM-1 offers a substantially higher resolution than the one in the OM-5 (5760k vs 2360k dots). The table below summarizes some of the other core capabilities of the OM System OM-1 and OM System OM-5 in connection with corresponding information for a sample of similar cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
2. | OM System OM-5 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
3. | Olympus E-M1 | 2360 | n | 3.0 / 1037 | tilting | Y | 1/8000s | 10.0/s | n | Y | |
4. | Olympus E-M1 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
5. | Olympus E-M1 III | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
6. | Olympus E-M5 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
7. | Olympus E-M5 III | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
8. | OM System OM-1 II | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
9. | Panasonic G9 | 3680 | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 20.0/s | n | Y | |
10. | Panasonic G9 II | 3680 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
11. | Panasonic G95 | 2360 | n | 3.0 / 1240 | swivel | Y | 1/4000s | 9.0/s | Y | Y | |
12. | Panasonic GH5 | 3680 | n | 3.2 / 1620 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
13. | Panasonic GH5 II | 3680 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
14. | Panasonic GH6 | 3680 | n | 3.0 / 1840 | full-flex | Y | 1/8000s | 14.0/s | n | Y | |
15. | Panasonic GX8 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The OM System OM-1 and the OM System OM-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the OM-1 and the OM-5 write their files to SDXC cards. The OM-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the OM-5 only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the OM System OM-1 and OM System OM-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
2. | OM System OM-5 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
3. | Olympus E-M1 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
4. | Olympus E-M1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | - | |
5. | Olympus E-M1 III | Y | stereo / mono | Y | Y | micro | 3.1 | Y | - | Y | |
6. | Olympus E-M5 II | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
7. | Olympus E-M5 III | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
8. | OM System OM-1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
9. | Panasonic G9 | Y | stereo / mono | Y | Y | full | 3.0 | Y | - | Y | |
10. | Panasonic G9 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
11. | Panasonic G95 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | - | Y | |
12. | Panasonic GH5 | Y | stereo / mono | Y | Y | full | 3.1 | Y | - | Y | |
13. | Panasonic GH5 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
14. | Panasonic GH6 | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
15. | Panasonic GX8 | Y | stereo / mono | Y | - | micro | 2.0 | Y | Y | - |
It is notable that the OM-1 has a headphone jack, which is not present on the OM-5 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Studio photographers will appreciate that the OM System OM-1 (unlike the OM-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The OM-5 is a recent model that features in the current product line-up of OM System. In contrast, the OM-1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the OM-1 was succeeded by the OM System OM-1 II. Further information on the features and operation of the OM-1 and OM-5 can be found, respectively, in the OM System OM-1 Manual (free pdf) or the online OM System OM-5 Manual.
Review summary
So what is the bottom line? Which of the two cameras – the OM System OM-1 or the OM System OM-5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the OM System OM-1:
- Better jpgs: Has a more modern image processing engine (TruePic X vs TruePic IX).
- Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.82x vs 0.68x).
- More detailed LCD: Has a higher resolution rear screen (1640k vs 1040k dots).
- Longer lasting: Can take more shots (520 versus 310) on a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in February 2022).
Advantages of the OM System OM-5:
- More compact: Is smaller (125x85mm vs 135x92mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 185g or 31 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
- More modern: Was introduced somewhat (8 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the OM-1 is the clear winner of the match-up (11 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the OM System OM-1 and the OM System OM-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the OM-1 or the OM-5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 | 5/5 | .. | .. | 87/100 | 5/5 | 4.5/5 | Feb 2022 | US$ 2 199 | ebay.com | |
2. | OM System OM-5 | 5/5 | .. | 4.5/5 | 83/100 | 5/5 | 4.5/5 | Oct 2022 | US$ 1 199 | amazon.com | |
3. | Olympus E-M1 | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2013 | US$ 1 399 | ebay.com | |
4. | Olympus E-M1 II | 5/5 | + + | 5/5 | 85/100 | 4.5/5 | 4.5/5 | Sep 2016 | US$ 1 999 | ebay.com | |
5. | Olympus E-M1 III | 5/5 | .. | 5/5 | 83/100 | 4.5/5 | 4/5 | Feb 2020 | US$ 1 799 | ebay.com | |
6. | Olympus E-M5 II | 5/5 | + + | 4.5/5 | 81/100 | 5/5 | 5/5 | Feb 2015 | US$ 1 099 | ebay.com | |
7. | Olympus E-M5 III | 5/5 | + | 5/5 | 82/100 | 4.5/5 | 4.5/5 | Oct 2019 | US$ 1 199 | ebay.com | |
8. | OM System OM-1 II | .. | .. | .. | .. | .. | .. | Jan 2024 | US$ 2 399 | amazon.com | |
9. | Panasonic G9 | .. | + + | 5/5 | 85/100 | 5/5 | 5/5 | Nov 2017 | US$ 1 699 | ebay.com | |
10. | Panasonic G9 II | 5/5 | .. | 4.5/5 | 87/100 | .. | 4.5/5 | Sep 2023 | US$ 1 899 | amazon.com | |
11. | Panasonic G95 | 4.5/5 | + | 4.5/5 | 83/100 | 4.5/5 | 4.5/5 | Apr 2019 | US$ 999 | ebay.com | |
12. | Panasonic GH5 | 4.5/5 | + + | .. | 85/100 | 4.5/5 | 5/5 | Jan 2017 | US$ 1 999 | ebay.com | |
13. | Panasonic GH5 II | 4.5/5 | .. | 4.5/5 | 85/100 | 4.5/5 | 5/5 | May 2021 | US$ 1 699 | amazon.com | |
14. | Panasonic GH6 | 5/5 | + + | 5/5 | 87/100 | 5/5 | 5/5 | Feb 2022 | US$ 2 199 | amazon.com | |
15. | Panasonic GX8 | 5/5 | + | .. | 82/100 | 4.5/5 | 4.5/5 | Jul 2015 | US$ 1 199 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark IV vs OM System OM-5
- Canon R5 vs OM System OM-1
- Canon RP vs OM System OM-5
- Fujifilm GFX 50R vs OM System OM-1
- Nikon D5000 vs OM System OM-1
- OM System OM-1 vs Panasonic S1R
- OM System OM-1 vs Sony RX0 II
- OM System OM-5 vs Panasonic G90
- OM System OM-5 vs Panasonic GX1
- OM System OM-5 vs Pentax K-70
- OM System OM-5 vs Pentax KP
- Olympus E-M10 IV vs OM System OM-1
Specifications: OM System OM-1 vs OM System OM-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | OM System OM-1 | OM System OM-5 |
---|---|---|
Camera Type | Mirrorless system camera | Mirrorless system camera |
Camera Lens | Micro Four Thirds lenses | Micro Four Thirds lenses |
Launch Date | February 2022 | October 2022 |
Launch Price | USD 2,199 | USD 1,199 |
Sensor Specs | OM System OM-1 | OM System OM-5 |
Sensor Technology | Stacked BSI-CMOS | CMOS |
Sensor Format | Four Thirds Sensor | Four Thirds Sensor |
Sensor Size | 17.3 x 13.0 mm | 17.3 x 13.0 mm |
Sensor Area | 224.9 mm2 | 224.9 mm2 |
Sensor Diagonal | 21.6 mm | 21.6 mm |
Crop Factor | 2.0x | 2.0x |
Sensor Resolution | 20.2 Megapixels | 20.2 Megapixels |
Image Resolution | 5184 x 3888 pixels | 5184 x 3888 pixels |
Pixel Pitch | 3.34 μm | 3.34 μm |
Pixel Density | 8.96 MP/cm2 | 8.96 MP/cm2 |
Moiré control | no AA filter | no AA filter |
Movie Capability | 4K/60p Video | 4K/30p Video |
ISO Setting | 80 - 25,600 ISO | 200 - 25,600 ISO |
ISO Boost | 80 - 102,400 ISO | 64 - 25,600 ISO |
Image Processor | TruePic X | TruePic IX |
Screen Specs | OM System OM-1 | OM System OM-5 |
Viewfinder Type | Electronic viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.82x | 0.68x |
Viewfinder Resolution | 5760k dots | 2360k dots |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1640k dots | 1040k dots |
LCD Attachment | Swivel screen | Swivel screen |
Touch Input | Touchscreen | Touchscreen |
Shooting Specs | OM System OM-1 | OM System OM-5 |
Focus System | On-Sensor Phase-detect | On-Sensor Phase-detect |
Manual Focusing Aid | Focus Peaking | Focus Peaking |
Max Shutter Speed (mechanical) | 1/8000s | 1/8000s |
Continuous Shooting | 10 shutter flaps/s | 10 shutter flaps/s |
Electronic Shutter | up to 1/32000s | up to 1/32000s |
Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
Image Stabilization | In-body stabilization | In-body stabilization |
Fill Flash | no On-Board Flash | no On-Board Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Dual card slots | Single card slot |
UHS card support | Dual UHS-II | UHS-II |
Connectivity Specs | OM System OM-1 | OM System OM-5 |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | no PC Sync |
USB Connector | USB 3.0 | USB 2.0 |
HDMI Port | micro HDMI | micro HDMI |
Microphone Port | External MIC port | External MIC port |
Headphone Socket | Headphone port | no Headphone port |
Wifi Support | Wifi built-in | Wifi built-in |
Bluetooth Support | Bluetooth built-in | Bluetooth built-in |
Body Specs | OM System OM-1 | OM System OM-5 |
Environmental Sealing | Weathersealed body | Weathersealed body |
Battery Type | OM System BLX-1 | OM System BLS-50 |
Battery Life (CIPA) | 520 shots per charge | 310 shots per charge |
In-Camera Charging | USB charging | USB charging |
Body Dimensions |
135 x 92 x 73 mm (5.3 x 3.6 x 2.9 in) |
125 x 85 x 50 mm (4.9 x 3.3 x 2.0 in) |
Camera Weight | 599 g (21.1 oz) | 414 g (14.6 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
