Olympus TG-5 vs Sony RX10 IV
The Olympus Tough TG-5 and the Sony Cyber-shot DSC-RX10 IV are two digital cameras that were revealed to the public, respectively, in May 2017 and September 2017. Both the TG-5 and the RX10 IV are fixed lens compact cameras that are based on a 1/2.3-inch (TG-5) and an one-inch (RX10 IV) sensor. The Olympus has a resolution of 12 megapixels, whereas the Sony provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus TG-5||Sony RX10 IV|
|Fixed lens compact camera||Fixed lens compact camera|
|25-100mm f/2.0-4.9||24-600mm f/2.4-4.0|
|12 MP, 1/2.3" Sensor||20 MP, 1" Sensor|
|4K/30p Video||4K/30p Video|
|ISO 100-12,800||ISO 100-12,800 (64 - 25,600)|
|No viewfinder, LCD framing||Electronic viewfinder (2359k dots)|
|3.0 LCD, 460k dots||3.0 LCD, 1440k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|20 shutter flaps per second||24 shutter flaps per second|
|In-body stabilization||Lens-based stabilization|
|Waterproof body (nom)||Weathersealed body|
|340 shots per battery charge||400 shots per battery charge|
|113 x 66 x 32 mm, 250 g||133 x 94 x 145 mm, 1095 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-5 and the Sony Cyber-shot DSC-RX10 IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

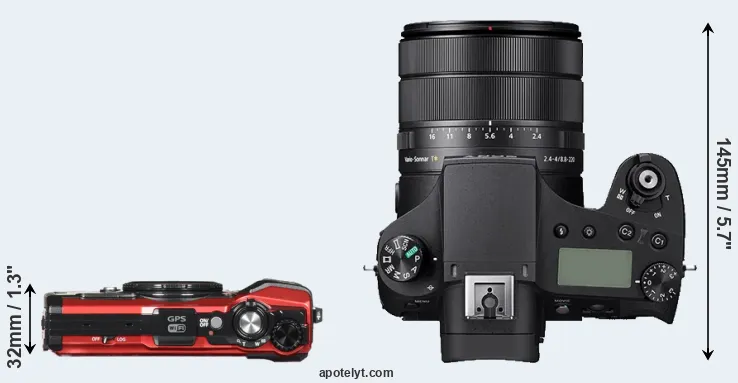

The side-by-side display below illustrates the physical size and weight of the Olympus TG-5 and the Sony RX10 IV. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The TG-5 can be obtained in two different colors (black, red), while the RX10 IV is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX10 IV is considerably larger (68 percent) than the Olympus TG-5. Moreover, the RX10 IV is substantially heavier (338 percent) than the TG-5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
Concerning battery life, the TG-5 gets 340 shots out of its LI-92B battery, while the RX10 IV can take 400 images on a single charge of its NP-FW50 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|Sony RX10 IV||133 mm||94 mm||145 mm||1095 g||400||Y||Sep 2017||1,699|
|Canon G1 X Mark III||115 mm||78 mm||51 mm||399 g||200||Y||Oct 2017||1,299|
|Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|Fujifilm XP130||110 mm||71 mm||28 mm||207 g||240||n||Jan 2018||229|
|Fujifilm X-Pro2||141 mm||83 mm||46 mm||495 g||350||Y||Jan 2016||1,699|
|Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Panasonic LX7||111 mm||68 mm||46 mm||298 g||330||n||Jul 2012||499|
|Sony A6300||120 mm||67 mm||49 mm||404 g||400||Y||Feb 2016||999|
|Sony A6500||120 mm||67 mm||53 mm||453 g||350||Y||Oct 2016||1,399|
|Sony RX10 III||133 mm||94 mm||127 mm||1051 g||420||Y||Mar 2016||1,499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-5 was launched at a markedly lower price (by 74 percent) than the RX10 IV, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

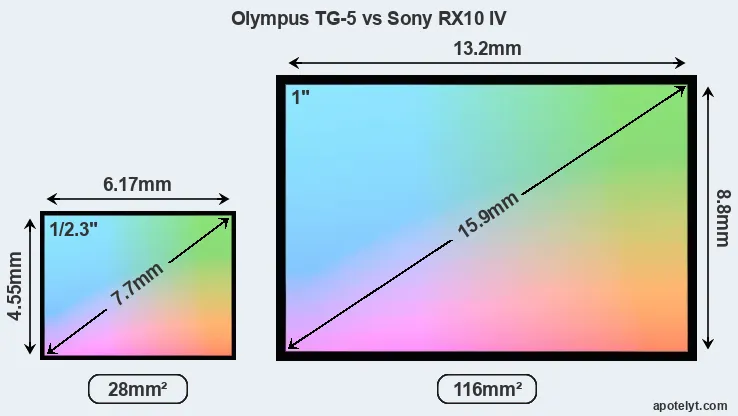

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Olympus TG-5 features a 1/2.3-inch sensor and the Sony RX10 IV an one-inch sensor. The sensor area in the RX10 IV is 314 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.7. The sensor in the TG-5 has a native 4:3 aspect ratio, while the one in the RX10 IV offers a 3:2 aspect.
Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors.
With 20MP, the RX10 IV offers a higher resolution than the TG-5 (12MP), but the RX10 IV nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.53μm for the TG-5) due to its larger sensor. Moreover, the RX10 IV is a somewhat more recent model (by 3 months) than the TG-5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony RX10 IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX10 IV for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The RX10 IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Olympus Tough TG-5 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Sony Cyber-shot DSC-RX10 IV are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 64-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Sony RX10 IV||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Canon G1 X Mark III||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|Sony RX10 III||1-inch||20.0||5472||3648||4K/30p||23.1||12.6||472||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the RX10 IV has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Olympus TG-5, the Sony RX10 IV, and comparable cameras.
|Sony RX10 IV||2359||Y||3.0||1440||tilting||Y||1/2000s||24.0||Y||Y|
|Canon G1 X Mark III||2360||n||3.0||1040||swivel||Y||1/2000s||9.0||Y||Y|
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Sony RX10 III||2359||Y||3.0||1229||tilting||n||1/2000s||14.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The RX10 IV has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the RX10 IV is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Both the TG-5 and the RX10 IV have zoom lenses built in. The TG-5 has a 25-100mm f/2.0-4.9 optic and the RX10 IV offers a 24-600mm f/2.4-4.0 (focal lengths in full frame equivalent terms). Hence, the Sony provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Olympus. The TG-5 offers the faster maximum aperture.
The TG-5 writes its imaging data to SDXC cards, while the RX10 IV uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-5 and Sony Cyber-shot DSC-RX10 IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Sony RX10 IV||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
|Canon G1 X Mark III||Y||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Sony RX10 III||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the RX10 IV has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The TG-5 does not feature such a mic input.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The RX10 IV is a recent model that features in the current product line-up of Sony. In contrast, the TG-5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Sony websites.
So what conclusions can be drawn? Which of the two cameras – the Olympus TG-5 or the Sony RX10 IV – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Olympus Tough TG-5:
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/2.4).
- More compact: Is smaller (113x66mm vs 133x94mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 845g or 77 percent) and hence easier to carry around.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in May 2017).
Arguments in favor of the Sony Cyber-shot DSC-RX10 IV:
- More detail: Has more megapixels (20 vs 12MP), which boosts linear resolution by 32%.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1440k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (24 vs 20 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- Longer lasting: Gets more shots (400 versus 340) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Was introduced somewhat (3 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the RX10 IV is the clear winner of the contest (21 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus TG-5 and the Sony RX10 IV place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the TG-5 or the RX10 IV perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus TG-5||+ +||..||4/5||o||4/5||May 2017||449|
|Sony RX10 IV||+||84/100||4.5/5||..||5/5||Sep 2017||1,699|
|Canon G1 X Mark III||+||79/100||4.5/5||..||4.5/5||Oct 2017||1,299|
|Canon G9 X Mark II||..||75/100||4.5/5||4.5/5||4.5/5||Jan 2017||529|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Fujifilm XP130||o||..||3.5/5||..||4/5||Jan 2018||229|
|Fujifilm X-Pro2||+||83/100||4.5/5||4.5/5||4.5/5||Jan 2016||1,699|
|Nikon W300||+||..||4/5||..||4/5||May 2017||389|
|Olympus TG-6||+ +||76/100||4/5||..||4/5||May 2019||449|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Olympus TG-4||+||79/100||4/5||4/5||4/5||Apr 2015||379|
|Olympus E-PM1||86/100||71/100||4.5/5||..||4.5/5||Jun 2011||499|
|Olympus XZ-1||..||74/100||4.5/5||4.5/5||4.5/5||Jan 2011||499|
|Panasonic LX7||+ +||75/100||4/5||5/5||4.5/5||Jul 2012||499|
|Sony A6300||+||85/100||5/5||5/5||5/5||Feb 2016||999|
|Sony A6500||+ +||85/100||4.5/5||5/5||4.5/5||Oct 2016||1,399|
|Sony RX10 III||+||84/100||4.5/5||4.5/5||4.5/5||Mar 2016||1,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1000D vs Olympus TG-5
- Canon 5D Mark III vs Sony RX10 IV
- Canon G1 X Mark II vs Olympus TG-5
- Fujifilm X-A3 vs Olympus TG-5
- Fujifilm X100V vs Olympus TG-5
- Leica D-LUX 5 vs Olympus TG-5
- Leica V-LUX 5 vs Sony RX10 IV
- Nikon D80 vs Olympus TG-5
- Olympus TG-5 vs Panasonic GF7
- Olympus TG-5 vs Panasonic LX100 II
- Olympus TG-5 vs Sony RX10
- Pentax K-1 II vs Sony RX10 IV
Specifications: Olympus TG-5 vs Sony RX10 IV
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus TG-5||Sony RX10 IV|
|Camera Type||Fixed lens compact camera||Fixed lens compact camera|
|Camera Lens||25-100mm f/2.0-4.9||24-600mm f/2.4-4.0|
|Launch Date||May 2017||September 2017|
|Launch Price||USD 449||USD 1,699|
|Sensor Specs||Olympus TG-5||Sony RX10 IV|
|Sensor Format||1/2.3" Sensor||1" Sensor|
|Sensor Size||6.17 x 4.55 mm||13.2 x 8.8 mm|
|Sensor Area||28.0735 mm2||116.16 mm2|
|Sensor Diagonal||7.7 mm||15.9 mm|
|Sensor Resolution||12 Megapixels||20 Megapixels|
|Image Resolution||4000 x 3000 pixels||5472 x 3648 pixels|
|Pixel Pitch||1.53 μm||2.41 μm|
|Pixel Density||42.74 MP/cm2||17.18 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 12,800 ISO|
|ISO Boost||no Enhancement||64 - 25,600 ISO|
|Image Processor||TruePic VIII||BIONZ X|
|Screen Specs||Olympus TG-5||Sony RX10 IV|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2359k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||460k dots||1440k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus TG-5||Sony RX10 IV|
|Focus System||Contrast-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/2000s|
|Continuous Shooting||20 shutter flaps/s||24 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||Lens-based stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus TG-5||Sony RX10 IV|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Olympus TG-5||Sony RX10 IV|
|Environmental Sealing||Waterproof body (15m)||Weathersealed body|
|Battery Life (CIPA)||340 shots per charge||400 shots per charge|
|In-Camera Charging||USB charging||USB charging|
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
133 x 94 x 145 mm
(5.2 x 3.7 x 5.7 in)
|Camera Weight||250 g (8.8 oz)||1095 g (38.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
