Olympus E-PL9 vs Panasonic LX100 II

The Olympus PEN E-PL9 and the Panasonic Lumix DC-LX100 II are two digital cameras that were revealed to the public, respectively, in February 2018 and August 2018. The E-PL9 is a mirrorless interchangeable lens camera, while the LX100 II is a fixed lens compact. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 16.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL9		Panasonic LX100 II
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		24-75mm f/1.7-2.8
15.9 MP – Four Thirds sensor		16.8 MP – Four Thirds sensor
4K/30p Video		4K/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 200-25,600
No viewfinder, LCD framing		Electronic viewfinder (2764k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1240k dots
Tilting touchscreen		Fixed touchscreen
8.6 shutter flaps per second		11 shutter flaps per second
In-body stabilization		Lens-based stabilization
350 shots per battery charge		300 shots per battery charge
117 x 68 x 39 mm, 380 g		115 x 66 x 65 mm, 392 g

Check E-PL9 offers at
ebay.com
Check LX100 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL9 and the Panasonic Lumix DC-LX100 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

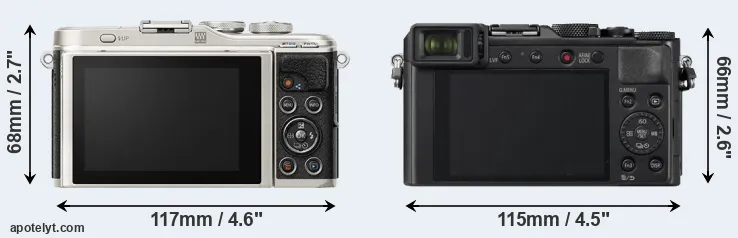

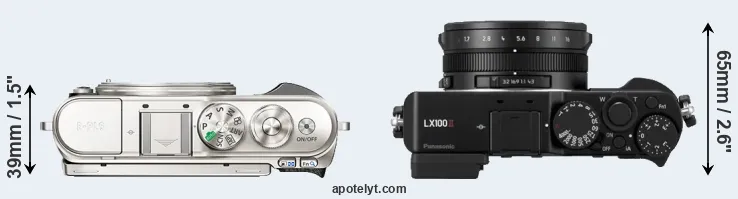

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL9 and the Panasonic LX100 II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL9 can be obtained in four different colors (black, brown, blue, white), while the LX100 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX100 II is somewhat smaller (5 percent) than the Olympus E-PL9. In this context, it is worth noting that neither the E-PL9 nor the LX100 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX100 II has a lens built in, whereas the E-PL9 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL9 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PL9 gets 350 shots out of its Olympus BLS-50 battery, while the LX100 II can take 300 images on a single charge of its Panasonic DMW-BLG10 power pack. The power pack in the LX100 II can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
2.		Panasonic LX100 II	115 mm	66 mm	65 mm	392 g	300	n	Aug 2018	US$ 999	ebay.com
3.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	US$ 1 195	ebay.com
4.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
5.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
6.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
7.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
8.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
12.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
13.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
14.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
15.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	US$ 849	ebay.com
16.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	US$ 899	ebay.com
17.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

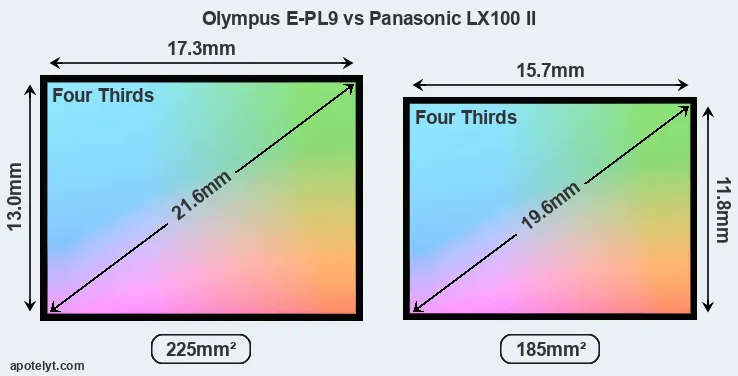

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor, but their sensors differ slightly in size. The sensor area in the LX100 II is 18 percent smaller. As a result of these sensor size differences, the cameras have format factors, respectively, of 2.0 (E-PL9) and 2.2. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The LX100 II has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Despite having a smaller sensor, the LX100 II offers a slightly higher resolution of 16.8 megapixels, compared with 15.9 MP of the E-PL9. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.32μm versus 3.76μm for the E-PL9). However, it should be noted that the LX100 II is a somewhat more recent model (by 6 months) than the E-PL9, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the LX100 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Olympus PEN E-PL9 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-LX100 II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
2.		Panasonic LX100 II	Four Thirds	16.8	4736	3552	4K/30p	22.8	12.7	979	72
3.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
4.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
5.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
6.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
7.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
8.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
9.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
12.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
13.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
14.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
15.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
16.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
17.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the LX100 II has an electronic viewfinder (2764k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL9 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus E-PL9 and Panasonic LX100 II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
2.		Panasonic LX100 II	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
3.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
4.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
5.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
6.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
7.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
8.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
14.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
15.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
16.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
17.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The E-PL9 has one, while the LX100 II does not. While the built-in flash of the E-PL9 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-PL9 and the Panasonic LX100 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PL9 and the LX100 II write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL9 and Panasonic Lumix DC-LX100 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Panasonic LX100 II	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-

Both the E-PL9 and the LX100 II have been discontinued, but can regularly be found used on ebay. The E-PL9 was replaced by the Olympus E-PL10, while the LX100 II does not have a direct successor. Further information on the features and operation of the E-PL9 and LX100 II can be found, respectively, in the Olympus E-PL9 Manual (free pdf) or the online Panasonic LX100 II Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Olympus E-PL9 or the Panasonic LX100 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Olympus PEN E-PL9:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (350 versus 300) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More heavily discounted: Has been on the market for longer (launched in February 2018).

Reasons to prefer the Panasonic Lumix DC-LX100 II:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1240k vs 1040k dots).
• Faster burst: Shoots at higher frequency (11 vs 8.6 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the E-PL9 necessitates an extra lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• More modern: Was introduced somewhat (6 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the E-PL9 emerges as the winner of the contest (11 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL9 and the Panasonic LX100 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL9 or the LX100 II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
2.		Panasonic LX100 II	4.5/5	+	4.2/5	82/100	4.5/5	4.5/5	Aug 2018	US$ 999	ebay.com
3.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	US$ 1 195	ebay.com
4.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
5.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
6.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
7.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
8.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
12.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
13.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
14.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
15.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	US$ 849	ebay.com
16.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	US$ 899	ebay.com
17.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
