Olympus E-PL8 vs Panasonic GH5
The Olympus PEN E-PL8 and the Panasonic Lumix DC-GH5 are two digital cameras that were officially introduced, respectively, in September 2016 and January 2017. Both the E-PL8 and the GH5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-PL8||Panasonic GH5|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|15.9 MP, Four Thirds Sensor||20.2 MP, Four Thirds Sensor|
|1080/30p Video||4K/60p Video|
|ISO 200-6400 (100-25600)||ISO 200-25600|
|No viewfinder, LCD framing||Electronic viewfinder (3680k dots)|
|3.0" LCD, 1037k dots||3.2" LCD, 1620k dots|
|Tilting touchscreen||Swivel touchscreen|
|8 shutter flaps per second||12 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|Not weather sealed||Weathersealed body|
|350 shots per battery charge||410 shots per battery charge|
|115 x 67 x 38 mm, 357 g||139 x 98 x 87 mm, 725 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL8 and the Panasonic Lumix DC-GH5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Olympus E-PL8 vs Panasonic GH5

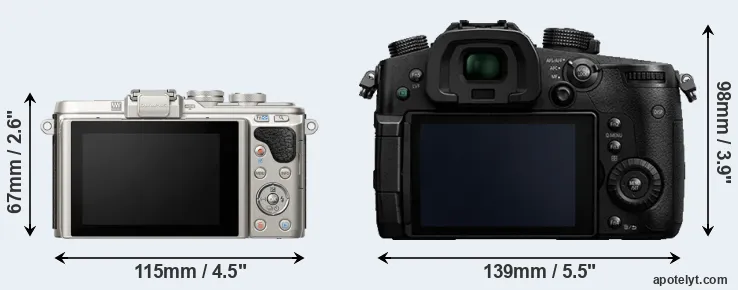

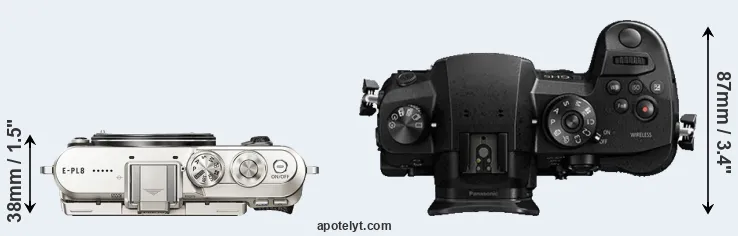

An illustration of the physical size and weight of the Olympus E-PL8 and the Panasonic GH5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL8 can be obtained in three different colors (black, brown, white), while the GH5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5 is considerably larger (77 percent) than the Olympus E-PL8. Moreover, the GH5 is substantially heavier (103 percent) than the E-PL8. It is noteworthy in this context that the GH5 is splash and dust-proof, while the E-PL8 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-PL8»||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Sep 2016||549||-||Olympus E-PL8|
|Panasonic GH5«||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999||Panasonic GH5|
|Nikon D500« »||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999||Nikon D500|
|Olympus E-PL9« »||4.6 in||2.7 in||1.5 in||13.4 oz||350||n||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M1 II« »||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-PL7« »||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-PL6« »||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599||-||Olympus E-PL6|
|Olympus E-PL5« »||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599||-||Olympus E-PL5|
|Olympus E-PM2« »||4.3 in||2.5 in||1.3 in||9.5 oz||360||n||Sep 2012||499||-||Olympus E-PM2|
|Olympus E-PL2« »||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599||-||Olympus E-PL2|
|Panasonic G9« »||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699||Panasonic G9|
|Panasonic G85« »||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899||-||Panasonic G85|
|Panasonic GX85« »||4.8 in||2.8 in||1.7 in||15.0 oz||290||n||Apr 2016||799||Panasonic GX85|
|Panasonic G7« »||4.9 in||3.4 in||3.0 in||14.5 oz||350||n||May 2015||649||-||Panasonic G7|
|Panasonic GH4« »||5.2 in||3.7 in||3.3 in||19.8 oz||500||Y||Feb 2014||1,499||-||Panasonic GH4|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL8 was launched at a markedly lower price (by 73 percent) than the GH5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Olympus E-PL8 vs Panasonic GH5
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of underlying technology, both cameras are build around CMOS sensors.
While the two cameras under review share the same sensor size, the GH5 offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the E-PL8. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the GH5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 3.76μm for the E-PL8). However, it should be noted that the GH5 is a somewhat more recent model (by 3 months) than the E-PL8, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the GH5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic GH5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GH5 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inch or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inch or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inch or 43.9 x 32.9 cm. The corresponding values for the Olympus E-PL8 are 23 x 17.3 inch or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inch or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inch or 39 x 29.3 cm for excellent quality prints.
The Olympus PEN E-PL8 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-GH5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-PL8»||Four Thirds||15.9||4608||3456||1080/30p||-||-||-||-||Olympus E-PL8|
|Panasonic GH5«||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77||Panasonic GH5|
|Nikon D500« »||APS-C||20.7||5568||3712||4K/30p||24.0||14.0||1324||83||Nikon D500|
|Olympus E-PL9« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-PL9|
|Olympus E-M10 III« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-M10 III|
|Olympus E-M1 II« »||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Olympus E-M10 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-PL7« »||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-PL6« »||Four Thirds||15.9||4608||3456||1080/30p||-||-||-||-||Olympus E-PL6|
|Olympus E-PL5« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72||Olympus E-PL5|
|Olympus E-PM2« »||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72||Olympus E-PM2|
|Olympus E-PL2« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55||Olympus E-PL2|
|Panasonic G9« »||Four Thirds||20.2||5184||3888||4K/60p||-||-||-||-||Panasonic G9|
|Panasonic G85« »||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71||Panasonic G85|
|Panasonic GX85« »||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71||Panasonic GX85|
|Panasonic G7« »||Four Thirds||15.8||4592||3448||4K/30p||-||-||-||-||Panasonic G7|
|Panasonic GH4« »||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74||Panasonic GH4|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GH5 provides a better video resolution than the E-PL8. It can shoot movie footage at 4K/60p, while the Olympus is limited to 1080/30p.
Feature comparison: Olympus E-PL8 vs Panasonic GH5
Apart from body and sensor, cameras can and do differ across a range of features. For example, the GH5 has an electronic viewfinder (3680k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL8 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Olympus E-PL8 and Panasonic GH5 along with similar information for a selection of comparators.
|Olympus E-PL8»||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL8|
|Panasonic GH5«||3680||n||3.2||1620||swivel||Y||1/8000s||12.0||n||Y||Panasonic GH5|
|Nikon D500« »||optical||Y||3.2||2359||tilting||Y||1/8000s||10.0||n||n||Nikon D500|
|Olympus E-PL9« »||-||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-PL9|
|Olympus E-M10 III« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-M10 III|
|Olympus E-M1 II« »||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1 II|
|Olympus E-M10 II« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-PL7« »||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-PL6« »||-||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL6|
|Olympus E-PL5« »||-||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL5|
|Olympus E-PM2« »||-||n||3.0||460||fixed||Y||1/4000s||8.0||n||Y||Olympus E-PM2|
|Olympus E-PL2« »||-||n||3.0||460||fixed||n||1/4000s||3.0||Y||Y||Olympus E-PL2|
|Panasonic G9« »||3680||Y||3.0||1040||swivel||Y||1/8000s||20.0||n||Y||Panasonic G9|
|Panasonic G85« »||2360||n||3.0||1040||swivel||Y||1/4000s||9.0||Y||Y||Panasonic G85|
|Panasonic GX85« »||2765||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Panasonic GX85|
|Panasonic G7« »||2360||n||3.0||1040||swivel||Y||1/4000s||7.0||Y||n||Panasonic G7|
|Panasonic GH4« »||2359||n||3.0||1036||swivel||Y||1/8000s||12.0||Y||n||Panasonic GH4|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL8 and the Panasonic GH5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-PL8 and the GH5 write their files to SDXC cards. The GH5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL8 only has one slot. The GH5 supports UHS-II cards (on both slots), while the E-PL8 can use UHS-I cards.
Connectivity comparison: Olympus E-PL8 vs Panasonic GH5
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL8 and Panasonic Lumix DC-GH5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-PL8»||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL8|
|Panasonic GH5«||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic GH5|
|Nikon D500« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D500|
|Olympus E-PL9« »||Y||stereo||mono||-||-||micro||2.0||Y||-||Y||Olympus E-PL9|
|Olympus E-M10 III« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 III|
|Olympus E-M1 II« »||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Olympus E-M10 II« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-PL7« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-PL6« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL6|
|Olympus E-PL5« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL5|
|Olympus E-PM2« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM2|
|Olympus E-PL2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL2|
|Panasonic G9« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||Y||Panasonic G9|
|Panasonic G85« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Panasonic G85|
|Panasonic GX85« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Panasonic GX85|
|Panasonic G7« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Panasonic G7|
|Panasonic GH4« »||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-||Panasonic GH4|
It is notable that the GH5 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The E-PL8 lacks such a headphone port.
Studio photographers will appreciate that the Panasonic GH5 (unlike the E-PL8) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5 is a recent model that features in the current product line-up of Panasonic. In contrast, the E-PL8 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL8 was succeeded by the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
Review summary: Olympus E-PL8 vs Panasonic GH5
So what is the bottom line? Which of the two cameras – the Olympus E-PL8 or the Panasonic GH5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Olympus PEN E-PL8:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (115x67mm vs 139x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 368g or 51 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2016).
Arguments in favor of the Panasonic Lumix DC-GH5:
- More detail: Has more megapixels (20.2 vs 15.9MP), which boosts linear resolution by 13%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image framing and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1037k dots).
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 8 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Longer lasting: Gets more shots (410 versus 350) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Was introduced somewhat (3 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the GH5 is the clear winner of the contest (21 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL8 and the Panasonic GH5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL8 or the GH5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Olympus E-PL8 vs Panasonic GH5
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-PL8»||-||-||4.5/5||-||4/5||Sep 2016||549||-||Olympus E-PL8|
|Panasonic GH5«||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999||Panasonic GH5|
|Nikon D500« »||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999||Nikon D500|
|Olympus E-PL9« »||+||-||4.5/5||-||4/5||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M1 II« »||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999||Olympus E-M1 II|
|Olympus E-M10 II« »||+ +||80/100||5/5||5/5||5/5||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-PL7« »||+||-||5/5||4.5/5||4/5||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-PL6« »||-||-||-||-||-||May 2013||599||-||Olympus E-PL6|
|Olympus E-PL5« »||+ +||-||4.5/5||4.5/5||4.5/5||Sep 2012||599||-||Olympus E-PL5|
|Olympus E-PM2« »||-||77/100||5/5||4.5/5||4.5/5||Sep 2012||499||-||Olympus E-PM2|
|Olympus E-PL2« »||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599||-||Olympus E-PL2|
|Panasonic G9« »||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699||Panasonic G9|
|Panasonic G85« »||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899||-||Panasonic G85|
|Panasonic GX85« »||+ +||82/100||5/5||4.5/5||5/5||Apr 2016||799||Panasonic GX85|
|Panasonic G7« »||+ +||80/100||5/5||4.5/5||4.5/5||May 2015||649||-||Panasonic G7|
|Panasonic GH4« »||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499||-||Panasonic GH4|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D X Mark II vs Olympus E-PL8
- Canon 5D Mark III vs Panasonic GH5
- Canon G7 X Mark II vs Panasonic GH5
- Canon SL2 vs Panasonic GH5
- Canon SX70 vs Olympus E-PL8
- Leica M8 vs Panasonic GH5
- Leica S Typ 007 vs Panasonic GH5
- Olympus E-M5 II vs Olympus E-PL8
- Olympus E-PL5 vs Olympus E-PL8
- Olympus E-PL8 vs Panasonic FZ330
- Olympus E-PL8 vs Panasonic GF6
- Panasonic GH5 vs Sony A6000
Specifications: Olympus E-PL8 vs Panasonic GH5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL8||Panasonic GH5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2016||January 2017|
|Launch Price||USD 549||USD 1999|
|Sensor Specs||Olympus E-PL8||Panasonic GH5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||20.2 Megapixels|
|Image Resolution||4608 x 3456 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.76 μm||3.34 μm|
|Pixel Density||7.08 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/60p Video|
|ISO Setting||200-6400 ISO||200-25600 ISO|
|ISO Boost||100-25600 ISO||100-25600 ISO|
|Image Processor||TruePic VII||Venus 10|
|DXO Sensor Quality (score)||..||77|
|DXO Color Depth (bits)||..||23.9|
|DXO Dynamic Range (EV)||..||13.0|
|DXO Low Light (ISO)||..||807|
|Screen Specs||Olympus E-PL8||Panasonic GH5|
|Viewfinder Type||No viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.2 inch|
|LCD Resolution||1037k dots||1620k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Olympus E-PL8||Panasonic GH5|
|Autofocus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/8000/s|
|Continuous Shooting||8 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Olympus E-PL8||Panasonic GH5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Olympus E-PL8||Panasonic GH5|
|Environmental Sealing||Not weather sealed||Weathersealed body|
|Battery Type||BLS-50 power pack||DMW-BLF19 power pack|
|Battery Life (CIPA)||350 shots per charge||410 shots per charge|
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||357 g (12.6 oz)||725 g (25.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
