Olympus E-PL6 vs Zeiss ZX1

The Olympus PEN E-PL6 and the Zeiss ZX1 are two digital cameras that were officially introduced, respectively, in May 2013 and September 2018. The E-PL6 is a mirrorless interchangeable lens camera, while the ZX1 is a fixed lens compact. The cameras are based on a Four Thirds (E-PL6) and a full frame (ZX1) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Zeiss provides 37.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL6		Zeiss ZX1
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		35mm f/2.8
15.9 MP – Four Thirds sensor		37.4 MP – Full Frame sensor
1080/30p Video		4K/30p Video
ISO 200-25,600		ISO 80-51,200
Viewfinder optional		Electronic viewfinder (6221k dots)
3.0" LCD – 460k dots		4.3" LCD – 2765k dots
Tilting touchscreen		Fixed touchscreen
8 shutter flaps per second		3 shutter flaps per second
In-body stabilization		no shake reduction
360 shots per battery charge		250 shots per battery charge
111 x 64 x 38 mm, 325 g		142 x 93 x 46 mm, 800 g

Check E-PL6 offers at
ebay.com
Check ZX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL6 and the Zeiss ZX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL6 and the Zeiss ZX1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL6 can be obtained in four different colors (black, silver, red, white), while the ZX1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Zeiss ZX1 is considerably larger (86 percent) than the Olympus E-PL6. In this context, it is worth noting that neither the E-PL6 nor the ZX1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZX1 has a lens built in, whereas the E-PL6 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL6 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PL6 gets 360 shots out of its Olympus BLS-5 battery, while the ZX1 can take 250 images on a single charge of its Zeiss DD-PS1A power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
2.		Zeiss ZX1	142 mm	93 mm	46 mm	800 g	250	n	Sep 2018	US$ 5 999	ebay.com
3.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
4.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	US$ 1 249	amazon.com
5.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
6.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
7.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
8.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
9.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
12.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
13.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
14.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
15.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
16.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	US$ 899	amazon.com
17.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

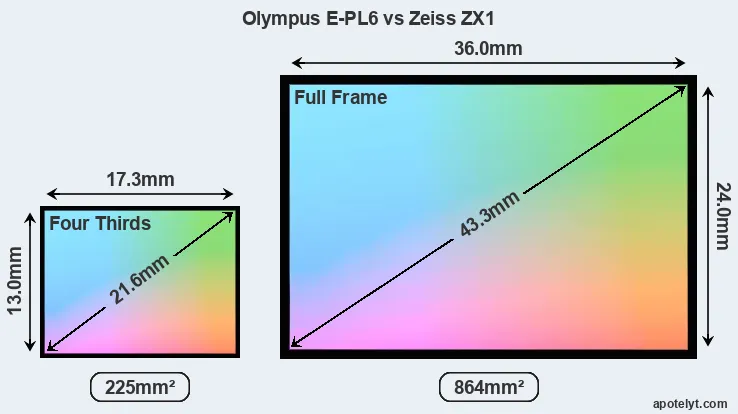

Of the two cameras under consideration, the Olympus E-PL6 features a Four Thirds sensor and the Zeiss ZX1 a full frame sensor. The sensor area in the ZX1 is 284 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the E-PL6 has a native 4:3 aspect ratio, while the one in the ZX1 offers a 3:2 aspect.

With 37.4MP, the ZX1 offers a higher resolution than the E-PL6 (15.9MP), but the ZX1 nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 3.76μm for the E-PL6) due to its larger sensor. Moreover, the ZX1 is a much more recent model (by 5 years and 4 months) than the E-PL6, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Zeiss ZX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZX1 for good quality output (200 dots per inch) amounts to 37.4 x 25 inches or 95.1 x 63.4 cm, for very good quality (250 dpi) 30 x 20 inches or 76.1 x 50.7 cm, and for excellent quality (300 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm. The corresponding values for the Olympus E-PL6 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Olympus PEN E-PL6 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Zeiss ZX1 are ISO 80 to ISO 51200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
2.		Zeiss ZX1	Full Frame	37.4	7488	4992	4K/30p	25.2	14.1	2759	94
3.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
4.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
5.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
6.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
7.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
8.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
9.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
12.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
13.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
14.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
15.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
16.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
17.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the ZX1 provides a better video resolution than the E-PL6. It can shoot movie footage at 4K/30p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the ZX1 has an electronic viewfinder (6221k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL6 relies on live view and the rear LCD for framing. That said, the E-PL6 can be equipped with an optional viewfinder – the VF-3. The following table reports on some other key feature differences and similarities of the Olympus E-PL6, the Zeiss ZX1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
2.		Zeiss ZX1	6221	n	4.3 / 2765	fixed	Y	1/1000s	3.0/s	n	n
3.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
4.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
5.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
6.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
7.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
8.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
9.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
14.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
15.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
17.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-PL6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-PL6 writes its imaging data to SDXC cards, while the ZX1 uses an internal SSD.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL6 and Zeiss ZX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Zeiss ZX1	Y	stereo / mono	-	-	-	3.1	Y	Y	Y
3.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
4.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
5.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
16.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
17.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the ZX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PL6 does not provide wifi capability.

Both the E-PL6 and the ZX1 have been discontinued, but can regularly be found used on ebay. The E-PL6 was replaced by the Olympus E-PL7, while the ZX1 does not have a direct successor. Further information on the features and operation of the E-PL6 and ZX1 can be found, respectively, in the Olympus E-PL6 Manual (free pdf) or the online Zeiss ZX1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus E-PL6 and the Zeiss ZX1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus PEN E-PL6:

• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (111x64mm vs 142x93mm) and thus needs less room in the bag.
• Longer lasting: Can take more shots (360 versus 250) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More heavily discounted: Has been available for much longer (launched in May 2013).

Reasons to prefer the Zeiss ZX1:

• More detail: Has more megapixels (37.4 vs 15.9MP), which boosts linear resolution by 56%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (4.3" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2765k vs 460k dots).
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Ready to shoot: Has an integrated lens, whereas the E-PL6 necessitates an extra lens.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More prestigious: Has the Zeiss luxury appeal, which ensures a high resale value.
• More modern: Reflects 5 years and 4 months of technical progress since the E-PL6 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the ZX1 is the clear winner of the contest (17 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL6 and the Zeiss ZX1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-PL6 or the ZX1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
2.		Zeiss ZX1	3/5	..	..	83/100	4/5	4/5	Sep 2018	US$ 5 999	ebay.com
3.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
4.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	US$ 1 249	amazon.com
5.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
6.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
7.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
8.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
9.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
12.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
13.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
14.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
15.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
16.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	US$ 899	amazon.com
17.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check E-PL6 offers at
ebay.com
Check ZX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check E-PL6 offers at
ebay.com
Check ZX1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
