Olympus E-PL5 vs E-PL6

The Olympus PEN E-PL5 and the Olympus PEN E-PL6 are two digital cameras that were announced, respectively, in September 2012 and May 2013. Both the E-PL5 and the E-PL6 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-PL5   Olympus E-PL6
Olympus E-PL5 Olympus E-PL6
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Micro Four Thirds lenses
15.9 MP, Four Thirds Sensor 15.9 MP, Four Thirds Sensor
1080/30p Video 1080/30p Video
ISO 200-25600 ISO 200-25600
Viewfinder optional Viewfinder optional
3.0" LCD, 460k dots 3.0" LCD, 460k dots
Tilting touchscreen Tilting touchscreen
8 shutter flaps per second 8 shutter flaps per second
In-body stabilizationIn-body stabilization
360 shots per battery charge360 shots per battery charge
111 x 64 x 38 mm, 325 g 111 x 64 x 38 mm, 325 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL5 and the Olympus PEN E-PL6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Olympus E-PL5 vs E-PL6

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL5 and the Olympus E-PL6. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL5 can be obtained in three different colors (black, silver, white), while the E-PL6 is available in four color-versions (black, silver, red, white).

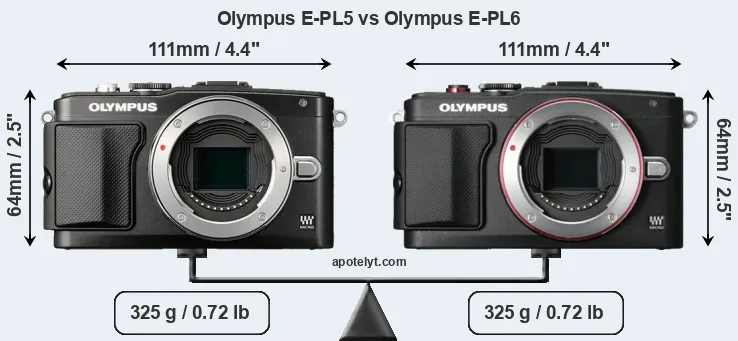

Size Olympus E-PL5 vs Olympus E-PL6
Compare E-PL5 versus E-PL6 top
Comparison E-PL5 or E-PL6 rear

In this particular case, the Olympus E-PL5 and the Olympus E-PL6 have exactly the same width and height, and, thus, have identically-sized bodies. Moreover, the two cameras also share the same weight. In this context, it is worth noting that neither the E-PL5 nor the E-PL6 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-PL5» 4.4 in 2.5 in 1.5 in 11.5 oz 360 n Sep 2012 599- i Olympus E-PL5

Olympus E-PL6« 4.4 in 2.5 in 1.5 in 11.5 oz 360 n May 2013 599- i Olympus E-PL6

Olympus E-PL9« » 4.6 in 2.7 in 1.5 in 13.4 oz 350 n Feb 2018 549 i i Olympus E-PL9

Olympus E-PL8« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Sep 2016 549- i Olympus E-PL8

Olympus E-M10 II« » 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 649- i Olympus E-M10 II

Olympus E-M10« » 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10

Olympus E-PL7« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Aug 2014 599- i Olympus E-PL7

Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5

Olympus E-PM2« » 4.3 in 2.5 in 1.3 in 9.5 oz 360 n Sep 2012 499- i Olympus E-PM2

Olympus E-PL3« » 4.3 in 2.5 in 1.5 in 11.0 oz 300 n Jun 2011 599- i Olympus E-PL3

Panasonic G6« » 4.8 in 3.3 in 2.8 in 13.8 oz 340 n Apr 2013 599- i Panasonic G6
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Olympus E-PL5 vs E-PL6

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Olympus E-PL5 and Olympus E-PL6 sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-PL5 and the E-PL6 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-PL6 is a somewhat more recent model (by 7 months) than the E-PL5, and its sensor might have benefitted from technological advances during this time.

The Olympus PEN E-PL5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PL6 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

E-PL5 versus E-PL6 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Olympus E-PL5» Four Thirds 15.9 4608 34561080/30p22.812.388972Olympus E-PL5

Olympus E-PL6« Four Thirds 15.9 4608 34561080/30p----Olympus E-PL6

Olympus E-PL9« » Four Thirds 15.9 4608 34564K/30p----Olympus E-PL9

Olympus E-PL8« » Four Thirds 15.9 4608 34561080/30p----Olympus E-PL8

Olympus E-M10 II« » Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II

Olympus E-M10« » Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10

Olympus E-PL7« » Four Thirds 15.9 4608 34561080/30p22.712.487372Olympus E-PL7

Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5

Olympus E-PM2« » Four Thirds 15.9 4608 34561080/30p22.712.293272Olympus E-PM2

Olympus E-PL3« » Four Thirds 12.2 4032 30241080/60i20.910.349952Olympus E-PL3

Panasonic G6« » Four Thirds 15.9 4608 34561080/60p21.311.563961Panasonic G6

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).



Feature comparison: Olympus E-PL5 vs E-PL6

Apart from body and sensor, cameras can and do differ across a range of features. The E-PL5 and the E-PL6 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-3 for the E-PL5 and the VF-3 for the E-PL6 – are available as accessories. The following table reports on some other key feature differences and similarities of the Olympus E-PL5, the Olympus E-PL6, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Olympus E-PL5»- n 3.0 460 tilting Y 1/4000s 8.0 n Y Olympus E-PL5

Olympus E-PL6«- n 3.0 460 tilting Y 1/4000s 8.0 n Y Olympus E-PL6

Olympus E-PL9« »- n 3.0 1040 tilting Y 1/4000s 8.6 Y Y Olympus E-PL9

Olympus E-PL8« »- n 3.0 1037 tilting Y 1/4000s 8.0 n Y Olympus E-PL8

Olympus E-M10 II« »2360 n 3.0 1040 tilting Y 1/4000s 8.0 Y Y Olympus E-M10 II

Olympus E-M10« »1440 n 3.0 1037 tilting Y 1/4000s 8.0 Y Y Olympus E-M10

Olympus E-PL7« »- n 3.0 1037 tilting Y 1/4000s 8.0 n Y Olympus E-PL7

Olympus E-P5« »- n 3.0 1037 tilting Y 1/8000s 9.0 Y Y Olympus E-P5

Olympus E-PM2« »- n 3.0 460 fixed Y 1/4000s 8.0 n Y Olympus E-PM2

Olympus E-PL3« »- n 3.0 460 tilting n 1/4000s 5.5 n Y Olympus E-PL3

Panasonic G6« »1440 n 3.0 1036 swivel Y 1/4000s 7.0 Y n Panasonic G6
Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The Olympus E-PL6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PL5 and the E-PL6 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.



Connectivity comparison: Olympus E-PL5 vs E-PL6

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL5 and Olympus PEN E-PL6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Olympus E-PL5»Ystereomono--mini2.0---Olympus E-PL5

Olympus E-PL6«Ystereomono--mini2.0---Olympus E-PL6

Olympus E-PL9« »Ystereomono--micro2.0Y-YOlympus E-PL9

Olympus E-PL8« »Ystereomono--micro2.0Y--Olympus E-PL8

Olympus E-M10 II« »Ystereomono--micro2.0Y--Olympus E-M10 II

Olympus E-M10« »Ystereomono--micro2.0Y--Olympus E-M10

Olympus E-PL7« »Ystereomono--micro2.0Y--Olympus E-PL7

Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5

Olympus E-PM2« »Ystereomono--mini2.0---Olympus E-PM2

Olympus E-PL3« »Ystereo---mini2.0---Olympus E-PL3

Panasonic G6« »YstereomonoY-mini2.0YY-Panasonic G6

Both the E-PL5 and the E-PL6 have been discontinued, but can regularly be found used on eBay. The E-PL5 was replaced by the Olympus E-PL6, while the E-PL6 was followed by the Olympus E-PL7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.


Review summary: Olympus E-PL5 vs E-PL6

So what is the bottom line? Is there a clear favorite between the Olympus E-PL5 and the Olympus E-PL6? Which camera is better? The listing below highlights the relative strengths of the two models.


Arguments in favor of the Olympus PEN E-PL5:

  • More heavily discounted: Has been on the market for longer (launched in September 2012).


Reasons to prefer the Olympus PEN E-PL6:

  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More modern: Was introduced somewhat (7 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL6 comes out slightly ahead of the E-PL5 (2 : 1 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-PL5 01:02 E-PL6

How about other alternatives? Do the specifications of the Olympus E-PL5 and the Olympus E-PL6 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL5 or the E-PL6. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews: Olympus E-PL5 vs E-PL6

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-PL5»+ +-4.5/54.5/54.5/5 Sep 2012 599- i Olympus E-PL5

Olympus E-PL6«----- May 2013 599- i Olympus E-PL6

Olympus E-PL9« »+-4.5/5-4/5 Feb 2018 549 i i Olympus E-PL9

Olympus E-PL8« »--4.5/5-4/5 Sep 2016 549- i Olympus E-PL8

Olympus E-M10 II« »+ +80/1005/55/55/5 Aug 2015 649- i Olympus E-M10 II

Olympus E-M10« »-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10

Olympus E-PL7« »+-5/54.5/54/5 Aug 2014 599- i Olympus E-PL7

Olympus E-P5« »+ +78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5

Olympus E-PM2« »-77/1005/54.5/54.5/5 Sep 2012 499- i Olympus E-PM2

Olympus E-PL3« »+ +72/1004.5/5-4/5 Jun 2011 599- i Olympus E-PL3

Panasonic G6« »+ +-5/5-4.5/5 Apr 2013 599- i Panasonic G6
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Olympus E-PL5:
Check Ebay offers
Olympus E-PL6:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Olympus E-PL5 vs Olympus E-PL6

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-PL5 Olympus E-PL6
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Micro Four Thirds lenses
    Launch Date September 2012 May 2013
    Launch Price USD 599 USD 599
    Sensor Specs Olympus E-PL5 Olympus E-PL6
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 15.9 Megapixels 15.9 Megapixels
    Image Resolution 4608 x 3456 pixels 4608 x 3456 pixels
    Pixel Pitch 3.76 μm 3.76 μm
    Pixel Density 7.08 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 1080/30p Video
    ISO Setting 200-25600 ISO 200-25600 ISO
    ISO Boost no Enhancement 100-25600 ISO
    Image Processor TruePic VI TruePic VI
    DXO Sensor Quality (score) 72 ..
    DXO Color Depth (bits) 22.8 ..
    DXO Dynamic Range (EV) 12.3 ..
    DXO Low Light (ISO) 889 ..
    Screen Specs Olympus E-PL5 Olympus E-PL6
    Viewfinder Type Viewfinder optional Viewfinder optional
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 460k dots 460k dots
    LCD Attachment Tilting screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Olympus E-PL5 Olympus E-PL6
    Autofocus System Contrast-detect AF Contrast-detect AF
    Continuous Shooting 8 shutter flaps/s 8 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Olympus E-PL5 Olympus E-PL6
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Olympus E-PL5 Olympus E-PL6
    Battery Type BLS-5 power pack BLS-5 power pack
    Battery Life (CIPA)360 shots per charge360 shots per charge
    Body Dimensions 111 x 64 x 38 mm
    (4.4 x 2.5 x 1.5 in)
    111 x 64 x 38 mm
    (4.4 x 2.5 x 1.5 in)
    Camera Weight 325 g (11.5 oz) 325 g (11.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
