Olympus E-PL2 vs Sony A5100

The Olympus PEN E-PL2 and the Sony Alpha A5100 are two digital cameras that were announced, respectively, in January 2011 and August 2014. Both the E-PL2 and the A5100 are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-PL2) and an APS-C (A5100) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL2		Sony A5100
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Sony E mount lenses
12.2 MP – Four Thirds sensor		24 MP – APS-C sensor
720/30p Video		1080/60p Video
ISO 200-6,400		ISO 100-25,600
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 460k dots		3.0" LCD – 922k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		6 shutter flaps per second
In-body stabilization		Lens stabilization only
280 shots per battery charge		400 shots per battery charge
114 x 72 x 42 mm, 362 g		110 x 63 x 36 mm, 283 g

Check E-PL2 offers at
ebay.com
Check A5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL2 and the Sony Alpha A5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Olympus E-PL2 and the Sony A5100 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL2 can be obtained in four different colors (black, silver, red, white), while the A5100 is available in two color-versions (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A5100 is notably smaller (16 percent) than the Olympus E-PL2. Moreover, the A5100 is markedly lighter (22 percent) than the E-PL2. In this context, it is worth noting that neither the E-PL2 nor the A5100 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (E-PL2) and the Sony E-Mount Lens Catalog (A5100). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-PL2 gets 280 shots out of its Olympus BLS-5 battery, while the A5100 can take 400 images on a single charge of its Sony NP-FW50 power pack. The power pack in the A5100 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
2.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
3.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
4.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
5.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
6.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
7.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
8.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
10.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
11.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
12.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
13.		Sony A3000	128 mm	91 mm	85 mm	411 g	470	n	Aug 2013	US$ 329	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
15.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
16.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	US$ 599	ebay.com
17.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The A5100 was somewhat cheaper (by 8 percent) than the E-PL2 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-PL2 features a Four Thirds sensor and the Sony A5100 an APS-C sensor. The sensor area in the A5100 is 63 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-PL2 has a native 4:3 aspect ratio, while the one in the A5100 offers a 3:2 aspect.

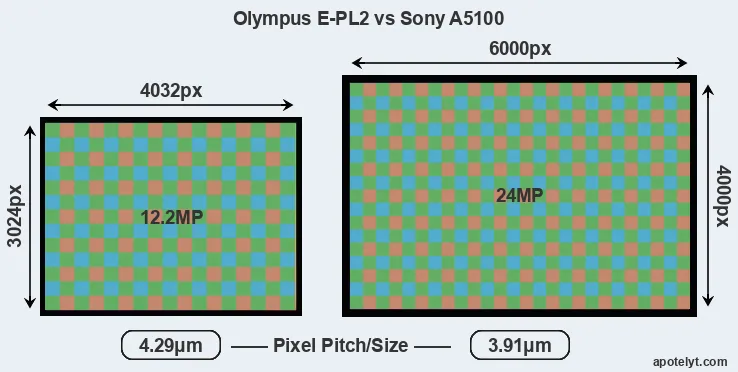

With 24MP, the A5100 offers a higher resolution than the E-PL2 (12.2MP), but the A5100 has smaller individual pixels (pixel pitch of 3.91μm versus 4.29μm for the E-PL2). Yet, the A5100 is a much more recent model (by 3 years and 7 months) than the E-PL2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony A5100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A5100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The A5100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus PEN E-PL2 has a native sensitivity range from ISO 200 to ISO 6400. The corresponding ISO settings for the Sony Alpha A5100 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the A5100 offers substantially better image quality than the E-PL2 (overall score 25 points higher). The advantage is based on 2.4 bits higher color depth, 2.5 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
2.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
3.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
4.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
5.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
6.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
7.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
8.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
9.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
10.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
11.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
12.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
13.		Sony A3000	APS-C	19.8	5456	3632	1080/60i	23.7	12.8	1068	78
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
16.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
17.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the A5100 provides a better video resolution than the E-PL2. It can shoot movie footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-PL2 and the A5100 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus E-PL2 and Sony A5100 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
2.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
3.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
4.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
5.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
6.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
7.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
8.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
10.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
11.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
12.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
13.		Sony A3000	202	n	3.0 / 230	fixed	n	1/4000s	2.5/s	Y	n
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
16.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
17.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-PL2 and the A5100 is in-body image stabilization (IBIS). The E-PL2 reduces the risk of handshake-induced blur with all attached lenses, while the A5100 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The E-PL2 writes its imaging data to SDHC cards, while the A5100 uses SDXC or Memory Stick PRO Duo cards. The A5100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL2 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL2 and Sony Alpha A5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
4.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
12.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Sony A3000	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the E-PL2 has a hotshoe, while the A5100 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the E-PL2 and the A5100 have been discontinued, but can regularly be found used on ebay. The E-PL2 was replaced by the Olympus E-PL3, while the A5100 does not have a direct successor. Further information on the features and operation of the E-PL2 and A5100 can be found, respectively, in the Olympus E-PL2 Manual (free pdf) or the online Sony A5100 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-PL2 better than the Sony A5100 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Olympus PEN E-PL2:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in January 2011).

Reasons to prefer the Sony Alpha A5100:

• More detail: Has more megapixels (24 vs 12.2MP), which boosts linear resolution by 43%.
• Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (922k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (110x63mm vs 114x72mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 79g or 22 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (400 versus 280) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 3 years and 7 months of technical progress since the E-PL2 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the A5100 is the clear winner of the contest (20 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL2 and the Sony A5100 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-PL2 or the A5100 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
2.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
3.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
4.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
5.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
6.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
7.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
8.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
10.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
11.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
12.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
13.		Sony A3000	3/5	+	..	..	4/5	4/5	Aug 2013	US$ 329	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
15.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
16.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	US$ 599	ebay.com
17.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
