Olympus E-PL10 vs PEN-F
The Olympus PEN E-PL10 and the Olympus PEN-F are two digital cameras that were officially introduced, respectively, in October 2019 and January 2016. Both the E-PL10 and the PEN-F are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-PL10 has a resolution of 15.9 megapixels, whereas the PEN-F provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL10 and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

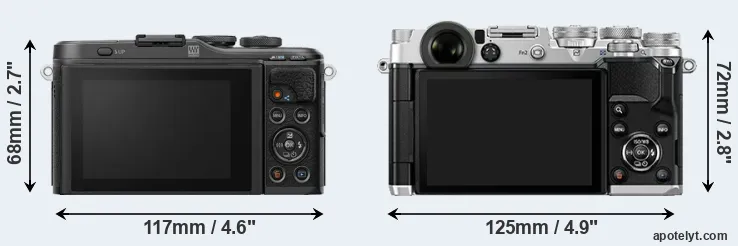

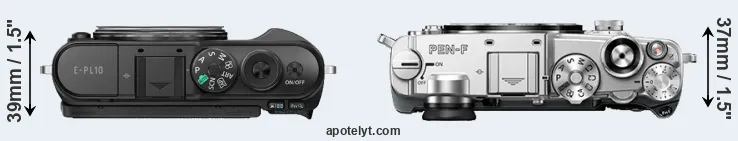

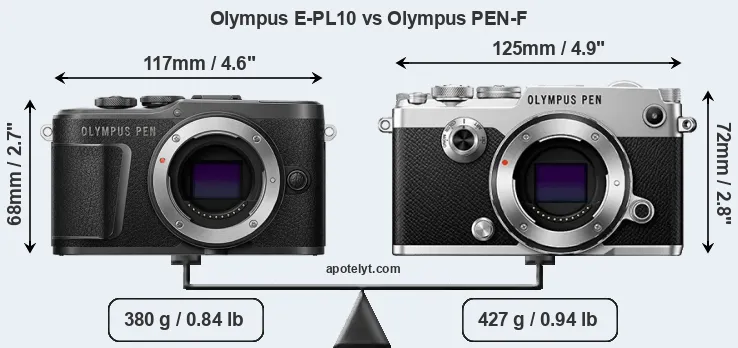

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL10 and the Olympus PEN-F. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL10 can be obtained in four different colors (black, brown, blue, white), while the PEN-F is available in two color-versions (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is notably larger (13 percent) than the Olympus E-PL10. Moreover, the PEN-F is markedly heavier (12 percent) than the E-PL10. In this context, it is worth noting that neither the E-PL10 nor the PEN-F are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|2.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|3.||Olympus E-M10 IV||122 mm||84 mm||49 mm||383 g||360||n||Aug 2020||699|
|4.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|5.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|6.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|7.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|8.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|9.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|10.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|11.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|12.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|13.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|14.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL10 was launched at a markedly lower price (by 50 percent) than the PEN-F, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

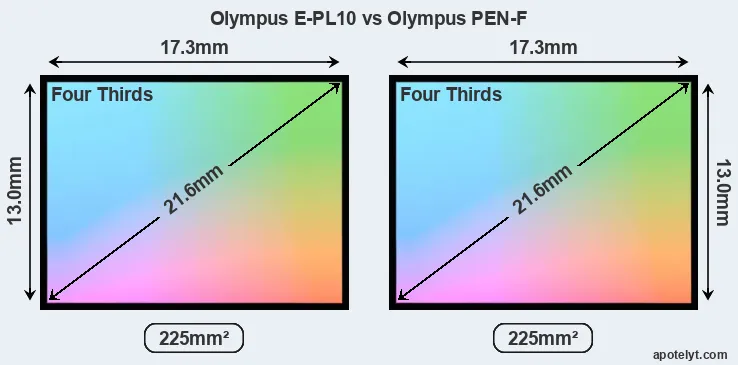

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the E-PL10 uses a more advanced image processing engine (TruePic VIII) than the PEN-F (TruePic VII), with benefits for noise reduction, color accuracy, and processing speed.

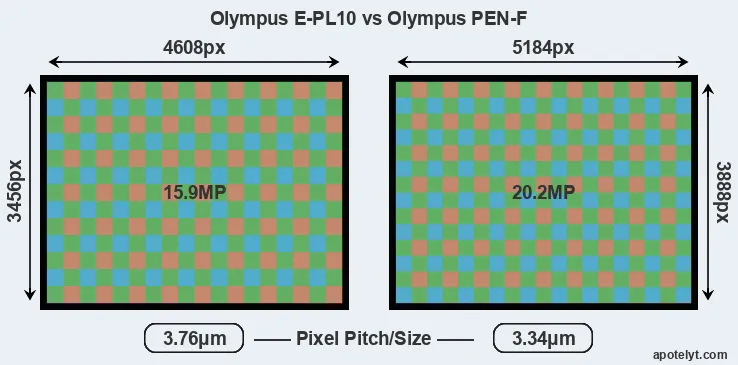

While the two cameras under review share the same sensor size, the PEN-F offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the E-PL10. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the PEN-F has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 3.76μm for the E-PL10). Moreover, it should be noted, that the E-PL10 is much more recent (by 3 years and 8 months) than the PEN-F, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus PEN-F implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the PEN-F for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-PL10 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
Unlike the E-PL10, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus PEN E-PL10 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|2.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|3.||Olympus E-M10 IV||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|4.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|5.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|6.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|7.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|8.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|9.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|10.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|11.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|12.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|13.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|14.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL10 provides a higher video resolution than the PEN-F. It can shoot video footage at 4K/30p, while the PEN-F is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the PEN-F has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL10 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Olympus E-PL10 and Olympus PEN-F along with similar information for a selection of comparators.
|3.||Olympus E-M10 IV||2360||n||3.0||1040||tilting||Y||1/4000s||15.0||Y||Y|
|5.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|7.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|8.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The E-PL10 has one, while the PEN-F does not. While the built-in flash of the E-PL10 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL10 and the Olympus PEN-F both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-PL10 and the PEN-F write their files to SDXC cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the E-PL10 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL10 and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Olympus E-M10 IV||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|5.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|7.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|8.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
The E-PL10 is a recent model that features in the current product line-up of Olympus. In contrast, the PEN-F has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the PEN-F from Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So what conclusions can be drawn? Is the Olympus E-PL10 better than the Olympus PEN-F or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus PEN E-PL10:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic VII).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- More compact: Is smaller (117x68mm vs 125x72mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 47g or 11 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
- More modern: Reflects 3 years and 8 months of technical progress since the PEN-F launch.
Advantages of the Olympus PEN-F:
- More detail: Has more megapixels (20.2 vs 15.9MP), which boosts linear resolution by 13%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8.6 flaps/sec) to capture the decisive moment.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been around for much longer (launched in January 2016).
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (9 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL10 and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-PL10 and the PEN-F in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|2.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|3.||Olympus E-M10 IV||4.5/5||..||..||4.5/5||4.5/5||Aug 2020||699|
|4.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|5.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|6.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|7.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|8.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|9.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|10.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|11.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|12.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|13.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|14.||Olympus E-PL5||3/5||+ +||..||4.5/5||4.5/5||Sep 2012||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Olympus E-PL10 vs Olympus PEN-F
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL10||Olympus PEN-F|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||October 2019||January 2016|
|Launch Price||USD 599||USD 1,199|
|Sensor Specs||Olympus E-PL10||Olympus PEN-F|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||20.2 Megapixels|
|Image Resolution||4608 x 3456 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.76 μm||3.34 μm|
|Pixel Density||7.08 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||200 - 6,400 ISO||80 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||TruePic VIII||TruePic VII|
|DXO Sensor Quality (score)||..||74|
|DXO Color Depth (bits)||..||23.1|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||894|
|Screen Specs||Olympus E-PL10||Olympus PEN-F|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Olympus E-PL10||Olympus PEN-F|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8.6 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Olympus E-PL10||Olympus PEN-F|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Olympus E-PL10||Olympus PEN-F|
|Battery Life (CIPA)||350 shots per charge||330 shots per charge|
117 x 68 x 39 mm
(4.6 x 2.7 x 1.5 in)
125 x 72 x 37 mm
(4.9 x 2.8 x 1.5 in)
|Camera Weight||380 g (13.4 oz)||427 g (15.1 oz)|
