Olympus E-PL10 vs E-PL9
The Olympus PEN E-PL10 and the Olympus PEN E-PL9 are two digital cameras that were revealed to the public, respectively, in October 2019 and February 2018. Both the E-PL10 and the E-PL9 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL10 and the Olympus PEN E-PL9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

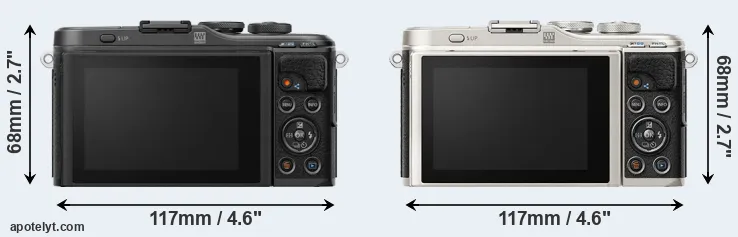

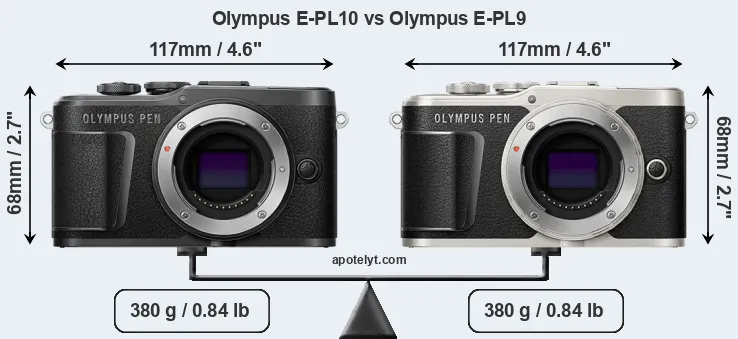

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL10 and the Olympus E-PL9. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in four different colors (black, brown, blue, white).
In this particular case, the Olympus E-PL10 and the Olympus E-PL9 have exactly the same width and height, and, thus, have identically-sized bodies. Moreover, the two cameras also share the same weight. In this context, it is worth noting that neither the E-PL10 nor the E-PL9 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-PL10 | 117 mm | 68 mm | 39 mm | 380 g | 350 | n | Oct 2019 | 599 | ebay.com | |
2. | Olympus E-PL9 | 117 mm | 68 mm | 39 mm | 380 g | 350 | n | Feb 2018 | 599 | ebay.com | |
3. | Olympus E-M10 IV | 122 mm | 84 mm | 49 mm | 383 g | 360 | n | Aug 2020 | 699 | amazon.com | |
4. | Olympus E-M10 III | 122 mm | 84 mm | 50 mm | 410 g | 330 | n | Aug 2017 | 649 | ebay.com | |
5. | Olympus E-PL8 | 115 mm | 67 mm | 38 mm | 357 g | 350 | n | Sep 2016 | 549 | ebay.com | |
6. | Olympus E-M10 II | 120 mm | 83 mm | 47 mm | 390 g | 320 | n | Aug 2015 | 649 | ebay.com | |
7. | Olympus E-M10 | 119 mm | 82 mm | 46 mm | 396 g | 320 | n | Jan 2014 | 699 | ebay.com | |
8. | Olympus E-PL7 | 115 mm | 67 mm | 38 mm | 357 g | 350 | n | Aug 2014 | 599 | ebay.com | |
9. | Olympus E-P5 | 122 mm | 69 mm | 37 mm | 420 g | 330 | n | May 2013 | 999 | ebay.com | |
10. | Olympus E-PL6 | 111 mm | 64 mm | 38 mm | 325 g | 360 | n | May 2013 | 599 | ebay.com | |
11. | Olympus E-PL5 | 111 mm | 64 mm | 38 mm | 325 g | 360 | n | Sep 2012 | 599 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison

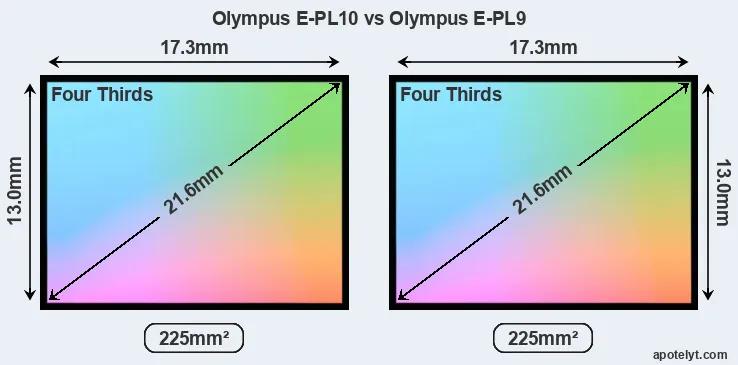

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

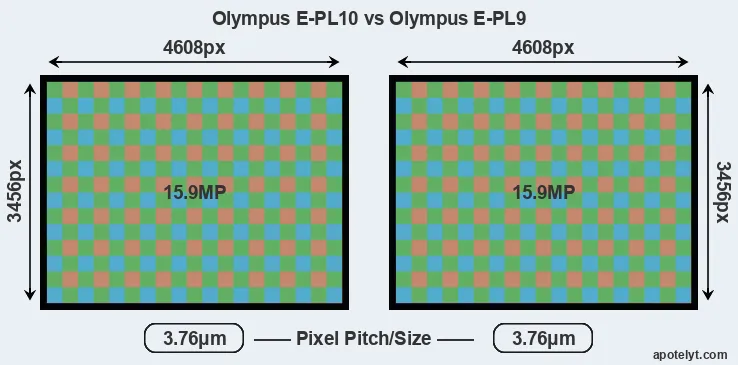

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-PL10 and the E-PL9 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-PL10 is a somewhat more recent model (by 1 year and 8 months) than the E-PL9, and its sensor might have benefitted from technological advances during this time.
The Olympus PEN E-PL10 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The Olympus PEN E-PL9 offers exactly the same ISO settings.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-PL10 | Four Thirds | 15.9 | 4608 | 3456 | 4K/30p | 23.3 | 13.1 | 1324 | 76 | |
2. | Olympus E-PL9 | Four Thirds | 15.9 | 4608 | 3456 | 4K/30p | 23.1 | 12.8 | 1162 | 74 | |
3. | Olympus E-M10 IV | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.2 | 1402 | 76 | |
4. | Olympus E-M10 III | Four Thirds | 15.9 | 4608 | 3456 | 4K/30p | 23.1 | 12.8 | 1120 | 74 | |
5. | Olympus E-PL8 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 23.0 | 12.6 | 1030 | 73 | |
6. | Olympus E-M10 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.1 | 12.5 | 842 | 73 | |
7. | Olympus E-M10 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 884 | 72 | |
8. | Olympus E-PL7 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.4 | 873 | 72 | |
9. | Olympus E-P5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.4 | 895 | 72 | |
10. | Olympus E-PL6 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.5 | 12.0 | 717 | 68 | |
11. | Olympus E-PL5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 889 | 72 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. The E-PL10 and the E-PL9 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Olympus E-PL10 and Olympus E-PL9 along with similar information for a selection of comparators.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-PL10 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
2. | Olympus E-PL9 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
3. | Olympus E-M10 IV | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 15.0/s | Y | Y | |
4. | Olympus E-M10 III | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
5. | Olympus E-PL8 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
6. | Olympus E-M10 II | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
7. | Olympus E-M10 | 1440 | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
8. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
9. | Olympus E-P5 | optional | n | 3.0 / 1037 | tilting | Y | 1/8000s | 9.0/s | Y | Y | |
10. | Olympus E-PL6 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
11. | Olympus E-PL5 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL10 and the Olympus E-PL9 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-PL10 and the E-PL9 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL10 and Olympus PEN E-PL9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-PL10 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
2. | Olympus E-PL9 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
3. | Olympus E-M10 IV | Y | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
4. | Olympus E-M10 III | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
5. | Olympus E-PL8 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
6. | Olympus E-M10 II | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
7. | Olympus E-M10 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
8. | Olympus E-PL7 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
9. | Olympus E-P5 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
10. | Olympus E-PL6 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
11. | Olympus E-PL5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - |
Both the E-PL10 and the E-PL9 have been discontinued, but can regularly be found used on ebay. The E-PL9 was replaced by the Olympus E-PL10, while the E-PL10 does not have a direct successor. Further information on the features and operation of the E-PL10 and E-PL9 can be found, respectively, in the Olympus E-PL10 Manual (free pdf) or the online Olympus E-PL9 Manual.
Review summary
So what is the bottom line? Which of the two cameras – the Olympus E-PL10 or the Olympus E-PL9 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus PEN E-PL10:
- More modern: Is somewhat more recent (announced 1 year and 8 months after the E-PL9).
Arguments in favor of the Olympus PEN E-PL9:
- More heavily discounted: Has been on the market for longer (launched in February 2018).
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (1 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL10 and the Olympus E-PL9 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL10 or the E-PL9. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-PL10 | .. | .. | 4/5 | 77/100 | .. | 4/5 | Oct 2019 | 599 | ebay.com | |
2. | Olympus E-PL9 | .. | + | .. | .. | 4.5/5 | 4/5 | Feb 2018 | 599 | ebay.com | |
3. | Olympus E-M10 IV | 4.5/5 | .. | 5/5 | 81/100 | 4.5/5 | 4.5/5 | Aug 2020 | 699 | amazon.com | |
4. | Olympus E-M10 III | .. | + | 5/5 | 80/100 | 4.5/5 | 4.5/5 | Aug 2017 | 649 | ebay.com | |
5. | Olympus E-PL8 | .. | .. | .. | .. | 4.5/5 | 4/5 | Sep 2016 | 549 | ebay.com | |
6. | Olympus E-M10 II | 4.5/5 | + + | .. | 80/100 | 5/5 | 5/5 | Aug 2015 | 649 | ebay.com | |
7. | Olympus E-M10 | 4/5 | .. | .. | 80/100 | 5/5 | 5/5 | Jan 2014 | 699 | ebay.com | |
8. | Olympus E-PL7 | 4/5 | + | .. | .. | 5/5 | 4/5 | Aug 2014 | 599 | ebay.com | |
9. | Olympus E-P5 | 5/5 | + + | .. | 78/100 | 4.5/5 | 5/5 | May 2013 | 999 | ebay.com | |
10. | Olympus E-PL6 | .. | .. | .. | .. | .. | .. | May 2013 | 599 | ebay.com | |
11. | Olympus E-PL5 | 3/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Sep 2012 | 599 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D vs Olympus E-PL10
- Canon G5 X vs Olympus E-PL9
- Canon T1i vs Olympus E-PL9
- Fujifilm X-E2S vs Olympus E-PL10
- Fujifilm X-H2S vs Olympus E-PL10
- Leica S3 vs Olympus E-PL10
- Nikon 1 V1 vs Olympus E-PL9
- Nikon D750 vs Olympus E-PL9
- Nikon D780 vs Olympus E-PL9
- Olympus E-PL10 vs Pentax K-3 III
- Olympus E-PL10 vs Pentax K-5
- Olympus E-PL9 vs Sony A9 II
Specifications: Olympus E-PL10 vs Olympus E-PL9
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Olympus E-PL10 | Olympus E-PL9 |
---|---|---|
Camera Type | Mirrorless system camera | Mirrorless system camera |
Camera Lens | Micro Four Thirds lenses | Micro Four Thirds lenses |
Launch Date | October 2019 | February 2018 |
Launch Price | USD 599 | USD 599 |
Sensor Specs | Olympus E-PL10 | Olympus E-PL9 |
Sensor Technology | CMOS | CMOS |
Sensor Format | Four Thirds Sensor | Four Thirds Sensor |
Sensor Size | 17.3 x 13.0 mm | 17.3 x 13.0 mm |
Sensor Area | 224.9 mm2 | 224.9 mm2 |
Sensor Diagonal | 21.6 mm | 21.6 mm |
Crop Factor | 2.0x | 2.0x |
Sensor Resolution | 15.9 Megapixels | 15.9 Megapixels |
Image Resolution | 4608 x 3456 pixels | 4608 x 3456 pixels |
Pixel Pitch | 3.76 μm | 3.76 μm |
Pixel Density | 7.08 MP/cm2 | 7.08 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 4K/30p Video | 4K/30p Video |
ISO Setting | 200 - 6,400 ISO | 200 - 6,400 ISO |
ISO Boost | 100 - 25,600 ISO | 100 - 25,600 ISO |
Image Processor | TruePic VIII | TruePic VIII |
Screen Specs | Olympus E-PL10 | Olympus E-PL9 |
Viewfinder Type | no viewfinder | no viewfinder |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1040k dots | 1040k dots |
LCD Attachment | Tilting screen | Tilting screen |
Touch Input | Touchscreen | Touchscreen |
Shooting Specs | Olympus E-PL10 | Olympus E-PL9 |
Focus System | Contrast-detect AF | Contrast-detect AF |
Manual Focusing Aid | Focus Peaking | Focus Peaking |
Max Shutter Speed (mechanical) | 1/4000s | 1/4000s |
Continuous Shooting | 8.6 shutter flaps/s | 8.6 shutter flaps/s |
Electronic Shutter | up to 1/16000s | up to 1/16000s |
Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
Image Stabilization | In-body stabilization | In-body stabilization |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | UHS-I | UHS-I |
Connectivity Specs | Olympus E-PL10 | Olympus E-PL9 |
External Flash | Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | micro HDMI | micro HDMI |
Wifi Support | Wifi built-in | Wifi built-in |
Bluetooth Support | Bluetooth built-in | Bluetooth built-in |
Body Specs | Olympus E-PL10 | Olympus E-PL9 |
Battery Type | Olympus BLS-50 | Olympus BLS-50 |
Battery Life (CIPA) | 350 shots per charge | 350 shots per charge |
Body Dimensions |
117 x 68 x 39 mm (4.6 x 2.7 x 1.5 in) |
117 x 68 x 39 mm (4.6 x 2.7 x 1.5 in) |
Camera Weight | 380 g (13.4 oz) | 380 g (13.4 oz) |
