Olympus E-PL1 vs E-PL5
The Olympus PEN E-PL1 and the Olympus PEN E-PL5 are two digital cameras that were revealed to the public, respectively, in February 2010 and September 2012. Both the E-PL1 and the E-PL5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-PL1 has a resolution of 12.2 megapixels, whereas the E-PL5 provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL1 and the Olympus PEN E-PL5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

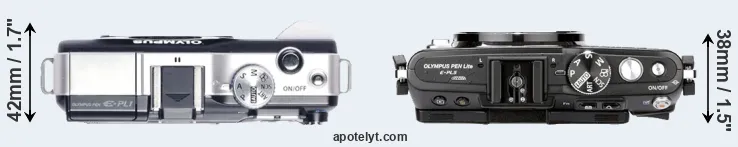

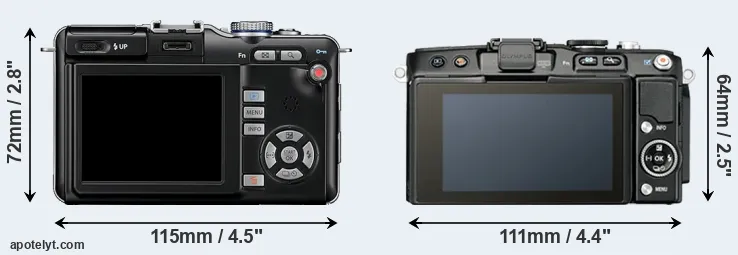

An illustration of the physical size and weight of the Olympus E-PL1 and the Olympus E-PL5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the E-PL5 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL5 is notably smaller (14 percent) than the Olympus E-PL1. Moreover, the E-PL5 is slightly lighter (3 percent) than the E-PL1. In this context, it is worth noting that neither the E-PL1 nor the E-PL5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|2.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|3.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|4.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|5.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|6.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|7.||Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599|
|8.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|9.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|10.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|11.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|12.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|13.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|14.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|15.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|16.||Panasonic GF2||113 mm||68 mm||33 mm||310 g||300||n||Nov 2010||549|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, the E-PL5 uses a more advanced image processing engine (TruePic VI) than the E-PL1 (Truepic V), with benefits for noise reduction, color accuracy, and processing speed.

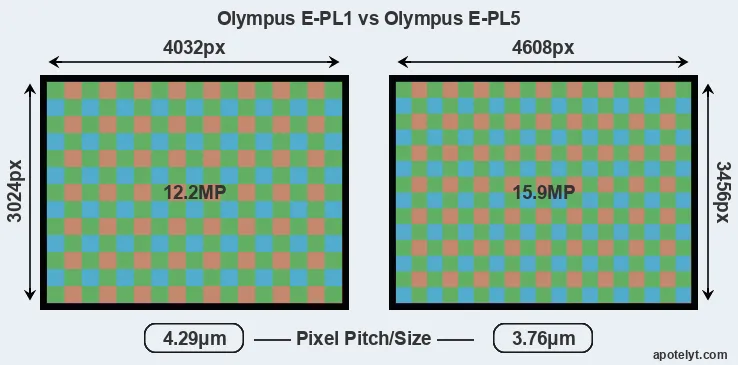

While the two cameras under review share the same sensor size, the E-PL5 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the E-PL1. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-PL5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.29μm for the E-PL1). However, it should be noted that the E-PL5 is much more recent (by 2 years and 7 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Olympus E-PL5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Olympus PEN E-PL1 has a native sensitivity range from ISO 200 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-PL5 are ISO 200 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-PL5 offers substantially better image quality than the E-PL1 (overall score 18 points higher). The advantage is based on 1.3 bits higher color depth, 2.2 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|2.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|3.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|4.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|5.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|6.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|8.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|9.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|10.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|11.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|12.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|13.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|14.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|15.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|16.||Panasonic GF2||Four Thirds||12.0||4000||3000||1080/60i||21.2||10.3||506||54|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-PL5 provides a better video resolution than the E-PL1. It can shoot movie footage at 1080/30p, while the E-PL1 is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The E-PL1 and the E-PL5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-2 for the E-PL1 and the VF-3 for the E-PL5 – are available as accessories. The adjacent table lists some of the other core features of the Olympus E-PL1 and Olympus E-PL5 along with similar information for a selection of comparators.
One difference between the cameras concerns the presence of an on-board flash. The E-PL1 has one, while the E-PL5 does not. While the built-in flash of the E-PL1 is not very powerful, it can at times be useful as a fill-in light.The E-PL5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-PL1 does not have a selfie-screen.
The E-PL1 writes its imaging data to SDHC cards, while the E-PL5 uses SDXC cards. The E-PL5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL1 and Olympus PEN E-PL5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Both the E-PL1 and the E-PL5 have been discontinued, but can regularly be found used on eBay. The E-PL1 was replaced by the Olympus E-PL2, while the E-PL5 was followed by the Olympus E-PL6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So what is the bottom line? Which of the two cameras – the Olympus E-PL1 or the Olympus E-PL5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus PEN E-PL1:
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in February 2010).
Arguments in favor of the Olympus PEN E-PL5:
- More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 14%.
- Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.9 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (TruePic VI vs Truepic V).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x64mm vs 115x72mm) and will fit more readily into a bag.
- Longer lasting: Gets more shots (360 versus 290) out of a single battery charge.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 7 months of technical progress since the E-PL1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL5 is the clear winner of the contest (18 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL1 and the Olympus E-PL5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL1 or the E-PL5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|2.||Olympus E-PL5||3/5||+ +||..||4.5/5||4.5/5||Sep 2012||599|
|3.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|4.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|5.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|6.||Olympus E-PM2||3/5||..||77/100||5/5||4.5/5||Sep 2012||499|
|7.||Olympus XZ-2||4/5||+||..||4.5/5||4.5/5||Sep 2012||599|
|8.||Olympus E-P3||..||83/100||74/100||4.5/5||4.5/5||Jun 2011||799|
|9.||Olympus E-PL2||3/5||83/100||71/100||4.5/5||4.5/5||Jan 2011||599|
|10.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|11.||Olympus E-PM1||..||86/100||71/100||4.5/5||4.5/5||Jun 2011||499|
|12.||Olympus E-620||3/5||88/100||72/100||4.5/5||5/5||Feb 2009||699|
|13.||Olympus E-P1||..||+||66/100||4/5||4.5/5||Jun 2009||799|
|14.||Olympus E-P2||3/5||+||69/100||4/5||4.5/5||Nov 2009||799|
|15.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|16.||Panasonic GF2||3/5||82/100||70/100||4.5/5||4.5/5||Nov 2010||549|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Olympus E-PL1 vs Olympus E-PL5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL1||Olympus E-PL5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||February 2010||September 2012|
|Launch Price||USD 599||USD 599|
|Sensor Specs||Olympus E-PL1||Olympus E-PL5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.9 Megapixels|
|Image Resolution||4032 x 3024 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.29 μm||3.76 μm|
|Pixel Density||5.42 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||720/30p Video||1080/30p Video|
|ISO Setting||200 - 3,200 ISO||200 - 25,600 ISO|
|Image Processor||Truepic V||TruePic VI|
|DXO Sensor Quality (score)||54||72|
|DXO Color Depth (bits)||21.5||22.8|
|DXO Dynamic Range (EV)||10.1||12.3|
|DXO Low Light (ISO)||487||889|
|Screen Specs||Olympus E-PL1||Olympus E-PL5|
|Viewfinder Type||Viewfinder optional||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.7inch||3.0inch|
|LCD Resolution||230k dots||460k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-PL1||Olympus E-PL5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Olympus E-PL1||Olympus E-PL5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Olympus E-PL1||Olympus E-PL5|
|Battery Life (CIPA)||290 shots per charge||360 shots per charge|
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||334 g (11.8 oz)||325 g (11.5 oz)|
