Olympus E-P5 vs Panasonic GM1
The Olympus PEN E-P5 and the Panasonic Lumix DMC-GM1 are two digital cameras that were officially introduced, respectively, in May 2013 and October 2013. Both the E-P5 and the GM1 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-P5||Panasonic GM1|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|15.9 MP, Four Thirds Sensor||15.8 MP, Four Thirds Sensor|
|1080/30p Video||1080/60i Video|
|ISO 200-25600||ISO 200-25600|
|Viewfinder optional||No viewfinder, LCD framing|
|3.0" LCD, 1037k dots||3.0" LCD, 1036k dots|
|Tilting touchscreen||Fixed touchscreen|
|9 shutter flaps per second||5 shutter flaps per second|
|In-body stabilization||Lens stabilization only|
|330 shots per battery charge||230 shots per battery charge|
|122 x 69 x 37 mm, 420 g||99 x 55 x 30 mm, 204 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P5 and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Olympus E-P5 and the Panasonic GM1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-P5 can be obtained in three different colors (black, silver, white), while the GM1 is also available in three color-versions, but different ones (black, silver, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is considerably smaller (35 percent) than the Olympus E-P5. Moreover, the GM1 is substantially lighter (51 percent) than the E-P5. In this context, it is worth noting that neither the E-P5 nor the GM1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus E-P5»||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999||Olympus E-P5|
|Panasonic GM1«||99 mm||55 mm||30 mm||204 g||230||n||Oct 2013||749||Panasonic GM1|
|Olympus PEN-F« »||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199||Olympus PEN-F|
|Olympus E-M5 II« »||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M10 II« »||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||Olympus E-M10 II|
|Olympus E-M10« »||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699||Olympus E-M10|
|Olympus E-PL7« »||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599||Olympus E-PL7|
|Olympus E-M1« »||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399||Olympus E-M1|
|Olympus E-M5« »||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299||Olympus E-M5|
|Olympus E-PL5« »||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599||Olympus E-PL5|
|Olympus E-PM2« »||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499||Olympus E-PM2|
|Panasonic GM5« »||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749||Panasonic GM5|
|Panasonic G6« »||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599||Panasonic G6|
|Panasonic GX7« »||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999||Panasonic GX7|
|Panasonic GX1« »||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699||Panasonic GX1|
|Panasonic GH2« »||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899||Panasonic GH2|
|Ricoh GR« »||117 mm||61 mm||35 mm||245 g||290||n||Apr 2013||799||Ricoh GR|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GM1 was launched at a somewhat lower price (by 25 percent) than the E-P5, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

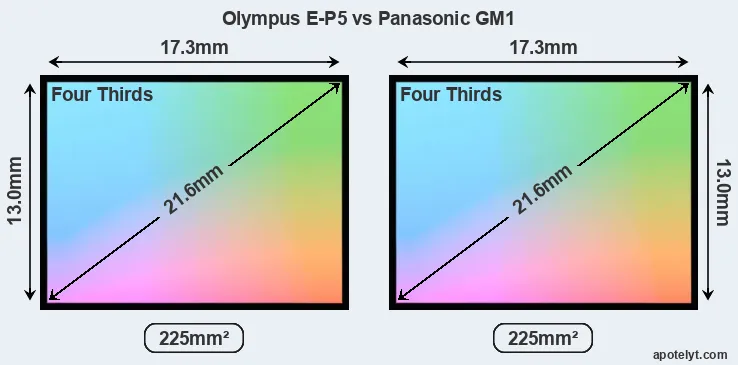

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

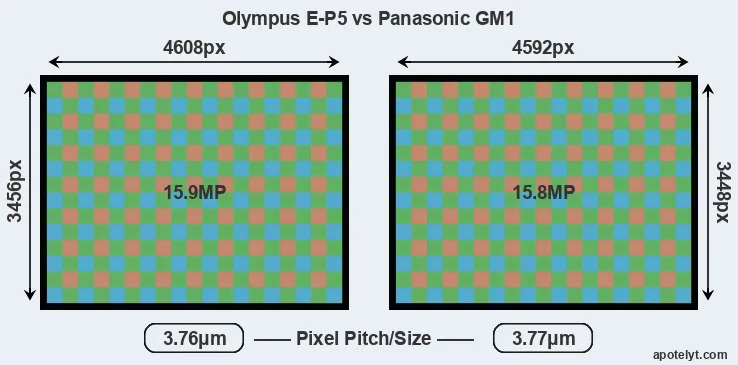

While the two cameras under review share the same sensor size, the E-P5 offers a slightly higher resolution of 15.9 megapixels, compared with 15.8 MP of the GM1. This megapixels advantage translates into a 0.3 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-P5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 3.77μm for the GM1). Moreover, it should be noted that the GM1 is a somewhat more recent model (by 5 months) than the E-P5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels.
The Olympus PEN E-P5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the E-P5 has a notably higher overall DXO score than the GM1 (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits higher color depth, 0.7 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72||Olympus E-P5|
|Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66||Panasonic GM1|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74||Olympus PEN-F|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72||Olympus E-M10|
|Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71||Olympus E-M5|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72||Olympus E-PL5|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72||Olympus E-PM2|
|Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66||Panasonic GM5|
|Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61||Panasonic G6|
|Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70||Panasonic GX7|
|Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55||Panasonic GX1|
|Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60||Panasonic GH2|
|Ricoh GR||APS-C||16.1||4928||3264||1080/30p||23.6||13.5||972||78||Ricoh GR|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GM1 provides a faster frame rate than the E-P5. It can shoot movie footage at 1080/60i, while the Olympus is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The E-P5 and the GM1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Olympus E-P5, the Panasonic GM1, and comparable cameras.
|Olympus E-P5||optional||n||3.0||1037||tilting||Y||1/8000s||9.0||Y||Y||Olympus E-P5|
|Panasonic GM1||none||n||3.0||1036||fixed||Y||1/500s||5.0||Y||n||Panasonic GM1|
|Olympus PEN-F||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus PEN-F|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M10||1440||n||3.0||1037||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10|
|Olympus E-PL7||optional||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-M1||2360||n||3.0||1037||tilting||Y||1/8000s||10.0||n||Y||Olympus E-M1|
|Olympus E-M5||1440||n||3.0||610||tilting||Y||1/4000s||9.0||n||Y||Olympus E-M5|
|Olympus E-PL5||optional||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL5|
|Olympus E-PM2||optional||n||3.0||460||fixed||Y||1/4000s||8.0||n||Y||Olympus E-PM2|
|Panasonic GM5||1166||n||3.0||921||fixed||Y||1/500s||5.8||n||n||Panasonic GM5|
|Panasonic G6||1440||n||3.0||1036||swivel||Y||1/4000s||7.0||Y||n||Panasonic G6|
|Panasonic GX7||2760||n||3.0||1040||tilting||Y||1/8000s||5.0||Y||Y||Panasonic GX7|
|Panasonic GX1||optional||n||3.0||460||fixed||Y||1/4000s||4.2||Y||n||Panasonic GX1|
|Panasonic GH2||1534||n||3.0||460||swivel||n||1/4000s||3.0||Y||n||Panasonic GH2|
|Ricoh GR||optional||n||3.0||1230||fixed||n||1/4000s||4.0||Y||n||Ricoh GR|
One feature that differentiates the E-P5 and the GM1 is in-body image stabilization (IBIS). The E-P5 reduces the risk of handshake-induced blur with all attached lenses, while the GM1 has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-P5 and the Panasonic GM1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-P5 and the GM1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P5 and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-P5||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-P5|
|Panasonic GM1||-||stereo||mono||-||-||micro||2.0||Y||-||-||Panasonic GM1|
|Olympus PEN-F||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus PEN-F|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M10||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10|
|Olympus E-PL7||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-M1||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Olympus E-M5||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-M5|
|Olympus E-PL5||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL5|
|Olympus E-PM2||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM2|
|Panasonic GM5||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Panasonic GM5|
|Panasonic G6||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Panasonic G6|
|Panasonic GX7||Y||stereo||mono||-||-||mini||2.0||Y||Y||-||Panasonic GX7|
|Panasonic GX1||Y||stereo||mono||-||-||mini||2.0||-||-||-||Panasonic GX1|
|Panasonic GH2||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Panasonic GH2|
|Ricoh GR||Y||mono||mono||-||-||micro||2.0||-||-||-||Ricoh GR|
It is notable that the E-P5 has a hotshoe, while the GM1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the E-P5 and the GM1 have been discontinued, but can regularly be found used on eBay. The GM1 was replaced by the Panasonic GM5, while the E-P5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what conclusions can be drawn? Is there a clear favorite between the Olympus E-P5 and the Panasonic GM1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Olympus PEN E-P5:
- Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/500s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (330 versus 230) on a single battery charge.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been on the market for longer (launched in May 2013).
Arguments in favor of the Panasonic Lumix DMC-GM1:
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (99x55mm vs 122x69mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 216g or 51 percent) and is thus easier to take along.
- More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
- More modern: Was introduced somewhat (5 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the E-P5 is the clear winner of the match-up (11 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-P5 and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-P5 or the GM1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 90D vs Panasonic GM1
- Canon M6 Mark II vs Panasonic GM1
- Canon T3i vs Olympus E-P5
- Canon T6 vs Olympus E-P5
- Fujifilm GFX 100 vs Olympus E-P5
- Leica D-LUX 7 vs Olympus E-P5
- Leica S3 vs Panasonic GM1
- Nikon D3200 vs Olympus E-P5
- Nikon D70s vs Panasonic GM1
- Olympus E-M1X vs Olympus E-P5
- Olympus E-P2 vs Olympus E-P5
- Panasonic GF3 vs Panasonic GM1
Specifications: Olympus E-P5 vs Panasonic GM1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-P5||Panasonic GM1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||May 2013||October 2013|
|Launch Price||USD 999||USD 749|
|Sensor Specs||Olympus E-P5||Panasonic GM1|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||15.8 Megapixels|
|Image Resolution||4608 x 3456 pixels||4592 x 3448 pixels|
|Pixel Pitch||3.76 μm||3.77 μm|
|Pixel Density||7.08 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||200-25600 ISO||200-25600 ISO|
|ISO Boost||100-25600 ISO||125-25600 ISO|
|Image Processor||TruePic VI||Venus IX|
|DXO Sensor Quality (score)||72||66|
|DXO Color Depth (bits)||22.8||22.3|
|DXO Dynamic Range (EV)||12.4||11.7|
|DXO Low Light (ISO)||895||660|
|Screen Specs||Olympus E-P5||Panasonic GM1|
|Viewfinder Type||Viewfinder optional||No viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1037k dots||1036k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Olympus E-P5||Panasonic GM1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/500/s|
|Continuous Shooting||9 shutter flaps/s||5 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-P5||Panasonic GM1|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Olympus E-P5||Panasonic GM1|
|Battery Life (CIPA)||330 shots per charge||230 shots per charge|
122 x 69 x 37 mm
(4.8 x 2.7 x 1.5 in)
99 x 55 x 30 mm
(3.9 x 2.2 x 1.2 in)
|Camera Weight||420 g (14.8 oz)||204 g (7.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
