Olympus E-P2 vs E-P3

The Olympus PEN E-P2 and the Olympus PEN E-P3 are two enthusiast cameras that were announced, respectively, in November 2009 and June 2011. Both the E-P2 and the E-P3 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 12.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-P2   Olympus E-P3
Olympus E-P2 Olympus E-P3
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Micro Four Thirds lenses
12.2 MP, Four Thirds Sensor 12.2 MP, Four Thirds Sensor
720/30p Video 1080/60i Video
ISO 100-6400 ISO 200-12800
Viewfinder optional Viewfinder optional
3.0" LCD, 230k dots 3.0" LCD, 614k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
3 shutter flaps per second 3 shutter flaps per second
In-body stabilizationIn-body stabilization
300 shots per battery charge330 shots per battery charge
121 x 70 x 36 mm, 355 g 122 x 69 x 34 mm, 369 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P2 and the Olympus PEN E-P3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Olympus E-P2 vs E-P3

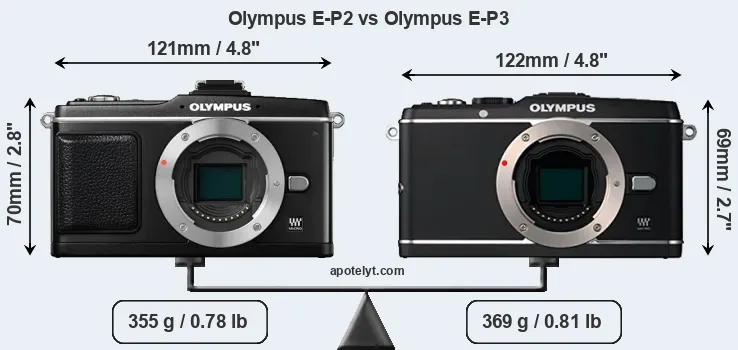

An illustration of the physical size and weight of the Olympus E-P2 and the Olympus E-P3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Both cameras are available in three different colors (black, silver, white).

Size Olympus E-P2 vs Olympus E-P3

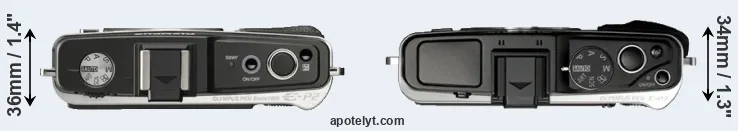

Compare E-P2 versus E-P3 top

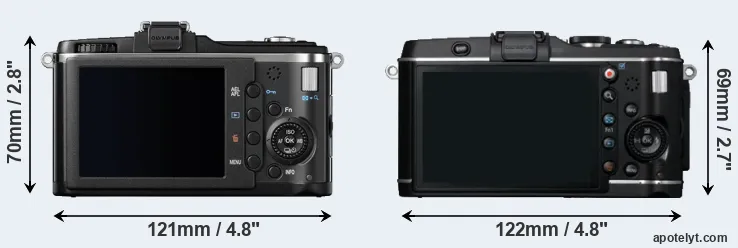

Comparison E-P2 or E-P3 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P2 and the Olympus E-P3 are of equal size. However, the E-P3 is slightly heavier (4 percent) than the E-P2. In this context, it is worth noting that neither the E-P2 nor the E-P3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-P2 gets 300 shots out of its BLS-1 battery, while the E-P3 can take 330 images on a single charge of its BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-P2» 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Nov 2009 799- i Olympus E-P2

Olympus E-P3« 4.8 in 2.7 in 1.3 in 13.0 oz 330 n Jun 2011 799- i Olympus E-P3

Olympus E-PL2« » 4.5 in 2.8 in 1.7 in 12.8 oz 280 n Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« » 4.3 in 2.5 in 1.5 in 11.0 oz 300 n Jun 2011 599- i Olympus E-PL3

Olympus E-PL1« » 4.5 in 2.8 in 1.7 in 11.8 oz 290 n Feb 2010 599- i Olympus E-PL1

Olympus E-620« » 5.1 in 3.7 in 2.4 in 18.4 oz 500 n Feb 2009 699- i Olympus E-620

Olympus E-P1« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1

Olympus E-520« » 5.4 in 3.6 in 2.7 in 18.9 oz 750 n May 2008 699- i Olympus E-520

Panasonic G10« » 4.9 in 3.3 in 2.9 in 13.7 oz 380 n Mar 2010 499- i Panasonic G10

Panasonic GF1« » 4.7 in 2.8 in 1.4 in 13.6 oz 380 n Sep 2009 749- i Panasonic GF1

Panasonic GH1« » 4.9 in 3.5 in 1.8 in 13.6 oz 300 n Mar 2009 899- i Panasonic GH1
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Olympus E-P2 vs E-P3

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-P3 uses a more advanced image processing engine (TruePic VI) than the E-P2 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.

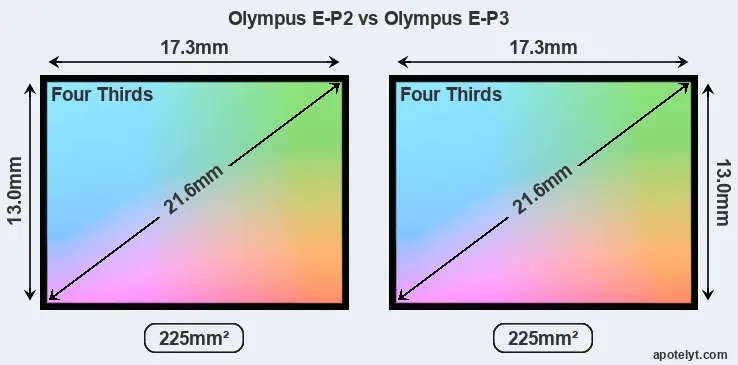

Olympus E-P2 and Olympus E-P3 sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 12.2 megapixels. This similarity in sensor specs implies that both the E-P2 and the E-P3 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-P3 is a somewhat more recent model (by 1 year and 7 months) than the E-P2, and its sensor might have benefitted from technological advances during this time.

The Olympus PEN E-P2 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Olympus PEN E-P3 are ISO 200 to ISO 12800 (no boost).

E-P2 versus E-P3 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the E-P2 has a notably higher overall DXO score than the E-P3 (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 0.3 EV in additional dynamic range, and 0.1 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Olympus E-P2» Four Thirds 12.2 4032 3024720/30p21.510.450556Olympus E-P2

Olympus E-P3« Four Thirds 12.2 4032 30241080/60i20.810.153651Olympus E-P3

Olympus E-PL2« » Four Thirds 12.2 4032 3024720/30p21.410.257355Olympus E-PL2

Olympus E-PL3« » Four Thirds 12.2 4032 30241080/60i20.910.349952Olympus E-PL3

Olympus E-PL1« » Four Thirds 12.2 4032 3024720/30p21.510.148754Olympus E-PL1

Olympus E-620« » Four Thirds 12.2 4032 3024-21.310.353655Olympus E-620

Olympus E-P1« » Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1

Olympus E-520« » Four Thirds 10.0 3648 2736-21.410.454855Olympus E-520

Panasonic G10« » Four Thirds 12.0 4000 3000720/30p21.210.141152Panasonic G10

Panasonic GF1« » Four Thirds 12.0 4000 3000720/30p21.210.351354Panasonic GF1

Panasonic GH1« » Four Thirds 12.0 4000 30001080/24p21.611.677264Panasonic GH1

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-P3 provides a better video resolution than the E-P2. It can shoot movie footage at 1080/60i, while the E-P2 is limited to 720/30p.



Feature comparison: Olympus E-P2 vs E-P3

Beyond body and sensor, cameras can and do differ across a range of features. The E-P2 and the E-P3 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-2 for the E-P2 and the VF-3 for the E-P3 – are available as accessories. The following table reports on some other key feature differences and similarities of the Olympus E-P2, the Olympus E-P3, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Olympus E-P2»- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P2

Olympus E-P3«- n 3.0 614 fixed Y 1/4000s 3.0 Y Y Olympus E-P3

Olympus E-PL2« »- n 3.0 460 fixed n 1/4000s 3.0 Y Y Olympus E-PL2

Olympus E-PL3« »- n 3.0 460 tilting n 1/4000s 5.5 n Y Olympus E-PL3

Olympus E-PL1« »- n 2.7 230 fixed n 1/2000s 3.0 Y Y Olympus E-PL1

Olympus E-620« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-620

Olympus E-P1« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P1

Olympus E-520« »optical n 2.7 215 fixed n 1/4000s 3.5 Y Y Olympus E-520

Panasonic G10« »202 n 3.0 460 fixed n 1/4000s 2.6 Y n Panasonic G10

Panasonic GF1« »- n 3.0 460 fixed n 1/4000s 3.0 Y n Panasonic GF1

Panasonic GH1« »1440 n 3.0 460 swivel n 1/4000s 3.0 Y n Panasonic GH1

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P3 has a touchscreen, while the E-P2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The E-P2 writes its imaging data to SDHC cards, while the E-P3 uses SDXC cards. The E-P3 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P2 cannot take advantage of Ultra High Speed SD cards.



Connectivity comparison: Olympus E-P2 vs E-P3

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P2 and Olympus PEN E-P3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Olympus E-P2»Ystereo---mini2.0---Olympus E-P2

Olympus E-P3«Ystereo---mini2.0---Olympus E-P3

Olympus E-PL2« »Ystereo---mini2.0---Olympus E-PL2

Olympus E-PL3« »Ystereo---mini2.0---Olympus E-PL3

Olympus E-PL1« »Ystereo---mini2.0---Olympus E-PL1

Olympus E-620« »Y-----2.0---Olympus E-620

Olympus E-P1« »Ystereo---mini2.0---Olympus E-P1

Olympus E-520« »Y-----2.0---Olympus E-520

Panasonic G10« »Ymono---mini2.0---Panasonic G10

Panasonic GF1« »Ymonomono--mini2.0---Panasonic GF1

Panasonic GH1« »Ystereo-Y-mini2.0---Panasonic GH1

Both the E-P2 and the E-P3 have been discontinued, but can regularly be found used on eBay. The E-P2 was replaced by the Olympus E-P3, while the E-P3 was followed by the Olympus E-P5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.


Review summary: Olympus E-P2 vs E-P3

So what conclusions can be drawn? Which of the two cameras – the Olympus E-P2 or the Olympus E-P3 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Olympus PEN E-P2:

  • Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
  • More heavily discounted: Has been on the market for longer (launched in November 2009).


Reasons to prefer the Olympus PEN E-P3:

  • Better jpgs: Has a more modern image processing engine (TruePic VI vs TruePic V).
  • Better video: Provides higher definition movie capture (1080/60i vs 720/30p).
  • More detailed LCD: Has a higher resolution rear screen (614k vs 230k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Was introduced somewhat (1 year and 7 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the E-P3 is the clear winner of the contest (7 : 2 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-P2 02:07 E-P3

How about other alternatives? Do the specifications of the Olympus E-P2 and the Olympus E-P3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-P2 and the E-P3 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews: Olympus E-P2 vs E-P3

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-P2»+69/1004/54.5/54.5/5 Nov 2009 799- i Olympus E-P2

Olympus E-P3«83/10074/1004.5/54.5/54.5/5 Jun 2011 799- i Olympus E-P3

Olympus E-PL2« »83/10071/1004.5/54.5/54.5/5 Jan 2011 599- i Olympus E-PL2

Olympus E-PL3« »+ +72/1004.5/5-4/5 Jun 2011 599- i Olympus E-PL3

Olympus E-PL1« »86/10069/1004/54.5/54.5/5 Feb 2010 599- i Olympus E-PL1

Olympus E-620« »88/10072/1004.5/5o5/5 Feb 2009 699- i Olympus E-620

Olympus E-P1« »+66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1

Olympus E-520« »87/100+ +4.5/54/54.5/5 May 2008 699- i Olympus E-520

Panasonic G10« »-70/1004/5-4/5 Mar 2010 499- i Panasonic G10

Panasonic GF1« »85/10069/1004.5/54.5/54.5/5 Sep 2009 749- i Panasonic GF1

Panasonic GH1« »+ +72/1004.5/55/54.5/5 Mar 2009 899- i Panasonic GH1
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Olympus E-P2:
Check Ebay offers
Olympus E-P3:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Olympus E-P2 vs Olympus E-P3

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-P2 Olympus E-P3
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Micro Four Thirds lenses
    Launch Date November 2009 June 2011
    Launch Price USD 799 USD 799
    Sensor Specs Olympus E-P2 Olympus E-P3
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 12.2 Megapixels 12.2 Megapixels
    Image Resolution 4032 x 3024 pixels 4032 x 3024 pixels
    Pixel Pitch 4.29 μm 4.29 μm
    Pixel Density 5.42 MP/cm2 5.42 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 720/30p Video 1080/60i Video
    ISO Setting 100-6400 ISO 200-12800 ISO
    Image Processor TruePic V TruePic VI
    DXO Sensor Quality (score) 56 51
    DXO Color Depth (bits) 21.5 20.8
    DXO Dynamic Range (EV) 10.4 10.1
    DXO Low Light (ISO) 505 536
    Screen Specs Olympus E-P2 Olympus E-P3
    Viewfinder Type Viewfinder optional Viewfinder optional
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 230k dots 614k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-P2 Olympus E-P3
    Autofocus System Contrast-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 3 shutter flaps/s
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash Build-in Flash
    Storage Medium SDHC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no UHS-I
    Connectivity Specs Olympus E-P2 Olympus E-P3
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Olympus E-P2 Olympus E-P3
    Battery Type BLS-1 power pack BLS-5 power pack
    Battery Life (CIPA)300 shots per charge330 shots per charge
    Body Dimensions 121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    122 x 69 x 34 mm
    (4.8 x 2.7 x 1.3 in)
    Camera Weight 355 g (12.5 oz) 369 g (13.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
