Olympus E-M5 vs E-PM1

The Olympus OM-D E-M5 and the Olympus PEN E-PM1 are two digital cameras that were announced, respectively, in February 2012 and June 2011. Both the E-M5 and the E-PM1 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-M5 has a resolution of 15.9 megapixels, whereas the E-PM1 provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-M5		Olympus E-PM1
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
15.9 MP – Four Thirds sensor		12.2 MP – Four Thirds sensor
1080/60i Video		1080/60i Video
ISO 200-25,600		ISO 100-12,800
Electronic viewfinder (1440k dots)		Viewfinder optional
3.0" LCD – 610k dots		3.0" LCD – 460k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
9 shutter flaps per second		5.5 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		not weather sealed
360 shots per battery charge		330 shots per battery charge
122 x 89 x 43 mm, 425 g		110 x 64 x 34 mm, 265 g

Check E-M5 offers at
ebay.com
Check E-PM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 and the Olympus PEN E-PM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

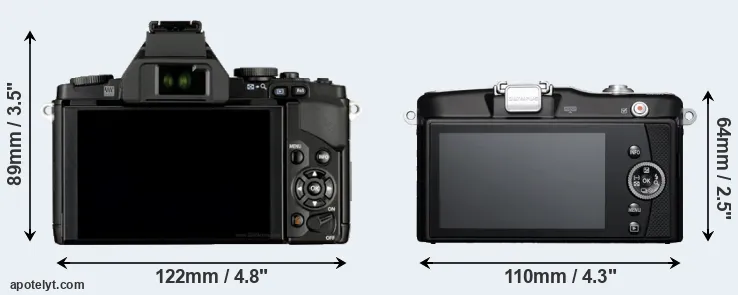

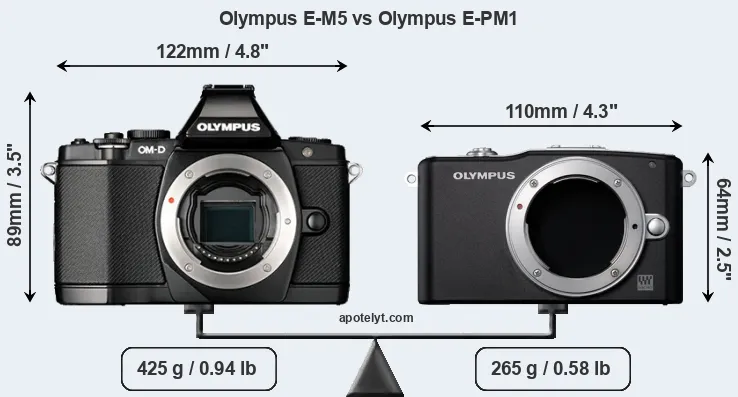

The side-by-side display below illustrates the physical size and weight of the Olympus E-M5 and the Olympus E-PM1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-M5 can be obtained in two different colors (black, silver), while the E-PM1 is available in six color-versions (black, silver, brown, pink, purple, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM1 is considerably smaller (35 percent) than the Olympus E-M5. Moreover, the E-PM1 is substantially lighter (38 percent) than the E-M5. It is worth mentioning in this context that the E-M5 is splash and dust resistant, while the E-PM1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-M5 gets 360 shots out of its Olympus BLN-1 battery, while the E-PM1 can take 330 images on a single charge of its Olympus BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	1,299	ebay.com
2.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
3.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	1,199	ebay.com
4.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
5.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
6.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
7.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
8.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
9.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	499	ebay.com
10.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
11.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
12.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
13.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	1,199	ebay.com
14.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
15.		Panasonic GH3	133 mm	93 mm	82 mm	550 g	540	Y	Sep 2012	1,299	ebay.com
16.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PM1 was launched at a markedly lower price (by 62 percent) than the E-M5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

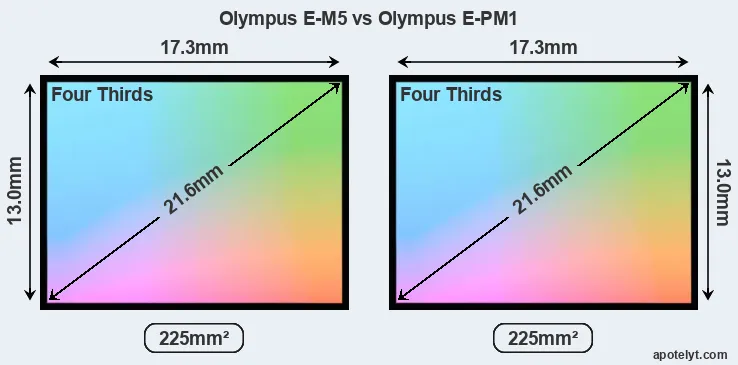

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

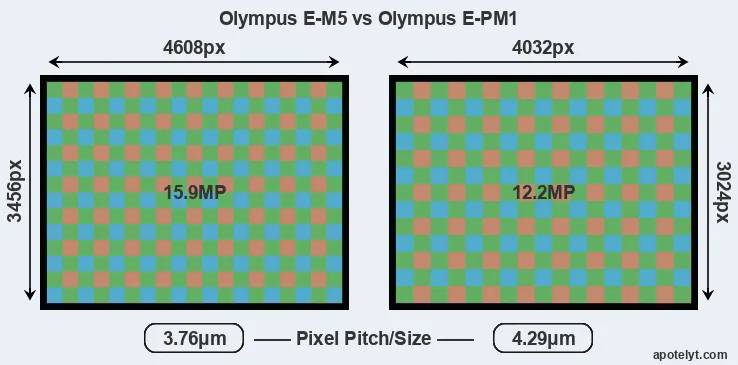

While the two cameras under review share the same sensor size, the E-M5 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the E-PM1. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.29μm for the E-PM1). In this context, it should be noted, however, that the E-M5 is a somewhat more recent model (by 7 months) than the E-PM1, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The resolution advantage of the Olympus E-M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-PM1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Olympus OM-D E-M5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PM1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the E-M5 provides substantially higher image quality than the E-PM1, with an overall score that is 19 points higher. This advantage is based on 1.8 bits higher color depth, 2 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
2.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
3.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
4.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
5.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
6.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
7.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
8.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
9.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
10.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
11.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
12.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
13.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
14.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
15.		Panasonic GH3	Four Thirds	15.9	4608	3456	1080/60p	22.7	12.4	812	71
16.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60i).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PM1 relies on live view and the rear LCD for framing. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus E-M5 and Olympus E-PM1 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
2.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
3.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
4.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
5.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
6.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
7.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
8.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
11.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
12.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
13.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
14.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
15.		Panasonic GH3	1746	n	3.0 / 614	swivel	Y	1/4000s	6.0/s	Y	n
16.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M5 has a touchscreen, while the E-PM1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the E-M5 and the E-PM1 write their files to SDXC cards. The E-M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PM1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 and Olympus PEN E-PM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic GH3	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
16.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the E-M5 and the E-PM1 have been discontinued, but can regularly be found used on ebay. The E-PM1 was replaced by the Olympus E-PM2, while the E-M5 was followed by the Olympus E-M5 II. Further information on the features and operation of the E-M5 and E-PM1 can be found, respectively, in the Olympus E-M5 Manual (free pdf) or the online Olympus E-PM1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-M5 and the Olympus E-PM1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Olympus OM-D E-M5:

• More detail: Offers more megapixels (15.9 vs 12.2MP) with a 14% higher linear resolution.
• Better image quality: Scores substantially higher (19 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.8 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (2 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (610k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (9 vs 5.5 flaps/sec) to capture the decisive moment.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Is somewhat more recent (announced 7 months after the E-PM1).

Advantages of the Olympus PEN E-PM1:

• More compact: Is smaller (110x64mm vs 122x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 160g or 38 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in June 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 is the clear winner of the match-up (13 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-M5 and the Olympus E-PM1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-M5 or the E-PM1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	1,299	ebay.com
2.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
3.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	1,199	ebay.com
4.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
5.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
6.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
7.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
8.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
9.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	499	ebay.com
10.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
11.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
12.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
13.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	1,199	ebay.com
14.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
15.		Panasonic GH3	5/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	1,299	ebay.com
16.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
