Olympus E-M10 II vs Canon 70D

The Olympus OM-D E-M10 Mark II and the Canon EOS 70D are two digital cameras that were revealed to the public, respectively, in August 2015 and July 2013. The E-M10 II is a mirrorless interchangeable lens camera, while the 70D is a DSLR. The cameras are based on a Four Thirds (E-M10 II) and an APS-C (70D) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Canon provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-M10 II
versus
Canon 70D
Olympus E-M10 II   Canon 70D
Mirrorless system camera Digital single lens reflex
Micro Four Thirds lenses Canon EF mount lenses
15.9 MP – Four Thirds sensor 20 MP – APS-C sensor
1080/60p Video 1080/30p Video
ISO 200-25,600 ISO 100-12,800 (100 - 25,600)
Electronic viewfinder (2360k dots) Optical viewfinder
3.0" LCD – 1040k dots 3.0" LCD – 1040k dots
Tilting touchscreen Swivel touchscreen
8 shutter flaps per second 7 shutter flaps per second
In-body stabilizationLens stabilization only
not weather sealedWeathersealed body
320 shots per battery charge920 shots per battery charge
120 x 83 x 47 mm, 390 g 139 x 104 x 79 mm, 755 g
logo
Check E-M10 II offers at
ebay.com
logo
Check 70D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M10 Mark II and the Canon EOS 70D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-M10 II and the Canon 70D. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-M10 II can be obtained in three different colors (black, silver, brown), while the 70D is only available in black.

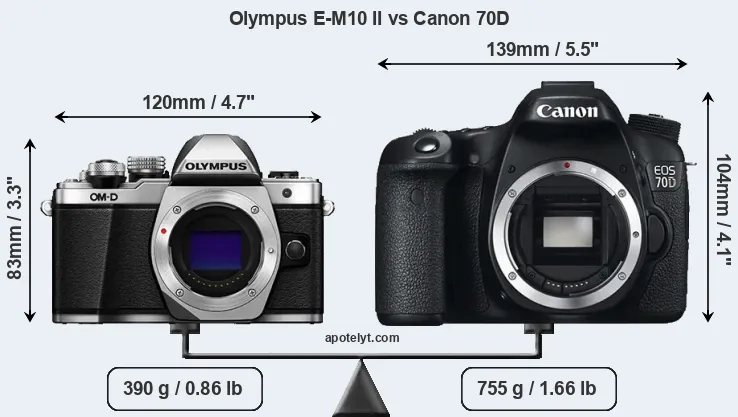

Size Olympus E-M10 II vs Canon 70D

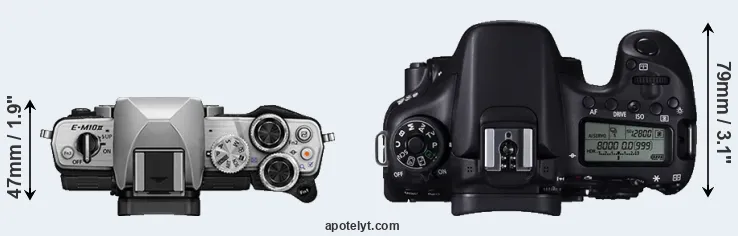

Compare E-M10 II versus 70D top

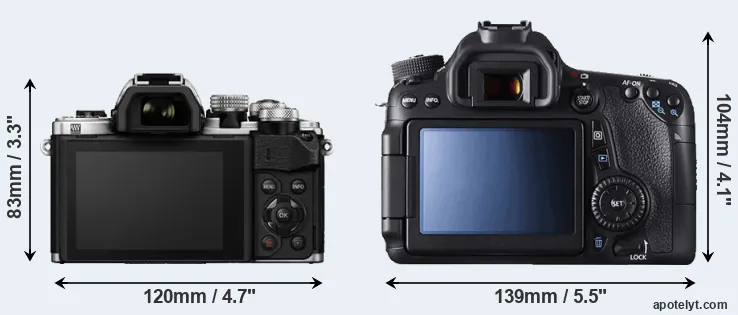

Comparison E-M10 II or 70D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 70D is considerably larger (45 percent) than the Olympus E-M10 II. Moreover, the 70D is substantially heavier (94 percent) than the E-M10 II. It is noteworthy in this context that the 70D is splash and dust-proof, while the E-M10 II does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (E-M10 II) and the Canon EF Lens Catalog (70D). Mirrorless cameras, such as the Olympus E-M10 II, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the E-M10 II gets 320 shots out of its Olympus BLS-50 battery, while the 70D can take 920 images on a single charge of its Canon LP-E6 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649ebay.com
2.

Canon 70D 139 mm 104 mm 79 mm 755 g 920 Y Jul 2013 1,199ebay.com
3.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
4.

Canon G3 X 123 mm 77 mm 105 mm 733 g 300 Y Jun 2015 999ebay.com
5.

Canon 7D II 149 mm 112 mm 78 mm 910 g 670 Y Sep 2014 1,799ebay.com
6.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 1,399ebay.com
7.

Nikon D7100 136 mm 107 mm 76 mm 765 g 950 Y Feb 2013 1,199ebay.com
8.

Olympus E-PL9 117 mm 68 mm 39 mm 380 g 350 n Feb 2018 599ebay.com
9.

Olympus E-M10 III 122 mm 84 mm 50 mm 410 g 330 n Aug 2017 649ebay.com
10.

Olympus E-PL8 115 mm 67 mm 38 mm 357 g 350 n Sep 2016 549ebay.com
11.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
12.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 n Jan 2014 699ebay.com
13.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 n Aug 2014 599ebay.com
14.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
15.

Olympus E-PL6 111 mm 64 mm 38 mm 325 g 360 n May 2013 599ebay.com
16.

Olympus E-PL5 111 mm 64 mm 38 mm 325 g 360 n Sep 2012 599ebay.com
17.

Panasonic GX85 122 mm 71 mm 44 mm 426 g 290 n Apr 2016 799 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M10 II was launched at a markedly lower price (by 46 percent) than the 70D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-M10 II features a Four Thirds sensor and the Canon 70D an APS-C sensor. The sensor area in the 70D is 50 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.6. The sensor in the E-M10 II has a native 4:3 aspect ratio, while the one in the 70D offers a 3:2 aspect.

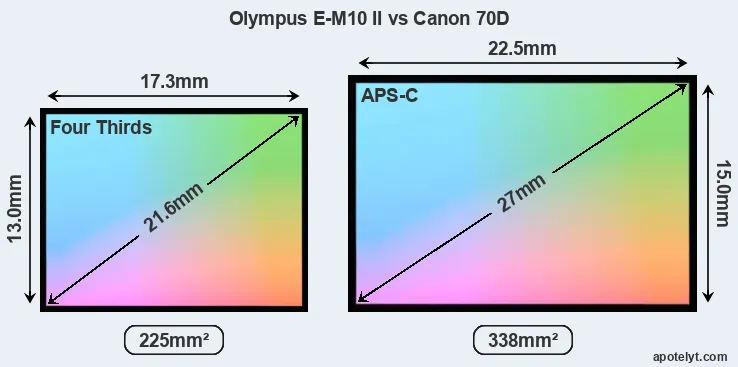

Olympus E-M10 II and Canon 70D sensor measures

With 20MP, the 70D offers a higher resolution than the E-M10 II (15.9MP), but the 70D nevertheless has larger individual pixels (pixel pitch of 4.11μm versus 3.76μm for the E-M10 II) due to its larger sensor. However, the E-M10 II is a much more recent model (by 2 years and 1 month) than the 70D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 70D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 70D for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The 70D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus OM-D E-M10 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS 70D are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

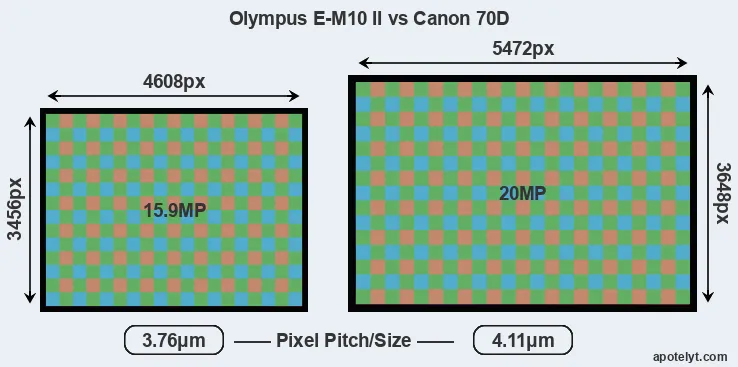

E-M10 II versus 70D MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the E-M10 II has a notably higher overall DXO score than the 70D (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.6 bits higher color depth, 0.9 EV in additional dynamic range, and 0.1 stops of reduced low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
2.

Canon 70D APS-C 20.0 5472 36481080/30p22.511.692668
3.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
4.

Canon G3 X 1-inch 20.0 5472 36481080/60p21.412.352163
5.

Canon 7D II APS-C 20.0 5472 36481080/60p22.411.8108270
6.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
7.

Nikon D7100 APS-C 24.0 6000 40001080/60p24.213.7125683
8.

Olympus E-PL9 Four Thirds 15.9 4608 34564K/30p23.112.8116274
9.

Olympus E-M10 III Four Thirds 15.9 4608 34564K/30p23.112.8112074
10.

Olympus E-PL8 Four Thirds 15.9 4608 34561080/30p23.012.6103073
11.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
12.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
13.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
14.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
15.

Olympus E-PL6 Four Thirds 15.9 4608 34561080/30p22.512.071768
16.

Olympus E-PL5 Four Thirds 15.9 4608 34561080/30p22.812.388972
17.

Panasonic GX85 Four Thirds 15.8 4592 34484K/30p22.912.666271
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-M10 II provides a higher frame rate than the 70D. It can shoot video footage at 1080/60p, while the Canon is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the 70D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M10 II offers a wider field of view (100%) than the one in the 70D (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M10 II has a higher magnification (0.62x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-M10 II and Canon 70D in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
2.

Canon 70Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
3.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
4.

Canon G3 Xoptional n3.2 / 1620 tilting Y 1/2000s 5.9/s Y Y
5.

Canon 7D IIoptical Y3.0 / 1040 fixed n 1/8000s 10.0/s Y n
6.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
7.

Nikon D7100optical Y3.2 / 1229 fixed n 1/8000s 6.0/s Y n
8.

Olympus E-PL9none n3.0 / 1040 tilting Y 1/4000s 8.6/s Y Y
9.

Olympus E-M10 III2360 n3.0 / 1040 tilting Y 1/4000s 8.6/s Y Y
10.

Olympus E-PL8optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
11.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
12.

Olympus E-M101440 n3.0 / 1037 tilting Y 1/4000s 8.0/s Y Y
13.

Olympus E-PL7optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
14.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
15.

Olympus E-PL6optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
16.

Olympus E-PL5optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
17.

Panasonic GX852765 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that differentiates the E-M10 II and the 70D is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the 70D offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The 70D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-M10 II does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-M10 II and the 70D write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M10 Mark II and Canon EOS 70D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
2.

Canon 70DYstereo / monoY-mini2.0Y--
3.

Canon 80DYstereo / monoYYmini2.0YY-
4.

Canon G3 XYstereo / monoYYmini2.0YY-
5.

Canon 7D IIYstereo / monoYYmini3.0---
6.

Canon 60DYmono / monoY-mini2.0---
7.

Nikon D7100Ystereo / monoYYmini2.0---
8.

Olympus E-PL9Ystereo / mono--micro2.0Y-Y
9.

Olympus E-M10 IIIYstereo / mono--micro2.0Y--
10.

Olympus E-PL8Ystereo / mono--micro2.0Y--
11.

Olympus PEN-FYstereo / mono--micro2.0Y--
12.

Olympus E-M10Ystereo / mono--micro2.0Y--
13.

Olympus E-PL7Ystereo / mono--micro2.0Y--
14.

Olympus E-P5Ystereo / mono--micro2.0Y--
15.

Olympus E-PL6Ystereo / mono--mini2.0---
16.

Olympus E-PL5Ystereo / mono--mini2.0---
17.

Panasonic GX85Ystereo / mono--micro2.0Y--
padding

It is notable that the 70D has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The E-M10 II does not feature such a mic input.

Both the E-M10 II and the 70D have been discontinued, but can regularly be found used on ebay. The 70D was replaced by the Canon 80D, while the E-M10 II was followed by the Olympus E-M10 III. Further information on the features and operation of the E-M10 II and 70D can be found, respectively, in the Olympus E-M10 II Manual (free pdf) or the online Canon 70D Manual.

ad

Review summary

So what is the bottom line? Which of the two cameras – the Olympus E-M10 II or the Canon 70D – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Olympus OM-D E-M10 Mark II:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
  • More dynamic range: Captures a larger spectrum of light and dark details (0.9 EV of extra DR).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.59x).
  • Faster burst: Shoots at higher frequency (8 vs 7 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (120x83mm vs 139x104mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 365g or 48 percent) and hence easier to carry around.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
  • More modern: Reflects 2 years and 1 month of technical progress since the 70D launch.

ilogo

Reasons to prefer the Canon EOS 70D:

  • More detail: Has more megapixels (20 vs 15.9MP), which boosts linear resolution by 14%.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Longer lasting: Gets more shots (920 versus 320) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • More heavily discounted: Has been around for much longer (launched in July 2013).

If the number of relative strengths (bullet points above) is taken as a guide, the E-M10 II is the clear winner of the match-up (16 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-M10 II 16:12 70D

How about other alternatives? Do the specifications of the Olympus E-M10 II and the Canon 70D place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-M10 II and the 70D in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649ebay.com
2.

Canon 70D5/5+ +..83/1004.5/55/5 Jul 2013 1,199ebay.com
3.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
4.

Canon G3 X3.5/5+....4.5/54/5 Jun 2015 999ebay.com
5.

Canon 7D II4.5/5+3.5/584/1004/54.5/5 Sep 2014 1,799ebay.com
6.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 1,399ebay.com
7.

Nikon D71005/5+ +..85/1004.5/54.5/5 Feb 2013 1,199ebay.com
8.

Olympus E-PL9..+....4.5/54/5 Feb 2018 599ebay.com
9.

Olympus E-M10 III..+5/580/1004.5/54.5/5 Aug 2017 649ebay.com
10.

Olympus E-PL8........4.5/54/5 Sep 2016 549ebay.com
11.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
12.

Olympus E-M104/5....80/1005/55/5 Jan 2014 699ebay.com
13.

Olympus E-PL74/5+....5/54/5 Aug 2014 599ebay.com
14.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
15.

Olympus E-PL6............ May 2013 599ebay.com
16.

Olympus E-PL53/5+ +....4.5/54.5/5 Sep 2012 599ebay.com
17.

Panasonic GX854.5/5+ +..82/1005/55/5 Apr 2016 799 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check E-M10 II offers at
ebay.com
logo
Check 70D offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Olympus E-M10 II vs Canon 70D

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications

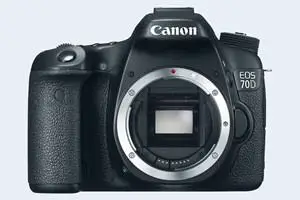

    Camera Model Olympus E-M10 II Canon 70D
    Camera Type Mirrorless system camera Digital single lens reflex
    Camera Lens Micro Four Thirds lenses Canon EF mount lenses
    Launch Date August 2015 July 2013
    Launch Price USD 649 USD 1,199
    Sensor Specs Olympus E-M10 II Canon 70D
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor APS-C Sensor
    Sensor Size 17.3 x 13.0 mm 22.5 x 15.0 mm
    Sensor Area 224.9 mm2 337.5 mm2
    Sensor Diagonal 21.6 mm 27 mm
    Crop Factor 2.0x 1.6x
    Sensor Resolution 15.9 Megapixels 20 Megapixels
    Image Resolution 4608 x 3456 pixels 5472 x 3648 pixels
    Pixel Pitch 3.76 μm 4.11 μm
    Pixel Density 7.08 MP/cm2 5.91 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/30p Video
    ISO Setting 200 - 25,600 ISO 100 - 12,800 ISO
    ISO Boost 100 - 25,600 ISO 100 - 25,600 ISO
    Image Processor TruePic VII DIGIC 5+
    DXO Sensor Quality (score) 73 68
    DXO Color Depth (bits) 23.1 22.5
    DXO Dynamic Range (EV) 12.5 11.6
    DXO Low Light (ISO) 842 926
    Screen Specs Olympus E-M10 II Canon 70D
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Field of View 100% 98%
    Viewfinder Magnification 0.62x 0.59x
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Tilting screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Olympus E-M10 II Canon 70D
    Focus System Contrast-detect AF Phase-detect AF
    Manual Focusing AidFocus Peakingno Peaking Feature
    Continuous Shooting 8 shutter flaps/s 7 shutter flaps/s
    Electronic Shutterup to 1/16000sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Olympus E-M10 II Canon 70D
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port micro HDMI mini HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Body Specs Olympus E-M10 II Canon 70D
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Olympus BLS-50 Canon LP-E6
    Battery Life (CIPA)320 shots per charge920 shots per charge
    Body Dimensions 120 x 83 x 47 mm
    (4.7 x 3.3 x 1.9 in)
    139 x 104 x 79 mm
    (5.5 x 4.1 x 3.1 in)
    Camera Weight 390 g (13.8 oz) 755 g (26.6 oz)
    logo
    Check E-M10 II offers at
    ebay.com
    logo
    Check 70D offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-M10 II vs Canon 70D
