Olympus E-M1 II vs E-P1
The Olympus OM-D E-M1 Mark II and the Olympus PEN E-P1 are two enthusiast cameras that were revealed to the public, respectively, in September 2016 and June 2009. Both the E-M1 II and the E-P1 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-M1 II has a resolution of 20.2 megapixels, whereas the E-P1 provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-M1 II||Olympus E-P1|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|20.2 MP, Four Thirds Sensor||12.2 MP, Four Thirds Sensor|
|4K/30p Video||720/30p Video|
|ISO 200-25600||ISO 100-6400|
|Electronic viewfinder (2360k dots)||No viewfinder, LCD framing|
|3.0" LCD, 1037k dots||3.0" LCD, 230k dots|
|Swivel touchscreen||Fixed screen (not touch-sensitive)|
|18 shutter flaps per second||3 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|Weathersealed body||Not weather sealed|
|440 shots per battery charge||300 shots per battery charge|
|134 x 91 x 67 mm, 574 g||121 x 70 x 36 mm, 355 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the Olympus PEN E-P1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Olympus E-M1 II vs E-P1

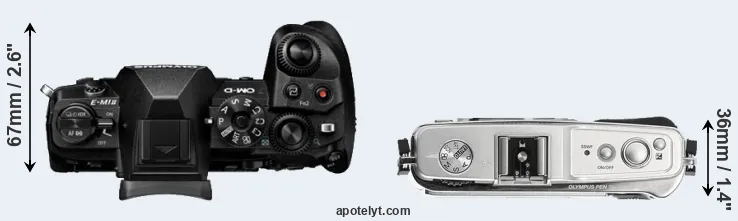

An illustration of the physical size and weight of the Olympus E-M1 II and the Olympus E-P1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-P1 can be obtained in three different colors (black, silver, white), while the E-M1 II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P1 is considerably smaller (31 percent) than the Olympus E-M1 II. Moreover, the E-P1 is substantially lighter (38 percent) than the E-M1 II. It is worth mentioning in this context that the E-M1 II is splash and dust resistant, while the E-P1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Olympus E-M1 II»||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Olympus E-P1«||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799||-||Olympus E-P1|
|Olympus PEN-F« »||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199||Olympus PEN-F|
|Olympus E-M5 II« »||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1« »||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-P3« »||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-P2« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799||-||Olympus E-P2|
|Panasonic G9« »||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999||Panasonic GH5|
|Panasonic G85« »||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899||-||Panasonic G85|
|Panasonic GX8« »||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199||-||Panasonic GX8|
|Panasonic GH1« »||4.9 in||3.5 in||1.8 in||13.6 oz||300||n||Mar 2009||899||-||Panasonic GH1|
|Sony A7 III« »||5.0 in||3.8 in||2.9 in||22.9 oz||610||Y||Feb 2018||1,999||Sony A7 III|
|Sony A9« »||5.0 in||3.8 in||2.5 in||23.7 oz||650||Y||Apr 2017||4,499||Sony A9|
|Sony A7 II« »||5.0 in||3.8 in||2.4 in||21.1 oz||350||Y||Nov 2014||1,999||-||Sony A7 II|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-P1 was launched at a markedly lower price (by 60 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Olympus E-M1 II vs E-P1
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the E-M1 II uses a more advanced image processing engine (TruePic VIII) than the E-P1 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.
While the two cameras under review share the same sensor size, the E-M1 II offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the E-P1. This megapixels advantage translates into a 29 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1 II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.29μm for the E-P1). In this context, it should be noted, however, that the E-M1 II is much more recent (by 7 years and 3 months) than the E-P1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 II for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inch or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inch or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inch or 43.9 x 32.9 cm. The corresponding values for the Olympus E-P1 are 20.2 x 15.1 inch or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inch or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inch or 34.1 x 25.6 cm for excellent quality prints.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the E-P1, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Olympus PEN E-P1 are ISO 100 to ISO 6400 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the E-M1 II provides substantially higher image quality than the E-P1, with an overall score that is 25 points higher. This advantage is based on 2.3 bits higher color depth, 2.4 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-M1 II»||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Olympus E-P1«||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55||Olympus E-P1|
|Olympus PEN-F« »||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74||Olympus PEN-F|
|Olympus E-M5 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M1« »||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Olympus E-P3« »||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51||Olympus E-P3|
|Olympus E-PL2« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55||Olympus E-PL2|
|Olympus E-PL3« »||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52||Olympus E-PL3|
|Olympus E-P2« »||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56||Olympus E-P2|
|Panasonic G9« »||Four Thirds||20.2||5184||3888||4K/60p||-||-||-||-||Panasonic G9|
|Panasonic GH5« »||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77||Panasonic GH5|
|Panasonic G85« »||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71||Panasonic G85|
|Panasonic GX8« »||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75||Panasonic GX8|
|Panasonic GH1« »||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64||Panasonic GH1|
|Sony A7 III« »||Full Frame||24.0||6000||4000||4K/30p||25.0||14.7||3730||96||Sony A7 III|
|Sony A9« »||Full Frame||24.0||6000||4000||4K/30p||24.9||13.3||3517||92||Sony A9|
|Sony A7 II« »||Full Frame||24.0||6000||4000||1080/60p||24.9||13.6||2449||90||Sony A7 II|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M1 II provides a higher video resolution than the E-P1. It can shoot video footage at 4K/30p, while the E-P1 is limited to 720/30p.
Feature comparison: Olympus E-M1 II vs E-P1
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus E-M1 II and Olympus E-P1 in connection with corresponding information for a sample of similar cameras.
|Olympus E-M1 II»||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1 II|
|Olympus E-P1«||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P1|
|Olympus PEN-F« »||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus PEN-F|
|Olympus E-M5 II« »||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M1« »||2360||n||3.0||1037||tilting||Y||1/8000s||10.0||n||Y||Olympus E-M1|
|Olympus E-P3« »||-||n||3.0||614||fixed||Y||1/4000s||3.0||Y||Y||Olympus E-P3|
|Olympus E-PL2« »||-||n||3.0||460||fixed||n||1/4000s||3.0||Y||Y||Olympus E-PL2|
|Olympus E-PL3« »||-||n||3.0||460||tilting||n||1/4000s||5.5||n||Y||Olympus E-PL3|
|Olympus E-P2« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P2|
|Panasonic G9« »||3680||Y||3.0||1040||swivel||Y||1/8000s||20.0||n||Y||Panasonic G9|
|Panasonic GH5« »||3680||n||3.2||1620||swivel||Y||1/8000s||12.0||n||Y||Panasonic GH5|
|Panasonic G85« »||2360||n||3.0||1040||swivel||Y||1/4000s||9.0||Y||Y||Panasonic G85|
|Panasonic GX8« »||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y||Panasonic GX8|
|Panasonic GH1« »||1440||n||3.0||460||swivel||n||1/4000s||3.0||Y||n||Panasonic GH1|
|Sony A7 III« »||2359||n||3.0||922||tilting||Y||1/8000s||10.0||n||Y||Sony A7 III|
|Sony A9« »||3686||n||3.0||1440||tilting||Y||1/8000s||20.0||n||Y||Sony A9|
|Sony A7 II« »||2400||n||3.0||1230||tilting||n||1/8000s||5.0||n||Y||Sony A7 II|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M1 II has a touchscreen, while the E-P1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The E-M1 II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-P1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-M1 II writes its imaging data to SDXC cards, while the E-P1 uses SDHC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-P1 only has one slot. The E-M1 II supports UHS-II cards on its first slot and UHS-I on its second one, while the E-P1 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison: Olympus E-M1 II vs E-P1
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and Olympus PEN E-P1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-M1 II»||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Olympus E-P1«||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P1|
|Olympus PEN-F« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus PEN-F|
|Olympus E-M5 II« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M1« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Olympus E-P3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P3|
|Olympus E-PL2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL2|
|Olympus E-PL3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL3|
|Olympus E-P2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P2|
|Panasonic G9« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||Y||Panasonic G9|
|Panasonic GH5« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic GH5|
|Panasonic G85« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Panasonic G85|
|Panasonic GX8« »||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Panasonic GX8|
|Panasonic GH1« »||Y||stereo||-||Y||-||mini||2.0||-||-||-||Panasonic GH1|
|Sony A7 III« »||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y||Sony A7 III|
|Sony A9« »||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y||Sony A9|
|Sony A7 II« »||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-||Sony A7 II|
It is notable that the E-M1 II has a microphone port, which is missing on the E-P1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-M1 II (unlike the E-P1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the E-P1 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-P1 was succeeded by the Olympus E-P2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
Review summary: Olympus E-M1 II vs E-P1
So how do things add up? Is there a clear favorite between the Olympus E-M1 II and the Olympus E-P1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Olympus OM-D E-M1 Mark II:
- More detail: Offers more megapixels (20.2 vs 12.2MP) with a 29% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (25 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic V).
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image framing and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (440 versus 300) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports Ultra High Speed (UHS-II and UHS-I) SDXC cards.
- More modern: Reflects 7 years and 3 months of technical progress since the E-P1 launch.
Advantages of the Olympus PEN E-P1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (121x70mm vs 134x91mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 219g or 38 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in June 2009).
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the match-up (29 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 II and the Olympus E-P1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-M1 II or the E-P1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Olympus E-M1 II vs E-P1
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-M1 II»||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999||Olympus E-M1 II|
|Olympus E-P1«||+||66/100||4/5||4/5||4.5/5||Jun 2009||799||-||Olympus E-P1|
|Olympus PEN-F« »||-||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199||Olympus PEN-F|
|Olympus E-M5 II« »||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1« »||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-P3« »||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||+ +||72/100||4.5/5||-||4/5||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-P2« »||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799||-||Olympus E-P2|
|Panasonic G9« »||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999||Panasonic GH5|
|Panasonic G85« »||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899||-||Panasonic G85|
|Panasonic GX8« »||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199||-||Panasonic GX8|
|Panasonic GH1« »||+ +||72/100||4.5/5||5/5||4.5/5||Mar 2009||899||-||Panasonic GH1|
|Sony A7 III« »||+ +||89/100||5/5||5/5||5/5||Feb 2018||1,999||Sony A7 III|
|Sony A9« »||+ +||89/100||5/5||5/5||5/5||Apr 2017||4,499||Sony A9|
|Sony A7 II« »||+||82/100||4.5/5||5/5||5/5||Nov 2014||1,999||-||Sony A7 II|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark IV vs Olympus E-M1 II
- Canon 1D X vs Olympus E-M1 II
- Canon G7 X Mark II vs Olympus E-P1
- Canon M5 vs Olympus E-P1
- Canon T2i vs Olympus E-M1 II
- Fujifilm X-T1 vs Olympus E-P1
- Leica M8 vs Olympus E-P1
- Nikon D3X vs Olympus E-M1 II
- Nikon D7500 vs Olympus E-P1
- Nikon D90 vs Olympus E-M1 II
- Olympus E-M1 II vs Panasonic GH5
- Olympus E-M1 II vs Sony A77
Specifications: Olympus E-M1 II vs Olympus E-P1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M1 II||Olympus E-P1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2016||June 2009|
|Launch Price||USD 1999||USD 799|
|Sensor Specs||Olympus E-M1 II||Olympus E-P1|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||12.2 Megapixels|
|Image Resolution||5184 x 3888 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.34 μm||4.29 μm|
|Pixel Density||8.96 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||720/30p Video|
|ISO Setting||200-25600 ISO||100-6400 ISO|
|ISO Boost||64-25600 ISO||no Enhancement|
|Image Processor||TruePic VIII||TruePic V|
|DXO Sensor Quality (score)||80||55|
|DXO Color Depth (bits)||23.7||21.4|
|DXO Dynamic Range (EV)||12.8||10.4|
|DXO Low Light (ISO)||1312||536|
|Screen Specs||Olympus E-M1 II||Olympus E-P1|
|Viewfinder Type||Electronic viewfinder||No viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1037k dots||230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Olympus E-M1 II||Olympus E-P1|
|Autofocus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||No Peaking Feature|
|Continuous Shooting||18 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||Single UHS-II||no|
|Connectivity Specs||Olympus E-M1 II||Olympus E-P1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Olympus E-M1 II||Olympus E-P1|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Type||BLH-1 power pack||BLS-1 power pack|
|Battery Life (CIPA)||440 shots per charge||300 shots per charge|
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
121 x 70 x 36 mm
(4.8 x 2.8 x 1.4 in)
|Camera Weight||574 g (20.2 oz)||355 g (12.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
