Olympus E-M1 II vs E-M1X
The Olympus OM-D E-M1 Mark II and the Olympus OM-D E-M1X are two enthusiast cameras that were announced, respectively, in September 2016 and January 2019. Both the E-M1 II and the E-M1X are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the Olympus OM-D E-M1X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

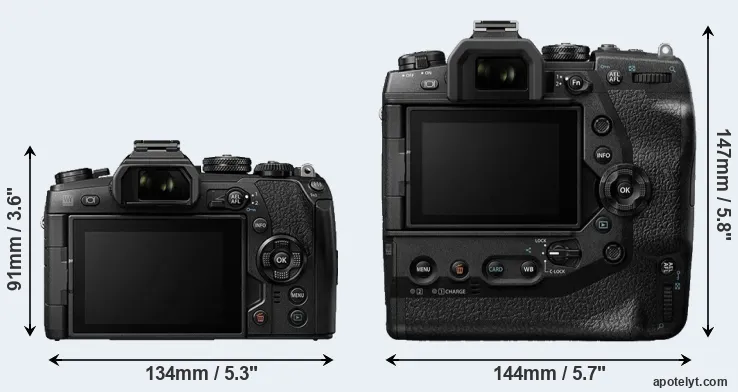

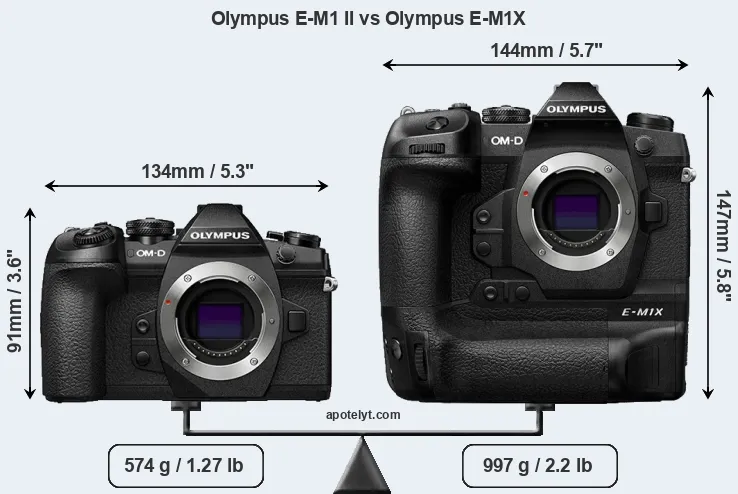

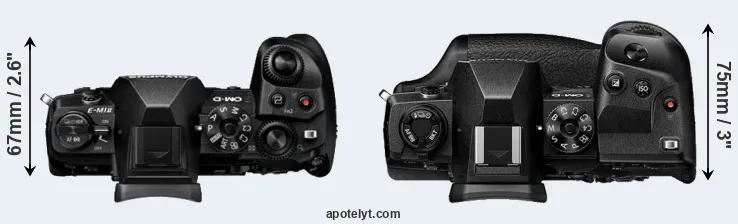

An illustration of the physical size and weight of the Olympus E-M1 II and the Olympus E-M1X is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M1X can be obtained in two different colors (black, silver), while the E-M1 II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1X is considerably larger (74 percent) than the Olympus E-M1 II. Moreover, the E-M1X is substantially heavier (74 percent) than the E-M1 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
As can be seen in the images above, the E-M1X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the E-M1 II, Olympus provides the HLD-9 vertical grip as an optional accessory (see here on ebay). The power pack in the E-M1X can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M1 II | 134 mm | 91 mm | 67 mm | 574 g | 440 | Y | Sep 2016 | 1,999 | ebay.com | |
2. | Olympus E-M1X | 144 mm | 147 mm | 75 mm | 997 g | 870 | Y | Jan 2019 | 2,999 | ebay.com | |
3. | Olympus E-M1 III | 134 mm | 91 mm | 69 mm | 580 g | 420 | Y | Feb 2020 | 1,799 | ebay.com | |
4. | Olympus E-M5 III | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2019 | 1,199 | ebay.com | |
5. | Olympus PEN-F | 125 mm | 72 mm | 37 mm | 427 g | 330 | n | Jan 2016 | 1,199 | ebay.com | |
6. | Olympus E-M1 | 130 mm | 94 mm | 63 mm | 497 g | 350 | Y | Sep 2013 | 1,399 | ebay.com | |
7. | OM System OM-1 II | 135 mm | 92 mm | 73 mm | 599 g | 500 | Y | Jan 2024 | 2,399 | amazon.com | |
8. | OM System OM-1 | 135 mm | 92 mm | 73 mm | 599 g | 520 | Y | Feb 2022 | 2,199 | ebay.com | |
9. | Panasonic GH5 II | 139 mm | 98 mm | 87 mm | 727 g | 400 | Y | May 2021 | 1,699 | amazon.com | |
10. | Panasonic S1 | 149 mm | 110 mm | 97 mm | 1017 g | 400 | Y | Feb 2019 | 2,499 | amazon.com | |
11. | Panasonic G90 | 130 mm | 94 mm | 77 mm | 536 g | 290 | Y | Apr 2019 | 999 | ebay.com | |
12. | Panasonic G9 | 137 mm | 97 mm | 92 mm | 658 g | 400 | Y | Nov 2017 | 1,699 | ebay.com | |
13. | Panasonic GH5 | 139 mm | 98 mm | 87 mm | 725 g | 410 | Y | Jan 2017 | 1,999 | ebay.com | |
14. | Panasonic G85 | 128 mm | 89 mm | 74 mm | 505 g | 330 | Y | Sep 2016 | 899 | ebay.com | |
15. | Panasonic GX8 | 133 mm | 78 mm | 63 mm | 487 g | 330 | Y | Jul 2015 | 1,199 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M1 II was launched at a markedly lower price (by 33 percent) than the E-M1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

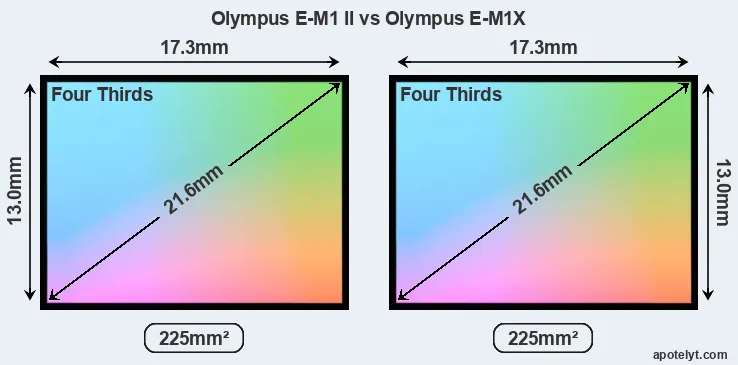

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

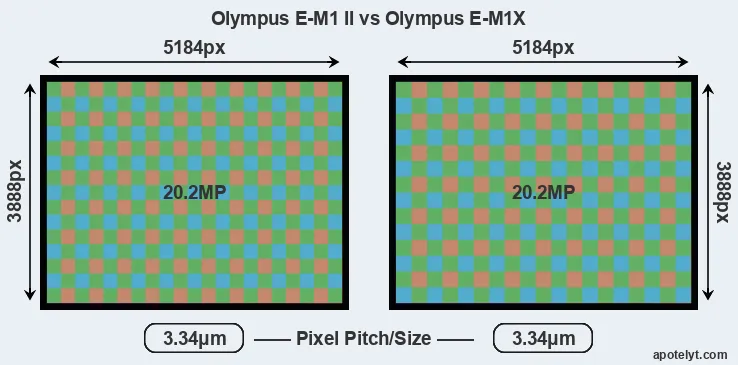

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the E-M1 II and the E-M1X have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-M1X is much more recent (by 2 years and 4 months) than the E-M1 II, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The Olympus OM-D E-M1X offers exactly the same ISO settings.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.7 | 12.8 | 1312 | 80 | |
2. | Olympus E-M1X | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.2 | 13.0 | 1254 | 75 | |
3. | Olympus E-M1 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1356 | 76 | |
4. | Olympus E-M5 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1324 | 76 | |
5. | Olympus PEN-F | Four Thirds | 20.2 | 5184 | 3888 | 1080/60p | 23.1 | 12.4 | 894 | 74 | |
6. | Olympus E-M1 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 23.0 | 12.7 | 757 | 73 | |
7. | OM System OM-1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.6 | 1749 | 78 | |
8. | OM System OM-1 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.4 | 1553 | 77 | |
9. | Panasonic GH5 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.7 | 13.1 | 1136 | 79 | |
10. | Panasonic S1 | Full Frame | 24.0 | 6000 | 4000 | 4K/60p | 25.2 | 14.5 | 3333 | 95 | |
11. | Panasonic G90 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.2 | 13.0 | 1273 | 75 | |
12. | Panasonic G9 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.1 | 12.8 | 1138 | 74 | |
13. | Panasonic GH5 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.9 | 13.0 | 807 | 77 | |
14. | Panasonic G85 | Four Thirds | 15.8 | 4592 | 3448 | 4K/30p | 22.8 | 12.5 | 656 | 71 | |
15. | Panasonic GX8 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.5 | 12.6 | 806 | 75 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. The E-M1 II and the E-M1X are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Olympus E-M1 II and Olympus E-M1X along with similar information for a selection of comparators.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M1 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
2. | Olympus E-M1X | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
3. | Olympus E-M1 III | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
4. | Olympus E-M5 III | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
5. | Olympus PEN-F | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
6. | Olympus E-M1 | 2360 | n | 3.0 / 1037 | tilting | Y | 1/8000s | 10.0/s | n | Y | |
7. | OM System OM-1 II | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
8. | OM System OM-1 | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
9. | Panasonic GH5 II | 3680 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
10. | Panasonic S1 | 5760 | Y | 3.2 / 2100 | full-flex | Y | 1/8000s | 9.0/s | n | Y | |
11. | Panasonic G90 | 2360 | n | 3.0 / 1240 | swivel | Y | 1/4000s | 9.0/s | Y | Y | |
12. | Panasonic G9 | 3680 | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 20.0/s | n | Y | |
13. | Panasonic GH5 | 3680 | n | 3.2 / 1620 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
14. | Panasonic G85 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/4000s | 9.0/s | Y | Y | |
15. | Panasonic GX8 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II and the Olympus E-M1X both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M1 II and the E-M1X write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. However, while the E-M1X supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on both slots, the E-M1 II supports UHS-II only on its first slot and UHS-I (data transfer speed up to 104 MB/s) on the second one.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and Olympus OM-D E-M1X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | - | |
2. | Olympus E-M1X | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
3. | Olympus E-M1 III | Y | stereo / mono | Y | Y | micro | 3.1 | Y | - | Y | |
4. | Olympus E-M5 III | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
5. | Olympus PEN-F | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
6. | Olympus E-M1 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
7. | OM System OM-1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
8. | OM System OM-1 | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
9. | Panasonic GH5 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
10. | Panasonic S1 | Y | stereo / mono | Y | Y | full | 3.1 | Y | - | Y | |
11. | Panasonic G90 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | - | Y | |
12. | Panasonic G9 | Y | stereo / mono | Y | Y | full | 3.0 | Y | - | Y | |
13. | Panasonic GH5 | Y | stereo / mono | Y | Y | full | 3.1 | Y | - | Y | |
14. | Panasonic G85 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
15. | Panasonic GX8 | Y | stereo / mono | Y | - | micro | 2.0 | Y | Y | - |
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the E-M1X has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the E-M1 II and the E-M1X have been discontinued, but can regularly be found used on ebay. The E-M1 II was replaced by the Olympus E-M1 III, while the E-M1X does not have a direct successor. Further information on the features and operation of the E-M1 II and E-M1X can be found, respectively, in the Olympus E-M1 II Manual (free pdf) or the online Olympus E-M1X Manual.
Review summary
So what conclusions can be drawn? Is there a clear favorite between the Olympus E-M1 II and the Olympus E-M1X? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus OM-D E-M1 Mark II:
- More compact: Is smaller (134x91mm vs 144x147mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 423g or 42 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in September 2016).
Advantages of the Olympus OM-D E-M1X:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.83x vs 0.74x).
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (870 versus 440) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 2 years and 4 months of technical progress since the E-M1 II launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1X emerges as the winner of the match-up (7 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 II and the Olympus E-M1X place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-M1 II and the E-M1X in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M1 II | 5/5 | + + | 5/5 | 85/100 | 4.5/5 | 4.5/5 | Sep 2016 | 1,999 | ebay.com | |
2. | Olympus E-M1X | 4.5/5 | o | 5/5 | 85/100 | 4.5/5 | .. | Jan 2019 | 2,999 | ebay.com | |
3. | Olympus E-M1 III | 5/5 | .. | 5/5 | 83/100 | 4.5/5 | 4/5 | Feb 2020 | 1,799 | ebay.com | |
4. | Olympus E-M5 III | 5/5 | + | 5/5 | 82/100 | 4.5/5 | 4.5/5 | Oct 2019 | 1,199 | ebay.com | |
5. | Olympus PEN-F | .. | .. | 4/5 | 82/100 | 4.5/5 | 5/5 | Jan 2016 | 1,199 | ebay.com | |
6. | Olympus E-M1 | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2013 | 1,399 | ebay.com | |
7. | OM System OM-1 II | .. | .. | .. | .. | .. | .. | Jan 2024 | 2,399 | amazon.com | |
8. | OM System OM-1 | 5/5 | .. | .. | 87/100 | 5/5 | 4.5/5 | Feb 2022 | 2,199 | ebay.com | |
9. | Panasonic GH5 II | 4.5/5 | .. | 4.5/5 | 85/100 | 4.5/5 | 5/5 | May 2021 | 1,699 | amazon.com | |
10. | Panasonic S1 | 4.5/5 | + + | 4.5/5 | 88/100 | 4.5/5 | 4/5 | Feb 2019 | 2,499 | amazon.com | |
11. | Panasonic G90 | 4.5/5 | + | 4.5/5 | 83/100 | 4.5/5 | 4.5/5 | Apr 2019 | 999 | ebay.com | |
12. | Panasonic G9 | .. | + + | 5/5 | 85/100 | 5/5 | 5/5 | Nov 2017 | 1,699 | ebay.com | |
13. | Panasonic GH5 | 4.5/5 | + + | .. | 85/100 | 4.5/5 | 5/5 | Jan 2017 | 1,999 | ebay.com | |
14. | Panasonic G85 | .. | + + | .. | 84/100 | 5/5 | 4.5/5 | Sep 2016 | 899 | ebay.com | |
15. | Panasonic GX8 | 5/5 | + | .. | 82/100 | 4.5/5 | 4.5/5 | Jul 2015 | 1,199 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 60D vs Olympus E-M1X
- Canon SL2 vs Olympus E-M1X
- Leica S Typ 007 vs Olympus E-M1X
- Leica V-LUX 2 vs Olympus E-M1 II
- Nikon Coolpix A vs Olympus E-M1 II
- Olympus E-410 vs Olympus E-M1 II
- Olympus E-M1 II vs Sony A6400
- Olympus E-M1 II vs Sony HX350
- Olympus E-M1 II vs Sony NEX-3
- Olympus E-M1X vs Olympus E-M5
- Olympus E-M1X vs Sony A99 II
- Olympus E-M1X vs Sony HX95
Specifications: Olympus E-M1 II vs Olympus E-M1X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Olympus E-M1 II | Olympus E-M1X |
---|---|---|
Camera Type | Mirrorless system camera | Mirrorless system camera |
Camera Lens | Micro Four Thirds lenses | Micro Four Thirds lenses |
Launch Date | September 2016 | January 2019 |
Launch Price | USD 1,999 | USD 2,999 |
Sensor Specs | Olympus E-M1 II | Olympus E-M1X |
Sensor Technology | CMOS | CMOS |
Sensor Format | Four Thirds Sensor | Four Thirds Sensor |
Sensor Size | 17.3 x 13.0 mm | 17.3 x 13.0 mm |
Sensor Area | 224.9 mm2 | 224.9 mm2 |
Sensor Diagonal | 21.6 mm | 21.6 mm |
Crop Factor | 2.0x | 2.0x |
Sensor Resolution | 20.2 Megapixels | 20.2 Megapixels |
Image Resolution | 5184 x 3888 pixels | 5184 x 3888 pixels |
Pixel Pitch | 3.34 μm | 3.34 μm |
Pixel Density | 8.96 MP/cm2 | 8.96 MP/cm2 |
Moiré control | no AA filter | no AA filter |
Movie Capability | 4K/30p Video | 4K/30p Video |
ISO Setting | 200 - 25,600 ISO | 200 - 25,600 ISO |
ISO Boost | 64 - 25,600 ISO | 64 - 25,600 ISO |
Image Processor | TruePic VIII | Dual TruePic VIII |
DXO Sensor Quality (score) | 80 | .. |
DXO Color Depth (bits) | 23.7 | .. |
DXO Dynamic Range (EV) | 12.8 | .. |
DXO Low Light (ISO) | 1312 | .. |
Screen Specs | Olympus E-M1 II | Olympus E-M1X |
Viewfinder Type | Electronic viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.74x | 0.83x |
Viewfinder Resolution | 2360k dots | 2360k dots |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1037k dots | 1037k dots |
LCD Attachment | Swivel screen | Swivel screen |
Touch Input | Touchscreen | Touchscreen |
Shooting Specs | Olympus E-M1 II | Olympus E-M1X |
Focus System | On-Sensor Phase-detect | On-Sensor Phase-detect |
Manual Focusing Aid | Focus Peaking | Focus Peaking |
Max Shutter Speed (mechanical) | 1/8000s | 1/8000s |
Continuous Shooting | 18 shutter flaps/s | 18 shutter flaps/s |
Shutter Life Expectancy | 200 000 actuations | 200 000 actuations |
Electronic Shutter | up to 1/32000s | up to 1/32000s |
Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
Image Stabilization | In-body stabilization | In-body stabilization |
Fill Flash | no On-Board Flash | no On-Board Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Dual card slots | Dual card slots |
UHS card support | Single UHS-II | Dual UHS-II |
Connectivity Specs | Olympus E-M1 II | Olympus E-M1X |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | PC Sync socket |
USB Connector | USB 3.0 | USB 3.0 |
HDMI Port | micro HDMI | micro HDMI |
Microphone Port | External MIC port | External MIC port |
Headphone Socket | Headphone port | Headphone port |
Wifi Support | Wifi built-in | Wifi built-in |
Bluetooth Support | no Bluetooth | Bluetooth built-in |
Geotagging | no internal GPS | GPS built-in |
Body Specs | Olympus E-M1 II | Olympus E-M1X |
Environmental Sealing | Weathersealed body | Weathersealed body |
Battery Type | Olympus BLH-1 | Olympus BLH-1 |
Battery Life (CIPA) | 440 shots per charge | 870 shots per charge |
In-Camera Charging | no USB charging | USB charging |
Body Dimensions |
134 x 91 x 67 mm (5.3 x 3.6 x 2.6 in) |
144 x 147 x 75 mm (5.7 x 5.8 x 3.0 in) |
Camera Weight | 574 g (20.2 oz) | 997 g (35.2 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
