Olympus E-620 versus Olympus E-M1 II

The Olympus E-620 and the Olympus OM-D E-M1 Mark II are two digital cameras that were revealed to the public, respectively, in February 2009 and September 2016. The E-620 is a DSLR, while the E-M1 II is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-620 has a resolution of 12.2 megapixel, whereas the E-M1 II provides 20.2 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Olympus E-620 vs Olympus E-M1 II

The physical size and weight of the Olympus E-620 and the Olympus E-M1 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the E-620 – represents the basis for the calculations across all the size and weight measures).

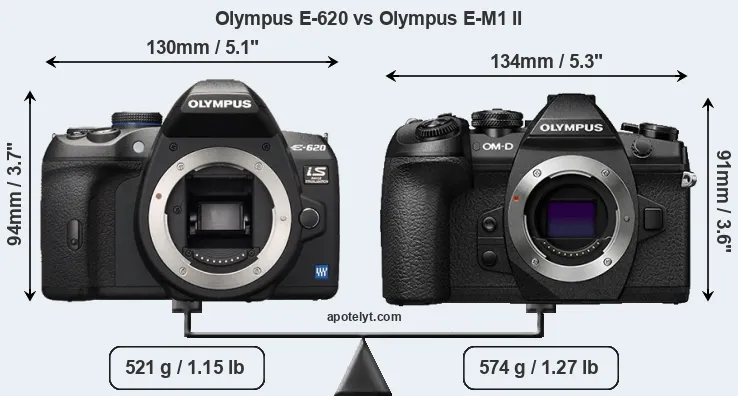

Compare Olympus E-620 vs Olympus E-M1 II
Compare E-620 versus E-M1 II top

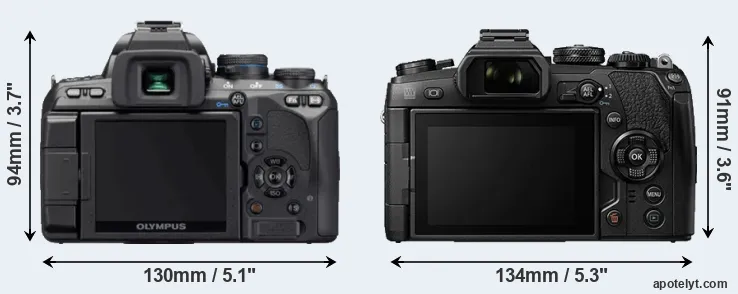

Compare E-620 and E-M1 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-620 and the Olympus E-M1 II are of equal size. However, the E-M1 II is markedly heavier (10 percent) than the E-620. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the E-620 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can find an overview of optics for the two cameras in the Four Thirds Lens Catalog (E-620) and the Micro Four Thirds Lens Catalog (E-M1 II). Mirrorless cameras, such as the E-M1 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-620 gets 500 shots out of its BLS-1 battery, while the E-M1 II can take 440 images on a single charge of its BLH-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Olympus E-620» 5.1 in 3.7 in 2.4 in 18.4 oz 500 n Feb 2009 699- i Olympus E-620
Olympus E-M1 II« 5.3 in 3.6 in 2.6 in 20.2 oz 440 Y Sep 2016 1,999 i i Olympus E-M1 II
Olympus E-M5 II« » 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M1« » 5.1 in 3.7 in 2.5 in 17.5 oz 350 Y Sep 2013 1,399- i Olympus E-M1
Olympus E-PL1« » 4.5 in 2.8 in 1.7 in 11.8 oz 290 n Feb 2010 599- i Olympus E-PL1
Olympus E-450« » 5.1 in 3.6 in 2.1 in 15.5 oz 500 n Mar 2009 499- i Olympus E-450
Olympus E-600« » 5.1 in 3.7 in 2.4 in 18.9 oz 500 n Aug 2009 449- i Olympus E-600
Olympus E-P1« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1
Olympus E-P2« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Nov 2009 799- i Olympus E-P2
Olympus E-30« » 5.6 in 4.3 in 3.0 in 24.7 oz 750 n Nov 2008 1,299- i Olympus E-30
Olympus E-420« » 5.1 in 3.6 in 2.1 in 15.5 oz 500 n Mar 2008 599- i Olympus E-420
Olympus E-520« » 5.4 in 3.6 in 2.7 in 18.9 oz 750 n May 2008 699- i Olympus E-520
Olympus E-410« » 5.1 in 3.6 in 2.1 in 15.3 oz 500 n Mar 2007 699- i Olympus E-410
Olympus E-510« » 5.4 in 3.6 in 2.7 in 19.0 oz 750 n Mar 2007 799- i Olympus E-510
Panasonic G9« » 5.4 in 3.8 in 3.6 in 23.2 oz 400 Y Nov 2017 1,699 i i Panasonic G9
Panasonic GH5« » 5.5 in 3.9 in 3.4 in 25.6 oz 410 Y Jan 2017 1,999 i i Panasonic GH5
Panasonic GX8« » 5.2 in 3.1 in 2.5 in 17.2 oz 330 Y Jul 2015 1,199- i Panasonic GX8

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-620 was launched at a markedly lower price (by 65 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Olympus E-620 vs Olympus E-M1 II

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-M1 II uses a more advanced image processing engine (TruePic VIII) than the E-620 (TruePic III+), with benefits for noise reduction, color accuracy, and processing speed.

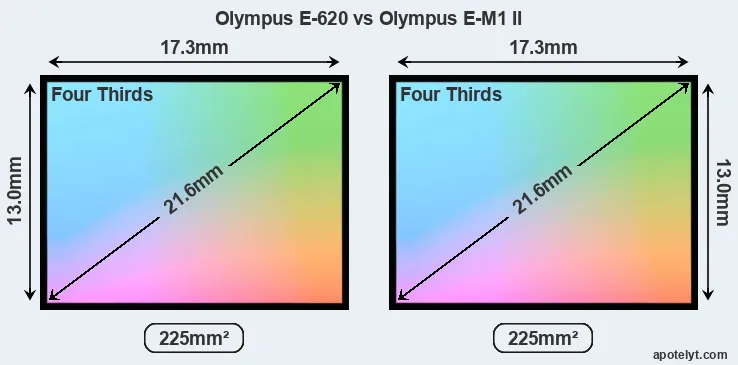

Olympus E-620 and Olympus E-M1 II sensor measures

While the two cameras under review share the same sensor size, the E-M1 II offers a higher resolution of 20.2 megapixel, compared with 12.2 MP of the E-620. This megapixel advantage translates into a 29 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1 II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.29μm for the E-620). However, it should be noted that the E-M1 II is much more recent (by 7 years and 6 months) than the E-620, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The E-M1 II has on-sensor phase detect pixels, which results in relatively fast and reliable autofocus acquisition during video recording.

Unlike the E-620, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

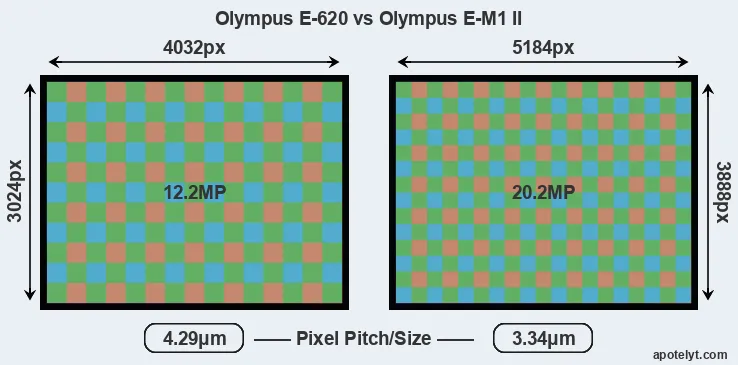

E-620 versus E-M1 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-M1 II offers substantially better image quality than the E-620 (overall score 25 points higher). The advantage is based on 2.4 bits higher color depth, 2.5 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Olympus E-620» Four Thirds 12.2 4032 3024-21.310.353655Olympus E-620
Olympus E-M1 II« Four Thirds 20.2 5184 38884K/30p23.712.8131280Olympus E-M1 II
Olympus E-M5 II« » Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II
Olympus E-M1« » Four Thirds 15.9 4608 34561080/30p23.012.775773Olympus E-M1
Olympus E-PL1« » Four Thirds 12.2 4032 3024720/30p21.510.148754Olympus E-PL1
Olympus E-450« » Four Thirds 10.0 3648 2736-21.510.551256Olympus E-450
Olympus E-600« » Four Thirds 12.2 4032 3024-21.510.354155Olympus E-600
Olympus E-P1« » Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1
Olympus E-P2« » Four Thirds 12.2 4032 3024720/30p21.510.450556Olympus E-P2
Olympus E-30« » Four Thirds 12.2 4032 3024-21.310.453055Olympus E-30
Olympus E-420« » Four Thirds 10.0 3648 2736-21.510.452756Olympus E-420
Olympus E-520« » Four Thirds 10.0 3648 2736-21.410.454855Olympus E-520
Olympus E-410« » Four Thirds 10.0 3648 2736-21.110.049451Olympus E-410
Olympus E-510« » Four Thirds 10.0 3648 2736-21.210.044252Olympus E-510
Panasonic G9« » Four Thirds 20.2 5184 38884K/60p----Panasonic G9
Panasonic GH5« » Four Thirds 20.2 5184 38884K/60p23.913.080777Panasonic GH5
Panasonic GX8« » Four Thirds 20.2 5184 38884K/30p23.512.680675Panasonic GX8

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-M1 II indeed provides for movie recording, while the E-620 does not. The highest resolution format that the E-M1 II can use is 4K/30p.



Feature comparison: Olympus E-620 vs Olympus E-M1 II

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), while the E-620 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Olympus E-620, the Olympus E-M1 II, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Olympus E-620»optical n 2.7 230 swivel n 4000 4.0 Y Y Olympus E-620
Olympus E-M1 II«2360 n 3.0 1037 swivel Y 8000 18.0 n Y Olympus E-M1 II
Olympus E-M5 II« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus E-M5 II
Olympus E-M1« »2360 n 3.0 1037 tilting Y 8000 10.0 n Y Olympus E-M1
Olympus E-PL1« »- n 2.7 230 fixed n 2000 3.0 Y Y Olympus E-PL1
Olympus E-450« »optical n 2.7 215 fixed n 4000 3.5 Y n Olympus E-450
Olympus E-600« »optical n 2.7 230 swivel n 4000 4.0 Y Y Olympus E-600
Olympus E-P1« »- n 3.0 230 fixed n 4000 3.0 n Y Olympus E-P1
Olympus E-P2« »- n 3.0 230 fixed n 4000 3.0 n Y Olympus E-P2
Olympus E-30« »optical Y 2.7 230 swivel n 8000 5.0 Y Y Olympus E-30
Olympus E-420« »optical n 2.7 215 fixed n 4000 3.5 Y n Olympus E-420
Olympus E-520« »optical n 2.7 215 fixed n 4000 3.5 Y Y Olympus E-520
Olympus E-410« »optical n 2.5 215 fixed n 4000 3.0 Y n Olympus E-410
Olympus E-510« »optical n 2.5 215 fixed n 4000 3.0 Y Y Olympus E-510
Panasonic G9« »3680 Y 3.0 1040 swivel Y 8000 20.0 n Y Panasonic G9
Panasonic GH5« »3680 n 3.2 1620 swivel Y 8000 12.0 n Y Panasonic GH5
Panasonic GX8« »2360 n 3.0 1040 swivel Y 8000 10.0 n Y Panasonic GX8

One difference between the cameras concerns the presence of an on-board flash. The E-620 has one, while the E-M1 II does not. While the build-in flash of the E-620 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the E-M1 II features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (rolling shutter) or shooting under artificial light sources (flickering).

The E-620 writes its imaging data to Compact Flash or xD Picture cards, while the E-M1 II uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Olympus E-620»Y-----2.0---Olympus E-620
Olympus E-M1 II«YstereomonoYYmicro3.0Y--Olympus E-M1 II
Olympus E-M5 II« »YstereomonoY-micro2.0Y--Olympus E-M5 II
Olympus E-M1« »YstereomonoY-micro2.0Y--Olympus E-M1
Olympus E-PL1« »Ystereo---mini2.0---Olympus E-PL1
Olympus E-450« »Y-----2.0---Olympus E-450
Olympus E-600« »Y-----2.0---Olympus E-600
Olympus E-P1« »Ystereo---mini2.0---Olympus E-P1
Olympus E-P2« »Ystereo---mini2.0---Olympus E-P2
Olympus E-30« »Y-----2.0---Olympus E-30
Olympus E-420« »Y-----2.0---Olympus E-420
Olympus E-520« »Y-----2.0---Olympus E-520
Olympus E-410« »Y-----2.0---Olympus E-410
Olympus E-510« »Y-----2.0---Olympus E-510
Panasonic G9« »YstereomonoYYfull3.0Y-YPanasonic G9
Panasonic GH5« »YstereomonoYYfull3.1Y-YPanasonic GH5
Panasonic GX8« »YstereomonoY-micro2.0YY-Panasonic GX8

The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the E-620 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-620 was succeeded by the Olympus E-600.

Review summary: Olympus E-620 vs Olympus E-M1 II

So how do things add up? Is the Olympus E-620 better than the Olympus E-M1 II or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Olympus E-620:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (500 versus 440) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in February 2009).


Reasons to prefer the Olympus OM-D E-M1 Mark II:

  • More detail: Has more megapixels (20.2 vs 12.2MP), which boosts linear resolution by 29%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic III+).
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (18 vs 4 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.
  • More modern: Reflects 7 years and 6 months of technical progress since the E-620 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the contest (22 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

E-620 06:22 E-M1 II

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the E-620 or the E-M1 II. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Olympus E-620»88/10072/1004.5/5rev5/5 Feb 2009 699- i Olympus E-620
Olympus E-M1 II«HiRec85/1004.5/55/54.5/5 Sep 2016 1,999 i i Olympus E-M1 II
Olympus E-M5 II« »HiRec81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M1« »HiRec84/1004.5/54.5/54.5/5 Sep 2013 1,399- i Olympus E-M1
Olympus E-PL1« »86/10069/1004/54.5/54.5/5 Feb 2010 599- i Olympus E-PL1
Olympus E-450« »--4/5-4/5 Mar 2009 499- i Olympus E-450
Olympus E-600« »----4.5/5 Aug 2009 449- i Olympus E-600
Olympus E-P1« »Rec66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1
Olympus E-P2« »Rec69/1004/54.5/54.5/5 Nov 2009 799- i Olympus E-P2
Olympus E-30« »-71/1004.5/5-4/5 Nov 2008 1,299- i Olympus E-30
Olympus E-420« »85/100HiRec4/5rev4.5/5 Mar 2008 599- i Olympus E-420
Olympus E-520« »87/100HiRec4.5/54/54.5/5 May 2008 699- i Olympus E-520
Olympus E-410« »86/100HiRec4/5rev4.5/5 Mar 2007 699- i Olympus E-410
Olympus E-510« »89/100HiRec3.5/5rev4.5/5 Mar 2007 799- i Olympus E-510
Panasonic G9« »HiRec85/1005/55/55/5 Nov 2017 1,699 i i Panasonic G9
Panasonic GH5« »HiRec85/1004.5/55/55/5 Jan 2017 1,999 i i Panasonic GH5
Panasonic GX8« »Rec82/1004.5/55/54.5/5 Jul 2015 1,199- i Panasonic GX8

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
