Olympus E-520 vs Panasonic G5
The Olympus E-520 and the Panasonic Lumix DMC-G5 are two digital cameras that were revealed to the public, respectively, in May 2008 and July 2012. The E-520 is a DSLR, while the G5 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 10 megapixels, whereas the Panasonic provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-520 and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

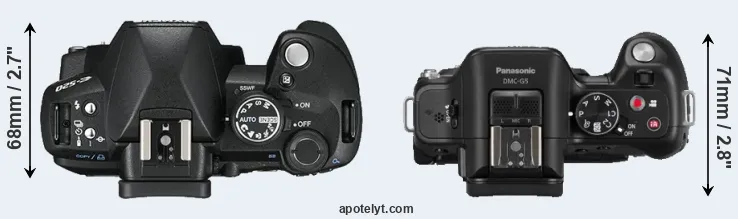

An illustration of the physical size and weight of the Olympus E-520 and the Panasonic G5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The G5 can be obtained in two different colors (black, silver), while the E-520 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is notably smaller (20 percent) than the Olympus E-520. Moreover, the G5 is markedly lighter (26 percent) than the E-520. In this context, it is worth noting that neither the E-520 nor the G5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-520) and the Micro Four Thirds Lens Catalog (G5). Mirrorless cameras, such as the G5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|2.||Panasonic G5||120 mm||83 mm||71 mm||396 g||320||n||Jul 2012||599|
|3.||Olympus E-450||130 mm||91 mm||53 mm||440 g||500||n||Mar 2009||499|
|4.||Olympus E-600||130 mm||94 mm||60 mm||535 g||500||n||Aug 2009||449|
|5.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|6.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|7.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|8.||Olympus E-30||142 mm||108 mm||75 mm||701 g||750||n||Nov 2008||1,299|
|9.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|10.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|11.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|12.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|13.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|14.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|15.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|16.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|17.||Panasonic L10||135 mm||96 mm||78 mm||556 g||450||n||Aug 2007||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G5 was launched at a somewhat lower price (by 14 percent) than the E-520, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

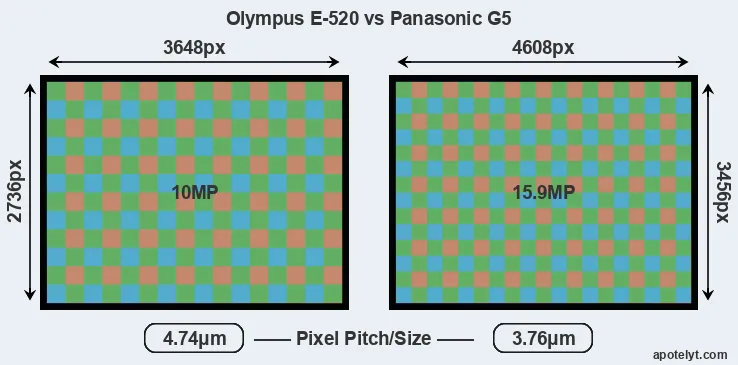

While the two cameras under review share the same sensor size, the G5 offers a higher resolution of 15.9 megapixels, compared with 10 MP of the E-520. This megapixels advantage translates into a 26 percent gain in linear resolution. On the other hand, these sensor specs imply that the G5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.74μm for the E-520). However, it should be noted that the G5 is much more recent (by 4 years and 2 months) than the E-520, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Panasonic G5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Olympus E-520 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|2.||Panasonic G5||Four Thirds||15.9||4608||3456||1080/60p||..||..||..||..|
|3.||Olympus E-450||Four Thirds||10.0||3648||2736||none||21.5||10.5||512||56|
|4.||Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|5.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|6.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|7.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|8.||Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
|9.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|10.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|11.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|12.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|13.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|14.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|15.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|16.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|17.||Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The G5 indeed provides for movie recording, while the E-520 does not. The highest resolution format that the G5 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the G5 has an electronic viewfinder (1440k dots), while the E-520 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the G5 offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the G5 has a higher magnification (0.70x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-520 and Panasonic G5 along with similar information for a selection of comparators.
One feature that differentiates the E-520 and the G5 is in-body image stabilization (IBIS). The E-520 reduces the risk of handshake-induced blur with all attached lenses, while the G5 offers no blur reduction with lenses that themselves do not provide optical image stabilization.The G5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-520 does not have a selfie-screen.
The E-520 writes its imaging data to Compact Flash or xD Picture cards, while the G5 uses SDXC cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the G5 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-520 and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Both the E-520 and the G5 have been discontinued, but can regularly be found used on eBay. The G5 was replaced by the Panasonic G6, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So how do things add up? Which of the two cameras – the Olympus E-520 or the Panasonic G5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Olympus E-520:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Can take more shots (750 versus 320) on a single battery charge.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in May 2008).
Arguments in favor of the Panasonic Lumix DMC-G5:
- More detail: Has more megapixels (15.9 vs 10MP), which boosts linear resolution by 26%.
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.46x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 215k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (120x83mm vs 136x92mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 139g or 26 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (14 percent cheaper at launch).
- More modern: Reflects 4 years and 2 months of technical progress since the E-520 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the G5 is the clear winner of the contest (16 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-520 and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-520 or the G5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-520||..||87/100||+ +||4.5/5||4.5/5||May 2008||699|
|2.||Panasonic G5||3/5||+ +||..||4.5/5||4.5/5||Jul 2012||599|
|3.||Olympus E-450||..||..||..||4/5||4/5||Mar 2009||499|
|4.||Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|5.||Olympus E-620||3/5||88/100||72/100||4.5/5||5/5||Feb 2009||699|
|6.||Olympus E-P1||..||+||66/100||4/5||4.5/5||Jun 2009||799|
|7.||Olympus E-P2||3/5||+||69/100||4/5||4.5/5||Nov 2009||799|
|8.||Olympus E-30||..||..||71/100||4.5/5||4/5||Nov 2008||1,299|
|9.||Olympus E-420||..||85/100||+ +||4/5||4.5/5||Mar 2008||599|
|10.||Olympus E-410||..||86/100||+ +||4/5||4.5/5||Mar 2007||699|
|11.||Olympus E-510||..||89/100||+ +||3.5/5||4.5/5||Mar 2007||799|
|12.||Panasonic G7||4/5||+ +||80/100||5/5||4.5/5||May 2015||649|
|13.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|14.||Panasonic GF6||..||+ +||..||4.5/5||4.5/5||Apr 2013||499|
|15.||Panasonic G3||3/5||+ +||75/100||4.5/5||5/5||May 2011||599|
|16.||Panasonic GX1||3/5||+||77/100||4.5/5||4.5/5||Nov 2011||699|
|17.||Panasonic L10||..||85/100||+||3.5/5||4/5||Aug 2007||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Olympus E-520 vs Panasonic G5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-520||Panasonic G5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||May 2008||July 2012|
|Launch Price||USD 699||USD 599|
|Sensor Specs||Olympus E-520||Panasonic G5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||10 Megapixels||15.9 Megapixels|
|Image Resolution||3648 x 2736 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.74 μm||3.76 μm|
|Pixel Density||4.44 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||160 - 12,800 ISO|
|Image Processor||TruePic III||Venus VII FHD|
|DXO Sensor Quality (score)||55||..|
|DXO Color Depth (bits)||21.4||..|
|DXO Dynamic Range (EV)||10.4||..|
|DXO Low Light (ISO)||548||..|
|Screen Specs||Olympus E-520||Panasonic G5|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||1440k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.7inch||3.0inch|
|LCD Resolution||215k dots||920k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-520||Panasonic G5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3.5 shutter flaps/s||6 shutter flaps/s|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-520||Panasonic G5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Olympus E-520||Panasonic G5|
|Battery Life (CIPA)||750 shots per charge||320 shots per charge|
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
120 x 83 x 71 mm
(4.7 x 3.3 x 2.8 in)
|Camera Weight||535 g (18.9 oz)||396 g (14.0 oz)|
