Olympus E-500 vs E-M1 II
The Olympus Evolt E-500 and the Olympus OM-D E-M1 Mark II are two digital cameras that were revealed to the public, respectively, in September 2005 and September 2016. The E-500 is a DSLR, while the E-M1 II is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-500 has a resolution of 8 megapixels, whereas the E-M1 II provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-500||Olympus E-M1 II|
|Digital single lens reflex||Mirrorless system camera|
|Four Thirds lenses||Micro Four Thirds lenses|
|8 MP, Four Thirds Sensor||20.2 MP, Four Thirds Sensor|
|no Video||4K/30p Video|
|ISO 100-400 (100-1600)||ISO 200-25600|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|2.5" LCD, 215k dots||3.0" LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|2.5 shutter flaps per second||18 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Not weather sealed||Weathersealed body|
|750 shots per battery charge||440 shots per battery charge|
|130 x 95 x 66 mm, 479 g||134 x 91 x 67 mm, 574 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Evolt E-500 and the Olympus OM-D E-M1 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Olympus E-500 vs E-M1 II

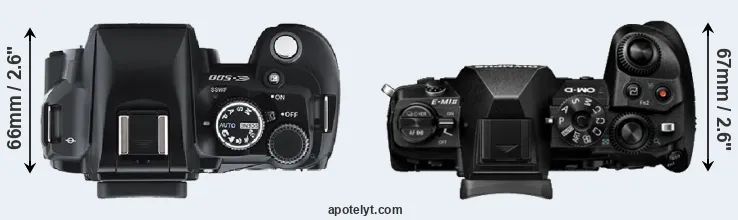

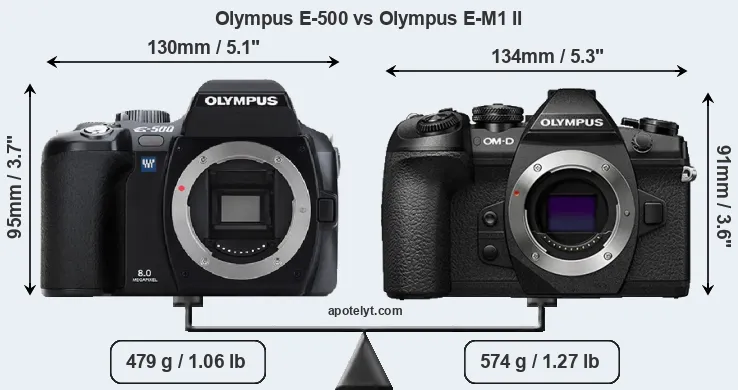

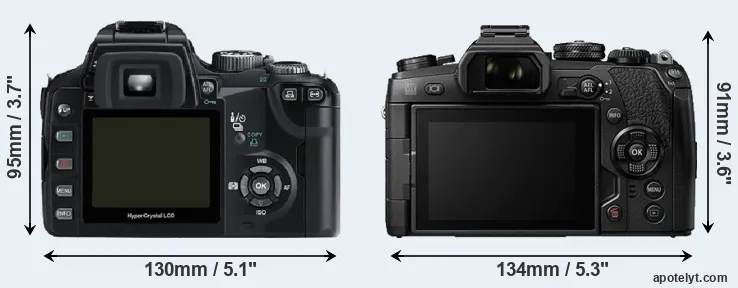

The physical size and weight of the Olympus E-500 and the Olympus E-M1 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II is somewhat smaller (1 percent) than the Olympus E-500. However, the E-M1 II is markedly heavier (20 percent) than the E-500. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the E-500 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-500) and the Micro Four Thirds Lens Catalog (E-M1 II). Mirrorless cameras, such as the E-M1 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-500»||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599||-||Olympus E-500|
|Olympus E-M1 II«||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Olympus E-M5 II« »||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1« »||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-450« »||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2009||499||-||Olympus E-450|
|Olympus E-620« »||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699||-||Olympus E-620|
|Olympus E-420« »||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599||-||Olympus E-420|
|Olympus E-520« »||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699||-||Olympus E-520|
|Olympus E-410« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699||-||Olympus E-410|
|Olympus E-510« »||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799||-||Olympus E-510|
|Olympus E-330« »||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999||-||Olympus E-330|
|Olympus E-400« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699||-||Olympus E-400|
|Olympus E-300« »||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799||-||Olympus E-300|
|Panasonic G9« »||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999||Panasonic GH5|
|Panasonic GX8« »||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199||-||Panasonic GX8|
|Panasonic L10« »||5.3 in||3.8 in||3.1 in||19.6 oz||450||n||Aug 2007||599||-||Panasonic L10|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-500 was launched at a markedly lower price (by 70 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Olympus E-500 vs E-M1 II

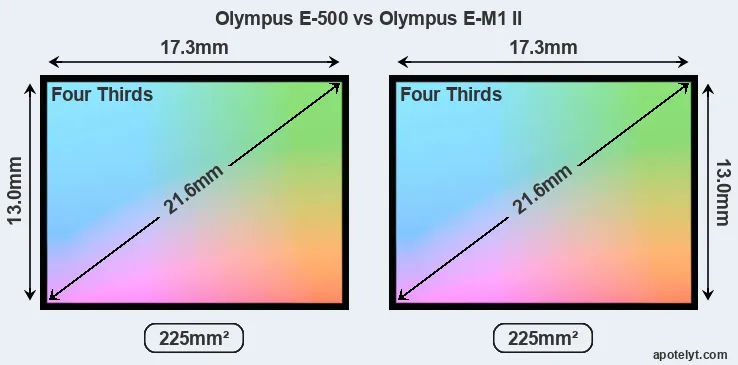

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, the E-M1 II uses a more advanced image processing engine (TruePic VIII) than the E-500 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

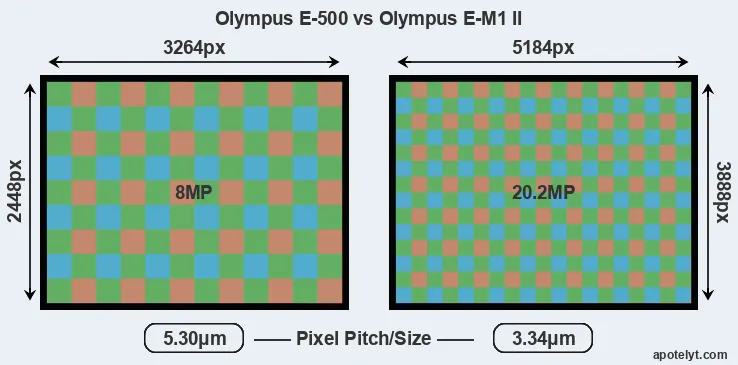

While the two cameras under review share the same sensor size, the E-M1 II offers a higher resolution of 20.2 megapixels, compared with 8 MP of the E-500. This megapixels advantage translates into a 59 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1 II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 5.30μm for the E-500). However, it should be noted that the E-M1 II is much more recent (by 10 years and 11 months) than the E-500, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 II for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inch or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inch or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inch or 43.9 x 32.9 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inch or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inch or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inch or 27.6 x 20.7 cm for excellent quality prints.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the E-500, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus Evolt E-500 has a native sensitivity range from ISO 100 to ISO 400, which can be extended to ISO 100-1600. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-500»||Four Thirds||8.0||3264||2448||-||-||-||-||-||Olympus E-500|
|Olympus E-M1 II«||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Olympus E-M5 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M1« »||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Olympus E-450« »||Four Thirds||10.0||3648||2736||-||21.5||10.5||512||56||Olympus E-450|
|Olympus E-620« »||Four Thirds||12.2||4032||3024||-||21.3||10.3||536||55||Olympus E-620|
|Olympus E-420« »||Four Thirds||10.0||3648||2736||-||21.5||10.4||527||56||Olympus E-420|
|Olympus E-520« »||Four Thirds||10.0||3648||2736||-||21.4||10.4||548||55||Olympus E-520|
|Olympus E-410« »||Four Thirds||10.0||3648||2736||-||21.1||10.0||494||51||Olympus E-410|
|Olympus E-510« »||Four Thirds||10.0||3648||2736||-||21.2||10.0||442||52||Olympus E-510|
|Olympus E-330« »||Four Thirds||7.4||3136||2352||-||-||-||-||-||Olympus E-330|
|Olympus E-400« »||Four Thirds||10.0||3648||2736||-||-||-||-||-||Olympus E-400|
|Olympus E-300« »||Four Thirds||8.0||3264||2448||-||-||-||-||-||Olympus E-300|
|Panasonic G9« »||Four Thirds||20.2||5184||3888||4K/60p||-||-||-||-||Panasonic G9|
|Panasonic GH5« »||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77||Panasonic GH5|
|Panasonic GX8« »||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75||Panasonic GX8|
|Panasonic L10« »||Four Thirds||10.0||3648||2736||-||21.3||10.8||429||55||Panasonic L10|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-M1 II indeed provides for movie recording, while the E-500 does not. The highest resolution format that the E-M1 II can use is 4K/30p.
Feature comparison: Olympus E-500 vs E-M1 II
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), while the E-500 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1 II offers a wider field of view (100%) than the one in the E-500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1 II has a higher magnification (0.74x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Olympus E-500, the Olympus E-M1 II, and comparable cameras.
|Olympus E-500»||optical||n||2.5||215||fixed||n||1/4000s||2.5||Y||n||Olympus E-500|
|Olympus E-M1 II«||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1 II|
|Olympus E-M5 II« »||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M1« »||2360||n||3.0||1037||tilting||Y||1/8000s||10.0||n||Y||Olympus E-M1|
|Olympus E-450« »||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||n||Olympus E-450|
|Olympus E-620« »||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-620|
|Olympus E-420« »||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||n||Olympus E-420|
|Olympus E-520« »||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||Y||Olympus E-520|
|Olympus E-410« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-410|
|Olympus E-510« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||Y||Olympus E-510|
|Olympus E-330« »||optical||n||2.5||215||tilting||n||1/4000s||3.0||Y||n||Olympus E-330|
|Olympus E-400« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-400|
|Olympus E-300« »||optical||n||1.8||134||fixed||n||1/4000s||2.5||Y||n||Olympus E-300|
|Panasonic G9« »||3680||Y||3.0||1040||swivel||Y||1/8000s||20.0||n||Y||Panasonic G9|
|Panasonic GH5« »||3680||n||3.2||1620||swivel||Y||1/8000s||12.0||n||Y||Panasonic GH5|
|Panasonic GX8« »||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y||Panasonic GX8|
|Panasonic L10« »||optical||n||2.5||207||swivel||n||1/4000s||3.0||Y||n||Panasonic L10|
One difference between the cameras concerns the presence of an on-board flash. The E-500 has one, while the E-M1 II does not. While the built-in flash of the E-500 is not very powerful, it can at times be useful as a fill-in light.The E-M1 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-500 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-500 writes its imaging data to Compact Flash or xD Picture cards, while the E-M1 II uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
Connectivity comparison: Olympus E-500 vs E-M1 II
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Evolt E-500 and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-500»||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-500|
|Olympus E-M1 II«||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Olympus E-M5 II« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M1« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Olympus E-450« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-450|
|Olympus E-620« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-620|
|Olympus E-420« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-420|
|Olympus E-520« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-520|
|Olympus E-410« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-410|
|Olympus E-510« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-510|
|Olympus E-330« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-330|
|Olympus E-400« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-400|
|Olympus E-300« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-300|
|Panasonic G9« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||Y||Panasonic G9|
|Panasonic GH5« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic GH5|
|Panasonic GX8« »||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Panasonic GX8|
|Panasonic L10« »||Y||-||-||-||-||-||2.0||-||-||-||Panasonic L10|
It is notable that the E-M1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-500 does not offer wifi capability.
Studio photographers will appreciate that the Olympus E-M1 II (unlike the E-500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the E-500 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-500 was succeeded by the Olympus E-510. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
Review summary: Olympus E-500 vs E-M1 II
So how do things add up? Which of the two cameras – the Olympus E-500 or the Olympus E-M1 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Olympus Evolt E-500:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Less heavy: Is lighter (by 95g or 17 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (750 versus 440) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in September 2005).
Reasons to prefer the Olympus OM-D E-M1 Mark II:
- More detail: Has more megapixels (20.2 vs 8MP), which boosts linear resolution by 59%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.45x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 2.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 10 years and 11 months of technical progress since the E-500 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the contest (25 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-500 and the Olympus E-M1 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-500 or the E-M1 II. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews: Olympus E-500 vs E-M1 II
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-500»||76/100||+ +||-||-||-||Sep 2005||599||-||Olympus E-500|
|Olympus E-M1 II«||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999||Olympus E-M1 II|
|Olympus E-M5 II« »||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1« »||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-450« »||-||-||4/5||-||4/5||Mar 2009||499||-||Olympus E-450|
|Olympus E-620« »||88/100||72/100||4.5/5||o||5/5||Feb 2009||699||-||Olympus E-620|
|Olympus E-420« »||85/100||+ +||4/5||o||4.5/5||Mar 2008||599||-||Olympus E-420|
|Olympus E-520« »||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699||-||Olympus E-520|
|Olympus E-410« »||86/100||+ +||4/5||o||4.5/5||Mar 2007||699||-||Olympus E-410|
|Olympus E-510« »||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799||-||Olympus E-510|
|Olympus E-330« »||-||+||o||3.5/5||-||Jan 2006||999||-||Olympus E-330|
|Olympus E-400« »||85/100||-||4/5||-||4/5||Sep 2006||699||-||Olympus E-400|
|Olympus E-300« »||-||+||o||o||4.5/5||Sep 2004||799||-||Olympus E-300|
|Panasonic G9« »||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999||Panasonic GH5|
|Panasonic GX8« »||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199||-||Panasonic GX8|
|Panasonic L10« »||85/100||+||3.5/5||o||4/5||Aug 2007||599||-||Panasonic L10|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 20D vs Olympus E-M1 II
- Canon Rebel vs Olympus E-M1 II
- Fujifilm X-Pro2 vs Olympus E-M1 II
- Leica M Typ 240 vs Olympus E-M1 II
- Leica X Typ 113 vs Olympus E-M1 II
- Nikon 1 J4 vs Olympus E-M1 II
- Nikon D90 vs Olympus E-M1 II
- Olympus E-410 vs Olympus E-M1 II
- Olympus E-500 vs Olympus E-PL1
- Olympus E-M1 II vs Sony A77
- Olympus E-M1 II vs Sony A850
- Olympus E-M1 II vs Sony NEX-3
Specifications: Olympus E-500 vs Olympus E-M1 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-500||Olympus E-M1 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2005||September 2016|
|Launch Price||USD 599||USD 1999|
|Sensor Specs||Olympus E-500||Olympus E-M1 II|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||8 Megapixels||20.2 Megapixels|
|Image Resolution||3264 x 2448 pixels||5184 x 3888 pixels|
|Pixel Pitch||5.30 μm||3.34 μm|
|Pixel Density||3.55 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100-400 ISO||200-25600 ISO|
|ISO Boost||100-1600 ISO||64-25600 ISO|
|Image Processor||TruePic||TruePic VIII|
|DXO Sensor Quality (score)||..||80|
|DXO Color Depth (bits)||..||23.7|
|DXO Dynamic Range (EV)||..||12.8|
|DXO Low Light (ISO)||..||1312|
|Screen Specs||Olympus E-500||Olympus E-M1 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View|
|Rear LCD Size||2.5 inch||3.0 inch|
|LCD Resolution||215k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-500||Olympus E-M1 II|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/8000/s|
|Continuous Shooting||2.5 shutter flaps/s||18 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Olympus E-500||Olympus E-M1 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-500||Olympus E-M1 II|
|Environmental Sealing||Not weather sealed||Weathersealed body|
|Battery Type||BLM-1 power pack||BLH-1 power pack|
|Battery Life (CIPA)||750 shots per charge||440 shots per charge|
130 x 95 x 66 mm
(5.1 x 3.7 x 2.6 in)
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
|Camera Weight||479 g (16.9 oz)||574 g (20.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
