Olympus E-500 vs Pentax K-5
The Olympus Evolt E-500 and the Pentax K-5 are two digital cameras that were officially introduced, respectively, in September 2005 and September 2010. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a Four Thirds (E-500) and an APS-C (K-5) sensor. The Olympus has a resolution of 8 megapixels, whereas the Pentax provides 16.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-500||Pentax K-5|
|Digital single lens reflex||Digital single lens reflex|
|Four Thirds lenses||Pentax K mount lenses|
|8 MP, Four Thirds Sensor||16.1 MP, APS-C Sensor|
|no Video||1080/25p Video|
|ISO 100-400 (100 - 1,600)||ISO 100-12,800 (80 - 51,200)|
|Optical viewfinder||Optical viewfinder|
|2.5 LCD, 215k dots||3.0 LCD, 921k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|2.5 shutter flaps per second||7 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|not weather sealed||Weathersealed body|
|750 shots per battery charge||740 shots per battery charge|
|130 x 95 x 66 mm, 479 g||131 x 97 x 73 mm, 760 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Evolt E-500 and the Pentax K-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

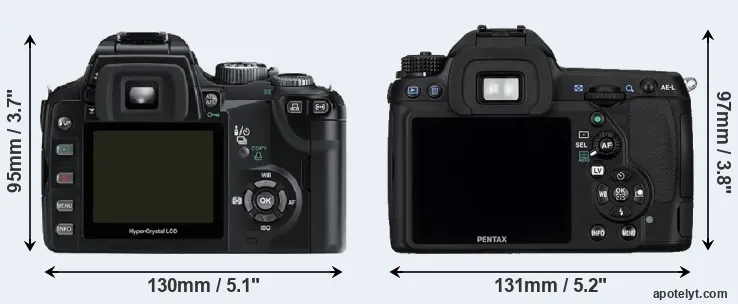

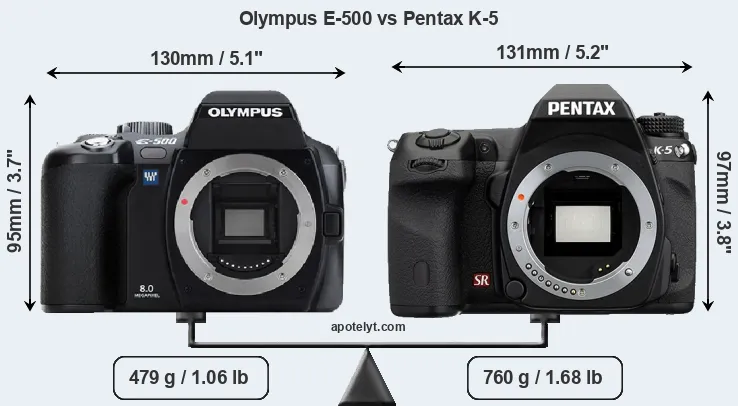

The side-by-side display below illustrates the physical size and weight of the Olympus E-500 and the Pentax K-5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-5 is somewhat larger (3 percent) than the Olympus E-500. Moreover, the K-5 is substantially heavier (59 percent) than the E-500. It is noteworthy in this context that the K-5 is splash and dust-proof, while the E-500 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus E-500||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599|
|Pentax K-5||5.2 in||3.8 in||2.9 in||26.8 oz||740||Y||Sep 2010||1,099|
|Nikon D7500||5.4 in||4.1 in||2.9 in||25.4 oz||950||Y||Apr 2017||1,299|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Olympus E-450||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2009||499|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-420||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Olympus E-330||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999|
|Olympus E-400||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699|
|Olympus E-300||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799|
|Panasonic L10||5.3 in||3.8 in||3.1 in||19.6 oz||450||n||Aug 2007||599|
|Pentax KP||5.2 in||4.0 in||3.0 in||24.8 oz||390||Y||Jan 2017||1,099|
|Pentax K-3 II||5.2 in||3.9 in||3.0 in||28.2 oz||720||Y||Apr 2015||1,099|
|Pentax K-3||5.2 in||3.9 in||3.0 in||28.2 oz||560||Y||Oct 2013||1,299|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-500 was launched at a markedly lower price (by 45 percent) than the K-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

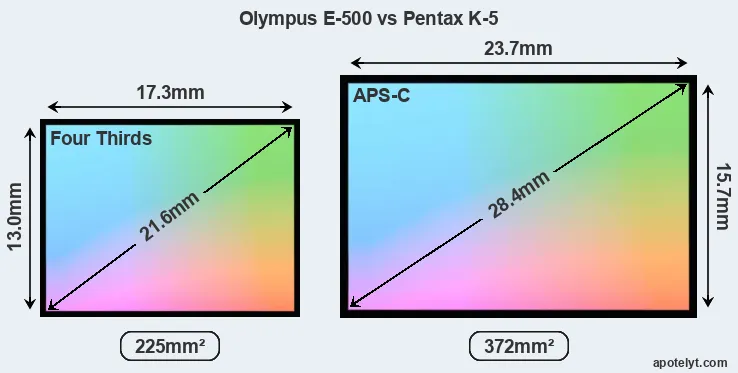

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Olympus E-500 features a Four Thirds sensor and the Pentax K-5 an APS-C sensor. The sensor area in the K-5 is 65 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-500 has a native 4:3 aspect ratio, while the one in the K-5 offers a 3:2 aspect.

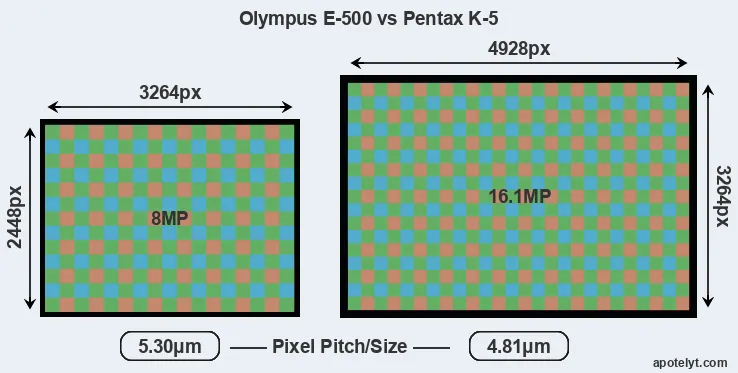

With 16.1MP, the K-5 offers a higher resolution than the E-500 (8MP), but the K-5 has smaller individual pixels (pixel pitch of 4.81μm versus 5.30μm for the E-500). Yet, the K-5 is a much more recent model (by 4 years and 11 months) than the E-500, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Pentax K-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-5 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.
The Olympus Evolt E-500 has a native sensitivity range from ISO 100 to ISO 400, which can be extended to ISO 100-1600. The corresponding ISO settings for the Pentax K-5 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-450||Four Thirds||10.0||3648||2736||none||21.5||10.5||512||56|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..|
|Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..|
|Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
|Pentax K-3 II||APS-C||24.1||6016||4000||1080/60i||23.6||13.6||1106||80|
Many modern cameras are not only capable of taking still images, but can also record movies. The K-5 indeed provides for movie recording, while the E-500 does not. The highest resolution format that the K-5 can use is 1080/25p.
Apart from body and sensor, cameras can and do differ across a range of features. The E-500 and the K-5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-5 offers a wider field of view (100%) than the one in the E-500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-5 has a higher magnification (0.61x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Olympus E-500, the Pentax K-5, and comparable cameras.
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Pentax K-3 II||optical||Y||3.2||1037||fixed||n||1/8000s||8.3||n||Y|
One feature that differentiates the K-5 and the E-500 is in-body image stabilization (IBIS). The K-5 reduces the risk of handshake-induced blur with all attached lenses, while the E-500 offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The Pentax K-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-500 writes its imaging data to Compact Flash or xD Picture cards, while the K-5 uses SDXC cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the K-5 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Evolt E-500 and Pentax K-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Pentax K-3 II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
Studio photographers will appreciate that the Pentax K-5 (unlike the E-500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-500 and the K-5 have been discontinued, but can regularly be found used on eBay. The E-500 was replaced by the Olympus E-510, while the K-5 was followed by the Pentax K-5 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Pentax websites.
So what conclusions can be drawn? Which of the two cameras – the Olympus E-500 or the Pentax K-5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Olympus Evolt E-500:
- Less heavy: Is lighter (by 281g or 37 percent) and hence easier to carry around.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in September 2005).
Arguments in favor of the Pentax K-5:
- More detail: Has more megapixels (16.1 vs 8MP), which boosts linear resolution by 45%.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 1080/25p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.61x vs 0.45x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 215k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 2.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 4 years and 11 months of technical progress since the E-500 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the K-5 is the clear winner of the contest (18 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-500 and the Pentax K-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-500 or the K-5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-500||76/100||+ +||..||..||..||Sep 2005||599|
|Pentax K-5||..||83/100||5/5||4.5/5||4.5/5||Sep 2010||1,099|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-450||..||..||4/5||..||4/5||Mar 2009||499|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-420||85/100||+ +||4/5||o||4.5/5||Mar 2008||599|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Olympus E-330||..||+||o||3.5/5||..||Jan 2006||999|
|Olympus E-400||85/100||..||4/5||..||4/5||Sep 2006||699|
|Olympus E-300||..||+||o||o||4.5/5||Sep 2004||799|
|Panasonic L10||85/100||+||3.5/5||o||4/5||Aug 2007||599|
|Pentax KP||..||82/100||5/5||..||4.5/5||Jan 2017||1,099|
|Pentax K-3 II||..||..||5/5||4.5/5||5/5||Apr 2015||1,099|
|Pentax K-3||..||83/100||5/5||4.5/5||5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1200D vs Pentax K-5
- Canon 400D vs Pentax K-5
- Canon 40D vs Pentax K-5
- Canon 60D vs Pentax K-5
- Canon G1 X vs Olympus E-500
- Canon G12 vs Olympus E-500
- Fujifilm X-H1 vs Olympus E-500
- Leica S Typ 006 vs Pentax K-5
- Nikon D100 vs Olympus E-500
- Nikon D750 vs Olympus E-500
- Olympus E-500 vs Panasonic TS7
- Pentax 645D vs Pentax K-5
Specifications: Olympus E-500 vs Pentax K-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-500||Pentax K-5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Four Thirds lenses||Pentax K mount lenses|
|Launch Date||September 2005||September 2010|
|Launch Price||USD 599||USD 1,099|
|Sensor Specs||Olympus E-500||Pentax K-5|
|Sensor Format||Four Thirds Sensor||APS-C Sensor|
|Sensor Size||17.3 x 13.0 mm||23.7 x 15.7 mm|
|Sensor Area||224.9 mm2||372.09 mm2|
|Sensor Diagonal||21.6 mm||28.4 mm|
|Sensor Resolution||8 Megapixels||16.1 Megapixels|
|Image Resolution||3264 x 2448 pixels||4928 x 3264 pixels|
|Pixel Pitch||5.30 μm||4.81 μm|
|Pixel Density||3.55 MP/cm2||4.32 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/25p Video|
|ISO Setting||100 - 400 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 1,600 ISO||80 - 51,200 ISO|
|Image Processor||TruePic||PRIME II|
|DXO Sensor Quality (score)||..||82|
|DXO Color Depth (bits)||..||23.7|
|DXO Dynamic Range (EV)||..||14.1|
|DXO Low Light (ISO)||..||1162|
|Screen Specs||Olympus E-500||Pentax K-5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||215k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Olympus E-500||Pentax K-5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||2.5 shutter flaps/s||7 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-500||Pentax K-5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Olympus E-500||Pentax K-5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||750 shots per charge||740 shots per charge|
130 x 95 x 66 mm
(5.1 x 3.7 x 2.6 in)
131 x 97 x 73 mm
(5.2 x 3.8 x 2.9 in)
|Camera Weight||479 g (16.9 oz)||760 g (26.8 oz)|
