Olympus E-330 vs E-M1

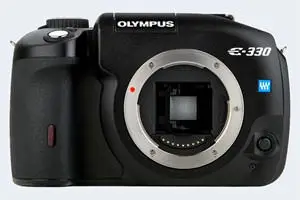

The Olympus Evolt E-330 and the Olympus OM-D E-M1 are two digital cameras that were revealed to the public, respectively, in January 2006 and September 2013. The E-330 is a DSLR, while the E-M1 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-330 has a resolution of 7.4 megapixels, whereas the E-M1 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-330
versus
Olympus E-M1
Olympus E-330   Olympus E-M1
Digital single lens reflex Mirrorless system camera
Four Thirds lenses Micro Four Thirds lenses
7.4 MP – Four Thirds sensor 15.9 MP – Four Thirds sensor
no Video 1080/30p Video
ISO 100-400 (100 - 1,600) ISO 200-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
2.5" LCD – 215k dots 3.0" LCD – 1037k dots
Tilting screen (no touchscreen) Tilting touchscreen
3 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
750 shots per battery charge350 shots per battery charge
140 x 87 x 72 mm, 637 g 130 x 94 x 63 mm, 497 g
logo
Check E-330 offers at
ebay.com
logo
Check E-M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Evolt E-330 and the Olympus OM-D E-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Olympus E-330 and the Olympus E-M1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The E-M1 can be obtained in two different colors (black, silver), while the E-330 is only available in black.

Size Olympus E-330 vs Olympus E-M1
Compare E-330 versus E-M1 top
Comparison E-330 or E-M1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-330 and the Olympus E-M1 are of equal size. However, the E-M1 is markedly lighter (22 percent) than the E-330. It is noteworthy in this context that the E-M1 is splash and dust-proof, while the E-330 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-330) and the Micro Four Thirds Lens Catalog (E-M1). Mirrorless cameras, such as the E-M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-330 gets 750 shots out of its Olympus BLM-1 battery, while the E-M1 can take 350 images on a single charge of its Olympus BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-330 140 mm 87 mm 72 mm 637 g 750 n Jan 2006 999ebay.com
2.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
3.

Canon XT 127 mm 94 mm 64 mm 540 g 400 n Feb 2005 899ebay.com
4.

Leica Digilux 3 146 mm 87 mm 77 mm 606 g 750 n Sep 2006 1,499ebay.com
5.

Nikon D80 132 mm 103 mm 77 mm 668 g 600 n Aug 2006 999ebay.com
6.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
7.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
8.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
9.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
10.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
11.

Olympus E-410 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 699ebay.com
12.

Olympus E-510 136 mm 92 mm 68 mm 538 g 750 n Mar 2007 799ebay.com
13.

Olympus E-400 130 mm 91 mm 53 mm 435 g 500 n Sep 2006 699ebay.com
14.

Olympus E-500 130 mm 95 mm 66 mm 479 g 750 n Sep 2005 599ebay.com
15.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 n Sep 2004 799ebay.com
16.

Panasonic L10 135 mm 96 mm 78 mm 556 g 450 n Aug 2007 599ebay.com
17.

Panasonic L1 146 mm 87 mm 64 mm 606 g 750 n Feb 2006 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-330 was launched at a markedly lower price (by 29 percent) than the E-M1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-M1 uses a more advanced image processing engine (TruePIC VII) than the E-330 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

Olympus E-330 and Olympus E-M1 sensor measures

While the two cameras under review share the same sensor size, the E-M1 offers a higher resolution of 15.9 megapixels, compared with 7.4 MP of the E-330. This megapixels advantage translates into a 47 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.51μm for the E-330). However, it should be noted that the E-M1 is much more recent (by 7 years and 7 months) than the E-330, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-330 are 15.7 x 11.8 inches or 39.8 x 29.9 cm for good quality, 12.5 x 9.4 inches or 31.9 x 23.9 cm for very good quality, and 10.5 x 7.8 inches or 26.6 x 19.9 cm for excellent quality prints.

The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus Evolt E-330 has a native sensitivity range from ISO 100 to ISO 400, which can be extended to ISO 100-1600. The corresponding ISO settings for the Olympus OM-D E-M1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-330 versus E-M1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-330 Four Thirds 7.4 3136 2352none20.810.47352
2.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
3.

Canon XT APS-C 8.0 3456 2304none21.810.863760
4.

Leica Digilux 3 Four Thirds 7.4 3136 2352none21.010.612753
5.

Nikon D80 APS-C 10.0 3872 2592none22.111.252461
6.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
7.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
8.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
9.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
10.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
11.

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451
12.

Olympus E-510 Four Thirds 10.0 3648 2736none21.210.044252
13.

Olympus E-400 Four Thirds 10.0 3648 2736none21.010.612753
14.

Olympus E-500 Four Thirds 8.0 3264 2448none20.710.34551
15.

Olympus E-300 Four Thirds 8.0 3264 2448none20.410.1-4048
16.

Panasonic L10 Four Thirds 10.0 3648 2736none21.310.842955
17.

Panasonic L1 Four Thirds 7.4 3136 2352none20.810.48052
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The E-M1 indeed provides for movie recording, while the E-330 does not. The highest resolution format that the E-M1 can use is 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M1 has an electronic viewfinder (2360k dots), while the E-330 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1 offers a wider field of view (100%) than the one in the E-330 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1 has a higher magnification (0.74x vs 0.47x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-330 and Olympus E-M1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-330optical n2.5 / 215 tilting n 1/4000s 3.0/s Y n
2.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
3.

Canon XToptical n1.8 / 115 fixed n 1/4000s 3.0/s Y n
4.

Leica Digilux 3optical n2.5 / 207 fixed n 1/4000s 3.0/s Y n
5.

Nikon D80optical n2.5 / 230 fixed n 1/4000s 3.0/s Y n
6.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
7.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
8.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
9.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
10.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
11.

Olympus E-410optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
12.

Olympus E-510optical n2.5 / 215 fixed n 1/4000s 3.0/s Y Y
13.

Olympus E-400optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
14.

Olympus E-500optical n2.5 / 215 fixed n 1/4000s 2.5/s Y n
15.

Olympus E-300optical n1.8 / 134 fixed n 1/4000s 2.5/s Y n
16.

Panasonic L10optical n2.5 / 207 swivel n 1/4000s 3.0/s Y n
17.

Panasonic L1optical n2.5 / 207 fixed n 1/4000s 3.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The E-330 has one, while the E-M1 does not. While the built-in flash of the E-330 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-330 writes its imaging data to Compact Flash or xD Picture cards, while the E-M1 uses SDXC cards. The E-330 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M1 only has one slot.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Evolt E-330 and Olympus OM-D E-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-330Y- / ----2.0---
2.

Olympus E-M1Ystereo / monoY-micro2.0Y--
3.

Canon XTY- / ----2.0---
4.

Leica Digilux 3Ystereo / mono---2.0---
5.

Nikon D80Y- / ----2.0---
6.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
7.

Olympus PEN-FYstereo / mono--micro2.0Y--
8.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
9.

Olympus E-P5Ystereo / mono--micro2.0Y--
10.

Olympus E-M5Ystereo / mono--mini2.0---
11.

Olympus E-410Y- / ----2.0---
12.

Olympus E-510Y- / ----2.0---
13.

Olympus E-400Y- / ----2.0---
14.

Olympus E-500Y- / ----2.0---
15.

Olympus E-300Y- / ----2.0---
16.

Panasonic L10Y- / ----2.0---
17.

Panasonic L1Y- / ----2.0---
padding

It is notable that the E-M1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-330 does not provide wifi capability.

Studio photographers will appreciate that the Olympus E-M1 (unlike the E-330) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-330 and the E-M1 have been discontinued, but can regularly be found used on ebay. The E-M1 was replaced by the Olympus E-M1 II, while the E-330 does not have a direct successor. Further information on the features and operation of the E-330 and E-M1 can be found, respectively, in the Olympus E-330 Manual (free pdf) or the online Olympus E-M1 Manual.

ad

Review summary

So what conclusions can be drawn? Is the Olympus E-330 better than the Olympus E-M1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Olympus Evolt E-330:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (750 versus 350) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced category (29 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in January 2006).


Advantages of the Olympus OM-D E-M1:

  • More detail: Has more megapixels (15.9 vs 7.4MP), which boosts linear resolution by 47%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better jpgs: Has a more modern image processing engine (TruePIC VII vs TruePic).
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.47x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Less heavy: Has a lower weight (by 140g or 22 percent) and is thus easier to take along.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More modern: Reflects 7 years and 7 months of technical progress since the E-330 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 is the clear winner of the contest (22 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-330 07:22 E-M1

How about other alternatives? Do the specifications of the Olympus E-330 and the Olympus E-M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-330 and the E-M1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-330......+o.. Jan 2006 999ebay.com
2.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
3.

Canon XT..80/100..+ +o.. Feb 2005 899ebay.com
4.

Leica Digilux 3............ Sep 2006 1,499ebay.com
5.

Nikon D80..+..+ +o4.5/5 Aug 2006 999ebay.com
6.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
7.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
8.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
9.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
10.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
11.

Olympus E-410..86/100..+ +4/54.5/5 Mar 2007 699ebay.com
12.

Olympus E-510..89/100..+ +3.5/54.5/5 Mar 2007 799ebay.com
13.

Olympus E-400..85/100....4/54/5 Sep 2006 699ebay.com
14.

Olympus E-500..76/100..+ +.... Sep 2005 599ebay.com
15.

Olympus E-300......+o4.5/5 Sep 2004 799ebay.com
16.

Panasonic L10..85/100..+3.5/54/5 Aug 2007 599ebay.com
17.

Panasonic L1..85/100..+..3.5/5 Feb 2006 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check E-330 offers at
ebay.com
logo
Check E-M1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Olympus E-330 vs Olympus E-M1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-330 Olympus E-M1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Four Thirds lenses Micro Four Thirds lenses
    Launch Date January 2006 September 2013
    Launch Price USD 999 USD 1,399
    Sensor Specs Olympus E-330 Olympus E-M1
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 7.4 Megapixels 15.9 Megapixels
    Image Resolution 3136 x 2352 pixels 4608 x 3456 pixels
    Pixel Pitch 5.51 μm 3.76 μm
    Pixel Density 3.28 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video 1080/30p Video
    ISO Setting 100 - 400 ISO 200 - 25,600 ISO
    ISO Boost 100 - 1,600 ISO 100 - 25,600 ISO
    Image Processor TruePic TruePIC VII
    DXO Sensor Quality (score) .. 73
    DXO Color Depth (bits) .. 23.0
    DXO Dynamic Range (EV) .. 12.7
    DXO Low Light (ISO) .. 757
    Screen Specs Olympus E-330 Olympus E-M1
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.47x 0.74x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 2.5inch 3.0inch
    LCD Resolution 215k dots 1037k dots
    LCD Attachment Tilting screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-330 Olympus E-M1
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 3 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-ShutterYES
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium CF or XD cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    Connectivity Specs Olympus E-330 Olympus E-M1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support no Wifi Wifi built-in
    Body Specs Olympus E-330 Olympus E-M1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Olympus BLM-1 Olympus BLN-1
    Battery Life (CIPA)750 shots per charge350 shots per charge
    Body Dimensions 140 x 87 x 72 mm
    (5.5 x 3.4 x 2.8 in)
    130 x 94 x 63 mm
    (5.1 x 3.7 x 2.5 in)
    Camera Weight 637 g (22.5 oz) 497 g (17.5 oz)
    logo
    Check E-330 offers at
    ebay.com
    logo
    Check E-M1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-330 vs Olympus E-M1
