Olympus E-30 vs Samsung NX1

The Olympus E-30 and the Samsung NX1 are two enthusiast cameras that were announced, respectively, in November 2008 and September 2014. The E-30 is a DSLR, while the NX1 is a mirrorless interchangeable lens camera. The cameras are based on a Four Thirds (E-30) and an APS-C (NX1) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-30
versus
Samsung NX1
Olympus E-30   Samsung NX1
Digital single lens reflex Mirrorless system camera
Four Thirds lenses Samsung NX mount lenses
12.2 MP – Four Thirds sensor 28 MP – APS-C sensor
no Video 4K/30p Video
ISO 100-3,200 ISO 100-25,600 (100 - 51,200)
Optical viewfinder Electronic viewfinder (2360k dots)
2.7" LCD – 230k dots 3.0" LCD – 1036k dots
Swivel screen (not touch-sensitive) Tilting touchscreen
5 shutter flaps per second 15 shutter flaps per second
In-body stabilizationLens stabilization only
not weather sealedWeathersealed body
750 shots per battery charge500 shots per battery charge
142 x 108 x 75 mm, 701 g 139 x 102 x 66 mm, 550 g
logo
Check E-30 offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-30 and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Olympus E-30 and the Samsung NX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

Size Olympus E-30 vs Samsung NX1
Compare E-30 versus NX1 top

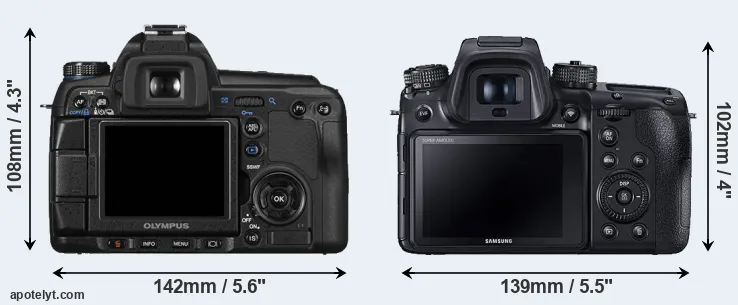

Comparison E-30 or NX1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is notably smaller (8 percent) than the Olympus E-30. Moreover, the NX1 is markedly lighter (22 percent) than the E-30. It is noteworthy in this context that the NX1 is splash and dust-proof, while the E-30 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-30 142 mm 108 mm 75 mm 701 g 750 n Nov 2008 US$ 1 299ebay.com
2.

Samsung NX1 139 mm 102 mm 66 mm 550 g 500 Y Sep 2014 US$ 1 499ebay.com
3.

Fujifilm X-Pro2 141 mm 83 mm 46 mm 495 g 350 Y Jan 2016 US$ 1 699ebay.com
4.

Fujifilm X-T2 133 mm 92 mm 49 mm 507 g 340 Y Jul 2016 US$ 1 599ebay.com
5.

Nikon D5300 125 mm 98 mm 76 mm 480 g 600 n Oct 2013 US$ 799ebay.com
6.

Olympus E-3 142 mm 116 mm 75 mm 876 g 750 Y Oct 2007 US$ 1 699ebay.com
7.

Olympus E-410 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 US$ 699ebay.com
8.

Olympus E-420 130 mm 91 mm 53 mm 440 g 500 n Mar 2008 US$ 599ebay.com
9.

Olympus E-450 130 mm 91 mm 53 mm 440 g 500 n Mar 2009 US$ 499ebay.com
10.

Olympus E-510 136 mm 92 mm 68 mm 538 g 750 n Mar 2007 US$ 799ebay.com
11.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 n May 2008 US$ 699ebay.com
12.

Olympus E-600 130 mm 94 mm 60 mm 535 g 500 n Aug 2009 US$ 449ebay.com
13.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 US$ 699ebay.com
14.

Olympus E-P1 121 mm 70 mm 36 mm 355 g 300 n Jun 2009 US$ 799ebay.com
15.

Olympus E-P2 121 mm 70 mm 36 mm 355 g 300 n Nov 2009 US$ 799ebay.com
16.

Samsung NX500 120 mm 64 mm 43 mm 287 g 370 n Feb 2015 US$ 799ebay.com
17.

Sony A7 127 mm 94 mm 48 mm 474 g 340 Y Oct 2013 US$ 1 699ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-30 was launched at a somewhat lower price (by 13 percent) than the NX1, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-30 features a Four Thirds sensor and the Samsung NX1 an APS-C sensor. The sensor area in the NX1 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-30 has a native 4:3 aspect ratio, while the one in the NX1 offers a 3:2 aspect.

Olympus E-30 and Samsung NX1 sensor measures

With 28MP, the NX1 offers a higher resolution than the E-30 (12.2MP), but the NX1 has smaller individual pixels (pixel pitch of 3.63μm versus 4.29μm for the E-30). Yet, the NX1 is a much more recent model (by 5 years and 10 months) than the E-30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Olympus E-30 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The NX1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus E-30 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the E-30 is build around a CMOS sensor, while the NX1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-30 versus NX1 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NX1 offers substantially better image quality than the E-30 (overall score 28 points higher). The advantage is based on 2.9 bits higher color depth, 2.8 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-30 Four Thirds 12.2 4032 3024none21.310.453055
2.

Samsung NX1 APS-C 28.0 6480 43204K/30p24.213.2136383
3.

Fujifilm X-Pro2 APS-C 24.0 6000 40001080/60p23.713.0160880
4.

Fujifilm X-T2 APS-C 24.0 6000 40004K/30p23.813.1165381
5.

Nikon D5300 APS-C 24.0 6000 40001080/60p24.013.9133883
6.

Olympus E-3 Four Thirds 10.0 3648 2736none21.610.557156
7.

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451
8.

Olympus E-420 Four Thirds 10.0 3648 2736none21.510.452756
9.

Olympus E-450 Four Thirds 10.0 3648 2736none21.510.551256
10.

Olympus E-510 Four Thirds 10.0 3648 2736none21.210.044252
11.

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855
12.

Olympus E-600 Four Thirds 12.2 4032 3024none21.510.354155
13.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
14.

Olympus E-P1 Four Thirds 12.2 4032 3024720/30p21.410.453655
15.

Olympus E-P2 Four Thirds 12.2 4032 3024720/30p21.510.450556
16.

Samsung NX500 APS-C 28.0 6480 43204K/30p24.813.9137987
17.

Sony A7 Full Frame 24.0 6000 40001080/60p24.814.2224890
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The NX1 indeed provides for movie recording, while the E-30 does not. The highest resolution format that the NX1 can use is 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX1 has an electronic viewfinder (2360k dots), while the E-30 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the NX1 offers a wider field of view (100%) than the one in the E-30 (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the NX1 has a higher magnification (0.69x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-30 and Samsung NX1 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-30optical Y2.7 / 230 swivel n 1/8000s 5.0/s Y Y
2.

Samsung NX12360 Y3.0 / 1036 tilting Y 1/8000s 15.0/s Y n
3.

Fujifilm X-Pro22360 n3.0 / 1620 fixed n 1/8000s 8.0/s n n
4.

Fujifilm X-T22360 n3.0 / 1040 full-flex n 1/8000s 8.0/s n n
5.

Nikon D5300optical n3.2 / 1037 swivel n 1/4000s 5.0/s Y n
6.

Olympus E-3optical Y2.5 / 230 swivel n 1/8000s 5.0/s Y Y
7.

Olympus E-410optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
8.

Olympus E-420optical n2.7 / 215 fixed n 1/4000s 3.5/s Y n
9.

Olympus E-450optical n2.7 / 215 fixed n 1/4000s 3.5/s Y n
10.

Olympus E-510optical n2.5 / 215 fixed n 1/4000s 3.0/s Y Y
11.

Olympus E-520optical n2.7 / 215 fixed n 1/4000s 3.5/s Y Y
12.

Olympus E-600optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
13.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
14.

Olympus E-P1none n3.0 / 230 fixed n 1/4000s 3.0/s n Y
15.

Olympus E-P2optional n3.0 / 230 fixed n 1/4000s 3.0/s n Y
16.

Samsung NX500none n3.0 / 1036 tilting Y 1/6000s 9.0/s Y n
17.

Sony A72400 n3.0 / 1230 tilting n 1/8000s 5.0/s n n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-30 and the NX1 is in-body image stabilization (IBIS). The E-30 reduces the risk of handshake-induced blur with all attached lenses, while the NX1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The E-30 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the NX1 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the NX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Samsung NX1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-30 writes its imaging data to Compact Flash or xD Picture cards, while the NX1 uses SDXC cards. The E-30 features dual card slots, which can be very useful in case a memory card fails. In contrast, the NX1 only has one slot.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-30 and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-30Y- / ----2.0---
2.

Samsung NX1Ystereo / monoYYmicro3.0YYY
3.

Fujifilm X-Pro2Ystereo / monoY-micro2.0Y--
4.

Fujifilm X-T2Ystereo / monoY-micro3.0Y--
5.

Nikon D5300Ystereo / monoY-mini2.0Y--
6.

Olympus E-3Y- / ----2.0---
7.

Olympus E-410Y- / ----2.0---
8.

Olympus E-420Y- / ----2.0---
9.

Olympus E-450Y- / ----2.0---
10.

Olympus E-510Y- / ----2.0---
11.

Olympus E-520Y- / ----2.0---
12.

Olympus E-600Y- / ----2.0---
13.

Olympus E-620Y- / ----2.0---
14.

Olympus E-P1Ystereo / ---mini2.0---
15.

Olympus E-P2Ystereo / ---mini2.0---
16.

Samsung NX500Ystereo / mono--micro2.0YYY
17.

Sony A7Ystereo / monoYYmicro2.0YY-

It is notable that the NX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-30 does not provide wifi capability.

Both the E-30 and the NX1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Olympus and Samsung. Further information on the features and operation of the E-30 and NX1 can be found, respectively, in the Olympus E-30 Manual (free pdf) or the online Samsung NX1 Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus E-30 and the Samsung NX1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Olympus E-30:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Longer lasting: Can take more shots (750 versus 500) on a single battery charge.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced segment (13 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in November 2008).

ilogo

Advantages of the Samsung NX1:

  • More detail: Has more megapixels (28 vs 12.2MP), which boosts linear resolution by 55%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (28 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.9 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.8 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.51x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1036k vs 230k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (15 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Less heavy: Has a lower weight (by 151g or 22 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 5 years and 10 months of technical progress since the E-30 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the NX1 is the clear winner of the contest (26 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-30 09:26 NX1

How about other alternatives? Do the specifications of the Olympus E-30 and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-30 and the NX1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-30......71/1004.5/54/5 Nov 2008 US$ 1 299ebay.com
2.

Samsung NX15/5....87/1005/55/5 Sep 2014 US$ 1 499ebay.com
3.

Fujifilm X-Pro2..+..83/1004.5/54.5/5 Jan 2016 US$ 1 699ebay.com
4.

Fujifilm X-T25/5+ +..86/1004.5/55/5 Jul 2016 US$ 1 599ebay.com
5.

Nikon D53004/5+ +..79/1004.5/54.5/5 Oct 2013 US$ 799ebay.com
6.

Olympus E-3..88/100..+ +o4/5 Oct 2007 US$ 1 699ebay.com
7.

Olympus E-410..86/100..+ +4/54.5/5 Mar 2007 US$ 699ebay.com
8.

Olympus E-420..85/100..+ +4/54.5/5 Mar 2008 US$ 599ebay.com
9.

Olympus E-450........4/54/5 Mar 2009 US$ 499ebay.com
10.

Olympus E-510..89/100..+ +3.5/54.5/5 Mar 2007 US$ 799ebay.com
11.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 US$ 699ebay.com
12.

Olympus E-600..........4.5/5 Aug 2009 US$ 449ebay.com
13.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 US$ 699ebay.com
14.

Olympus E-P1..+..66/1004/54.5/5 Jun 2009 US$ 799ebay.com
15.

Olympus E-P23/5+..69/1004/54.5/5 Nov 2009 US$ 799ebay.com
16.

Samsung NX5004.5/5....81/1005/54.5/5 Feb 2015 US$ 799ebay.com
17.

Sony A75/5+ +..80/1005/55/5 Oct 2013 US$ 1 699ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check E-30 offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Olympus E-30 vs Samsung NX1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-30 Samsung NX1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Four Thirds lenses Samsung NX mount lenses
    Launch Date November 2008 September 2014
    Launch Price USD 1,299 USD 1,499
    Sensor Specs Olympus E-30 Samsung NX1
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Four Thirds Sensor APS-C Sensor
    Sensor Size 17.3 x 13.0 mm 23.5 x 15.7 mm
    Sensor Area 224.9 mm2 368.95 mm2
    Sensor Diagonal 21.6 mm 28.3 mm
    Crop Factor 2.0x 1.5x
    Sensor Resolution 12.2 Megapixels 28 Megapixels
    Image Resolution 4032 x 3024 pixels 6480 x 4320 pixels
    Pixel Pitch 4.29 μm 3.63 μm
    Pixel Density 5.42 MP/cm2 7.59 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video 4K/30p Video
    ISO Setting 100 - 3,200 ISO 100 - 25,600 ISO
    ISO Boost no Enhancement 100 - 51,200 ISO
    Image Processor TruePic III+ DRIMe 5
    DXO Sensor Quality (score) 55 83
    DXO Color Depth (bits) 21.3 24.2
    DXO Dynamic Range (EV) 10.4 13.2
    DXO Low Light (ISO) 530 1363
    Screen Specs Olympus E-30 Samsung NX1
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 98% 100%
    Viewfinder Magnification 0.51x 0.69x
    Viewfinder Resolution 2360k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 2.7inch 3.0inch
    LCD Resolution 230k dots 1036k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-30 Samsung NX1
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 5 shutter flaps/s 15 shutter flaps/s
    Electronic Shutterno E-ShutterYES
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF or XD cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    Connectivity Specs Olympus E-30 Samsung NX1
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 3.0
    HDMI Port no HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Olympus E-30 Samsung NX1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Olympus BLM-1 Samsung BP1900
    Battery Life (CIPA)750 shots per charge500 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 142 x 108 x 75 mm
    (5.6 x 4.3 x 3.0 in)
    139 x 102 x 66 mm
    (5.5 x 4.0 x 2.6 in)
    Camera Weight 701 g (24.7 oz) 550 g (19.4 oz)
    logo
    Check E-30 offers at
    ebay.com
    logo
    Check NX1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-30 vs Samsung NX1
