Olympus E-30 vs E-500

The Olympus E-30 and the Olympus Evolt E-500 are two digital cameras that were officially introduced, respectively, in November 2008 and September 2005. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a Four Thirds sensor. The E-30 has a resolution of 12.2 megapixels, whereas the E-500 provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-30   Olympus E-500
Olympus E-30 Olympus E-500
Digital single lens reflex Digital single lens reflex
Four Thirds lenses Four Thirds lenses
12.2 MP, Four Thirds Sensor 8 MP, Four Thirds Sensor
no Video no Video
ISO 100-3200 ISO 100-400 (100-1600)
Optical viewfinder Optical viewfinder
2.7" LCD, 230k dots 2.5" LCD, 215k dots
Swivel screen (not touch-sensitive) Fixed screen (not touch-sensitive)
5 shutter flaps per second 2.5 shutter flaps per second
In-body stabilizationLens stabilization only
750 shots per battery charge750 shots per battery charge
142 x 108 x 75 mm, 701 g 130 x 95 x 66 mm, 479 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-30 and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Olympus E-30 vs E-500

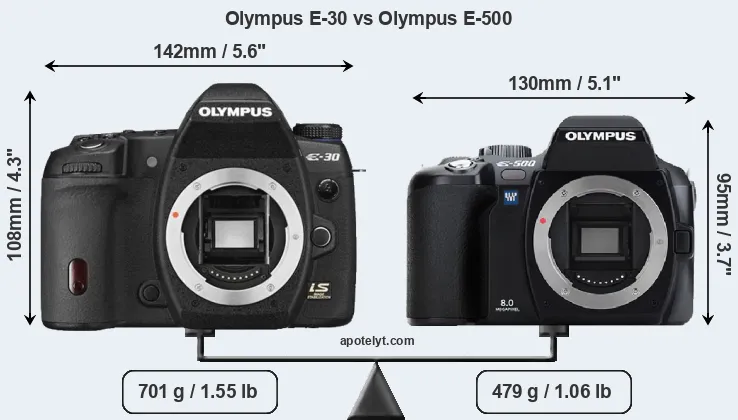

An illustration of the physical size and weight of the Olympus E-30 and the Olympus E-500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

Size Olympus E-30 vs Olympus E-500
Compare E-30 versus E-500 top
Comparison E-30 or E-500 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is notably smaller (19 percent) than the Olympus E-30. Moreover, the E-500 is markedly lighter (32 percent) than the E-30. In this context, it is worth noting that neither the E-30 nor the E-500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Four Thirds Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-30» 5.6 in 4.3 in 3.0 in 24.7 oz 750 n Nov 2008 1,299- i Olympus E-30

Olympus E-500« 5.1 in 3.7 in 2.6 in 16.9 oz 750 n Sep 2005 599- i Olympus E-500

Olympus E-450« » 5.1 in 3.6 in 2.1 in 15.5 oz 500 n Mar 2009 499- i Olympus E-450

Olympus E-600« » 5.1 in 3.7 in 2.4 in 18.9 oz 500 n Aug 2009 449- i Olympus E-600

Olympus E-620« » 5.1 in 3.7 in 2.4 in 18.4 oz 500 n Feb 2009 699- i Olympus E-620

Olympus E-P1« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1

Olympus E-P2« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Nov 2009 799- i Olympus E-P2

Olympus E-420« » 5.1 in 3.6 in 2.1 in 15.5 oz 500 n Mar 2008 599- i Olympus E-420

Olympus E-520« » 5.4 in 3.6 in 2.7 in 18.9 oz 750 n May 2008 699- i Olympus E-520

Olympus E-3« » 5.6 in 4.6 in 3.0 in 30.9 oz 750 Y Oct 2007 1,699- i Olympus E-3

Olympus E-410« » 5.1 in 3.6 in 2.1 in 15.3 oz 500 n Mar 2007 699- i Olympus E-410

Olympus E-510« » 5.4 in 3.6 in 2.7 in 19.0 oz 750 n Mar 2007 799- i Olympus E-510

Olympus E-330« » 5.5 in 3.4 in 2.8 in 22.5 oz 750 n Jan 2006 999- i Olympus E-330

Olympus E-400« » 5.1 in 3.6 in 2.1 in 15.3 oz 500 n Sep 2006 699- i Olympus E-400

Olympus E-300« » 5.8 in 3.3 in 2.5 in 22.0 oz 750 n Sep 2004 799- i Olympus E-300
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-500 was launched at a markedly lower price (by 54 percent) than the E-30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Olympus E-30 vs E-500

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the E-30 uses a more advanced image processing engine (TruePic III+) than the E-500 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

Olympus E-30 and Olympus E-500 sensor measures

While the two cameras under review share the same sensor size, the E-30 offers a higher resolution of 12.2 megapixels, compared with 8 MP of the E-500. This megapixels advantage translates into a 24 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-30 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 5.30μm for the E-500). In this context, it should be noted, however, that the E-30 is much more recent (by 3 years and 1 month) than the E-500, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Olympus E-30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-30 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inch or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inch or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inch or 34.1 x 25.6 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inch or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inch or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inch or 27.6 x 20.7 cm for excellent quality prints.

The Olympus E-30 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

E-30 versus E-500 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Olympus E-30» Four Thirds 12.2 4032 3024-21.310.453055Olympus E-30

Olympus E-500« Four Thirds 8.0 3264 2448-----Olympus E-500

Olympus E-450« » Four Thirds 10.0 3648 2736-21.510.551256Olympus E-450

Olympus E-600« » Four Thirds 12.2 4032 3024-21.510.354155Olympus E-600

Olympus E-620« » Four Thirds 12.2 4032 3024-21.310.353655Olympus E-620

Olympus E-P1« » Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1

Olympus E-P2« » Four Thirds 12.2 4032 3024720/30p21.510.450556Olympus E-P2

Olympus E-420« » Four Thirds 10.0 3648 2736-21.510.452756Olympus E-420

Olympus E-520« » Four Thirds 10.0 3648 2736-21.410.454855Olympus E-520

Olympus E-3« » Four Thirds 10.0 3648 2736-21.610.557156Olympus E-3

Olympus E-410« » Four Thirds 10.0 3648 2736-21.110.049451Olympus E-410

Olympus E-510« » Four Thirds 10.0 3648 2736-21.210.044252Olympus E-510

Olympus E-330« » Four Thirds 7.4 3136 2352-----Olympus E-330

Olympus E-400« » Four Thirds 10.0 3648 2736-----Olympus E-400

Olympus E-300« » Four Thirds 8.0 3264 2448-----Olympus E-300
The E-30 offers Live View, so that it can project the live image that the sensor receives onto the rear screen for framing. The E-500 lacks this capability. Both cameras are still-image focused and cannot record videos.


Feature comparison: Olympus E-30 vs E-500

Apart from body and sensor, cameras can and do differ across a range of features. The E-30 and the E-500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-30 offers a wider field of view (98%) than the one in the E-500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-30 has a higher magnification (0.51x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-30 and Olympus E-500 along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Olympus E-30»optical Y 2.7 230 swivel n 1/8000s 5.0 Y Y Olympus E-30

Olympus E-500«optical n 2.5 215 fixed n 1/4000s 2.5 Y n Olympus E-500

Olympus E-450« »optical n 2.7 215 fixed n 1/4000s 3.5 Y n Olympus E-450

Olympus E-600« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-600

Olympus E-620« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-620

Olympus E-P1« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P1

Olympus E-P2« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P2

Olympus E-420« »optical n 2.7 215 fixed n 1/4000s 3.5 Y n Olympus E-420

Olympus E-520« »optical n 2.7 215 fixed n 1/4000s 3.5 Y Y Olympus E-520

Olympus E-3« »optical Y 2.5 230 swivel n 1/8000s 5.0 Y Y Olympus E-3

Olympus E-410« »optical n 2.5 215 fixed n 1/4000s 3.0 Y n Olympus E-410

Olympus E-510« »optical n 2.5 215 fixed n 1/4000s 3.0 Y Y Olympus E-510

Olympus E-330« »optical n 2.5 215 tilting n 1/4000s 3.0 Y n Olympus E-330

Olympus E-400« »optical n 2.5 215 fixed n 1/4000s 3.0 Y n Olympus E-400

Olympus E-300« »optical n 1.8 134 fixed n 1/4000s 2.5 Y n Olympus E-300

One feature that is present on the E-30, but is missing on the E-500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-30 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-500 does not have a selfie-screen.

Concerning the storage of imaging data, both the E-30 and the E-500 write their files to Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.



Connectivity comparison: Olympus E-30 vs E-500

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-30 and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Olympus E-30»Y-----2.0---Olympus E-30

Olympus E-500«Y-----2.0---Olympus E-500

Olympus E-450« »Y-----2.0---Olympus E-450

Olympus E-600« »Y-----2.0---Olympus E-600

Olympus E-620« »Y-----2.0---Olympus E-620

Olympus E-P1« »Ystereo---mini2.0---Olympus E-P1

Olympus E-P2« »Ystereo---mini2.0---Olympus E-P2

Olympus E-420« »Y-----2.0---Olympus E-420

Olympus E-520« »Y-----2.0---Olympus E-520

Olympus E-3« »Y-----2.0---Olympus E-3

Olympus E-410« »Y-----2.0---Olympus E-410

Olympus E-510« »Y-----2.0---Olympus E-510

Olympus E-330« »Y-----2.0---Olympus E-330

Olympus E-400« »Y-----2.0---Olympus E-400

Olympus E-300« »Y-----2.0---Olympus E-300

Both the E-30 and the E-500 have been discontinued, but can regularly be found used on eBay. The E-500 was replaced by the Olympus E-510, while the E-30 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.


Review summary: Olympus E-30 vs E-500

So what is the bottom line? Is the Olympus E-30 better than the Olympus E-500 or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Olympus E-30:

  • More detail: Offers more megapixels (12.2 vs 8MP) with a 24% higher linear resolution.
  • Better jpgs: Has a more modern image processing engine (TruePic III+ vs TruePic).
  • More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.51x vs 0.45x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (2.7" vs 2.5") for image review and settings control.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • More modern: Reflects 3 years and 1 month of technical progress since the E-500 launch.


Advantages of the Olympus Evolt E-500:

  • More compact: Is smaller (130x95mm vs 142x108mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 222g or 32 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in September 2005).

If the number of relative strengths (bullet points above) is taken as a guide, the E-30 is the clear winner of the match-up (12 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-30 12:04 E-500

How about other alternatives? Do the specifications of the Olympus E-30 and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-30 or the E-500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews: Olympus E-30 vs E-500

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-30»-71/1004.5/5-4/5 Nov 2008 1,299- i Olympus E-30

Olympus E-500«76/100+ +--- Sep 2005 599- i Olympus E-500

Olympus E-450« »--4/5-4/5 Mar 2009 499- i Olympus E-450

Olympus E-600« »----4.5/5 Aug 2009 449- i Olympus E-600

Olympus E-620« »88/10072/1004.5/5o5/5 Feb 2009 699- i Olympus E-620

Olympus E-P1« »+66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1

Olympus E-P2« »+69/1004/54.5/54.5/5 Nov 2009 799- i Olympus E-P2

Olympus E-420« »85/100+ +4/5o4.5/5 Mar 2008 599- i Olympus E-420

Olympus E-520« »87/100+ +4.5/54/54.5/5 May 2008 699- i Olympus E-520

Olympus E-3« »88/100+ +oo4/5 Oct 2007 1,699- i Olympus E-3

Olympus E-410« »86/100+ +4/5o4.5/5 Mar 2007 699- i Olympus E-410

Olympus E-510« »89/100+ +3.5/5o4.5/5 Mar 2007 799- i Olympus E-510

Olympus E-330« »-+o3.5/5- Jan 2006 999- i Olympus E-330

Olympus E-400« »85/100-4/5-4/5 Sep 2006 699- i Olympus E-400

Olympus E-300« »-+oo4.5/5 Sep 2004 799- i Olympus E-300
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Olympus E-30:
Check Ebay offers
Olympus E-500:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Olympus E-30 vs Olympus E-500

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-30 Olympus E-500
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Four Thirds lenses Four Thirds lenses
    Launch Date November 2008 September 2005
    Launch Price USD 1299 USD 599
    Sensor Specs Olympus E-30 Olympus E-500
    Sensor Technology CMOS CCD
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 12.2 Megapixels 8 Megapixels
    Image Resolution 4032 x 3024 pixels 3264 x 2448 pixels
    Pixel Pitch 4.29 μm 5.30 μm
    Pixel Density 5.42 MP/cm2 3.55 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video no Video
    ISO Setting 100-3200 ISO 100-400 ISO
    ISO Boost no Enhancement 100-1600 ISO
    Image Processor TruePic III+ TruePic
    DXO Sensor Quality (score) 55 ..
    DXO Color Depth (bits) 21.3 ..
    DXO Dynamic Range (EV) 10.4 ..
    DXO Low Light (ISO) 530 ..
    Screen Specs Olympus E-30 Olympus E-500
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 98% 95%
    Viewfinder Magnification 0.51x 0.45x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View
    Rear LCD Size 2.7 inch 2.5 inch
    LCD Resolution 230k dots 215k dots
    LCD Attachment Swivel screen Fixed screen
    Shooting Specs Olympus E-30 Olympus E-500
    Autofocus System Phase-detect AF Phase-detect AF
    Continuous Shooting 5 shutter flaps/s 2.5 shutter flaps/s
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium CF or XD cards CF or XD cards
    Second Storage Option Dual card slots Dual card slots
    Connectivity Specs Olympus E-30 Olympus E-500
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Olympus E-30 Olympus E-500
    Battery Type BLM-1 power pack BLM-1 power pack
    Battery Life (CIPA)750 shots per charge750 shots per charge
    Body Dimensions 142 x 108 x 75 mm
    (5.6 x 4.3 x 3.0 in)
    130 x 95 x 66 mm
    (5.1 x 3.7 x 2.6 in)
    Camera Weight 701 g (24.7 oz) 479 g (16.9 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
