Olympus E-1 vs Panasonic GX85
The Olympus E-1 and the Panasonic Lumix DMC-GX85 (labelled Panasonic GX80 in some countries) are two digital cameras that were revealed to the public, respectively, in June 2003 and April 2016. The E-1 is a DSLR, while the GX85 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 4.9 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-1 and the Panasonic Lumix DMC-GX85? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

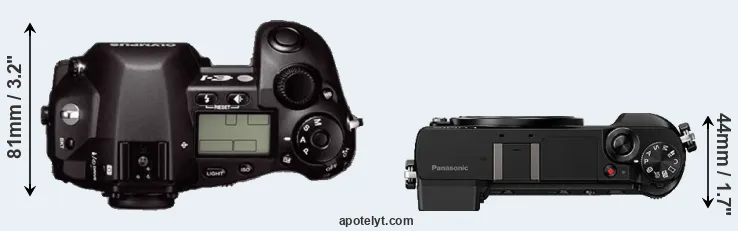

An illustration of the physical size and weight of the Olympus E-1 and the Panasonic GX85 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The GX85 can be obtained in two different colors (black, silver), while the E-1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX85 is considerably smaller (41 percent) than the Olympus E-1. Moreover, the GX85 is substantially lighter (42 percent) than the E-1. It is worth mentioning in this context that the E-1 is splash and dust resistant, while the GX85 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-1) and the Micro Four Thirds Lens Catalog (GX85). Mirrorless cameras, such as the GX85, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the E-1 gets 750 shots out of its BLM-1 battery, while the GX85 can take 290 images on a single charge of its DMW-BLG10 power pack. The power pack in the GX85 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-1||141 mm||104 mm||81 mm||738 g||750||Y||Jun 2003||1,699|
|2.||Panasonic GX85||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|5.||Leica Digilux 3||146 mm||87 mm||77 mm||606 g||750||n||Sep 2006||1,499|
|6.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|7.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|8.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|9.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|10.||Olympus E-5||142 mm||117 mm||75 mm||873 g||750||Y||Sep 2010||1,699|
|11.||Olympus E-3||142 mm||116 mm||75 mm||876 g||750||Y||Oct 2007||1,699|
|12.||Olympus E-330||140 mm||87 mm||72 mm||637 g||750||n||Jan 2006||999|
|13.||Olympus E-300||147 mm||85 mm||64 mm||624 g||750||n||Sep 2004||799|
|14.||Panasonic GX9||124 mm||72 mm||47 mm||407 g||260||n||Feb 2018||849|
|15.||Panasonic G85||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|16.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|17.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GX85 was launched at a markedly lower price (by 53 percent) than the E-1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
While the two cameras under review share the same sensor size, the GX85 offers a higher resolution of 15.8 megapixels, compared with 4.9 MP of the E-1. This megapixels advantage translates into a 79 percent gain in linear resolution. On the other hand, these sensor specs imply that the GX85 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 6.78μm for the E-1). However, it should be noted that the GX85 is much more recent (by 12 years and 9 months) than the E-1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the GX85 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic GX85 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GX85 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.
The Olympus E-1 has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DMC-GX85 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Olympus E-1||Four Thirds||4.9||2560||1920||none||..||..||..||..|
|2.||Panasonic GX85||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Leica Digilux 3||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|7.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|9.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|10.||Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|11.||Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|12.||Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|13.||Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..|
|14.||Panasonic GX9||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|15.||Panasonic G85||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|16.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|17.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
Many modern cameras are not only capable of taking still images, but can also record movies. The GX85 indeed provides for movie recording, while the E-1 does not. The highest resolution format that the GX85 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the GX85 has an electronic viewfinder (2765k dots), while the E-1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the GX85 has a higher magnification than the one of the E-1 (0.70x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-1 and Panasonic GX85 along with similar information for a selection of comparators.
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|5.||Leica Digilux 3||optical||n||2.5||207||fixed||n||1/4000s||3.0||Y||n|
|9.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One feature that is present on the E-1, but is missing on the GX85 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX85 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX85 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-1 writes its imaging data to Compact Flash or xD Picture cards, while the GX85 uses SDXC cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GX85 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-1 and Panasonic Lumix DMC-GX85 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Leica Digilux 3||Y||stereo||mono||-||-||-||2.0||-||-||-|
|9.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the GX85 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-1 does not provide wifi capability.
Studio photographers will appreciate that the Olympus E-1 (unlike the GX85) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GX85 is a recent model that features in the current product line-up of Panasonic. In contrast, the E-1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-1 was succeeded by the Olympus E-3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Olympus E-1 or the Panasonic GX85 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus E-1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (750 versus 290) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in June 2003).
Arguments in favor of the Panasonic Lumix DMC-GX85:
- More detail: Has more megapixels (15.8 vs 4.9MP), which boosts linear resolution by 79%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.48x).
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 134k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (122x71mm vs 141x104mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 312g or 42 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
- More modern: Reflects 12 years and 9 months of technical progress since the E-1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the GX85 is the clear winner of the contest (21 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-1 and the Panasonic GX85 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-1 or the GX85. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-1||..||..||+||o||..||Jun 2003||1,699|
|2.||Panasonic GX85||4.5/5||+ +||82/100||5/5||5/5||Apr 2016||799|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|5.||Leica Digilux 3||..||..||..||..||..||Sep 2006||1,499|
|6.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|7.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|8.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|9.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|10.||Olympus E-5||4/5||..||75/100||4/5||4.5/5||Sep 2010||1,699|
|11.||Olympus E-3||..||88/100||+ +||o||4/5||Oct 2007||1,699|
|12.||Olympus E-330||..||..||+||o||..||Jan 2006||999|
|13.||Olympus E-300||..||..||+||o||4.5/5||Sep 2004||799|
|14.||Panasonic GX9||4/5||+||84/100||4.5/5||4.5/5||Feb 2018||849|
|15.||Panasonic G85||..||+ +||84/100||5/5||4.5/5||Sep 2016||899|
|16.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|17.||Panasonic GH2||5/5||+ +||79/100||4.5/5||5/5||Sep 2010||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Olympus E-1 vs Panasonic GX85
|Camera Model||Olympus E-1||Panasonic GX85|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||June 2003||April 2016|
|Launch Price||USD 1,699||USD 799|
|Sensor Specs||Olympus E-1||Panasonic GX85|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||4.9 Megapixels||15.8 Megapixels|
|Image Resolution||2560 x 1920 pixels||4592 x 3448 pixels|
|Pixel Pitch||6.78 μm||3.77 μm|
|Pixel Density||2.19 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 800 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 25,600 ISO|
|DXO Sensor Quality (score)||..||71|
|DXO Color Depth (bits)||..||22.9|
|DXO Dynamic Range (EV)||..||12.6|
|DXO Low Light (ISO)||..||662|
|Screen Specs||Olympus E-1||Panasonic GX85|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2765k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||134k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-1||Panasonic GX85|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-1||Panasonic GX85|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-1||Panasonic GX85|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||750 shots per charge||290 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
141 x 104 x 81 mm
(5.6 x 4.1 x 3.2 in)
122 x 71 x 44 mm
(4.8 x 2.8 x 1.7 in)
|Camera Weight||738 g (26.0 oz)||426 g (15.0 oz)|
