Nikon D80 vs Sigma fp

The Nikon D80 and the Sigma fp are two digital cameras that were revealed to the public, respectively, in August 2006 and July 2019. The D80 is a DSLR, while the fp is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D80) and a full frame (fp) sensor. The Nikon has a resolution of 10 megapixels, whereas the Sigma provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D80		Sigma fp
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Leica L mount lenses
10 MP – APS-C sensor		24 MP – Full Frame sensor
no Video		4K/30p Video
ISO 100-1,600 (100 - 3,200)		ISO 100-25,600 (6 - 102,400)
Optical viewfinder		Viewfinder optional
2.5" LCD – 230k dots		3.2" LCD – 2100k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
3 shutter flaps per second		12 shutter flaps per second
not weather sealed		Weathersealed body
600 shots per battery charge		280 shots per battery charge
132 x 103 x 77 mm, 668 g		113 x 70 x 45 mm, 422 g

Check D80 offers at
ebay.com
Check fp price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D80 and the Sigma fp? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon D80 and the Sigma fp are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sigma fp is considerably smaller (42 percent) than the Nikon D80. Moreover, the fp is substantially lighter (37 percent) than the D80. It is noteworthy in this context that the fp is splash and dust-proof, while the D80 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the D80 gets 600 shots out of its Nikon EN-EL3e battery, while the fp can take 280 images on a single charge of its Sigma BP-51 power pack. The power pack in the fp can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	US$ 999	ebay.com
2.		Sigma fp	113 mm	70 mm	45 mm	422 g	280	Y	Jul 2019	US$ 1 899	amazon.com
3.		Fujifilm X-Pro3	141 mm	83 mm	46 mm	497 g	440	Y	Oct 2019	US$ 1 799	amazon.com
4.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	US$ 4 699	ebay.com
5.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
6.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
7.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	US$ 629	ebay.com
8.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
9.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
10.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
11.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D780	144 mm	116 mm	76 mm	840 g	2260	Y	Jan 2020	US$ 2 299	amazon.com
13.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	US$ 599	ebay.com
14.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
15.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	US$ 2 499	amazon.com
16.		Panasonic S1H	151 mm	114 mm	110 mm	1052 g	400	Y	May 2019	US$ 3 999	amazon.com
17.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D80 was launched at a markedly lower price (by 47 percent) than the fp, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

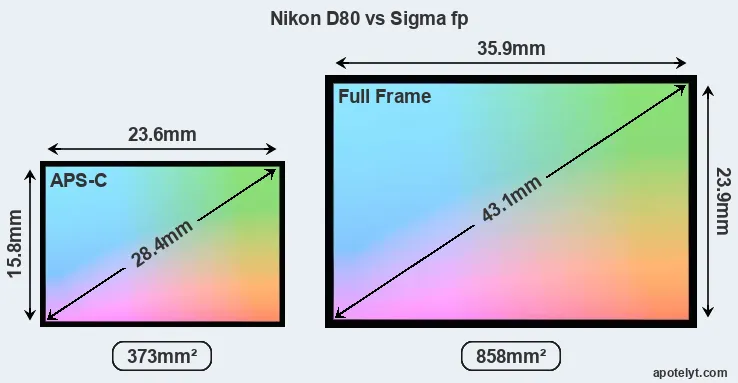

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D80 features an APS-C sensor and the Sigma fp a full frame sensor. The sensor area in the fp is 130 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

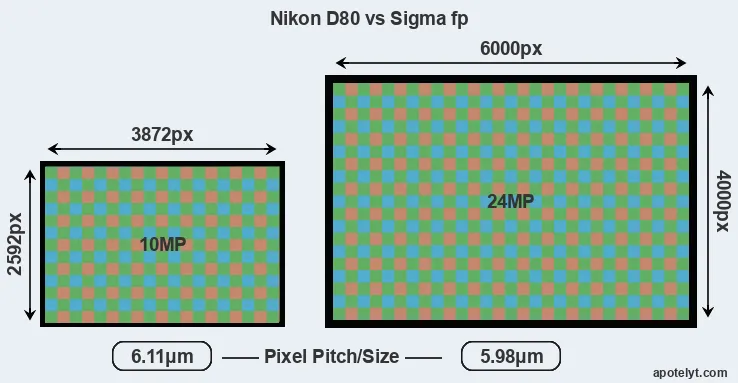

With 24MP, the fp offers a higher resolution than the D80 (10MP), but the fp has smaller individual pixels (pixel pitch of 5.98μm versus 6.11μm for the D80). Yet, the fp is a much more recent model (by 12 years and 11 months) than the D80, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the fp has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sigma fp implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the fp for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D80 are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.

The Nikon D80 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Sigma fp are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 6-102400.

In terms of underlying technology, the D80 is build around a CCD sensor, while the fp uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
2.		Sigma fp	Full Frame	24.0	6000	4000	4K/30p	25.2	14.2	2829	94
3.		Fujifilm X-Pro3	APS-C	26.0	6240	4160	4K/30p	24.1	13.6	1968	84
4.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
5.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
6.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
7.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
8.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
9.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
10.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
11.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
12.		Nikon D780	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	2877	95
13.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
14.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
15.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
16.		Panasonic S1H	Full Frame	24.0	6000	4000	6K/30p	25.2	14.2	2805	94
17.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The fp indeed provides for movie recording, while the D80 does not. The highest resolution format that the fp can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D80 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the fp relies on live view and the rear LCD for framing. That said, the fp can be equipped with an optional viewfinder – the EVF-11. The following table reports on some other key feature differences and similarities of the Nikon D80, the Sigma fp, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Sigma fp	optional	n	3.2 / 2100	fixed	Y	1/8000s	12.0/s	n	n
3.		Fujifilm X-Pro3	3690	n	3.0 / 1620	tilting	Y	1/8000s	8.0/s	n	n
4.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
5.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
7.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
9.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
10.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
11.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
12.		Nikon D780	optical	Y	3.2 / 2359	tilting	Y	1/8000s	12.0/s	n	n
13.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
15.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
16.		Panasonic S1H	5760	Y	3.2 / 2330	swivel	Y	1/8000s	9.0/s	n	Y
17.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D80 has one, while the fp does not. While the built-in flash of the D80 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the fp is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Sigma fp has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D80 writes its imaging data to SDHC cards, while the fp uses SDXC cards. The fp supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D80 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D80 and Sigma fp and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
2.		Sigma fp	Y	stereo / mono	Y	-	micro	3.1	-	-	-
3.		Fujifilm X-Pro3	Y	stereo / mono	Y	-	-	3.1	Y	-	Y
4.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
5.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
7.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
8.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
9.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
12.		Nikon D780	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
13.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
16.		Panasonic S1H	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
17.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y

The fp is a recent model that features in the current product line-up of Sigma. In contrast, the D80 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the D80 was succeeded by the Nikon D90. Further information on the features and operation of the D80 and fp can be found, respectively, in the Nikon D80 Manual (free pdf) or the online Sigma fp Manual.

Review summary

So how do things add up? Which of the two cameras – the Nikon D80 or the Sigma fp – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Nikon D80:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (600 versus 280) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in August 2006).

Reasons to prefer the Sigma fp:

• More detail: Has more megapixels (24 vs 10MP), which boosts linear resolution by 55%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (113x70mm vs 132x103mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 246g or 37 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
• More modern: Reflects 12 years and 11 months of technical progress since the D80 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the fp is the clear winner of the contest (22 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D80 and the Sigma fp place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D80 or the fp. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	US$ 999	ebay.com
2.		Sigma fp	4/5	..	4/5	..	4/5	4.5/5	Jul 2019	US$ 1 899	amazon.com
3.		Fujifilm X-Pro3	4/5	+	4/5	85/100	4/5	..	Oct 2019	US$ 1 799	amazon.com
4.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	US$ 4 699	ebay.com
5.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
6.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
7.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	US$ 629	ebay.com
8.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
9.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
10.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
11.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D780	5/5	..	5/5	87/100	4.5/5	4.5/5	Jan 2020	US$ 2 299	amazon.com
13.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	US$ 599	ebay.com
14.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
15.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	US$ 2 499	amazon.com
16.		Panasonic S1H	..	..	4/5	90/100	..	..	May 2019	US$ 3 999	amazon.com
17.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
