Nikon D5 vs Z7
The Nikon D5 and the Nikon Z7 are two digital cameras that were announced, respectively, in January 2016 and August 2018. The D5 is a DSLR, while the Z7 is a mirrorless interchangeable lens camera. Both cameras are equipped with a full frame sensor. The D5 has a resolution of 20.7 megapixels, whereas the Z7 provides 45.4 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Nikon D5||Nikon Z7|
|Digital single lens reflex||Mirrorless system camera|
|Nikon F mount lenses||Nikon Z mount lenses|
|20.7 MP, Full Frame Sensor||45.4 MP, Full Frame Sensor|
|4K/30p Video||4K/30p Video|
|ISO 100-102400 (50-3280000)||ISO 64-25600 (32-102400)|
|Optical viewfinder||Electronic viewfinder (3690k dots)|
|3.2" LCD, 2359k dots||3.2" LCD, 2100k dots|
|Fixed touchscreen||Tilting touchscreen|
|14 shutter flaps per second||9 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Weathersealed body|
|3780 shots per battery charge||330 shots per battery charge|
|160 x 159 x 92 mm, 1415 g||134 x 101 x 67 mm, 675 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Nikon Z7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Nikon D5 vs Z7
The side-by-side display below illustrates the physical size and weight of the Nikon D5 and the Nikon Z7. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z7 is considerably smaller (47 percent) than the Nikon D5. Moreover, the Z7 is substantially lighter (52 percent) than the D5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the D5 gets 3780 shots out of its EN-EL18a battery, while the Z7 can take 330 images on a single charge of its EN-EL15b power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the Z7, Nikon provides the MB-N10 vertical grip as an optional accessory (see here on eBay). The power pack in the Z7 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Nikon D5»||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499||Nikon D5|
|Nikon Z7«||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399||Nikon Z7|
|Canon 1D X Mark II« »||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Leica SL« »||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450||Leica SL|
|Nikon Z6« »||134 mm||101 mm||67 mm||675 g||310||Y||Aug 2018||1,999||Nikon Z6|
|Nikon D7500« »||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299||Nikon D7500|
|Nikon D850« »||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299||Nikon D850|
|Nikon D500« »||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999||Nikon D500|
|Nikon D7200« »||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199||-||Nikon D7200|
|Nikon D4S« »||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499||-||Nikon D4S|
|Nikon D750« »||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299||Nikon D750|
|Nikon D610« »||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999||Nikon D610|
|Nikon D4« »||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999||-||Nikon D4|
|Nikon D3X« »||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999||-||Nikon D3X|
|Sony A7R III« »||127 mm||96 mm||74 mm||650 g||650||Y||Oct 2017||3,199||Sony A7R III|
|Sony A7R II« »||127 mm||96 mm||60 mm||625 g||290||Y||Jun 2015||3,199||-||Sony A7R II|
|Sony A7S II« »||127 mm||96 mm||60 mm||627 g||370||Y||Sep 2015||2,999||Sony A7S II|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Z7 was launched at a markedly lower price (by 48 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Nikon D5 vs Z7
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

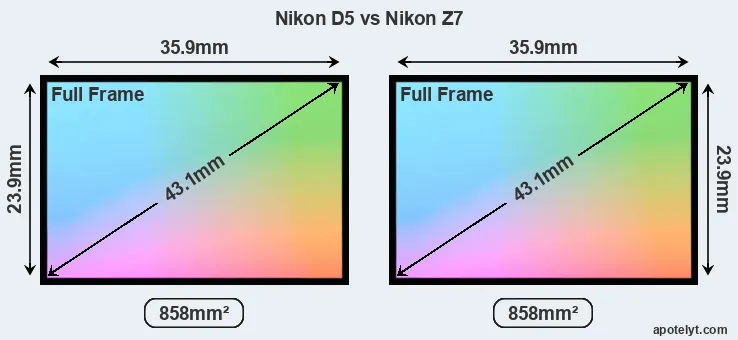

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the Z7 uses a more advanced image processing engine (EXPEED 6) than the D5 (EXPEED 5), with benefits for noise reduction, color accuracy, and processing speed.

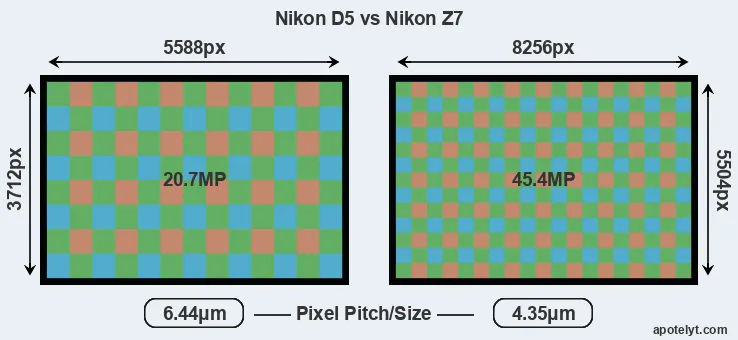

While the two cameras under review share the same sensor size, the Z7 offers a higher resolution of 45.4 megapixels, compared with 20.7 MP of the D5. This megapixels advantage translates into a 48 percent gain in linear resolution. On the other hand, these sensor specs imply that the Z7 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.35μm versus 6.44μm for the D5). However, it should be noted that the Z7 is much more recent (by 2 years and 7 months) than the D5, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the Z7 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon Z7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Z7 for good quality output (200 dots per inch) amounts to 41.3 x 27.5 inch or 104.9 x 69.9 cm, for very good quality (250 dpi) 33 x 22 inch or 83.9 x 55.9 cm, and for excellent quality (300 dpi) 27.5 x 18.3 inch or 69.9 x 46.6 cm. The corresponding values for the Nikon D5 are 27.9 x 18.6 inch or 71 x 47.1 cm for good quality, 22.4 x 14.8 inch or 56.8 x 37.7 cm for very good quality, and 18.6 x 12.4 inch or 47.3 x 31.4 cm for excellent quality prints.
The Z7 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Nikon Z7 are ISO 64 to ISO 25600, with the possibility to increase the ISO range to 32-102400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the Z7 offers substantially better image quality than the D5 (overall score 11 points higher). The advantage is based on 1.2 bits higher color depth, 2.3 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Nikon D5»||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88||Nikon D5|
|Nikon Z7«||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99||Nikon Z7|
|Canon 1D X Mark II« »||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Leica SL« »||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88||Leica SL|
|Nikon Z6« »||Full Frame||24.3||6048||4024||4K/30p||25.3||14.3||3299||95||Nikon Z6|
|Nikon D7500« »||APS-C||20.7||5568||3712||4K/30p||24.3||14.0||1483||86||Nikon D7500|
|Nikon D850« »||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100||Nikon D850|
|Nikon D500« »||APS-C||20.7||5568||3712||4K/30p||24.0||14.0||1324||83||Nikon D500|
|Nikon D7200« »||APS-C||24.0||6000||4000||1080/60p||24.5||14.6||1333||87||Nikon D7200|
|Nikon D4S« »||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89||Nikon D4S|
|Nikon D750« »||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93||Nikon D750|
|Nikon D610« »||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94||Nikon D610|
|Nikon D4« »||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89||Nikon D4|
|Nikon D3X« »||Full Frame||24.4||6048||4032||-||24.7||13.7||1992||88||Nikon D3X|
|Sony A7R III« »||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100||Sony A7R III|
|Sony A7R II« »||Full Frame||42.2||7952||5304||4K/30p||26.0||13.9||3434||98||Sony A7R II|
|Sony A7S II« »||Full Frame||12.0||4240||2832||4K/30p||23.6||13.3||2993||85||Sony A7S II|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).
Feature comparison: Nikon D5 vs Z7
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Z7 has an electronic viewfinder (3690k dots), while the D5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the Z7 has a higher magnification than the one of the D5 (0.80x vs 0.72x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D5, the Nikon Z7, and comparable cameras.
|Nikon D5»||optical||Y||3.2||2359||fixed||Y||1/8000s||14.0||n||n||Nikon D5|
|Nikon Z7«||3690||Y||3.2||2100||tilting||Y||1/8000s||9.0||n||Y||Nikon Z7|
|Canon 1D X Mark II« »||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Leica SL« »||4400||Y||3.0||1040||fixed||Y||1/8000s||11.0||n||n||Leica SL|
|Nikon Z6« »||3690||Y||3.2||2100||tilting||Y||1/8000s||12.0||n||Y||Nikon Z6|
|Nikon D7500« »||optical||Y||3.2||922||tilting||Y||1/8000s||8.0||Y||n||Nikon D7500|
|Nikon D850« »||optical||Y||3.2||2359||tilting||Y||1/8000s||9.0||n||n||Nikon D850|
|Nikon D500« »||optical||Y||3.2||2359||tilting||Y||1/8000s||10.0||n||n||Nikon D500|
|Nikon D7200« »||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7200|
|Nikon D4S« »||optical||Y||3.2||921||fixed||n||1/8000s||11.0||n||n||Nikon D4S|
|Nikon D750« »||optical||Y||3.2||1229||tilting||n||1/4000s||6.0||Y||n||Nikon D750|
|Nikon D610« »||optical||Y||3.2||921||fixed||n||1/4000s||6.0||Y||n||Nikon D610|
|Nikon D4« »||optical||Y||3.2||921||fixed||n||1/8000s||11.0||n||n||Nikon D4|
|Nikon D3X« »||optical||Y||3.0||922||fixed||n||1/8000s||5.0||n||n||Nikon D3X|
|Sony A7R III« »||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y||Sony A7R III|
|Sony A7R II« »||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y||Sony A7R II|
|Sony A7S II« »||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y||Sony A7S II|
One feature that differentiates the Z7 and the D5 is in-body image stabilization (IBIS). The Z7 reduces the risk of handshake-induced blur with all attached lenses, while the D5 has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.
The Nikon D5 and the Nikon Z7 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D5 writes its imaging data to Compact Flash or XQD cards, while the Z7 uses XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Z7 only has one slot.
Connectivity comparison: Nikon D5 vs Z7
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Nikon Z7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Nikon D5»||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Nikon D5|
|Nikon Z7«||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y||Nikon Z7|
|Canon 1D X Mark II« »||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Leica SL« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||-||Leica SL|
|Nikon Z6« »||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y||Nikon Z6|
|Nikon D7500« »||Y||stereo||mono||Y||Y||mini||2.0||Y||-||Y||Nikon D7500|
|Nikon D850« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D850|
|Nikon D500« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D500|
|Nikon D7200« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Nikon D7200|
|Nikon D4S« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D4S|
|Nikon D750« »||Y||stereo||mono||Y||Y||mini||2.0||Y||-||-||Nikon D750|
|Nikon D610« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D610|
|Nikon D4« »||Y||mono||mono||-||-||micro||2.0||-||-||-||Nikon D4|
|Nikon D3X« »||Y||-||-||-||-||mini||2.0||-||-||-||Nikon D3X|
|Sony A7R III« »||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y||Sony A7R III|
|Sony A7R II« »||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-||Sony A7R II|
|Sony A7S II« »||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-||Sony A7S II|
It is notable that the Z7 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D5 does not offer wifi capability.
Studio photographers will appreciate that the Nikon D5 (unlike the Z7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D5 and the Z7 are recent models that are part of the current product line-up. The D5 replaced the earlier Nikon D4S, while the Z7 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
Review summary: Nikon D5 vs Z7
So how do things add up? Is the Nikon D5 better than the Nikon Z7 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon D5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 2100k dots).
- Faster burst: Shoots at higher frequency (14 vs 9 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (3780 versus 330) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in January 2016).
Arguments in favor of the Nikon Z7:
- More detail: Has more megapixels (45.4 vs 20.7MP), which boosts linear resolution by 48%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (EXPEED 6 vs EXPEED 5).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.72x).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More compact: Is smaller (134x101mm vs 160x159mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 740g or 52 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (48 percent cheaper at launch).
- More modern: Reflects 2 years and 7 months of technical progress since the D5 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the Z7 is the clear winner of the contest (18 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5 and the Nikon Z7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D5 or the Z7 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews: Nikon D5 vs Z7
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D5»||-||89/100||4.5/5||5/5||5/5||Jan 2016||6,499||Nikon D5|
|Nikon Z7«||+||89/100||4.5/5||4.5/5||5/5||Aug 2018||3,399||Nikon Z7|
|Canon 1D X Mark II« »||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Leica SL« »||-||84/100||4.5/5||4/5||4/5||Oct 2015||7,450||Leica SL|
|Nikon Z6« »||-||-||4.5/5||-||5/5||Aug 2018||1,999||Nikon Z6|
|Nikon D7500« »||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299||Nikon D7500|
|Nikon D850« »||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299||Nikon D850|
|Nikon D500« »||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999||Nikon D500|
|Nikon D7200« »||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199||-||Nikon D7200|
|Nikon D4S« »||-||-||4.5/5||5/5||4.5/5||Feb 2014||6,499||-||Nikon D4S|
|Nikon D750« »||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299||Nikon D750|
|Nikon D610« »||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999||Nikon D610|
|Nikon D4« »||-||-||4.5/5||-||4.5/5||Jan 2012||5,999||-||Nikon D4|
|Nikon D3X« »||-||86/100||4/5||5/5||5/5||Dec 2008||7,999||-||Nikon D3X|
|Sony A7R III« »||+ +||90/100||4.5/5||5/5||5/5||Oct 2017||3,199||Sony A7R III|
|Sony A7R II« »||+ +||90/100||5/5||4.5/5||5/5||Jun 2015||3,199||-||Sony A7R II|
|Sony A7S II« »||+||-||4.5/5||5/5||5/5||Sep 2015||2,999||Sony A7S II|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D5 vs Nikon Z7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5||Nikon Z7|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Nikon Z mount lenses|
|Launch Date||January 2016||August 2018|
|Launch Price||USD 6499||USD 3399|
|Sensor Specs||Nikon D5||Nikon Z7|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||35.9 x 23.9 mm||35.9 x 23.9 mm|
|Sensor Area||858.01 mm2||858.01 mm2|
|Sensor Diagonal||43.1 mm||43.1 mm|
|Sensor Resolution||20.7 Megapixels||45.4 Megapixels|
|Image Resolution||5588 x 3712 pixels||8256 x 5504 pixels|
|Pixel Pitch||6.44 μm||4.35 μm|
|Pixel Density||2.42 MP/cm2||5.30 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100-102400 ISO||64-25600 ISO|
|ISO Boost||50-3280000 ISO||32-102400 ISO|
|Image Processor||EXPEED 5||EXPEED 6|
|DXO Sensor Quality (score)||88||99|
|DXO Color Depth (bits)||25.1||26.3|
|DXO Dynamic Range (EV)||12.3||14.6|
|DXO Low Light (ISO)||2343||2668|
|Screen Specs||Nikon D5||Nikon Z7|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||3690k dots|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2 inch||3.2 inch|
|LCD Resolution||2359k dots||2100k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Nikon D5||Nikon Z7|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/8000/s|
|Continuous Shooting||14 shutter flaps/s||9 shutter flaps/s|
|Shutter Life Expectancy||400 000 actuations||200 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or XQD cards||XQD cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Nikon D5||Nikon Z7|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 3.1|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D5||Nikon Z7|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Type||EN-EL18a power pack||EN-EL15b power pack|
|Battery Life (CIPA)||3780 shots per charge||330 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
134 x 101 x 67 mm
(5.3 x 4.0 x 2.6 in)
|Camera Weight||1415 g (49.9 oz)||675 g (23.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
