Nikon D5 vs Olympus TG-5

The Nikon D5 and the Olympus Tough TG-5 are two digital cameras that were revealed to the public, respectively, in January 2016 and May 2017. The D5 is a DSLR, while the TG-5 is a fixed lens compact. The cameras are based on a full frame (D5) and a 1/2.3-inch (TG-5) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D5   Olympus TG-5
Nikon D5 Olympus TG-5
Digital single lens reflex Fixed lens compact camera
Nikon F mount lenses 25-100mm f/2.0-4.9
20.7 MP, Full Frame Sensor 12 MP, 1/2.3" Sensor
4K/30p Video 4K/30p Video
ISO 100-102400 (50-3280000) ISO 100-12800
Optical viewfinder No viewfinder, LCD framing
3.2" LCD, 2359k dots 3.0" LCD, 460k dots
Fixed touchscreen Fixed screen (not touch-sensitive)
14 shutter flaps per second 20 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodyWaterproof body (15m)
3780 shots per battery charge340 shots per battery charge
160 x 159 x 92 mm, 1415 g 113 x 66 x 32 mm, 250 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Nikon D5 and the Olympus TG-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The TG-5 can be obtained in two different colors (black, red), while the D5 is only available in black.

Size Nikon D5 vs Olympus TG-5
Compare D5 versus TG-5 top
Comparison D5 or TG-5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (71 percent) than the Nikon D5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the D5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the D5 gets 3780 shots out of its EN-EL18a battery, while the TG-5 can take 340 images on a single charge of its LI-92B power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Nikon D5» 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499 i i Nikon D5

Olympus TG-5« 4.4 in 2.6 in 1.3 in 8.8 oz 340 Y May 2017 449- i Olympus TG-5

Canon SX730« » 4.3 in 2.5 in 1.6 in 10.6 oz 250 n Apr 2017 399- i Canon SX730

Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II

Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X

Nikon W300« » 4.4 in 2.6 in 1.1 in 8.1 oz 280 Y May 2017 389 i i Nikon W300

Nikon D850« » 5.7 in 4.9 in 3.1 in 35.5 oz 1840 Y Jul 2017 3,299 i i Nikon D850

Nikon D4S« » 6.3 in 6.2 in 3.6 in 47.6 oz 3020 Y Feb 2014 6,499- i Nikon D4S

Nikon D750« » 5.6 in 4.4 in 3.1 in 26.5 oz 1230 Y Sep 2014 2,299 i i Nikon D750

Nikon D610« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Oct 2013 1,999 i i Nikon D610

Nikon D4« » 6.3 in 6.2 in 3.6 in 47.3 oz 2600 Y Jan 2012 5,999- i Nikon D4

Nikon D600« » 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Sep 2012 2,099- i Nikon D600

Nikon D3S« » 6.3 in 6.2 in 3.5 in 43.7 oz 4200 Y Oct 2009 5,199- i Nikon D3S

Nikon D3X« » 6.3 in 6.2 in 3.5 in 44.4 oz 4400 Y Dec 2008 7,999- i Nikon D3X

Olympus TG-6« » 4.4 in 2.6 in 1.3 in 8.9 oz 340 Y May 2019 449 i i Olympus TG-6

Olympus TG-4« » 4.4 in 2.6 in 1.2 in 8.7 oz 380 Y Apr 2015 379- i Olympus TG-4

Olympus XZ-1« » 4.4 in 2.6 in 1.7 in 9.7 oz 320 n Jan 2011 499- i Olympus XZ-1
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-5 was launched at a lower price than the D5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D5 features a full frame sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the D5 has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.

Nikon D5 and Olympus TG-5 sensor measures

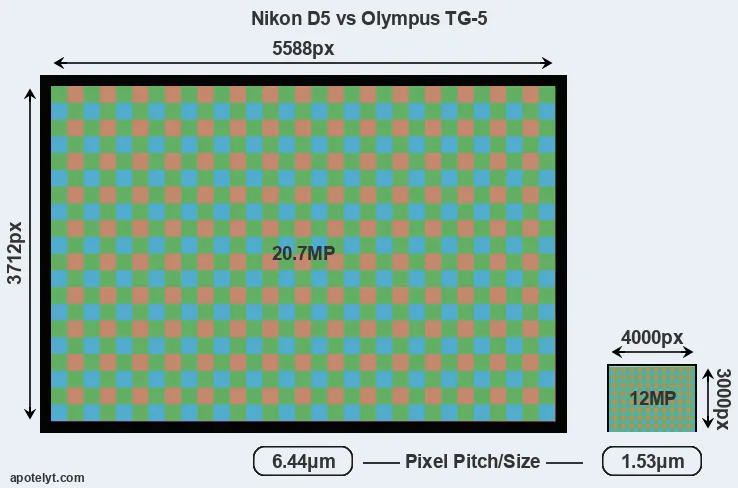

With 20.7MP, the D5 offers a higher resolution than the TG-5 (12MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a somewhat more recent model (by 1 year and 4 months) than the D5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inch or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inch or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inch or 47.3 x 31.4 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inch or 50.8 x 38.1 cm for good quality, 16 x 12 inch or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inch or 33.9 x 25.4 cm for excellent quality prints.

The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).

D5 versus TG-5 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Nikon D5» Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5

Olympus TG-5« 1/2.3 12.0 4000 30004K/30p----Olympus TG-5

Canon SX730« » 1/2.3 20.2 5184 38881080/60p----Canon SX730

Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II

Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X

Nikon W300« » 1/2.3 15.9 4608 34564K/30p----Nikon W300

Nikon D850« » Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850

Nikon D4S« » Full Frame 16.2 4928 32801080/60p24.413.3307489Nikon D4S

Nikon D750« » Full Frame 24.2 6016 40161080/60p24.814.5295693Nikon D750

Nikon D610« » Full Frame 24.2 6016 40161080/30p25.114.4292594Nikon D610

Nikon D4« » Full Frame 16.2 4928 32801080/30p24.713.1296589Nikon D4

Nikon D600« » Full Frame 24.2 6016 40161080/30p25.114.2298094Nikon D600

Nikon D3S« » Full Frame 12.1 4256 2832720/24p23.512.0325382Nikon D3S

Nikon D3X« » Full Frame 24.4 6048 4032-24.713.7199288Nikon D3X

Olympus TG-6« » 1/2.3 12.0 4000 30004K/30p----Olympus TG-6

Olympus TG-4« » 1/2.3 15.9 4608 34561080/30p----Olympus TG-4

Olympus XZ-1« » 1/1.7 10.1 3664 2752720/30p18.810.411734Olympus XZ-1

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).



Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Nikon D5 and Olympus TG-5 in connection with corresponding information for a sample of similar cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Nikon D5»optical Y 3.2 2359 fixed Y 1/8000s 14.0 n n Nikon D5

Olympus TG-5«- n 3.0 460 fixed n 1/2000s 20.0 Y Y Olympus TG-5

Canon SX730« »- n 3.0 922 tilting n 1/3200s 5.9 Y Y Canon SX730

Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 1/8000s 16.0 n n Canon 1D X Mark II

Canon 1D X« »optical Y 3.2 1040 fixed n 1/8000s 14.0 n n Canon 1D X

Nikon W300« »- n 3.0 921 fixed n 1/4000s 7.0 Y Y Nikon W300

Nikon D850« »optical Y 3.2 2359 tilting Y 1/8000s 9.0 n n Nikon D850

Nikon D4S« »optical Y 3.2 921 fixed n 1/8000s 11.0 n n Nikon D4S

Nikon D750« »optical Y 3.2 1229 tilting n 1/4000s 6.0 Y n Nikon D750

Nikon D610« »optical Y 3.2 921 fixed n 1/4000s 6.0 Y n Nikon D610

Nikon D4« »optical Y 3.2 921 fixed n 1/8000s 11.0 n n Nikon D4

Nikon D600« »optical Y 3.0 921 fixed n 1/4000s 5.5 Y n Nikon D600

Nikon D3S« »optical Y 3.0 921 fixed n 1/8000s 11.0 n n Nikon D3S

Nikon D3X« »optical Y 3.0 922 fixed n 1/8000s 5.0 n n Nikon D3X

Olympus TG-6« »- n 3.0 1040 fixed n 1/2000s 20.0 Y Y Olympus TG-6

Olympus TG-4« »- n 3.0 460 fixed n 1/2000s 5.0 Y Y Olympus TG-4

Olympus XZ-1« »- n 3.0 614 fixed n 1/2000s 2.0 Y Y Olympus XZ-1

One feature that is present on the D5, but is missing on the TG-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D5 and the Olympus TG-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D5 writes its imaging data to Compact Flash or XQD cards, while the TG-5 uses SDXC cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the TG-5 only has one slot.



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Nikon D5»YstereomonoYYmini3.0---Nikon D5

Olympus TG-5«-stereomono--micro2.0Y--Olympus TG-5

Canon SX730« »-stereomono--micro2.0YYYCanon SX730

Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II

Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X

Nikon W300« »-stereomono--micro2.0Y-YNikon W300

Nikon D850« »YstereomonoYYmini3.0YYYNikon D850

Nikon D4S« »YmonomonoYYmini2.0---Nikon D4S

Nikon D750« »YstereomonoYYmini2.0Y--Nikon D750

Nikon D610« »YmonomonoYYmini2.0---Nikon D610

Nikon D4« »Ymonomono--micro2.0---Nikon D4

Nikon D600« »YmonomonoYYmini2.0---Nikon D600

Nikon D3S« »Ystereo---mini2.0---Nikon D3S

Nikon D3X« »Y----mini2.0---Nikon D3X

Olympus TG-6« »-stereomono--micro2.0Y--Olympus TG-6

Olympus TG-4« »-stereomono--micro2.0Y--Olympus TG-4

Olympus XZ-1« »Ymono---mini2.0---Olympus XZ-1

It is notable that the D5 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Nikon D5 (unlike the TG-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The D5 is a recent model that features in the current product line-up of Nikon. In contrast, the TG-5 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.


Review summary

So how do things add up? Is the Nikon D5 better than the Olympus TG-5 or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Nikon D5:

  • More detail: Offers more megapixels (20.7 vs 12MP) with a 34% higher linear resolution.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 460k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (3780 versus 340) on a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been on the market for longer (launched in January 2016).

ilogo

Reasons to prefer the Olympus Tough TG-5:

  • Faster burst: Shoots at higher frequency (20 vs 14 flaps/sec) to capture the decisive moment.
  • Ready to shoot: Comes with an integrated lens, while the D5 requires a separate lens.
  • More compact: Is smaller (113x66mm vs 160x159mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the D5).
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Was introduced somewhat (1 year and 4 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the D5 is the clear winner of the match-up (21 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D5 21:11 TG-5

How about other alternatives? Do the specifications of the Nikon D5 and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D5 or the TG-5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Nikon D5»-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5

Olympus TG-5«+ +-4/5o4/5 May 2017 449- i Olympus TG-5

Canon SX730« »+-4/5-4/5 Apr 2017 399- i Canon SX730

Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II

Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X

Nikon W300« »+-4/5-4/5 May 2017 389 i i Nikon W300

Nikon D850« »+ +89/1004.5/55/55/5 Jul 2017 3,299 i i Nikon D850

Nikon D4S« »--4.5/55/54.5/5 Feb 2014 6,499- i Nikon D4S

Nikon D750« »+ +90/1004.5/55/54.5/5 Sep 2014 2,299 i i Nikon D750

Nikon D610« »+ +87/1004.5/54.5/54.5/5 Oct 2013 1,999 i i Nikon D610

Nikon D4« »--4.5/5-4.5/5 Jan 2012 5,999- i Nikon D4

Nikon D600« »+ +87/1005/54.5/54.5/5 Sep 2012 2,099- i Nikon D600

Nikon D3S« »-89/1004.5/55/55/5 Oct 2009 5,199- i Nikon D3S

Nikon D3X« »-86/1004/55/55/5 Dec 2008 7,999- i Nikon D3X

Olympus TG-6« »+ +-4/5-4/5 May 2019 449 i i Olympus TG-6

Olympus TG-4« »+79/1004/54/54/5 Apr 2015 379- i Olympus TG-4

Olympus XZ-1« »-74/1004.5/54.5/54.5/5 Jan 2011 499- i Olympus XZ-1
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Nikon D5:
Check Amazon price
Olympus TG-5:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Nikon D5 vs Olympus TG-5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D5 Olympus TG-5
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Nikon F mount lenses 25-100mm f/2.0-4.9
    Launch Date January 2016 May 2017
    Launch Price USD 6499 USD 449
    Sensor Specs Nikon D5 Olympus TG-5
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Full Frame Sensor 1/2.3" Sensor
    Sensor Size 35.9 x 23.9 mm 6.17 x 4.55 mm
    Sensor Area 858.01 mm2 28.0735 mm2
    Sensor Diagonal 43.1 mm 7.7 mm
    Crop Factor 1.0x 5.6x
    Sensor Resolution 20.7 Megapixels 12 Megapixels
    Image Resolution 5588 x 3712 pixels 4000 x 3000 pixels
    Pixel Pitch 6.44 μm 1.53 μm
    Pixel Density 2.42 MP/cm2 42.74 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 100-102400 ISO 100-12800 ISO
    ISO Boost 50-3280000 ISO no Enhancement
    Image Processor EXPEED 5 TruePic VIII
    DXO Sensor Quality (score) 88 ..
    DXO Color Depth (bits) 25.1 ..
    DXO Dynamic Range (EV) 12.3 ..
    DXO Low Light (ISO) 2343 ..
    Screen Specs Nikon D5 Olympus TG-5
    Viewfinder Type Optical viewfinder No viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.72x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.0 inch
    LCD Resolution 2359k dots 460k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Nikon D5 Olympus TG-5
    Autofocus System Phase-detect AF Contrast-detect AF
    Manual Focusing AidNo Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000/s 1/2000/s
    Continuous Shooting 14 shutter flaps/s 20 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash Build-in Flash
    Storage Medium CF or XQD cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    Connectivity Specs Nikon D5 Olympus TG-5
    External Flash Hotshoe no Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support no Wifi Wifi built-in
    Geotagging no internal GPS GPS built-in
    Body Specs Nikon D5 Olympus TG-5
    Environmental SealingWeathersealed bodyWaterproof body (15m)
    Battery Type EN-EL18a LI-92B
    Battery Life (CIPA)3780 shots per charge340 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 160 x 159 x 92 mm
    (6.3 x 6.3 x 3.6 in)
    113 x 66 x 32 mm
    (4.4 x 2.6 x 1.3 in)
    Camera Weight 1415 g (49.9 oz) 250 g (8.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D5 vs Olympus TG-5
