Nikon D3500 vs Olympus E-M1 II

The Nikon D3500 and the Olympus OM-D E-M1 Mark II are two digital cameras that were revealed to the public, respectively, in August 2018 and September 2016. The D3500 is a DSLR, while the E-M1 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3500) and a Four Thirds (E-M1 II) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D3500
versus
Olympus E-M1 II
Nikon D3500   Olympus E-M1 II
Digital single lens reflex Mirrorless system camera
Nikon F mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 20.2 MP – Four Thirds sensor
1080/60p Video 4K/30p Video
ISO 100-25,600 ISO 200-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
3.0" LCD – 921k dots 3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
5 shutter flaps per second 18 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
1550 shots per battery charge440 shots per battery charge
124 x 97 x 70 mm, 415 g 134 x 91 x 67 mm, 574 g
logo
Check D3500 price at
amazon.com
logo
Check E-M1 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3500 and the Olympus OM-D E-M1 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

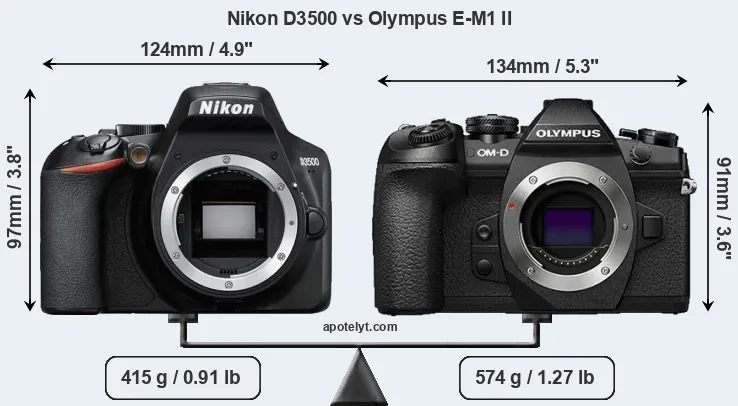

The side-by-side display below illustrates the physical size and weight of the Nikon D3500 and the Olympus E-M1 II. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Nikon D3500 vs Olympus E-M1 II

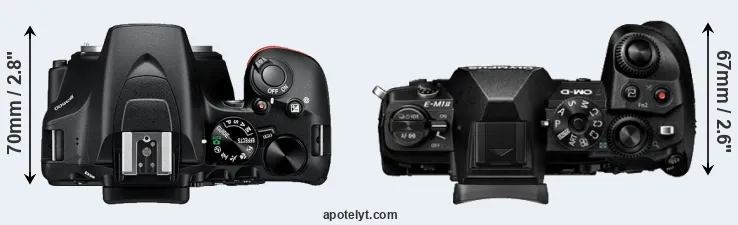

Compare D3500 versus E-M1 II top
Comparison D3500 or E-M1 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II is somewhat larger (1 percent) than the Nikon D3500. Moreover, the E-M1 II is substantially heavier (38 percent) than the D3500. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the D3500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3500) and the Micro Four Thirds Lens Catalog (E-M1 II). Mirrorless cameras, such as the E-M1 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D3500 gets 1550 shots out of its EN-EL14a battery, while the E-M1 II can take 440 images on a single charge of its BLH-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D3500 124 mm 97 mm 70 mm 415 g 1550 n Aug 2018 429 amazon.com
2.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
3.

Canon SX740 110 mm 64 mm 40 mm 299 g 265 n Jul 2018 399 amazon.com
4.

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499ebay.com
5.

Canon SX730 110 mm 64 mm 40 mm 300 g 250 n Apr 2017 399ebay.com
6.

Fujifilm X-A5 117 mm 68 mm 40 mm 361 g 450 n Jan 2018 399ebay.com
7.

Nikon A1000 114 mm 72 mm 41 mm 330 g 250 n Jan 2019 429 amazon.com
8.

Nikon D3400 124 mm 98 mm 76 mm 445 g 1200 n Aug 2016 499ebay.com
9.

Nikon D5500 124 mm 97 mm 70 mm 470 g 820 n Jan 2015 899ebay.com
10.

Nikon D3300 124 mm 98 mm 76 mm 430 g 700 n Jan 2014 499ebay.com
11.

Olympus E-M1 III 134 mm 91 mm 69 mm 580 g 420 Y Feb 2020 1,799 amazon.com
12.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
13.

Panasonic TZ95 112 mm 69 mm 42 mm 327 g 380 n Feb 2019 449 amazon.com
14.

Panasonic G9 137 mm 97 mm 92 mm 658 g 400 Y Nov 2017 1,699 amazon.com
15.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
16.

Panasonic TZ90 112 mm 67 mm 41 mm 322 g 380 n Apr 2017 449ebay.com
17.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 1,199ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D3500 was launched at a markedly lower price (by 79 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

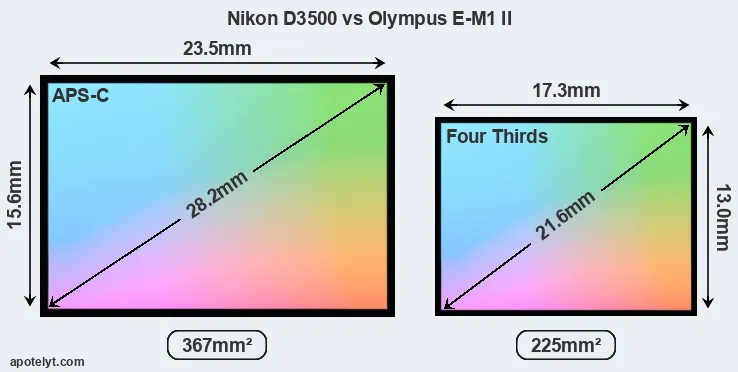

Of the two cameras under consideration, the Nikon D3500 features an APS-C sensor and the Olympus E-M1 II a Four Thirds sensor. The sensor area in the E-M1 II is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3500 has a native 3:2 aspect ratio, while the one in the E-M1 II offers a 4:3 aspect.

Nikon D3500 and Olympus E-M1 II sensor measures

With 24MP, the D3500 offers a higher resolution than the E-M1 II (20.2MP), but the D3500 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.34μm for the E-M1 II) due to its larger sensor. Moreover, the D3500 is a somewhat more recent model (by 1 year and 11 months) than the E-M1 II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon D3500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M1 II are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the D3500, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Nikon D3500 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

D3500 versus E-M1 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D3500 APS-C 24.0 6000 40001080/60p24.013.4185183
2.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
3.

Canon SX740 1/2.3 20.2 5184 38884K/30p20.612.1105051
4.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
5.

Canon SX730 1/2.3 20.2 5184 38881080/60p20.511.992450
6.

Fujifilm X-A5 APS-C 24.0 6000 40004K/15p24.013.3180082
7.

Nikon A1000 1/2.3 15.9 4608 34564K/30p20.712.2109552
8.

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286
9.

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884
10.

Nikon D3300 APS-C 24.0 6000 40001080/60p24.312.8138582
11.

Olympus E-M1 III Four Thirds 20.2 5184 38884K/30p23.313.1135676
12.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
13.

Panasonic TZ95 1/2.3 20.2 5184 38884K/30p20.712.2110352
14.

Panasonic G9 Four Thirds 20.2 5184 38884K/60p23.112.8113874
15.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
16.

Panasonic TZ90 1/2.3 20.2 5184 38884K/30p19.110.610636
17.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M1 II provides a better video resolution than the D3500. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), while the D3500 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1 II offers a wider field of view (100%) than the one in the D3500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1 II has a higher magnification (0.74x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D3500, the Olympus E-M1 II, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D3500optical n3.0 / 921 fixed n 1/4000s 5.0/s Y n
2.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
3.

Canon SX740none n3.0 / 922 tilting n 1/3200s 10.0/s Y Y
4.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
5.

Canon SX730none n3.0 / 922 tilting n 1/3200s 5.9/s Y Y
6.

Fujifilm X-A5none n3.0 / 1040 tilting Y 1/4000s 6.0/s Y n
7.

Nikon A10001166 n3.0 / 1036 tilting Y 1/4000s 7.0/s Y Y
8.

Nikon D3400optical n3.0 / 921 fixed n 1/4000s 5.0/s Y n
9.

Nikon D5500optical n3.2 / 1037 swivel Y 1/4000s 5.0/s Y n
10.

Nikon D3300optical n3.0 / 921 fixed n 1/4000s 5.0/s Y n
11.

Olympus E-M1 III2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
12.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
13.

Panasonic TZ952330 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
14.

Panasonic G93680 Y3.0 / 1040 swivel Y 1/8000s 20.0/s n Y
15.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
16.

Panasonic TZ901166 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
17.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D3500 has one, while the E-M1 II does not. While the built-in flash of the D3500 is not very powerful, it can at times be useful as a fill-in light.

The E-M1 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D3500 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D3500 and the E-M1 II write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the D3500 only has one slot. The E-M1 II supports UHS-II cards (on its first slot), while the D3500 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3500 and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D3500Ymono / mono--mini2.0--Y
2.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
3.

Canon SX740-stereo / mono--micro2.0Y-Y
4.

Canon M100-stereo / mono--micro2.0YYY
5.

Canon SX730-stereo / mono--micro2.0YYY
6.

Fujifilm X-A5Ystereo / monoY-micro2.0Y-Y
7.

Nikon A1000-stereo / mono--micro2.0Y-Y
8.

Nikon D3400Ymono / mono--mini2.0--Y
9.

Nikon D5500Ystereo / monoY-mini2.0Y--
10.

Nikon D3300Ymono / monoY-mini2.0---
11.

Olympus E-M1 IIIYstereo / monoYYmicro3.1Y-Y
12.

Olympus E-M1Ystereo / monoY-micro2.0Y--
13.

Panasonic TZ95-stereo / mono--micro2.0Y-Y
14.

Panasonic G9Ystereo / monoYYfull3.0Y-Y
15.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
16.

Panasonic TZ90-stereo / mono--micro2.0Y--
17.

Panasonic GX8Ystereo / monoY-micro2.0YY-

It is notable that the E-M1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3500 does not provide wifi capability.

Studio photographers will appreciate that the Olympus E-M1 II (unlike the D3500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The D3500 is a recent model that features in the current product line-up of Nikon. In contrast, the E-M1 II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-M1 II was succeeded by the Olympus E-M1 III. Further information on the features and operation of the D3500 and E-M1 II can be found, respectively, in the Nikon D3500 Manual (free pdf) or the online Olympus E-M1 II Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Nikon D3500 and the Olympus E-M1 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Nikon D3500:

  • More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Less heavy: Is lighter (by 159g or 28 percent) and hence easier to carry around.
  • Longer lasting: Can take more shots (1550 versus 440) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (79 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 1 year and 11 months after the E-M1 II).

ilogo

Arguments in favor of the Olympus OM-D E-M1 Mark II:

  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.57x).
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (18 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More heavily discounted: Has been on the market for longer (launched in September 2016).

If the count of relative strengths (bullet points above) is taken as a measure, the E-M1 II is the clear winner of the contest (25 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D3500 12:25 E-M1 II

How about other alternatives? Do the specifications of the Nikon D3500 and the Olympus E-M1 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D3500 or the E-M1 II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D35004/5..4/575/1004/54.5/5 Aug 2018 429 amazon.com
2.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
3.

Canon SX740..+3.5/5..4/54/5 Jul 2018 399 amazon.com
4.

Canon M1003/5+....4/53.5/5 Aug 2017 499ebay.com
5.

Canon SX730..+....4/54/5 Apr 2017 399ebay.com
6.

Fujifilm X-A5..+4.1/5..4/53.5/5 Jan 2018 399ebay.com
7.

Nikon A1000..+ +3.5/5..3.5/53/5 Jan 2019 429 amazon.com
8.

Nikon D34004/5+4/576/1004/54.5/5 Aug 2016 499ebay.com
9.

Nikon D55005/5+..79/1004.5/54.5/5 Jan 2015 899ebay.com
10.

Nikon D33003/5+..77/1004.5/54.5/5 Jan 2014 499ebay.com
11.

Olympus E-M1 III5/5..5/583/1004.5/54/5 Feb 2020 1,799 amazon.com
12.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
13.

Panasonic TZ95..+ +..4/54.5/5.. Feb 2019 449 amazon.com
14.

Panasonic G9..+ +5/585/1005/55/5 Nov 2017 1,699 amazon.com
15.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
16.

Panasonic TZ90..+ +..4/54/54/5 Apr 2017 449ebay.com
17.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 1,199ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check D3500 price at
amazon.com
logo
Check E-M1 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Nikon D3500 vs Olympus E-M1 II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D3500 Olympus E-M1 II
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Nikon F mount lenses Micro Four Thirds lenses
    Launch Date August 2018 September 2016
    Launch Price USD 429 USD 1,999
    Sensor Specs Nikon D3500 Olympus E-M1 II
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 23.5 x 15.6 mm 17.3 x 13.0 mm
    Sensor Area 366.6 mm2 224.9 mm2
    Sensor Diagonal 28.2 mm 21.6 mm
    Crop Factor 1.5x 2.0x
    Sensor Resolution 24 Megapixels 20.2 Megapixels
    Image Resolution 6000 x 4000 pixels 5184 x 3888 pixels
    Pixel Pitch 3.91 μm 3.34 μm
    Pixel Density 6.55 MP/cm2 8.96 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 1080/60p Video 4K/30p Video
    ISO Setting 100 - 25,600 ISO 200 - 25,600 ISO
    ISO Boost no Enhancement 64 - 25,600 ISO
    Image Processor EXPEED 4 TruePic VIII
    DXO Sensor Quality (score) .. 80
    DXO Color Depth (bits) .. 23.7
    DXO Dynamic Range (EV) .. 12.8
    DXO Low Light (ISO) .. 1312
    Screen Specs Nikon D3500 Olympus E-M1 II
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.57x 0.74x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 921k dots 1037k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Nikon D3500 Olympus E-M1 II
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 5 shutter flaps/s 18 shutter flaps/s
    Shutter Life Expectancy100 000 actuations200 000 actuations
    Electronic Shutterno E-Shutterup to 1/32000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support UHS-I Single UHS-II
    Connectivity Specs Nikon D3500 Olympus E-M1 II
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Nikon D3500 Olympus E-M1 II
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type EN-EL14a BLH-1
    Battery Life (CIPA)1550 shots per charge440 shots per charge
    Body Dimensions 124 x 97 x 70 mm
    (4.9 x 3.8 x 2.8 in)
    134 x 91 x 67 mm
    (5.3 x 3.6 x 2.6 in)
    Camera Weight 415 g (14.6 oz) 574 g (20.2 oz)
    logo
    Check D3500 price at
    amazon.com
    logo
    Check E-M1 II offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D3500 vs Olympus E-M1 II
