Nikon D3400 vs Olympus E-PL7

The Nikon D3400 and the Olympus PEN E-PL7 are two digital cameras that were officially introduced, respectively, in August 2016 and August 2014. The D3400 is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3400) and a Four Thirds (E-PL7) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D3400   Olympus E-PL7
Nikon D3400 Olympus E-PL7
Digital single lens reflex Mirrorless system camera
Nikon F mount lenses Micro Four Thirds lenses
24 MP, APS-C Sensor 15.9 MP, Four Thirds Sensor
1080/60p Video 1080/30p Video
ISO 100-25600 ISO 200-25600
Optical viewfinder Viewfinder optional
3.0" LCD, 921k dots 3.0" LCD, 1037k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
5 shutter flaps per second 8 shutter flaps per second
Lens stabilization onlyIn-body stabilization
1200 shots per battery charge350 shots per battery charge
124 x 98 x 76 mm, 445 g 115 x 67 x 38 mm, 357 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3400 and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon D3400 and the Olympus E-PL7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The D3400 can be obtained in two different colors (black, red), while the E-PL7 is also available in two color-versions, but different ones (black, silver).

Size Nikon D3400 vs Olympus E-PL7

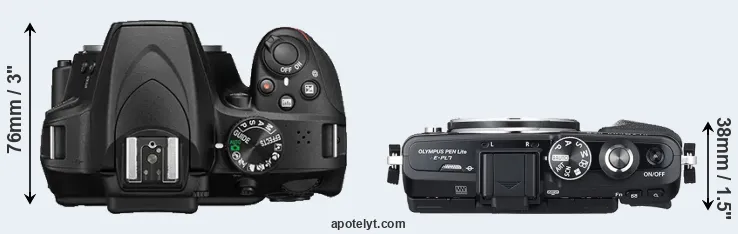

Compare D3400 versus E-PL7 top

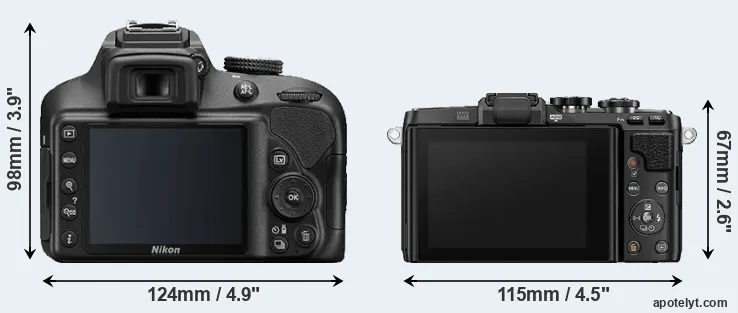

Comparison D3400 or E-PL7 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (37 percent) than the Nikon D3400. Moreover, the E-PL7 is markedly lighter (20 percent) than the D3400. In this context, it is worth noting that neither the D3400 nor the E-PL7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3400) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D3400 gets 1200 shots out of its EN-EL14a battery, while the E-PL7 can take 350 images on a single charge of its BLS-50 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Nikon D3400» 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499- i Nikon D3400

Olympus E-PL7« 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Aug 2014 599- i Olympus E-PL7

Canon SL2« » 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549- i Canon SL2

Nikon D3500« » 4.9 in 3.8 in 2.8 in 12.9 oz 1550 n Aug 2018 429 i i Nikon D3500

Nikon D5600« » 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i i Nikon D5600

Nikon D500« » 5.8 in 4.5 in 3.2 in 30.3 oz 1240 Y Jan 2016 1,999 i i Nikon D500

Nikon D5500« » 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899- i Nikon D5500

Nikon D7200« » 5.4 in 4.2 in 3.0 in 27.0 oz 1110 Y Mar 2015 1,199- i Nikon D7200

Nikon D3300« » 4.9 in 3.9 in 3.0 in 15.2 oz 700 n Jan 2014 499- i Nikon D3300

Nikon D5300« » 4.9 in 3.9 in 3.0 in 16.9 oz 600 n Oct 2013 799- i Nikon D5300

Nikon D3200« » 4.9 in 3.8 in 3.0 in 17.8 oz 540 n Apr 2012 599- i Nikon D3200

Nikon D5200« » 5.1 in 3.9 in 3.1 in 19.6 oz 500 n Nov 2012 749- i Nikon D5200

Olympus E-PL8« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Sep 2016 549- i Olympus E-PL8

Olympus E-M10 II« » 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 649- i Olympus E-M10 II

Olympus E-M10« » 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10

Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5

Olympus E-PL6« » 4.4 in 2.5 in 1.5 in 11.5 oz 360 n May 2013 599- i Olympus E-PL6
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3400 was launched at a somewhat lower price (by 17 percent) than the E-PL7, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3400 features an APS-C sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3400 has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.

Nikon D3400 and Olympus E-PL7 sensor measures

With 24MP, the D3400 offers a higher resolution than the E-PL7 (15.9MP), but the D3400 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.76μm for the E-PL7) due to its larger sensor. Moreover, the D3400 is a somewhat more recent model (by 1 year and 11 months) than the E-PL7, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL7 are 23 x 17.3 inch or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inch or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inch or 39 x 29.3 cm for excellent quality prints.

The Nikon D3400 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

D3400 versus E-PL7 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D3400 provides substantially higher image quality than the E-PL7, with an overall score that is 14 points higher. This advantage is based on 2.1 bits higher color depth, 1.5 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Nikon D3400» APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400

Olympus E-PL7« Four Thirds 15.9 4608 34561080/30p22.712.487372Olympus E-PL7

Canon SL2« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2

Nikon D3500« » APS-C 24.0 6000 40001080/60p----Nikon D3500

Nikon D5600« » APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600

Nikon D500« » APS-C 20.7 5568 37124K/30p24.014.0132483Nikon D500

Nikon D5500« » APS-C 24.0 6000 40001080/60p24.114.0143884Nikon D5500

Nikon D7200« » APS-C 24.0 6000 40001080/60p24.514.6133387Nikon D7200

Nikon D3300« » APS-C 24.0 6000 40001080/60p24.312.8138582Nikon D3300

Nikon D5300« » APS-C 24.0 6000 40001080/60p24.013.9133883Nikon D5300

Nikon D3200« » APS-C 24.1 6016 40001080/30p24.113.2113181Nikon D3200

Nikon D5200« » APS-C 24.0 6000 40001080/60i24.213.9128484Nikon D5200

Olympus E-PL8« » Four Thirds 15.9 4608 34561080/30p----Olympus E-PL8

Olympus E-M10 II« » Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II

Olympus E-M10« » Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10

Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5

Olympus E-PL6« » Four Thirds 15.9 4608 34561080/30p----Olympus E-PL6

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D3400 provides a higher frame rate than the E-PL7. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.



Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D3400 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Nikon D3400, the Olympus E-PL7, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Nikon D3400»optical n 3.0 921 fixed n 1/4000s 5.0 Y n Nikon D3400

Olympus E-PL7«- n 3.0 1037 tilting Y 1/4000s 8.0 n Y Olympus E-PL7

Canon SL2« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL2

Nikon D3500« »optical n 3.0 921 fixed n 1/4000s 5.0 Y n Nikon D3500

Nikon D5600« »optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n Nikon D5600

Nikon D500« »optical Y 3.2 2359 tilting Y 1/8000s 10.0 n n Nikon D500

Nikon D5500« »optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n Nikon D5500

Nikon D7200« »optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n Nikon D7200

Nikon D3300« »optical n 3.0 921 fixed n 1/4000s 5.0 Y n Nikon D3300

Nikon D5300« »optical n 3.2 1037 swivel n 1/4000s 5.0 Y n Nikon D5300

Nikon D3200« »optical n 3.0 921 fixed n 1/4000s 4.0 Y n Nikon D3200

Nikon D5200« »optical n 3.0 921 swivel n 1/4000s 5.0 Y n Nikon D5200

Olympus E-PL8« »- n 3.0 1037 tilting Y 1/4000s 8.0 n Y Olympus E-PL8

Olympus E-M10 II« »2360 n 3.0 1040 tilting Y 1/4000s 8.0 Y Y Olympus E-M10 II

Olympus E-M10« »1440 n 3.0 1037 tilting Y 1/4000s 8.0 Y Y Olympus E-M10

Olympus E-P5« »- n 3.0 1037 tilting Y 1/8000s 9.0 Y Y Olympus E-P5

Olympus E-PL6« »- n 3.0 460 tilting Y 1/4000s 8.0 n Y Olympus E-PL6

One difference between the cameras concerns the presence of an on-board flash. The D3400 has one, while the E-PL7 does not. While the built-in flash of the D3400 is not very powerful, it can at times be useful as a fill-in light.

The E-PL7 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D3400 does not have a selfie-screen.

The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D3400 and the E-PL7 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3400 and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Nikon D3400»Ymonomono--mini2.0--YNikon D3400

Olympus E-PL7«Ystereomono--micro2.0Y--Olympus E-PL7

Canon SL2« »YstereomonoY-mini2.0YYYCanon SL2

Nikon D3500« »Ymonomono--mini2.0--YNikon D3500

Nikon D5600« »YstereomonoY-mini2.0YYYNikon D5600

Nikon D500« »YstereomonoYYmini3.0YYYNikon D500

Nikon D5500« »YstereomonoY-mini2.0Y--Nikon D5500

Nikon D7200« »YstereomonoYYmini2.0YY-Nikon D7200

Nikon D3300« »YmonomonoY-mini2.0---Nikon D3300

Nikon D5300« »YstereomonoY-mini2.0Y--Nikon D5300

Nikon D3200« »YmonomonoY-mini2.0---Nikon D3200

Nikon D5200« »YstereomonoY-mini2.0---Nikon D5200

Olympus E-PL8« »Ystereomono--micro2.0Y--Olympus E-PL8

Olympus E-M10 II« »Ystereomono--micro2.0Y--Olympus E-M10 II

Olympus E-M10« »Ystereomono--micro2.0Y--Olympus E-M10

Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5

Olympus E-PL6« »Ystereomono--mini2.0---Olympus E-PL6

It is notable that the E-PL7 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3400 does not offer wifi capability.

Both the D3400 and the E-PL7 have been discontinued, but can regularly be found used on eBay. The E-PL7 was replaced by the Olympus E-PL8, while the D3400 was followed by the Nikon D3500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.


Review summary

So how do things add up? Is the Nikon D3400 better than the Olympus E-PL7 or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Nikon D3400:

  • More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (14 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.1 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (1.5 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Longer lasting: Can take more shots (1200 versus 350) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 1 year and 11 months after the E-PL7).

ilogo

Reasons to prefer the Olympus PEN E-PL7:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (115x67mm vs 124x98mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 88g or 20 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More heavily discounted: Has been on the market for longer (launched in August 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (13 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D3400 13:13 E-PL7

How about other alternatives? Do the specifications of the Nikon D3400 and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D3400 and the E-PL7 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Nikon D3400»+76/1004/54.5/54.5/5 Aug 2016 499- i Nikon D3400

Olympus E-PL7«+-5/54.5/54/5 Aug 2014 599- i Olympus E-PL7

Canon SL2« »+ +78/1004.5/54.5/54.5/5 Jun 2017 549- i Canon SL2

Nikon D3500« »--4/54.5/54.5/5 Aug 2018 429 i i Nikon D3500

Nikon D5600« »-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600

Nikon D500« »+ +91/1004.5/55/55/5 Jan 2016 1,999 i i Nikon D500

Nikon D5500« »+79/1004.5/55/54.5/5 Jan 2015 899- i Nikon D5500

Nikon D7200« »+ +84/1004.5/54/54.5/5 Mar 2015 1,199- i Nikon D7200

Nikon D3300« »+77/1004.5/54.5/54.5/5 Jan 2014 499- i Nikon D3300

Nikon D5300« »+ +79/1004.5/54.5/54.5/5 Oct 2013 799- i Nikon D5300

Nikon D3200« »+ +73/1004.5/54.5/54.5/5 Apr 2012 599- i Nikon D3200

Nikon D5200« »+ +79/1004.5/54.5/54.5/5 Nov 2012 749- i Nikon D5200

Olympus E-PL8« »--4.5/5-4/5 Sep 2016 549- i Olympus E-PL8

Olympus E-M10 II« »+ +80/1005/55/55/5 Aug 2015 649- i Olympus E-M10 II

Olympus E-M10« »-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10

Olympus E-P5« »+ +78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5

Olympus E-PL6« »----- May 2013 599- i Olympus E-PL6
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Nikon D3400:
Check Ebay offers
Olympus E-PL7:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Nikon D3400 vs Olympus E-PL7

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D3400 Olympus E-PL7
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Nikon F mount lenses Micro Four Thirds lenses
    Launch Date August 2016 August 2014
    Launch Price USD 499 USD 599
    Sensor Specs Nikon D3400 Olympus E-PL7
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 23.5 x 15.6 mm 17.3 x 13.0 mm
    Sensor Area 366.6 mm2 224.9 mm2
    Sensor Diagonal 28.2 mm 21.6 mm
    Crop Factor 1.5x 2.0x
    Sensor Resolution 24 Megapixels 15.9 Megapixels
    Image Resolution 6000 x 4000 pixels 4608 x 3456 pixels
    Pixel Pitch 3.91 μm 3.76 μm
    Pixel Density 6.55 MP/cm2 7.08 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/30p Video
    ISO Setting 100-25600 ISO 200-25600 ISO
    ISO Boost no Enhancement 100-25600 ISO
    Image Processor EXPEED 4 TruePic VII
    DXO Sensor Quality (score) 86 72
    DXO Color Depth (bits) 24.8 22.7
    DXO Dynamic Range (EV) 13.9 12.4
    DXO Low Light (ISO) 1192 873
    Screen Specs Nikon D3400 Olympus E-PL7
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.57x
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 921k dots 1037k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Nikon D3400 Olympus E-PL7
    Autofocus System Phase-detect AF Contrast-detect AF
    Manual Focusing AidNo Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000/s 1/4000/s
    Continuous Shooting 5 shutter flaps/s 8 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Build-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Nikon D3400 Olympus E-PL7
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Nikon D3400 Olympus E-PL7
    Battery Type EN-EL14a BLS-50
    Battery Life (CIPA)1200 shots per charge350 shots per charge
    Body Dimensions 124 x 98 x 76 mm
    (4.9 x 3.9 x 3.0 in)
    115 x 67 x 38 mm
    (4.5 x 2.6 x 1.5 in)
    Camera Weight 445 g (15.7 oz) 357 g (12.6 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D3400 vs Olympus E-PL7
