Nikon D3300 vs Olympus E-M1 II
The Nikon D3300 and the Olympus OM-D E-M1 Mark II are two digital cameras that were officially introduced, respectively, in January 2014 and September 2016. The D3300 is a DSLR, while the E-M1 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3300) and a Four Thirds (E-M1 II) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3300 and the Olympus OM-D E-M1 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

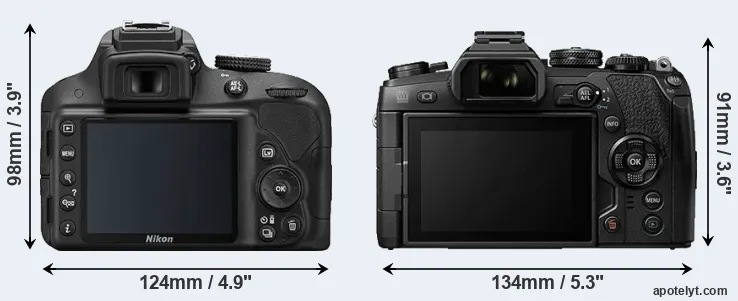

An illustration of the physical size and weight of the Nikon D3300 and the Olympus E-M1 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The D3300 can be obtained in three different colors (black, grey, red), while the E-M1 II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3300 and the Olympus E-M1 II are of equal size. However, the E-M1 II is markedly heavier (33 percent) than the D3300. It is noteworthy in this context that the E-M1 II is splash and dust-proof, while the D3300 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3300) and the Micro Four Thirds Lens Catalog (E-M1 II). Mirrorless cameras, such as the E-M1 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Nikon D3300||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499|
|Olympus E-M1 II||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999|
|Nikon D3500||4.9 in||3.8 in||2.8 in||12.9 oz||1550||n||Aug 2018||429|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D3400||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499|
|Nikon D5500||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899|
|Nikon D7100||5.4 in||4.2 in||3.0 in||27.0 oz||950||Y||Feb 2013||1,199|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D3200||4.9 in||3.8 in||3.0 in||17.8 oz||540||n||Apr 2012||599|
|Olympus E-M1 III||5.3 in||3.6 in||2.7 in||20.5 oz||420||Y||Feb 2020||1,799|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Panasonic G9||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic GX8||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199|
|Sony A5000||4.3 in||2.5 in||1.4 in||9.5 oz||420||n||Jan 2014||449|
|Sony A5100||4.3 in||2.5 in||1.4 in||10.0 oz||400||n||Aug 2014||549|
|Sony A6000||4.7 in||2.6 in||1.8 in||12.1 oz||360||n||Feb 2014||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D3300 was launched at a markedly lower price (by 75 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D3300 features an APS-C sensor and the Olympus E-M1 II a Four Thirds sensor. The sensor area in the E-M1 II is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3300 has a native 3:2 aspect ratio, while the one in the E-M1 II offers a 4:3 aspect.
With 24MP, the D3300 offers a higher resolution than the E-M1 II (20.2MP), but the D3300 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.34μm for the E-M1 II) due to its larger sensor. However, the E-M1 II is a much more recent model (by 2 years and 8 months) than the D3300, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Nikon D3300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M1 II are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the D3300, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon D3300 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-M1 II provides a better video resolution than the D3300. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1 II has an electronic viewfinder (2360k dots), while the D3300 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1 II offers a wider field of view (100%) than the one in the D3300 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1 II has a higher magnification (0.74x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D3300 and Olympus E-M1 II in connection with corresponding information for a sample of similar cameras.
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Olympus E-M1 III||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The D3300 has one, while the E-M1 II does not. While the built-in flash of the D3300 is not very powerful, it can at times be useful as a fill-in light.The E-M1 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D3300 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D3300 and the E-M1 II write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the D3300 only has one slot. The E-M1 II supports UHS-II cards (on its first slot), while the D3300 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3300 and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Olympus E-M1 III||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y|
It is notable that the E-M1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3300 does not provide wifi capability.
Studio photographers will appreciate that the Olympus E-M1 II (unlike the D3300) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the D3300 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D3300 was succeeded by the Nikon D3400. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Which of the two cameras – the Nikon D3300 or the Olympus E-M1 II – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon D3300:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Less heavy: Is lighter (by 144g or 25 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (700 versus 440) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in January 2014).
Advantages of the Olympus OM-D E-M1 Mark II:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.57x).
- More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 2 years and 8 months of technical progress since the D3300 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the contest (24 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D3300 and the Olympus E-M1 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D3300 or the E-M1 II perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Nikon D3500||..||75/100||4/5||4.5/5||4.5/5||Aug 2018||429|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Nikon D7100||+ +||85/100||4.5/5||5/5||4.5/5||Feb 2013||1,199|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Olympus E-M1 III||..||83/100||4.5/5||..||4/5||Feb 2020||1,799|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Panasonic G9||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Sony A5000||+||..||4.5/5||o||4.5/5||Jan 2014||449|
|Sony A5100||+||..||4.5/5||4.5/5||5/5||Aug 2014||549|
|Sony A6000||+||80/100||4.5/5||5/5||5/5||Feb 2014||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 7D vs Nikon D3300
- Canon M vs Nikon D3300
- Leica D-LUX 6 vs Olympus E-M1 II
- Leica Digilux 3 vs Olympus E-M1 II
- Leica M8 vs Nikon D3300
- Leica X2 vs Olympus E-M1 II
- Nikon D200 vs Nikon D3300
- Nikon D3300 vs Olympus TG-4
- Nikon D3300 vs Panasonic ZS80
- Nikon P7800 vs Olympus E-M1 II
- Olympus E-M1 II vs Panasonic G6
- Olympus E-M1 II vs Panasonic GF1
Specifications: Nikon D3300 vs Olympus E-M1 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D3300||Olympus E-M1 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2014||September 2016|
|Launch Price||USD 499||USD 1,999|
|Sensor Specs||Nikon D3300||Olympus E-M1 II|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.91 μm||3.34 μm|
|Pixel Density||6.55 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||64 - 25,600 ISO|
|Image Processor||EXPEED 4||TruePic VIII|
|DXO Sensor Quality (score)||82||80|
|DXO Color Depth (bits)||24.3||23.7|
|DXO Dynamic Range (EV)||12.8||12.8|
|DXO Low Light (ISO)||1385||1312|
|Screen Specs||Nikon D3300||Olympus E-M1 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D3300||Olympus E-M1 II|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||18 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Single UHS-II|
|Connectivity Specs||Nikon D3300||Olympus E-M1 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Nikon D3300||Olympus E-M1 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||700 shots per charge||440 shots per charge|
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
|Camera Weight||430 g (15.2 oz)||574 g (20.2 oz)|
