Leica SL vs Sony NEX-5
The Leica SL (Typ 601) and the Sony Alpha NEX-5 are two digital cameras that were revealed to the public, respectively, in October 2015 and May 2010. Both the SL and the NEX-5 are mirrorless interchangeable lens cameras that are based on a full frame (SL) and an APS-C (NEX-5) sensor. The Leica has a resolution of 24 megapixels, whereas the Sony provides 14 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica SL||Sony NEX-5|
|Mirrorless system camera||Mirrorless system camera|
|Leica L mount lenses||Sony E mount lenses|
|24 MP, Full Frame Sensor||14 MP, APS-C Sensor|
|4K/30p Video||1080/60i Video|
|ISO 50-50,000||ISO 200-12,800|
|Electronic viewfinder (4400k dots)||Viewfinder optional|
|3.0 LCD, 1040k dots||3.0 LCD, 920k dots|
|Fixed touchscreen||Tilting screen (not touch-sensitive)|
|11 shutter flaps per second||7 shutter flaps per second|
|Weathersealed body||not weather sealed|
|400 shots per battery charge||330 shots per battery charge|
|147 x 104 x 39 mm, 847 g||111 x 59 x 38 mm, 287 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica SL (Typ 601) and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

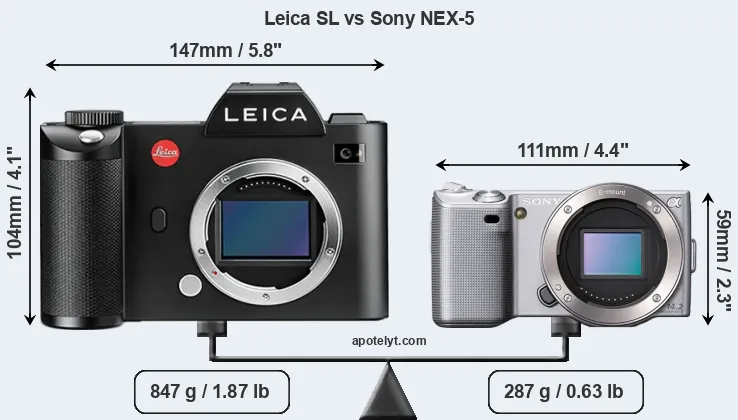

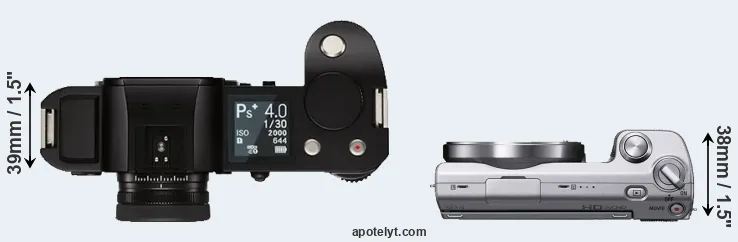

An illustration of the physical size and weight of the Leica SL and the Sony NEX-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The NEX-5 can be obtained in two different colors (black, silver), while the SL is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is considerably smaller (57 percent) than the Leica SL. Moreover, the NEX-5 is substantially lighter (66 percent) than the SL. It is worth mentioning in this context that the SL is splash and dust resistant, while the NEX-5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Leica SL||5.8 in||4.1 in||1.5 in||29.9 oz||400||Y||Oct 2015||7,450|
|Sony NEX-5||4.4 in||2.3 in||1.5 in||10.1 oz||330||n||May 2010||699|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 80D||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Leica SL2||5.7 in||4.2 in||1.7 in||33.6 oz||370||Y||Nov 2019||5,999|
|Leica M10||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Jan 2017||6,595|
|Leica M Typ 240||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Sep 2012||6,950|
|Nikon D5||6.3 in||6.3 in||3.6 in||49.9 oz||3780||Y||Jan 2016||6,499|
|Nikon D500||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999|
|Nikon D7200||5.4 in||4.2 in||3.0 in||27.0 oz||1110||Y||Mar 2015||1,199|
|Nikon D750||5.6 in||4.4 in||3.1 in||26.5 oz||1230||Y||Sep 2014||2,299|
|Sony NEX-5R||4.4 in||2.3 in||1.5 in||9.7 oz||330||n||Aug 2012||749|
|Sony NEX-F3||4.6 in||2.6 in||1.7 in||11.1 oz||470||n||May 2012||599|
|Sony NEX-5N||4.4 in||2.3 in||1.5 in||9.5 oz||460||n||Aug 2011||699|
|Sony NEX-C3||4.3 in||2.4 in||1.3 in||7.9 oz||400||n||Jun 2011||599|
|Sony NEX-3||4.6 in||2.4 in||1.3 in||10.5 oz||330||n||May 2010||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-5 was launched at a markedly lower price (by 91 percent) than the SL, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

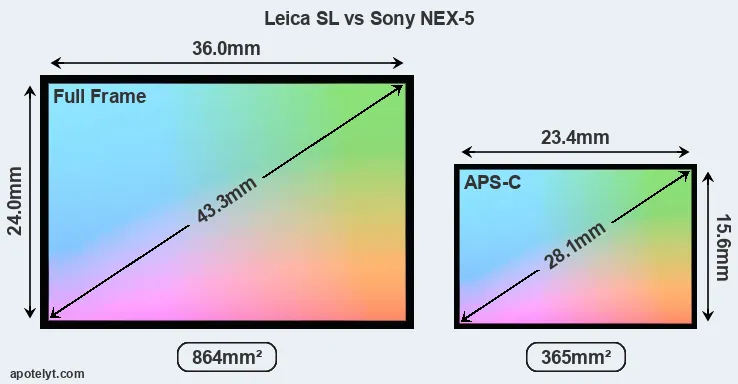

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica SL features a full frame sensor and the Sony NEX-5 an APS-C sensor. The sensor area in the NEX-5 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 24MP, the SL offers a higher resolution than the NEX-5 (14MP), but the SL nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 5.11μm for the NEX-5) due to its larger sensor. Moreover, the SL is a much more recent model (by 5 years and 5 months) than the NEX-5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica SL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Sony NEX-5 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.
The Leica SL (Typ 601) has a native sensitivity range from ISO 50 to ISO 50000. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the SL provides substantially higher image quality than the NEX-5, with an overall score that is 19 points higher. This advantage is based on 2.8 bits higher color depth, 1.2 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Leica SL2||Full Frame||46.7||8368||5584||4K/60p||..||..||..||..|
|Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SL provides a higher video resolution than the NEX-5. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the SL has an electronic viewfinder (4400k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The table below summarizes some of the other core capabilities of the Leica SL and Sony NEX-5 in connection with corresponding information for a sample of similar cameras.
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
One feature that is present on the SL, but is missing on the NEX-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The NEX-5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SL does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the SL is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Leica SL has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The SL writes its imaging data to SDXC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The SL features dual card slots, which can be very useful in case a memory card fails. In contrast, the NEX-5 only has one slot. The SL supports UHS-II cards on its first slot and UHS-I on its second one, while the NEX-5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica SL (Typ 601) and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
It is notable that the SL has a microphone port, which is missing on the NEX-5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Leica SL (unlike the NEX-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the SL has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the SL and the NEX-5 have been discontinued, but can regularly be found used on eBay. The NEX-5 was replaced by the Sony NEX-5N, while the SL was followed by the Leica SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Sony websites.
So how do things add up? Is the Leica SL better than the Sony NEX-5 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Leica SL (Typ 601):
- More detail: Offers more megapixels (24 vs 14MP) with a 31% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (19 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.8 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.2 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (11 vs 7 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (400 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports Ultra High Speed (UHS-II and UHS-I) SDXC cards.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 5 years and 5 months of technical progress since the NEX-5 launch.
Reasons to prefer the Sony Alpha NEX-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (111x59mm vs 147x104mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 560g or 66 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (91 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2010).
If the number of relative strengths (bullet points above) is taken as a guide, the SL is the clear winner of the match-up (28 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica SL and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SL or the NEX-5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Leica SL||..||84/100||4.5/5||4/5||4/5||Oct 2015||7,450|
|Sony NEX-5||+ +||71/100||4.5/5||4/5||4/5||May 2010||699|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Leica SL2||..||..||4.5/5||..||4/5||Nov 2019||5,999|
|Leica M10||..||..||4/5||..||4.5/5||Jan 2017||6,595|
|Leica M Typ 240||..||..||4/5||..||..||Sep 2012||6,950|
|Nikon D5||..||89/100||4.5/5||5/5||5/5||Jan 2016||6,499|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Nikon D750||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299|
|Sony NEX-5R||..||..||4.5/5||..||4.5/5||Aug 2012||749|
|Sony NEX-F3||..||74/100||4.5/5||4.5/5||4.5/5||May 2012||599|
|Sony NEX-5N||+ +||79/100||4.5/5||5/5||4.5/5||Aug 2011||699|
|Sony NEX-C3||+ +||74/100||4.5/5||4.5/5||4/5||Jun 2011||599|
|Sony NEX-3||..||70/100||4.5/5||5/5||4/5||May 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Leica SL vs Sony NEX-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica SL||Sony NEX-5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Leica L mount lenses||Sony E mount lenses|
|Launch Date||October 2015||May 2010|
|Launch Price||USD 7,450||USD 699|
|Sensor Specs||Leica SL||Sony NEX-5|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.4 x 15.6 mm|
|Sensor Area||864 mm2||365.04 mm2|
|Sensor Diagonal||43.3 mm||28.1 mm|
|Sensor Resolution||24 Megapixels||14 Megapixels|
|Image Resolution||6000 x 4000 pixels||4592 x 3056 pixels|
|Pixel Pitch||6.00 μm||5.11 μm|
|Pixel Density||2.78 MP/cm2||3.84 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60i Video|
|ISO Setting||50 - 50,000 ISO||200 - 12,800 ISO|
|Image Processor||Maestro II||BIONZ|
|DXO Sensor Quality (score)||88||69|
|DXO Color Depth (bits)||25.0||22.2|
|DXO Dynamic Range (EV)||13.4||12.2|
|DXO Low Light (ISO)||1821||796|
|Screen Specs||Leica SL||Sony NEX-5|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||4400k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica SL||Sony NEX-5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||11 shutter flaps/s||7 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||Single UHS-II||no|
|Connectivity Specs||Leica SL||Sony NEX-5|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||full HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Leica SL||Sony NEX-5|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||330 shots per charge|
147 x 104 x 39 mm
(5.8 x 4.1 x 1.5 in)
111 x 59 x 38 mm
(4.4 x 2.3 x 1.5 in)
|Camera Weight||847 g (29.9 oz)||287 g (10.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
