Leica D-LUX 6 vs Olympus E-500

The Leica D-LUX 6 and the Olympus Evolt E-500 are two digital cameras that were officially introduced, respectively, in September 2012 and September 2005. The D-LUX 6 is a fixed lens compact, while the E-500 is a DSLR. The cameras are based on a 1/1.7-inch (D-LUX 6) and a Four Thirds (E-500) sensor. The Leica has a resolution of 10 megapixels, whereas the Olympus provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX 6		Olympus E-500
Fixed lens compact camera		Digital single lens reflex
24-90mm f/1.4-2.3		Four Thirds lenses
10 MP – 1/1.7" sensor		8 MP – Four Thirds sensor
1080/60p Video		no Video
ISO 80-6,400 (80 - 12,800)		ISO 100-400 (100 - 1,600)
Viewfinder optional		Optical viewfinder
3.0" LCD – 920k dots		2.5" LCD – 215k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
11 shutter flaps per second		2.5 shutter flaps per second
330 shots per battery charge		750 shots per battery charge
111 x 68 x 46 mm, 298 g		130 x 95 x 66 mm, 479 g

Check D-LUX 6 offers at
ebay.com
Check E-500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX 6 and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

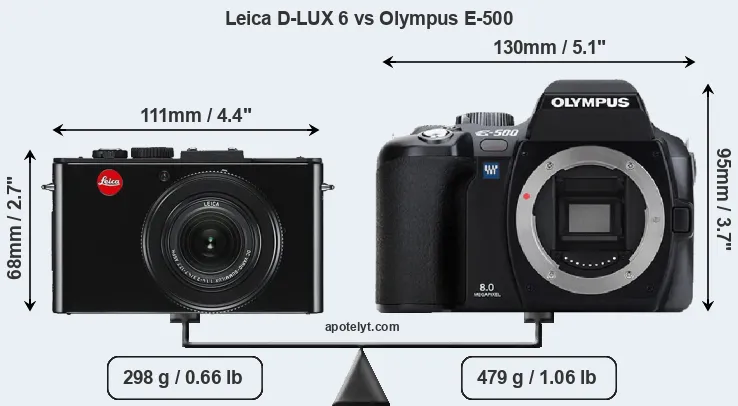

Body comparison

An illustration of the physical size and weight of the Leica D-LUX 6 and the Olympus E-500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The D-LUX 6 can be obtained in three different colors (black, silver, white), while the E-500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is considerably larger (64 percent) than the Leica D-LUX 6. In this context, it is worth noting that neither the D-LUX 6 nor the E-500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 6 has a lens built in, whereas the E-500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-500 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the D-LUX 6 gets 330 shots out of its Leica BP-DC10 battery, while the E-500 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	EUR 699	ebay.com
2.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	EUR 599	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	EUR 599	ebay.com
4.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	EUR 529	ebay.com
5.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	EUR 549	ebay.com
6.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	EUR 995	ebay.com
7.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	EUR 699	ebay.com
8.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	EUR 1 749	ebay.com
9.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	EUR 799	ebay.com
10.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	EUR 999	ebay.com
11.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	EUR 699	ebay.com
12.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	EUR 699	ebay.com
13.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	EUR 799	ebay.com
14.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	EUR 599	ebay.com
15.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	EUR 529	ebay.com
16.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	EUR 749	ebay.com
17.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	EUR 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

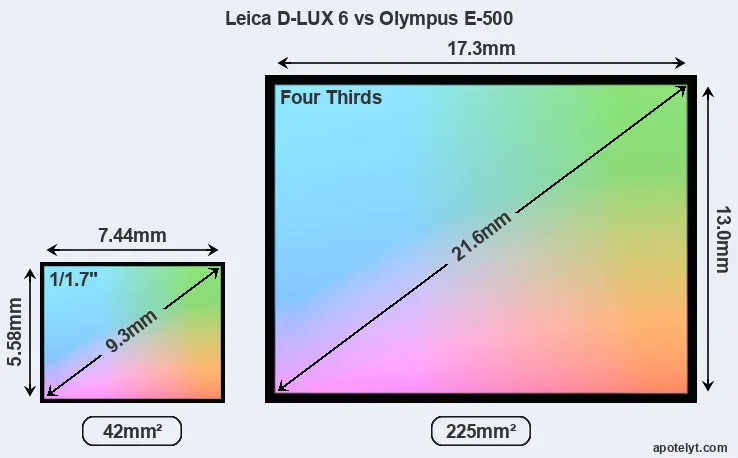

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica D-LUX 6 features a 1/1.7-inch sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 436 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.65 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX 6 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

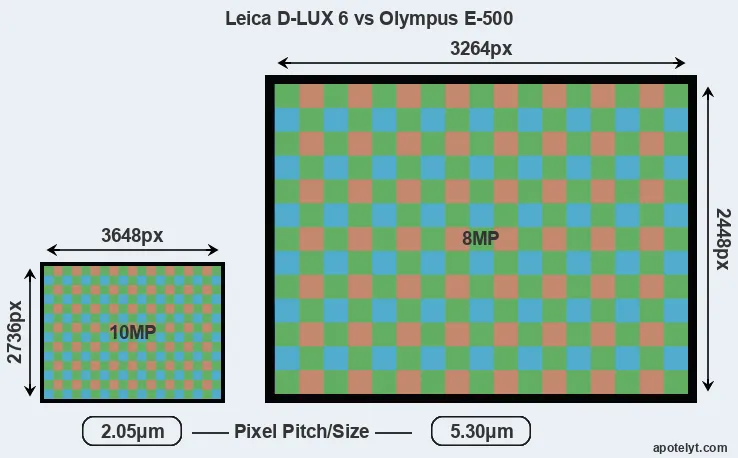

Despite having a smaller sensor, the Leica D-LUX 6 offers a higher resolution of 10 megapixels, compared with 8 MP of the Olympus E-500. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.05μm versus 5.30μm for the E-500). However, it should be noted that the D-LUX 6 is much more recent (by 6 years and 11 months) than the E-500, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Leica D-LUX 6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D-LUX 6 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The Leica D-LUX 6 has a native sensitivity range from ISO 80 to ISO 6400, which can be extended to ISO 80-12800. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the D-LUX 6 is build around a CMOS sensor, while the E-500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
2.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
5.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
6.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
7.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
8.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
9.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
10.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
11.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
12.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
13.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
14.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
15.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
16.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
17.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The D-LUX 6 indeed provides movie recording capabilities, while the E-500 does not. The highest resolution format that the D-LUX 6 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the D-LUX 6 relies on live view and the rear LCD for framing. That said, the D-LUX 6 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Leica D-LUX 6 and Olympus E-500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
2.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
5.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
6.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
7.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
8.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
9.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
10.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
11.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
12.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
13.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
14.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
15.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
16.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Leica D-LUX 6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D-LUX 6 writes its imaging data to SDXC cards, while the E-500 uses Compact Flash or xD Picture cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D-LUX 6 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX 6 and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
6.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
9.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
14.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the D-LUX 6 and the E-500 have been discontinued, but can regularly be found used on ebay. The E-500 was replaced by the Olympus E-510, while the D-LUX 6 was followed by the Leica D-LUX Typ 109. Further information on the features and operation of the D-LUX 6 and E-500 can be found, respectively, in the Leica D-LUX 6 Manual (free pdf) or the online Olympus E-500 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Leica D-LUX 6 or the Olympus E-500 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica D-LUX 6:

• More detail: Offers more megapixels (10 vs 8MP) with a 12% higher linear resolution.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 215k dots).
• Faster burst: Shoots at higher frequency (11 vs 2.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with a built-in lens, while the E-500 requires a separate lens.
• More compact: Is smaller (111x68mm vs 130x95mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-500).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 6 years and 11 months of technical progress since the E-500 launch.

Advantages of the Olympus Evolt E-500:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 330) out of a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2005).

If the count of relative strengths (bullet points above) is taken as a measure, the D-LUX 6 is the clear winner of the match-up (13 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica D-LUX 6 and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D-LUX 6 or the E-500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	EUR 699	ebay.com
2.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	EUR 599	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	EUR 599	ebay.com
4.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	EUR 529	ebay.com
5.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	EUR 549	ebay.com
6.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	EUR 995	ebay.com
7.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	EUR 699	ebay.com
8.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	EUR 1 749	ebay.com
9.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	EUR 799	ebay.com
10.		Olympus E-330	..	..	..	+	o	..	Jan 2006	EUR 999	ebay.com
11.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	EUR 699	ebay.com
12.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	EUR 699	ebay.com
13.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	EUR 799	ebay.com
14.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	EUR 599	ebay.com
15.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	EUR 529	ebay.com
16.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	EUR 749	ebay.com
17.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	EUR 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
