Fujifilm XP140 vs Samsung NX500

The Fujifilm FinePix XP140 and the Samsung NX500 are two digital cameras that were officially introduced, respectively, in February 2019 and February 2015. The XP140 is a fixed lens compact, while the NX500 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (XP140) and an APS-C (NX500) sensor. The Fujifilm has a resolution of 15.9 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm XP140		Samsung NX500
Fixed lens compact camera		Mirrorless system camera
28-140mm f/3.9-4.9		Samsung NX mount lenses
15.9 MP – 1/2.3" sensor		28 MP – APS-C sensor
4K/15p Video		4K/30p Video
ISO 100-12,800		ISO 100-25,600 (100 - 51,200)
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
10 shutter flaps per second		9 shutter flaps per second
In-body stabilization		Lens stabilization only
Waterproof body (25m)		not weather sealed
240 shots per battery charge		370 shots per battery charge
110 x 71 x 28 mm, 207 g		120 x 64 x 43 mm, 287 g

Check XP140 offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm FinePix XP140 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

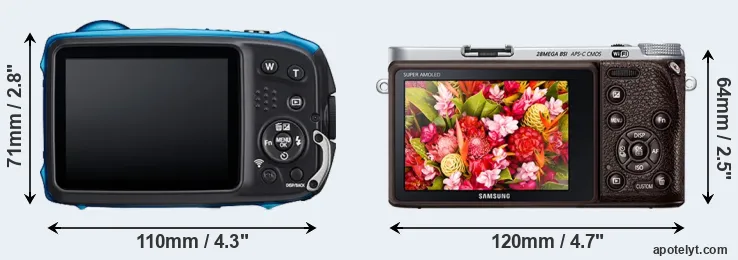

The physical size and weight of the Fujifilm XP140 and the Samsung NX500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The XP140 can be obtained in five different colors (black, blue, yellow, green, white), while the NX500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is somewhat smaller (2 percent) than the Fujifilm XP140. It is worth mentioning in this context that the XP140 is splash and dust resistant, while the NX500 does not feature any corresponding weather-sealing. More than that, the XP140 is water-proof up to 25m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XP140 has a lens built in, whereas the NX500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm XP140	110 mm	71 mm	28 mm	207 g	240	Y	Feb 2019	US$ 229	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
3.		Fujifilm XP120	110 mm	71 mm	28 mm	203 g	210	Y	Jan 2017	US$ 229	ebay.com
4.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
5.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
6.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
7.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
8.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
9.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	US$ 279	amazon.com
10.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
11.		Ricoh WG-6	118 mm	66 mm	33 mm	246 g	340	Y	Feb 2019	US$ 399	amazon.com
12.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	US$ 279	ebay.com
13.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
14.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
15.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 429	ebay.com
16.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 449	ebay.com
17.		Sony WX800	102 mm	58 mm	36 mm	233 g	370	n	Oct 2018	US$ 399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XP140 was launched at a lower price than the NX500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Fujifilm XP140 features a 1/2.3-inch sensor and the Samsung NX500 an APS-C sensor. The sensor area in the NX500 is 1218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the XP140 has a native 4:3 aspect ratio, while the one in the NX500 offers a 3:2 aspect.

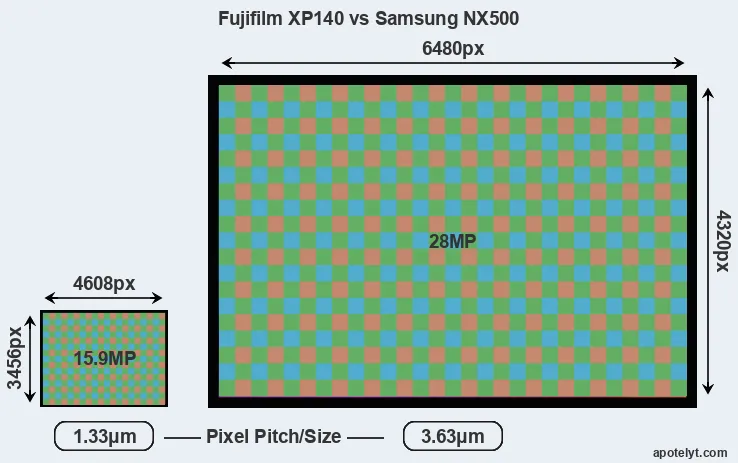

With 28MP, the NX500 offers a higher resolution than the XP140 (15.9MP), but the NX500 nevertheless has larger individual pixels (pixel pitch of 3.63μm versus 1.33μm for the XP140) due to its larger sensor. However, the XP140 is a much more recent model (by 4 years) than the NX500, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Fujifilm XP140 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The NX500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Fujifilm FinePix XP140 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm XP140	1/2.3	15.9	4608	3456	4K/15p	20.7	12.2	1102	52
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Fujifilm XP120	1/2.3	15.9	4608	3456	1080/60p	20.5	11.9	900	49
4.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
5.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
6.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
7.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
8.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
9.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
10.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
11.		Ricoh WG-6	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1104	52
12.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
13.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
14.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
15.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
16.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
17.		Sony WX800	1/2.3	18.0	4896	3672	4K/30p	20.6	12.2	1070	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the NX500 provides a faster frame rate than the XP140. It can shoot movie footage at 4K/30p, while the Fujifilm is limited to 4K/15p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The XP140 and the NX500 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Fujifilm XP140 and Samsung NX500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm XP140	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Fujifilm XP120	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
4.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
5.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
6.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
7.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
8.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
9.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
10.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
11.		Ricoh WG-6	none	n	3.0 / 1040	fixed	n	1/4000s	1.0/s	Y	n
12.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
13.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
14.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
15.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Sony WX800	none	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NX500 has a touchscreen, while the XP140 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Fujifilm XP140 and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the XP140 and the NX500 write their files to SDXC cards. The NX500 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XP140 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm FinePix XP140 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm XP140	-	mono / mono	-	-	micro	2.0	Y	-	Y
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Fujifilm XP120	-	mono / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
5.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
6.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
8.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
10.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Ricoh WG-6	-	mono / mono	-	-	micro	3.0	-	-	-
12.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-
13.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
16.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony WX800	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the NX500 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The XP140 does not feature such an accessory-socket.

Both the XP140 and the NX500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Fujifilm and Samsung. Further information on the features and operation of the XP140 and NX500 can be found, respectively, in the Fujifilm XP140 Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Fujifilm XP140 or the Samsung NX500 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Fujifilm FinePix XP140:

• Ready to shoot: Has a lens built-in, whereas the NX500 requires a separate lens.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the NX500).
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 25m).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years of technical progress since the NX500 launch.

Advantages of the Samsung NX500:

• More detail: Has more megapixels (28 vs 15.9MP), which boosts linear resolution by 35%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (4K/30p versus 4K/15p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 920k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (370 versus 240) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been around for much longer (launched in February 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the NX500 is the clear winner of the contest (18 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm XP140 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the XP140 or the NX500 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm XP140	..	+	..	..	3.5/5	4/5	Feb 2019	US$ 229	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
3.		Fujifilm XP120	..	o	..	..	3.5/5	4/5	Jan 2017	US$ 229	ebay.com
4.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
5.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
6.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
7.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
8.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
9.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	US$ 279	amazon.com
10.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
11.		Ricoh WG-6	..	..	..	..	3.5/5	3.5/5	Feb 2019	US$ 399	amazon.com
12.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	US$ 279	ebay.com
13.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
14.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
15.		Sony HX95	..	..	..	..	..	..	Aug 2018	US$ 429	ebay.com
16.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	US$ 449	ebay.com
17.		Sony WX800	..	..	..	..	..	..	Oct 2018	US$ 399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
